Description
General Information
- SKU: 1448100
- Manufacturer Product Page: GIGABYTE A520M DS3H AC 1.4
- Manufacturer Code: A520M DS3H AC 1.4
- Catalog: Mainboards for AMD CPUs
- EAN: 4719331810696
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.27 |
| M.2 | 1 |
| PCI-Express 3.0 16x | 1 |
| PCI-Express 3.0 1x | 1 |
| Audio port | 3 |
| DisplayPort | 1 |
| DVI-D | 1 |
| HDMI | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| USB 3.2 | 4 |
| Bluetooth | Yes |
| SATA | Yes |
| WiFi | Yes |
| Chipset | AMD A520 |
| Socket | SAM4 |
| Form Factor | Micro-ATX |
| Memory type | DDR4 |
| Frequency speed | 2133/2400/2667/2933/3200/3300/3333/3466/3600/3733/3800/3866/4000/4400 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated LAN | Realtek (Gigabit) |
| RAID | SATA 0, 1, 10 |
| TPM | Header |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.0060088 |
| Product Net Weight | 0.93 |
| Unit Calculated Weight | 1.03 |
Description

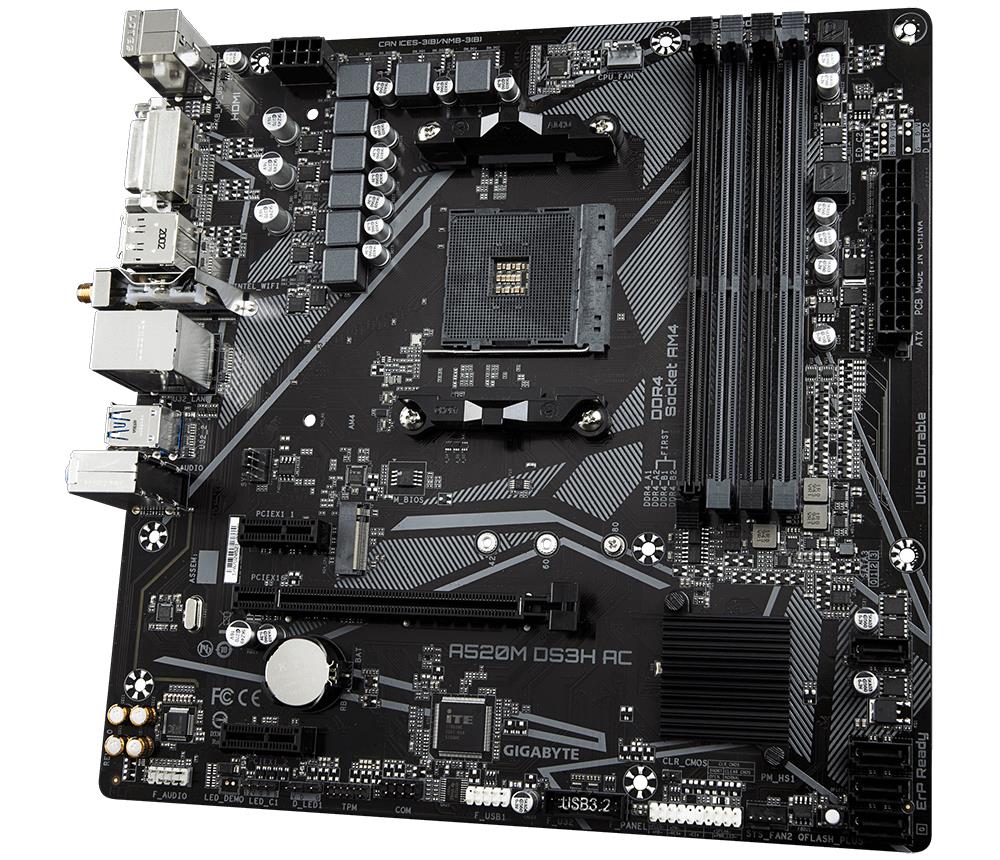

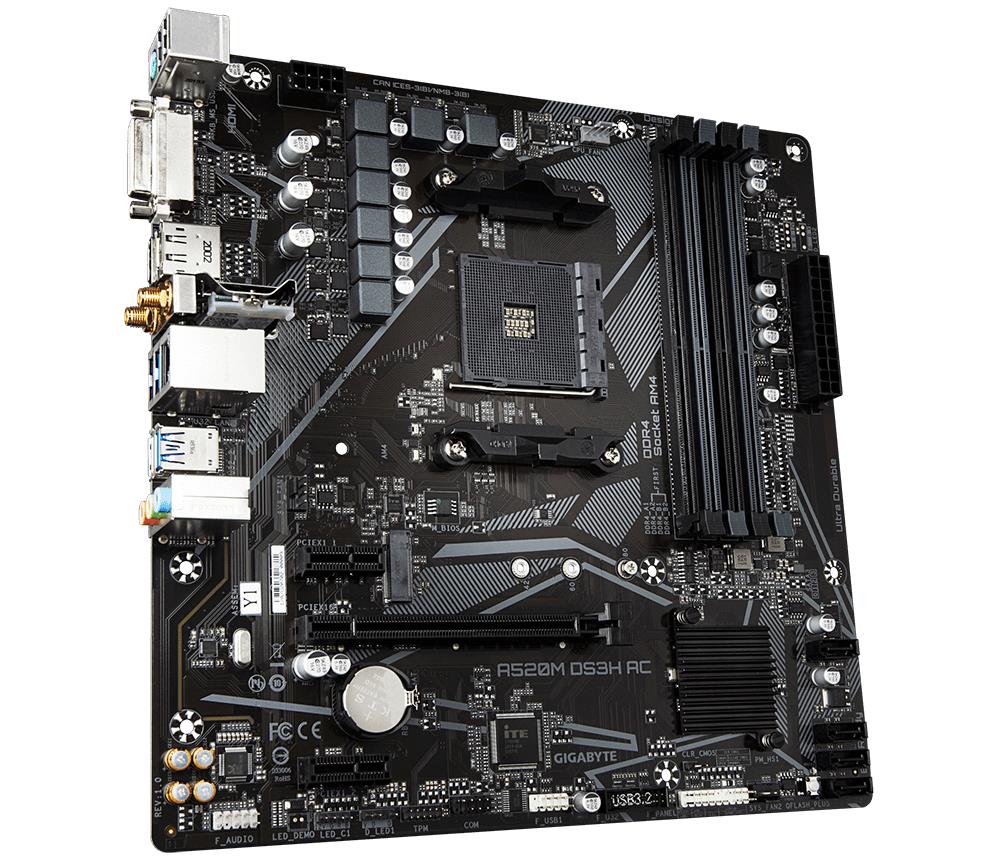

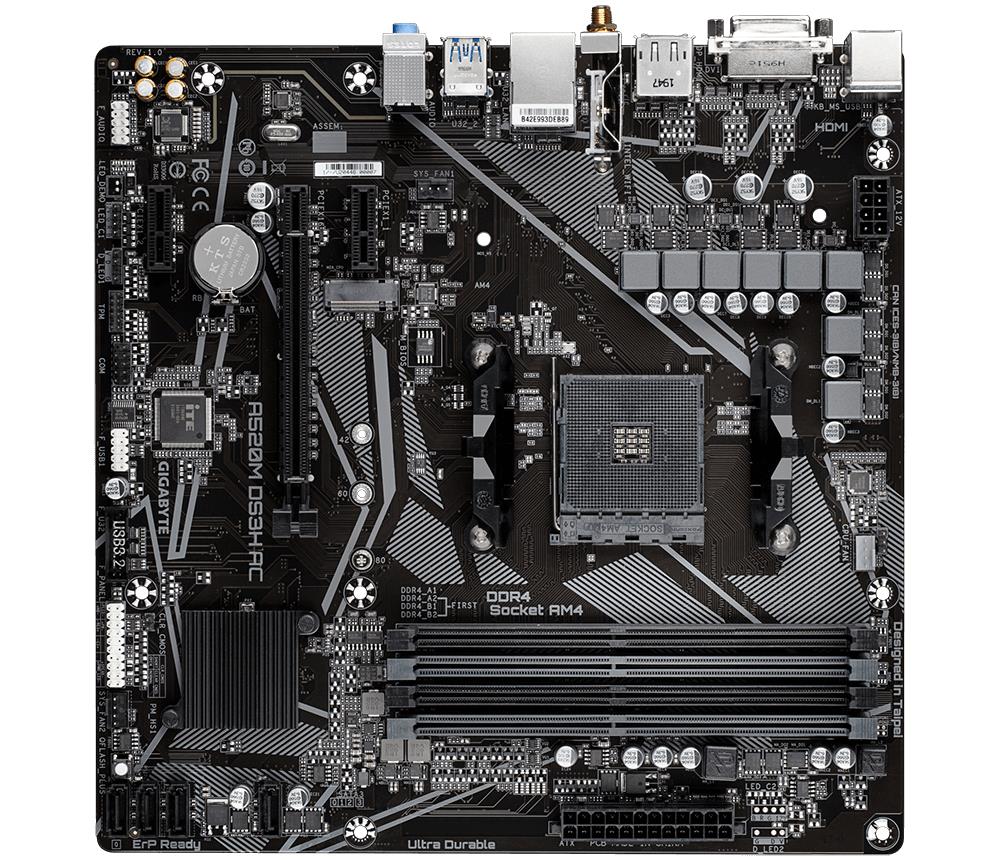

AMD A520 Motherboard with Pure Digital VRM Solution, High Quality Audio, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Intel Dual Band 802.11ac WIFI, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus
- Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
- 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
- Onboard Intel® Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- HDMI, DVI-D, Display Ports for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
