Description
General Information
- SKU: 1447475
- Manufacturer Product Page: GIGABYTE B550M DS3H R2
- Manufacturer Code: B550M DS3H R2
- Catalog: Mainboards for AMD CPUs
- EAN: 4719331870454
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.265 |
| Unit Box Width | 0.265 |
| M.2 | 1 |
| PCI-Express 3.0 16x | 1 |
| PCI-Express 4.0 16x | 1 |
| Audio port | 3 |
| DisplayPort | 1 |
| HDMI | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| USB 3.2 | 4 |
| Bluetooth | Yes |
| SATA | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| WiFi | Yes |
| Chipset | AMD B550 |
| Socket | SAM4 |
| Form Factor | Micro-ATX |
| Memory type | DDR4 |
| Frequency speed | 2133/2400/2667/2933/3200/3400/3466/3600/3733/4000/4133/4266/4400/4600/4733 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated audio | Realtek ALC1220 |
| Integrated LAN | Gigabit |
| RAID | SATA 0, 1, 10; NVMe 0, 1, 10 |
| Units per Pallet | 0 |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.004628 |
| Product Net Weight | 0.7 |
| Unit Calculated Weight | 0.955 |
Description

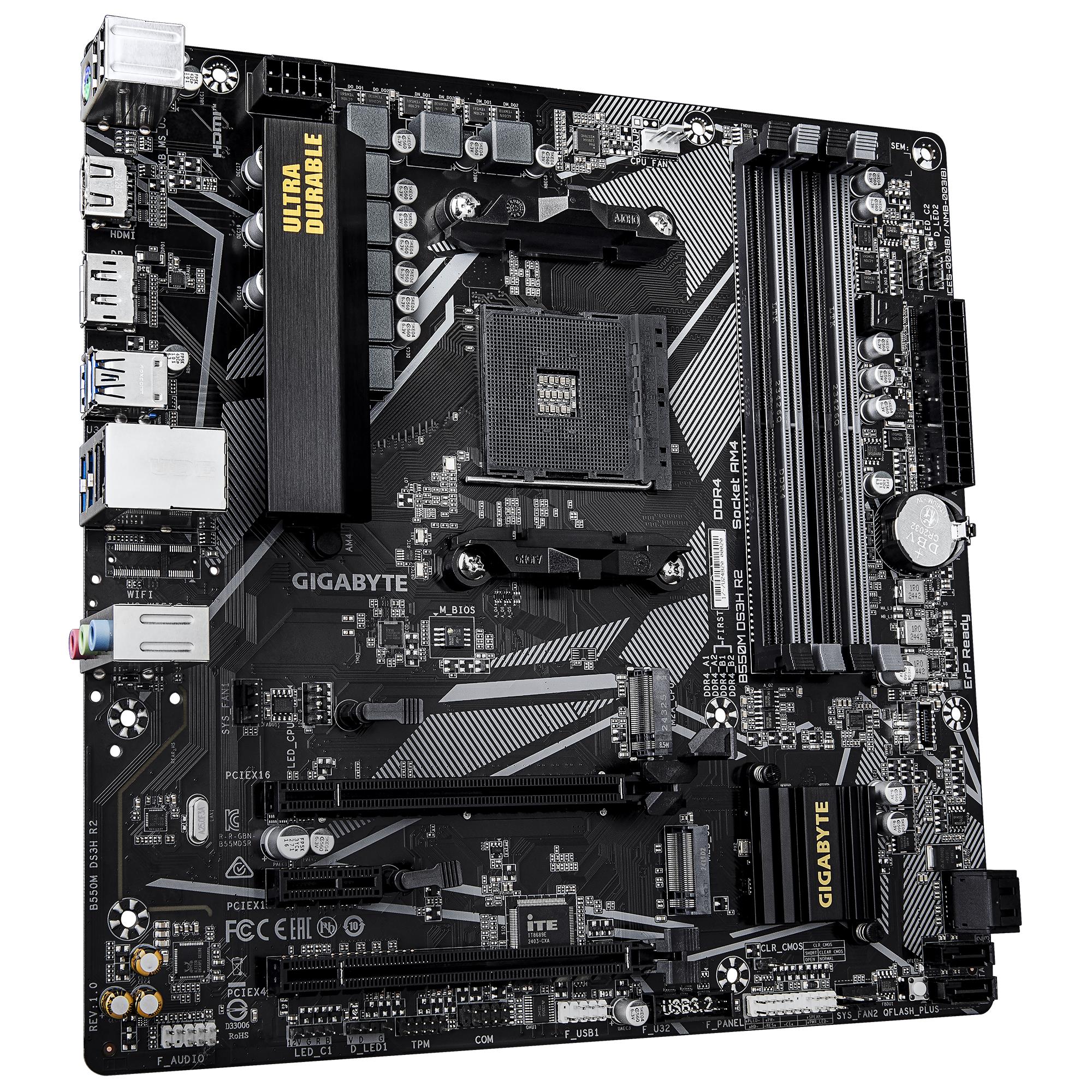

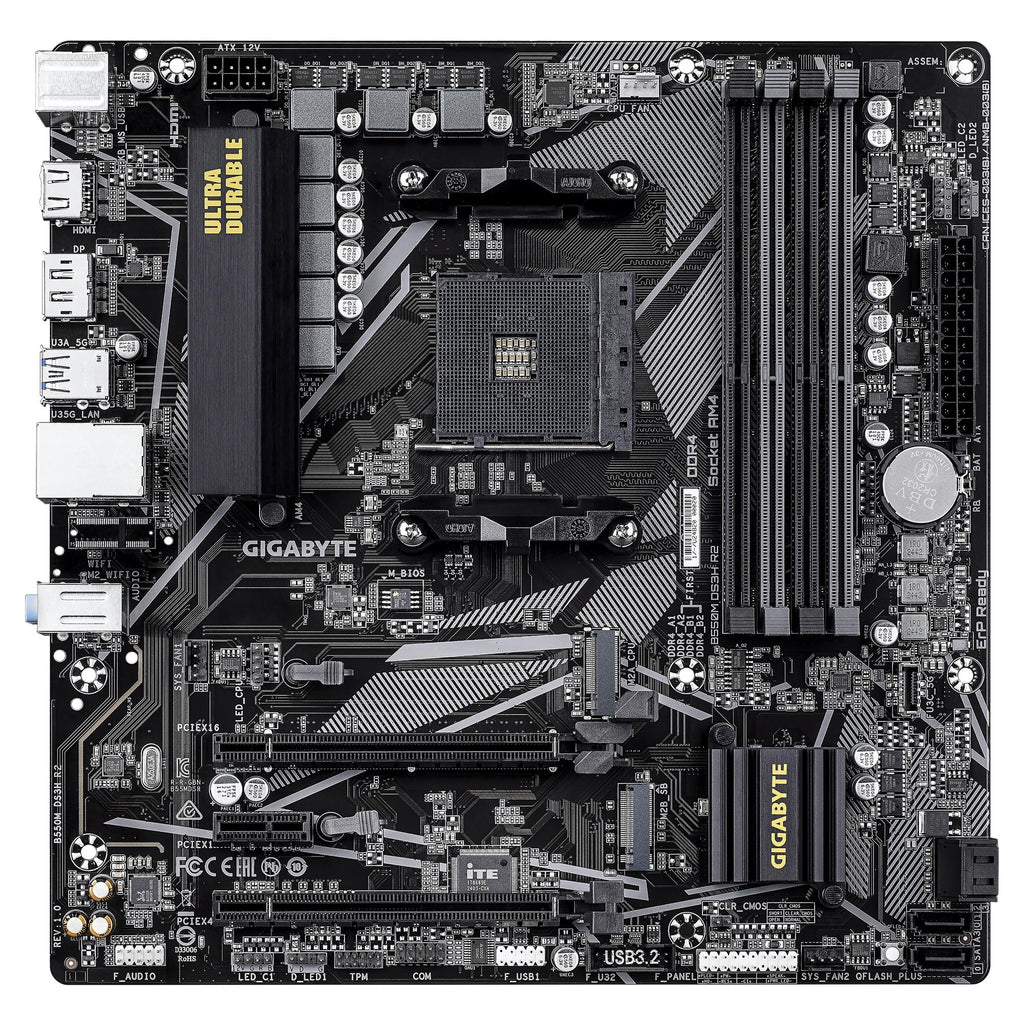

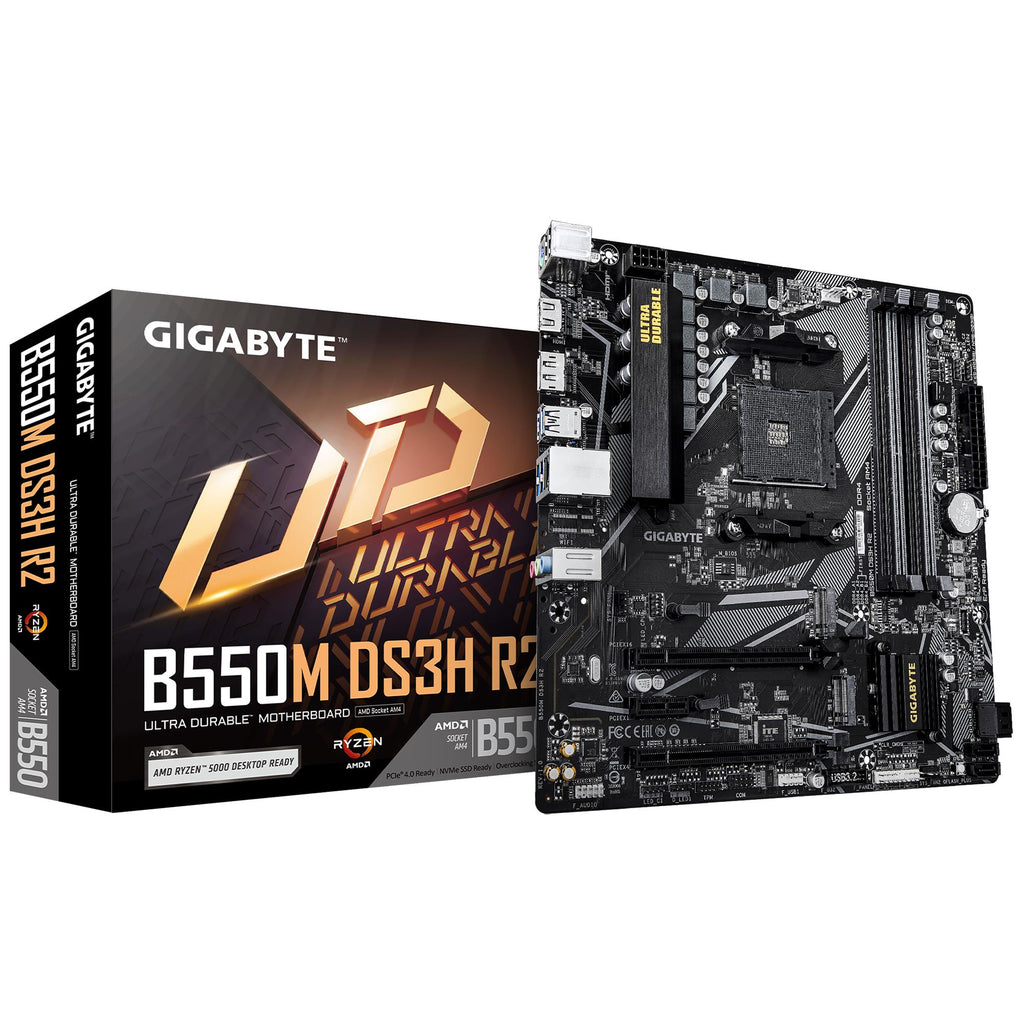

B550M DS3H R2
- AMD Socket AM4：Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
- Digital 5+3 phases VRM solution
- Dual Channel DDR4：4*DIMMs
- EZ-Latch：PCIe slots with Quick Release Design
- Ultra-Fast Storage：2*M.2 slots, including PCIe 4.0 x1
- Efficient Thermal：VRM Thermal Armor Advanced
- Fast Networking：GbE LAN

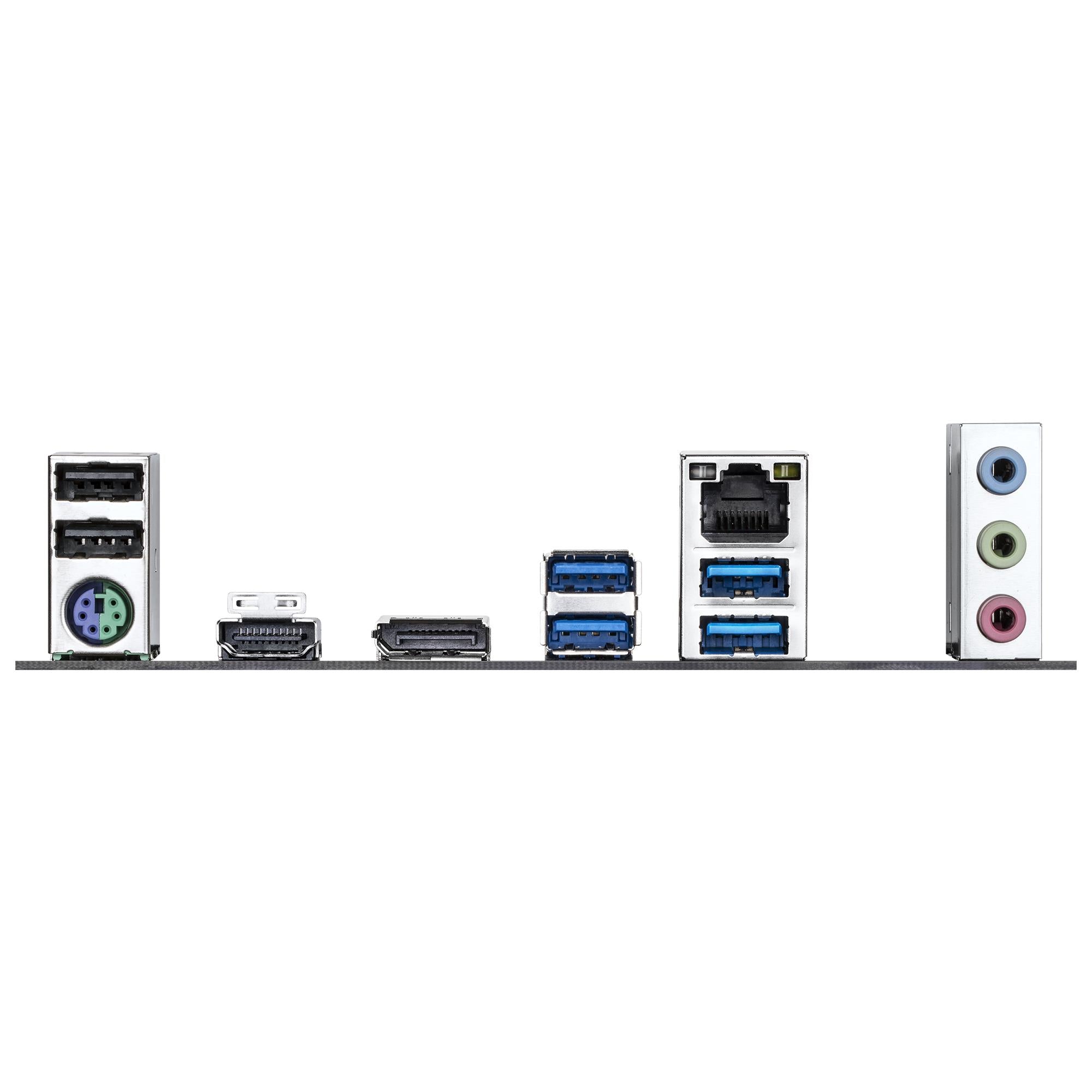

- Extended Connectivity：HDMI, Displayport
- PCIe UD Slot：PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
SATA 0, 1, 10; NVMe 0, 1, 10
