Description
General Information
- SKU: 1446598
- Manufacturer Product Page: ASROCK Z890 PRO-A WIFI
- Manufacturer Code: Z890 PRO-A WIFI
- Catalog: Mainboards for Intel CPUs
- EAN:
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBI |
| M.2 | 1 |
| PCI-Express 4.0 1x | 1 |
| PCI-Express 4.0 4x | 2 |
| PCI-Express 5.0 16x | 1 |
| Audio port | 3 |
| DisplayPort | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| USB 2.0 | 4 |
| USB 3.2 | 1 |
| USB 3.2 type B | 2 |
| USB-C | 1 |
| USB-C w/Thunderbolt | 1 |
| SATA | Yes |
| Chipset | Intel Z890 |
| Socket | LGA1851 |
| Form Factor | ATX |
| Memory type | DDR5 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated LAN | 2.5 Gigabit |
| Integrated audio | Realtek ALC897 |
| RAID | SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 |
| TPM | Header |
| Included Accessories | 1 x I/O Shield - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.008906 |
| Product Net Weight | 1 |
| Unit Calculated Weight | 1.88 |
Description

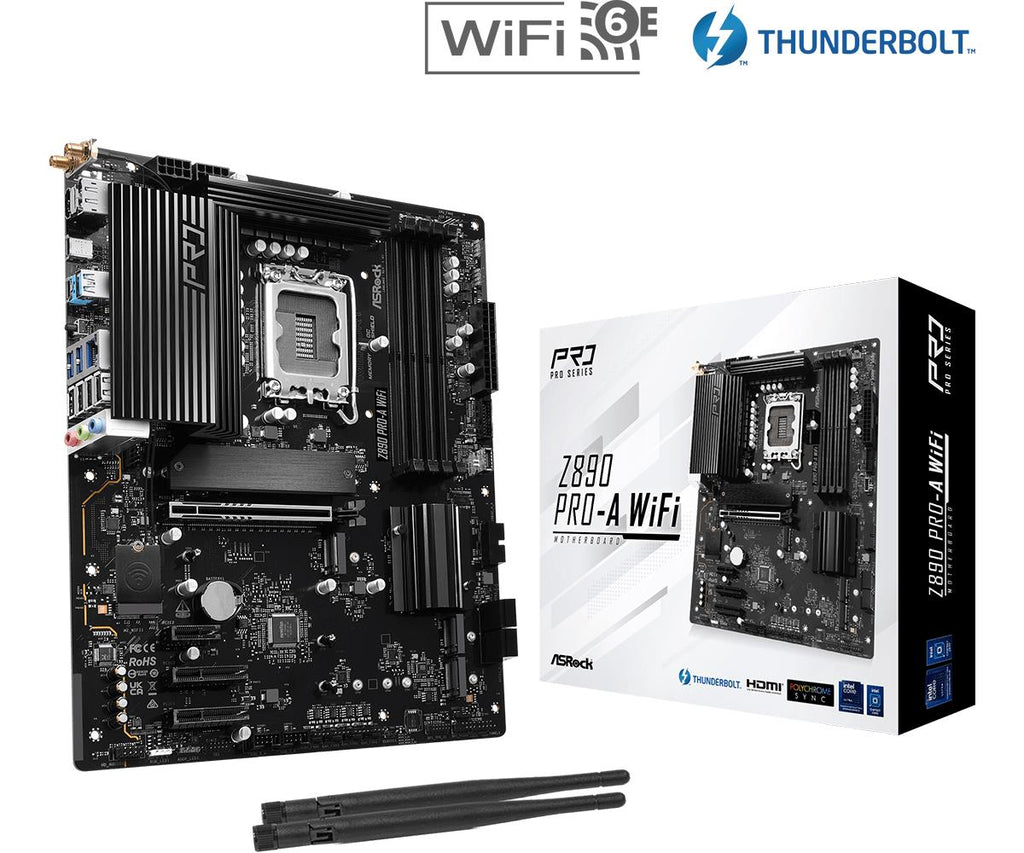

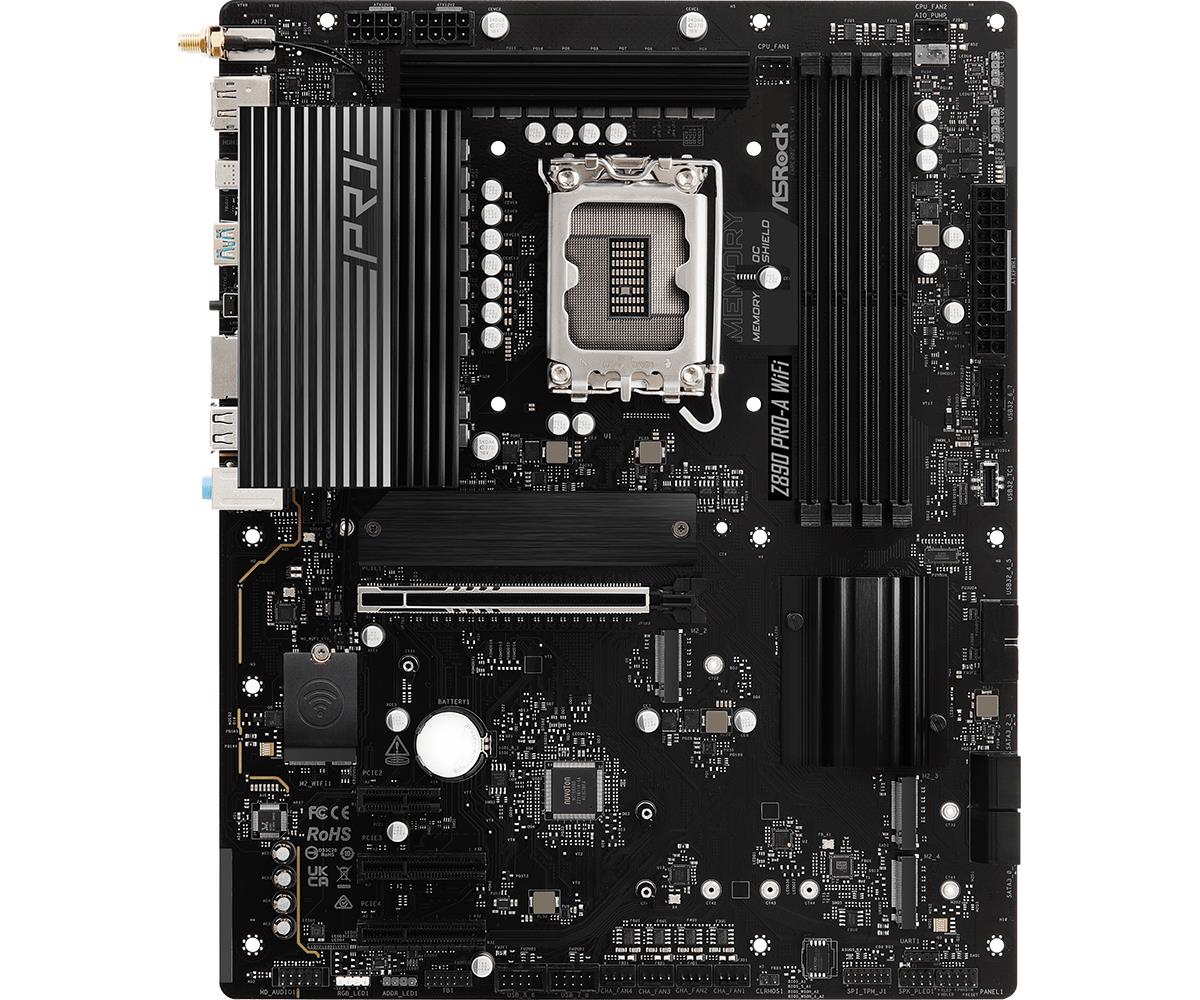

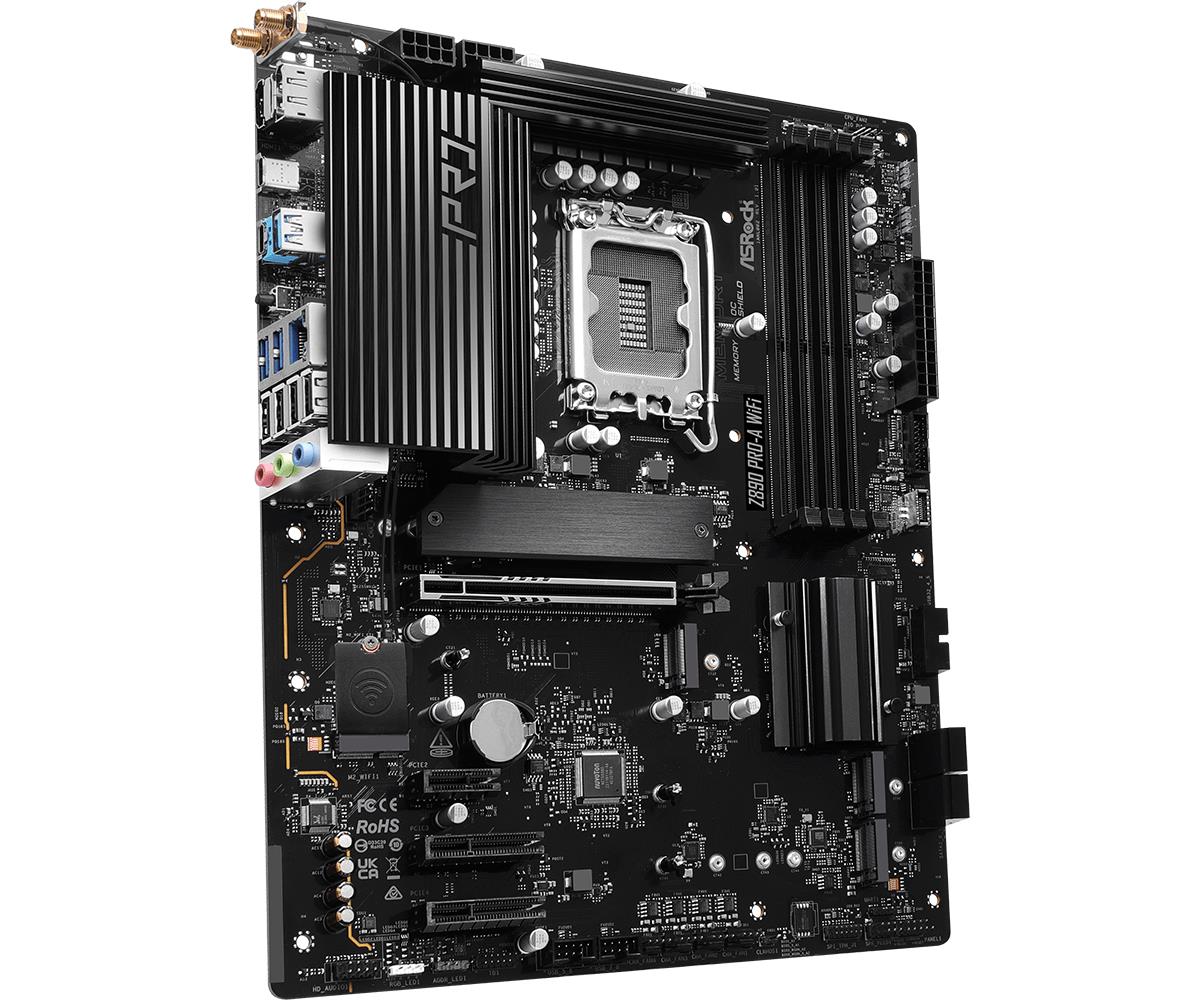

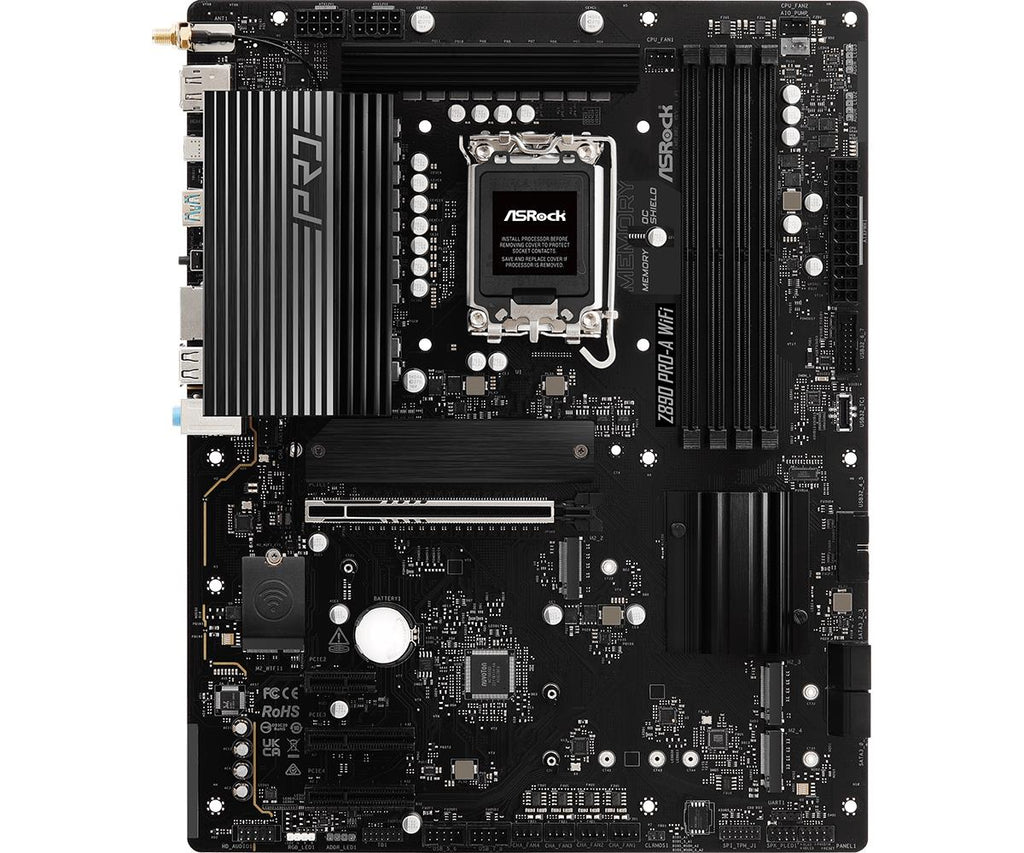

Z890 Pro-A WiFi
- Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)
- 16+1+1+1+1 Power Phase, Dr.MOS for VCore+GT
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 9066+ (OC) - 1 PCIe 5.0 x16, 2 PCIe 4.0 x4, 1 PCIe 4.0 x1

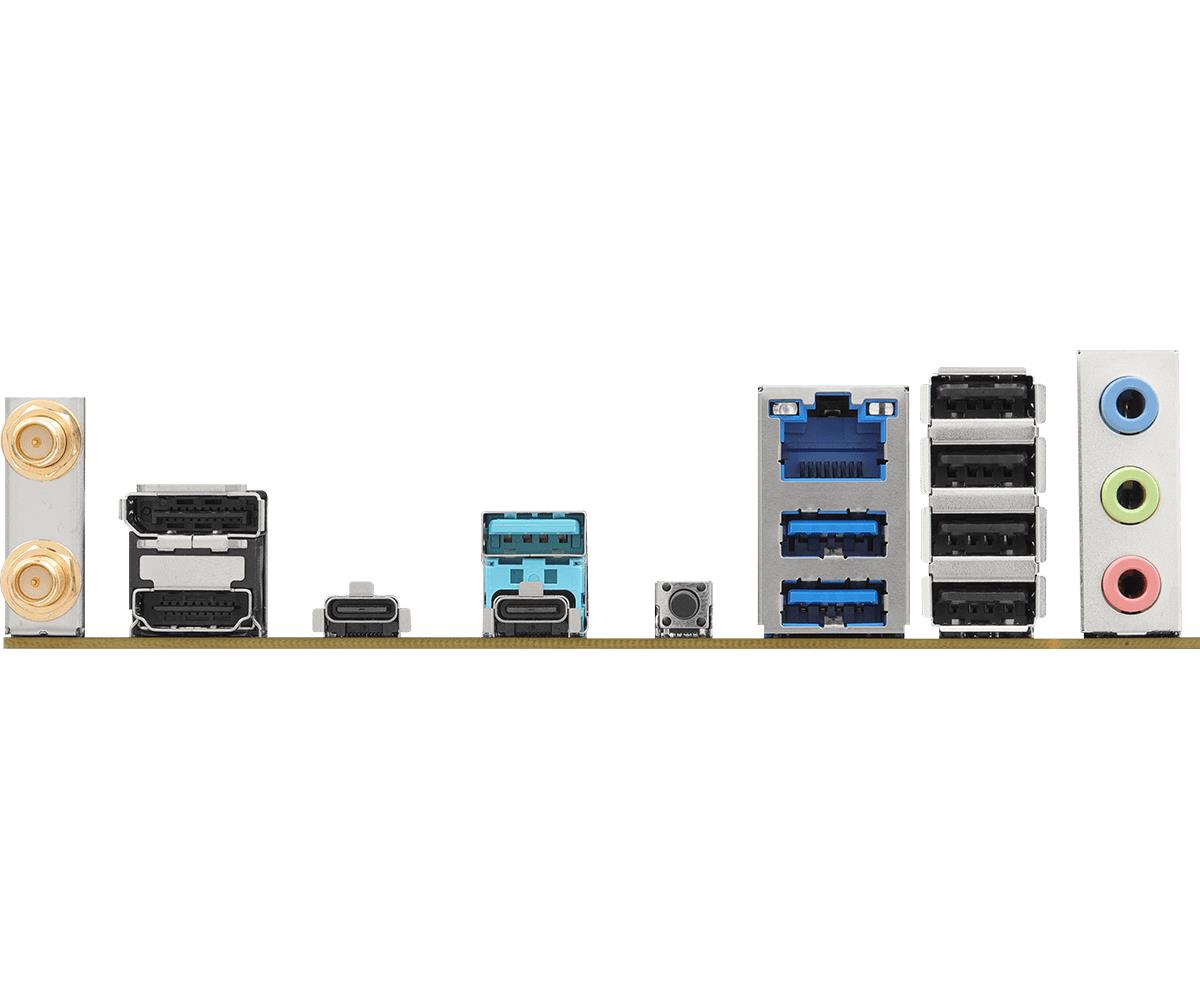

- Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 Thunderbolt™ 4 Type-C
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3
1 Blazing M.2 (PCIe Gen5x4)
2 Hyper M.2 (PCIe Gen4x4)
1 Hyper M.2 (PCIe Gen4x4 & SATA3) - 1 Thunderbolt™ 4 Type-C (Rear)
2 USB 3.2 Gen2x2 Type-C (1 Rear, 1 Front),
1 USB 3.2 Gen2 Type-A (Rear),
6 USB 3.2 Gen1 (2 Rear, 4 Front),
8 USB 2.0 (4 Rear, 4 Front) - Realtek 2.5G LAN
- 802.11axe Wi-Fi 6E + Bluetooth
- Supports BIOS Flashback, Memory OC Shield, Durable Caps with 1000uF Capacitance
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.
SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
1 x I/O Shield - 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
