Description
General Information
- SKU: 1446590
- Manufacturer Product Page: ASROCK B850M-X WIFI R2.0
- Manufacturer Code: B850M-X WIFI R2.0
- Catalog: Mainboards for AMD CPUs
- EAN:
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| M.2 | 1 |
| PCI-Express 4.0 16x | 1 |
| PCI-Express 4.0 1x | 1 |
| PCI-Express 5.0 16x | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| DisplayPort | 1 |
| HDMI | 1 |
| Microphone | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| USB 3.2 | 3 |
| USB-C | 1 |
| SATA | Yes |
| SATA 3.0 | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| USB-C | Yes |
| WiFi | Yes |
| Chipset | AMD B850 |
| Socket | SAM5 |
| Form Factor | Micro-ATX |
| Memory type | DDR5 |
| Frequency speed | 8200 |
| Memory slots | 2 |
| Integrated video | Depending on CPU |
| Integrated audio | Realtek ALC897 |
| Integrated LAN | 2.5 Gigabit |
| RAID | SATA 0, 1, 10 |
| TPM | Header |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.005357 |
| Product Net Weight | 1.3 |
| Unit Calculated Weight | 1.35 |
Description

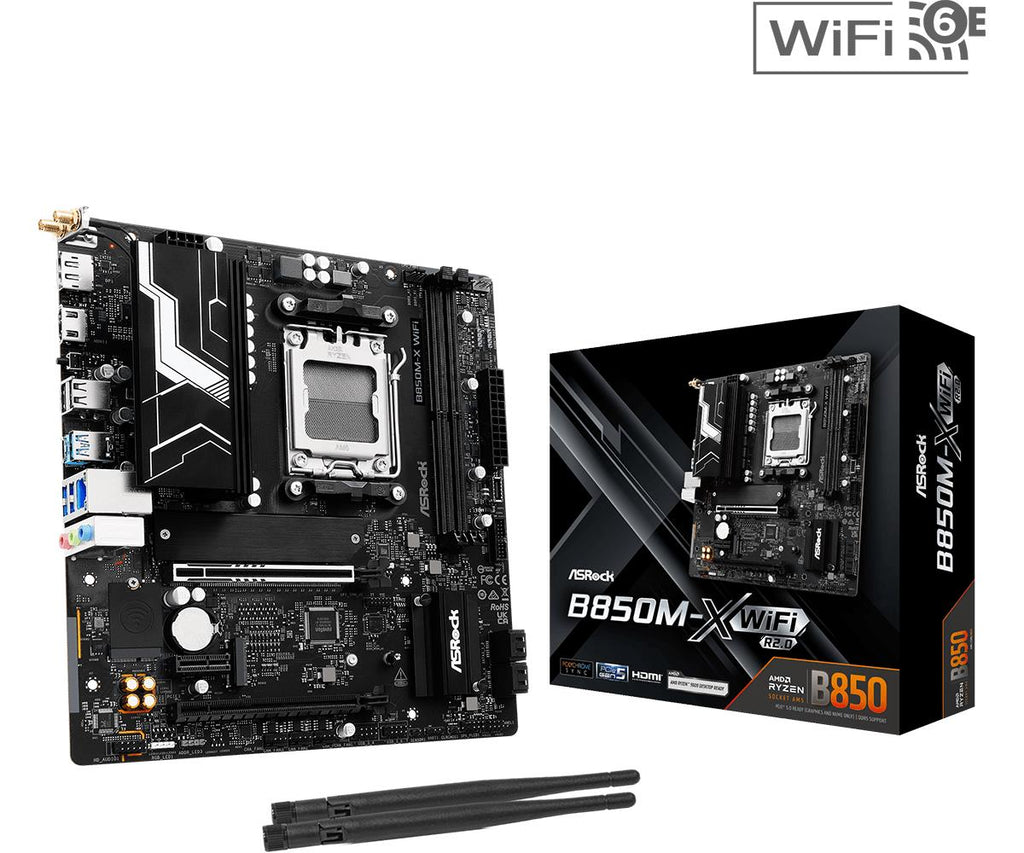

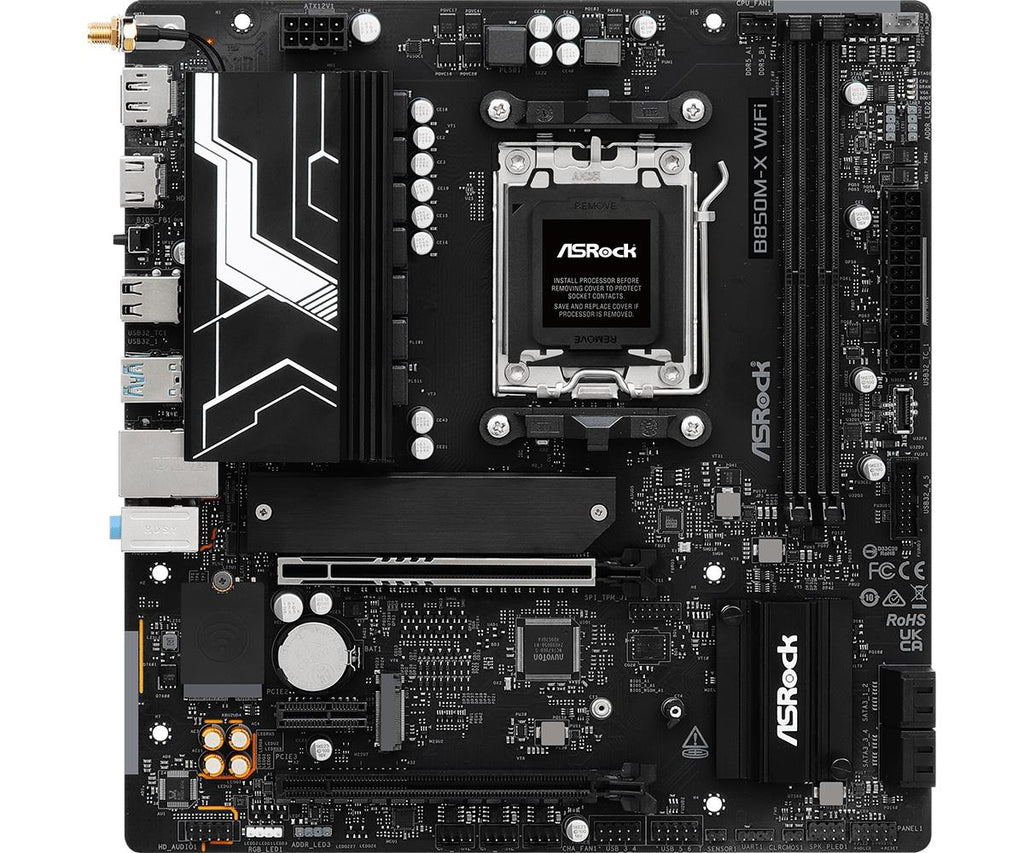

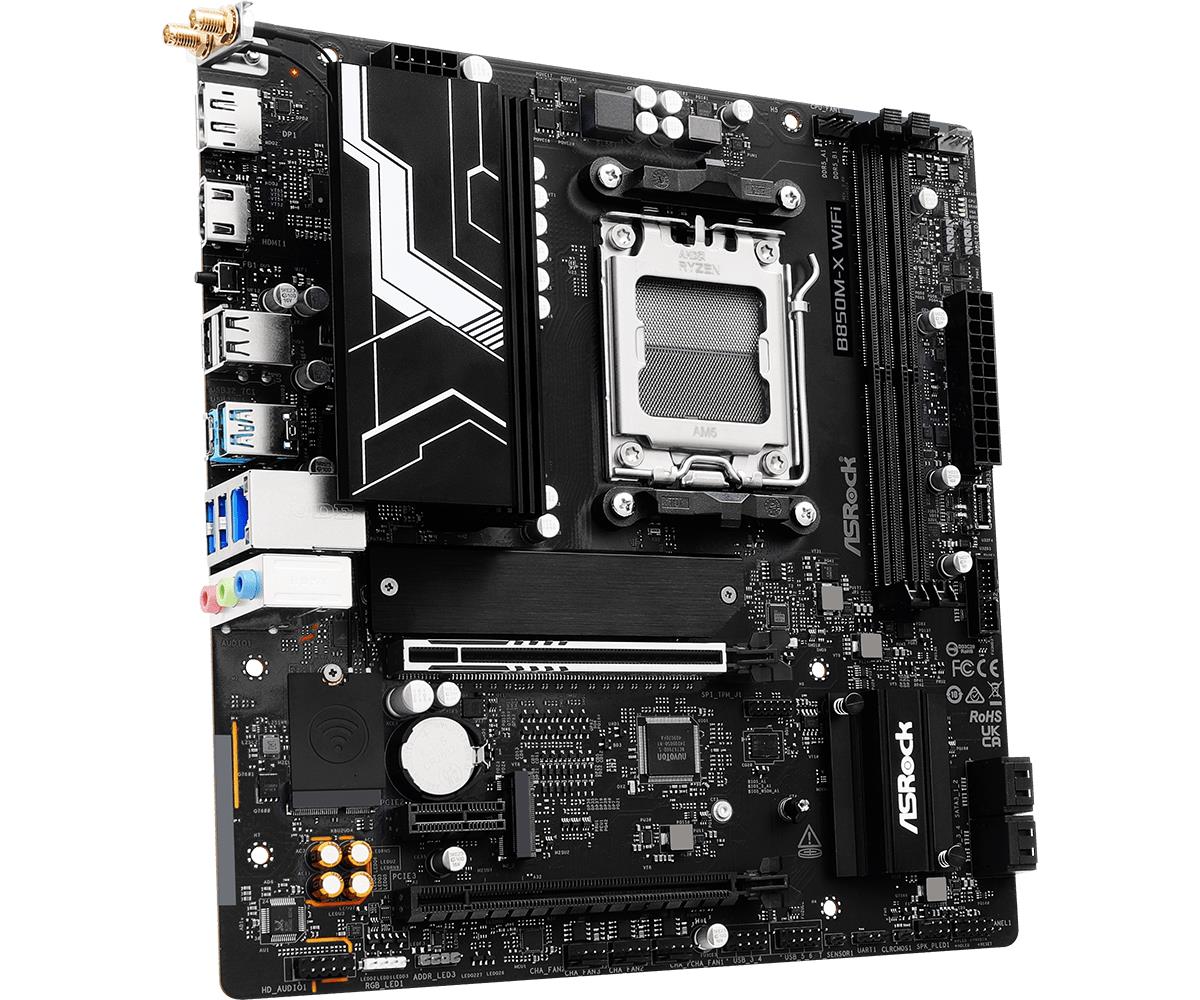

B850M-X WiFi R2.0
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 6+1+1 Phase Power Design, Dr.MOS for VCore
- 2 x DDR5 DIMMs
Supports Dual Channel, up to 8200+ (OC) - 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 4.0 x1

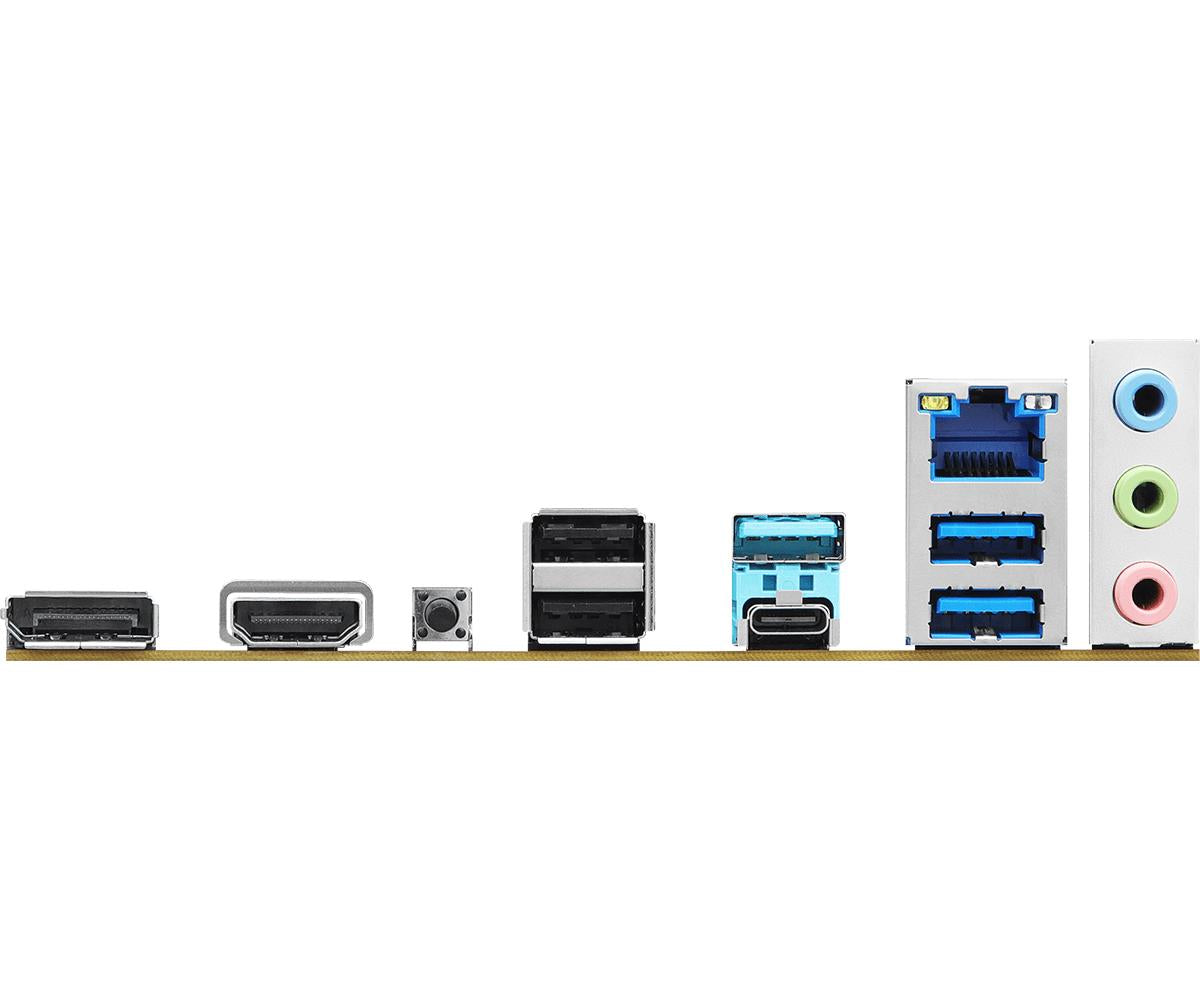

- Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4)
4 SATA3 - 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
5 USB 3.2 Gen1 (3 Rear, 2 Front)
6 USB 2.0 (2 Rear, 4 Front) - Realtek 2.5G LAN
- 802.11axe Wi-Fi 6E + Bluetooth
- Supports BIOS Flashback
