Description
General Information
- SKU: 1446589
- Manufacturer Product Page: ASROCK X870 PRO-A WIFI
- Manufacturer Code: X870 PRO-A WIFI
- Catalog: Mainboards for AMD CPUs
- EAN:
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| M.2 | 4 |
| PCI-Express 4.0 16x | 1 |
| PCI-Express 5.0 16x | 1 |
| Audio port | 2 |
| HDMI | 1 |
| Optical S/PDIF | 1 |
| RJ45 | 1 |
| USB 2.0 | 4 |
| USB 3.2 | 3 |
| USB-C | 2 |
| Bluetooth | Yes |
| SATA 3.0 | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| USB-C | Yes |
| WiFi | Yes |
| Chipset | AMD X870 |
| Socket | SAM5 |
| Form Factor | ATX |
| Memory type | DDR5 |
| Frequency speed | 8000 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated audio | Realtek ALC897 |
| Integrated LAN | 2.5 Gigabit |
| RAID | SATA 0, 1; NVMe 0, 1, 10 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.009052 |
| Product Net Weight | 1 |
| Unit Calculated Weight | 2.25 |
Description

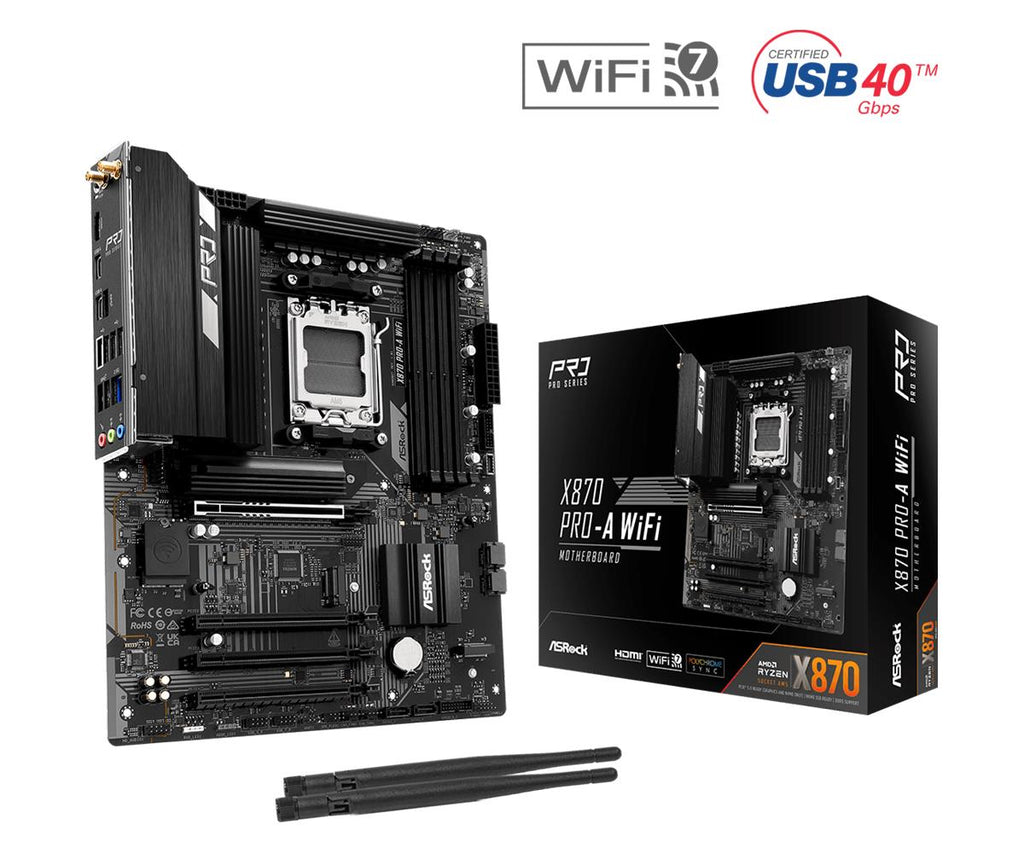

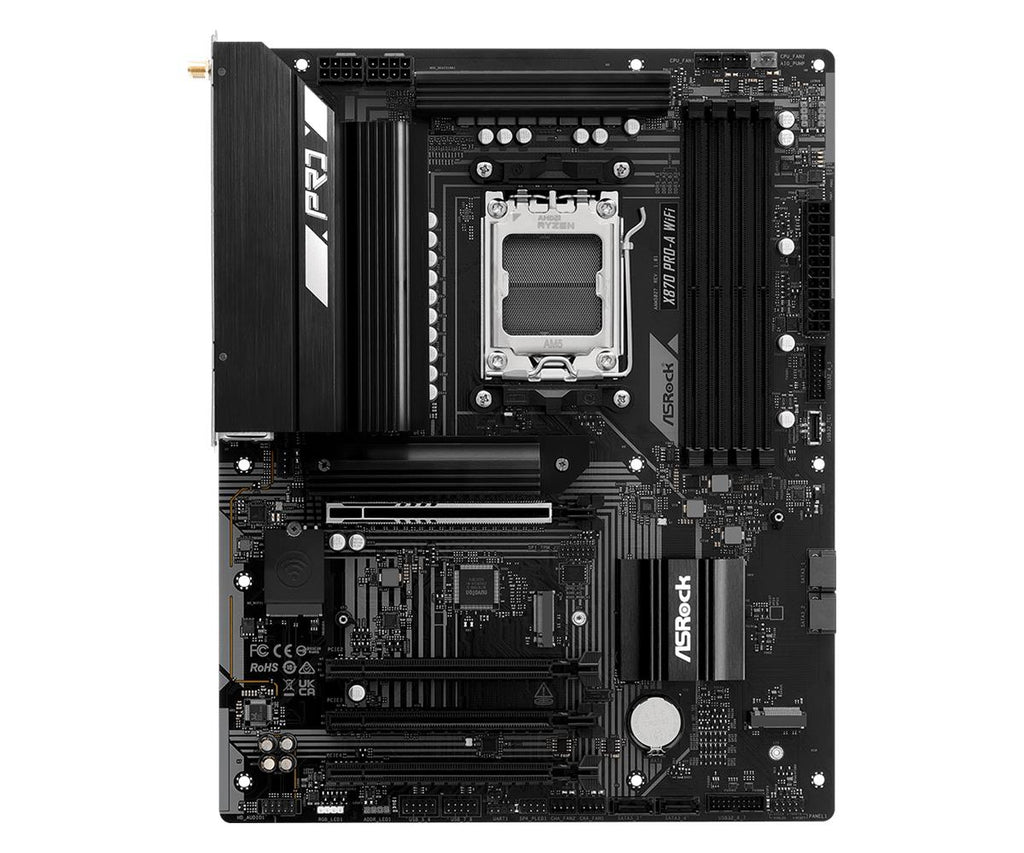

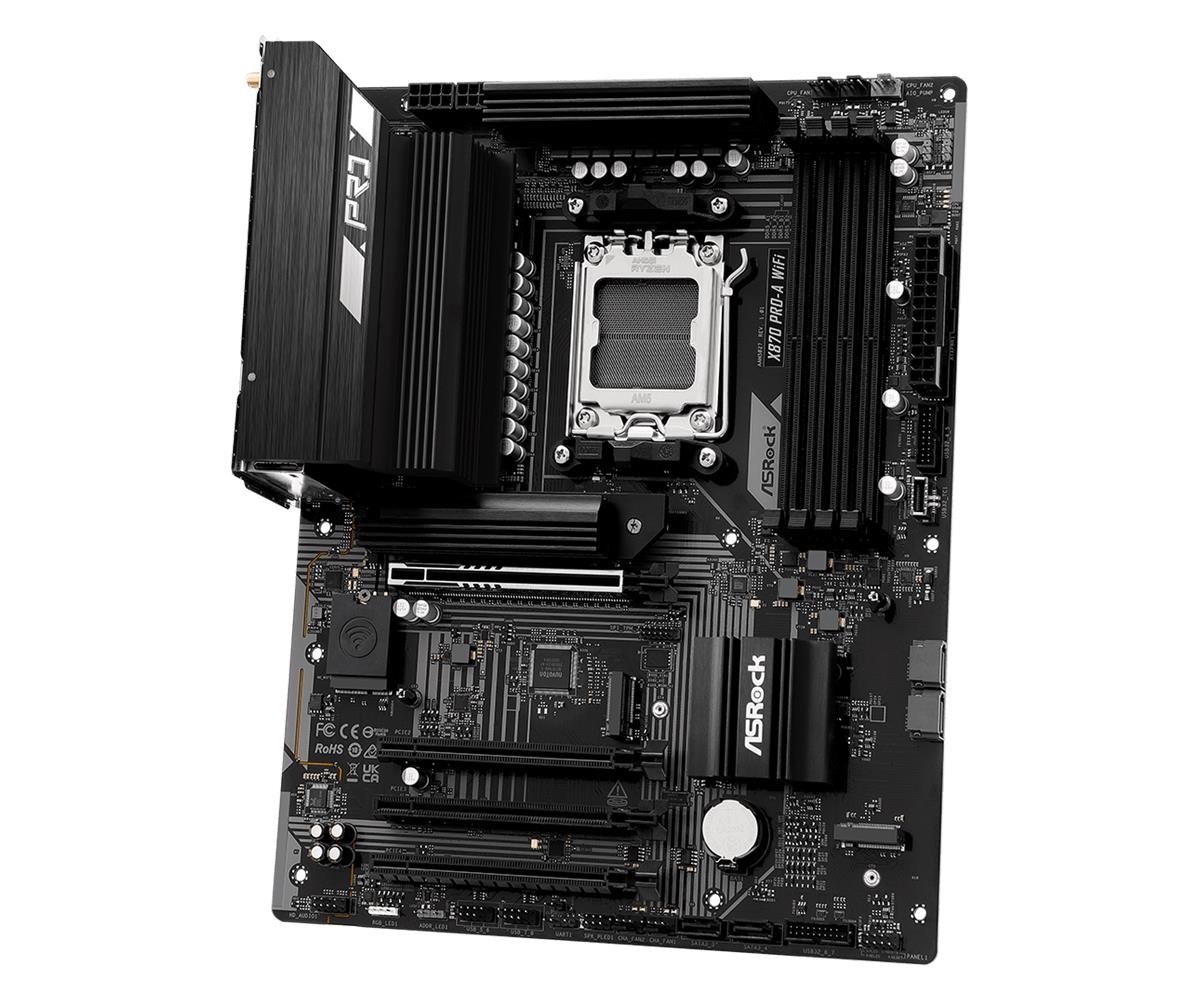

X870 Pro-A WiFi
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 16+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC
- 4 x DDR5 DIMMs
Supports Dual Channel, up to 8000+ (OC) - 1 PCIe 5.0 x16, 3 PCIe 4.0 x16

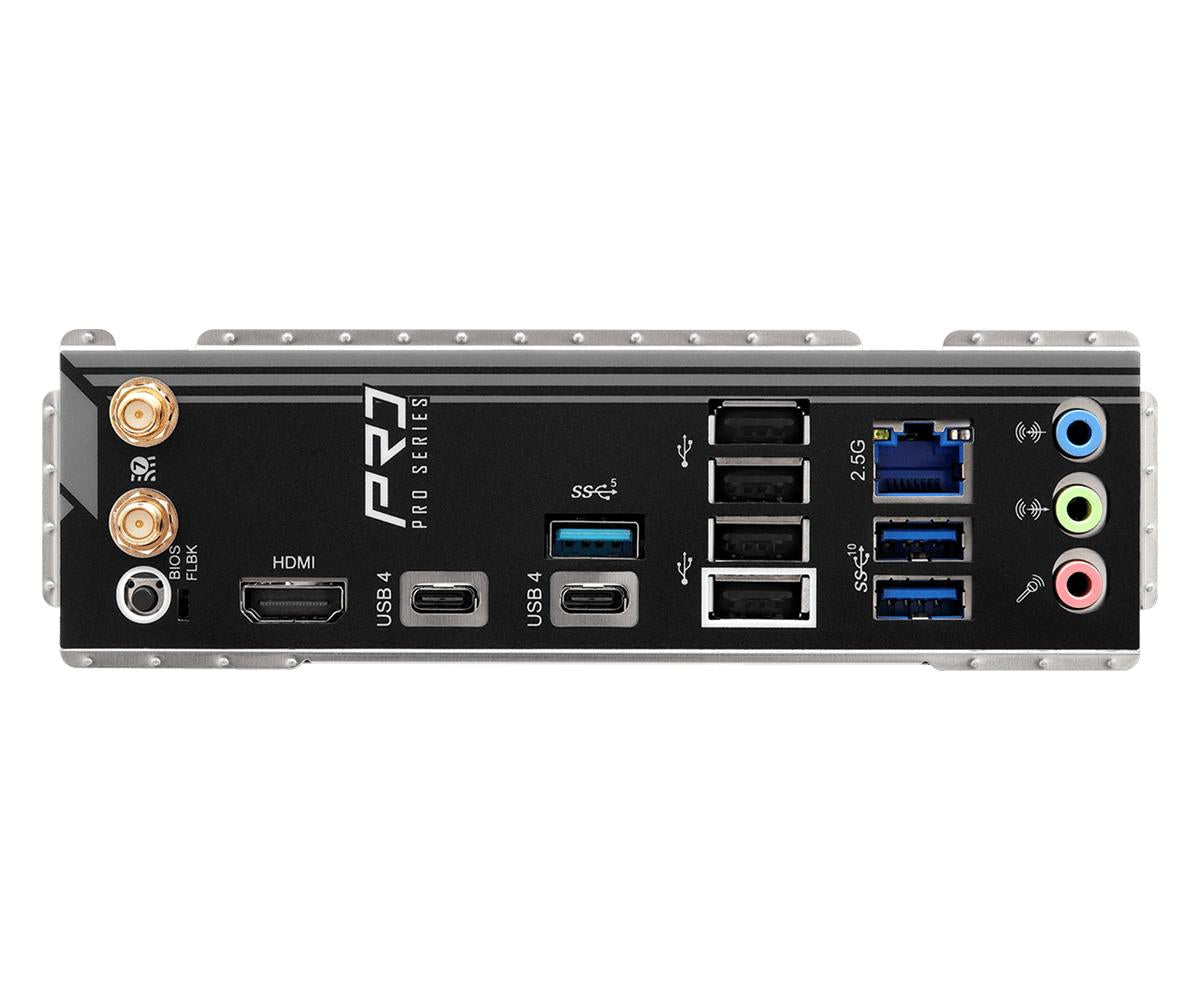

- Graphics Output Options: 1 HDMI, 2 USB4 Type-C
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
1 Hyper M.2 (PCIe Gen4x4)
1 M.2 (PCIe Gen3x2 & SATA3)
4 SATA3 - 2 USB4 Type-C (Rear)
2 USB 3.2 Gen2 (Rear)
1 USB 3.2 Gen1 Type-C (Front)
5 USB 3.2 Gen1 (1 Rear, 4 Front)
8 USB 2.0 (4 Rear, 4 Front) - Realtek 2.5GbE LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports M.2 Bottom Heatsink
SATA 0, 1; NVMe 0, 1, 10
