Description
General Information
- SKU: 1446146
- Manufacturer Product Page: GIGABYTE Z790 EAGLE AX 1.1
- Manufacturer Code: Z790 EAGLE AX 1.1
- Catalog: Mainboards for Intel CPUs
- EAN: 4719331860998
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
Category Code | MBI |
Unit Box Height | 0.08 |
Unit Box Length | 0.27 |
Unit Box Width | 0.34 |
M.2 | 3 |
PCI-Express 3.0 1x | 1 |
PCI-Express 4.0 4x | 1 |
PCI-Express 5.0 16x | 1 |
Audio port | 3 |
DisplayPort | 1 |
HDMI | 1 |
PS/2 | 1 |
RJ45 | 1 |
USB 2.0 | 2 |
USB 3.2 | 5 |
USB-C | 1 |
Bluetooth | Yes |
SATA | Yes |
USB 2.0 | Yes |
USB 3.2 | Yes |
USB-C | Yes |
WiFi | Yes |
Chipset | Intel Z790 |
Socket | LGA1700 |
Form Factor | ATX |
Memory type | DDR5 |
Frequency speed | 4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600 |
Memory slots | 4 |
Integrated video | Depending on CPU |
Integrated LAN | 2.5 Gigabit |
Integrated audio | Yes |
RAID | SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 |
TPM | Header |
Units per Pallet | 0 |
Units per Shipping Box | 8 |
Unit Calculated Volume | 0.009969 |
Product Net Weight | 0.7 |
Unit Calculated Weight | 1.88 |
Description

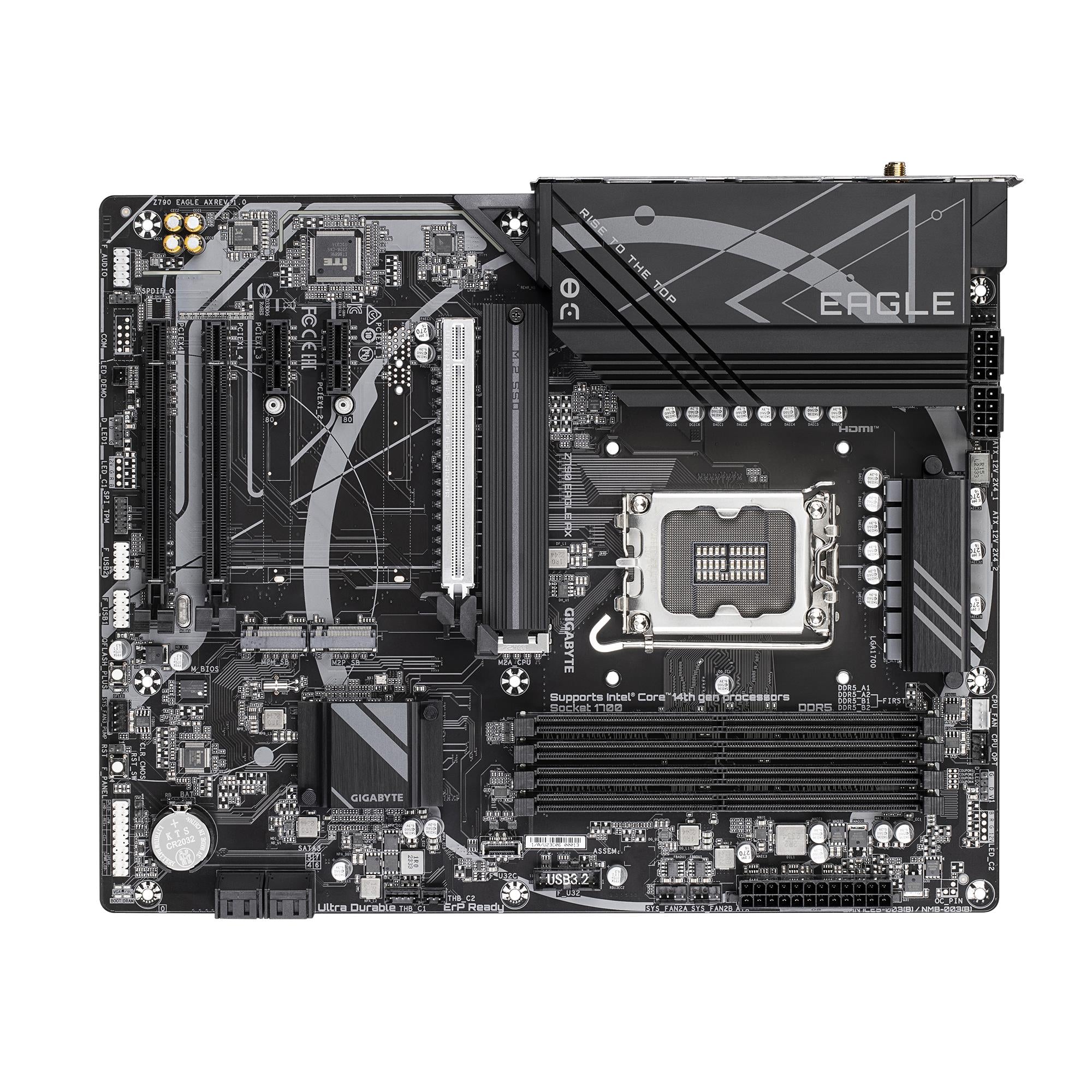

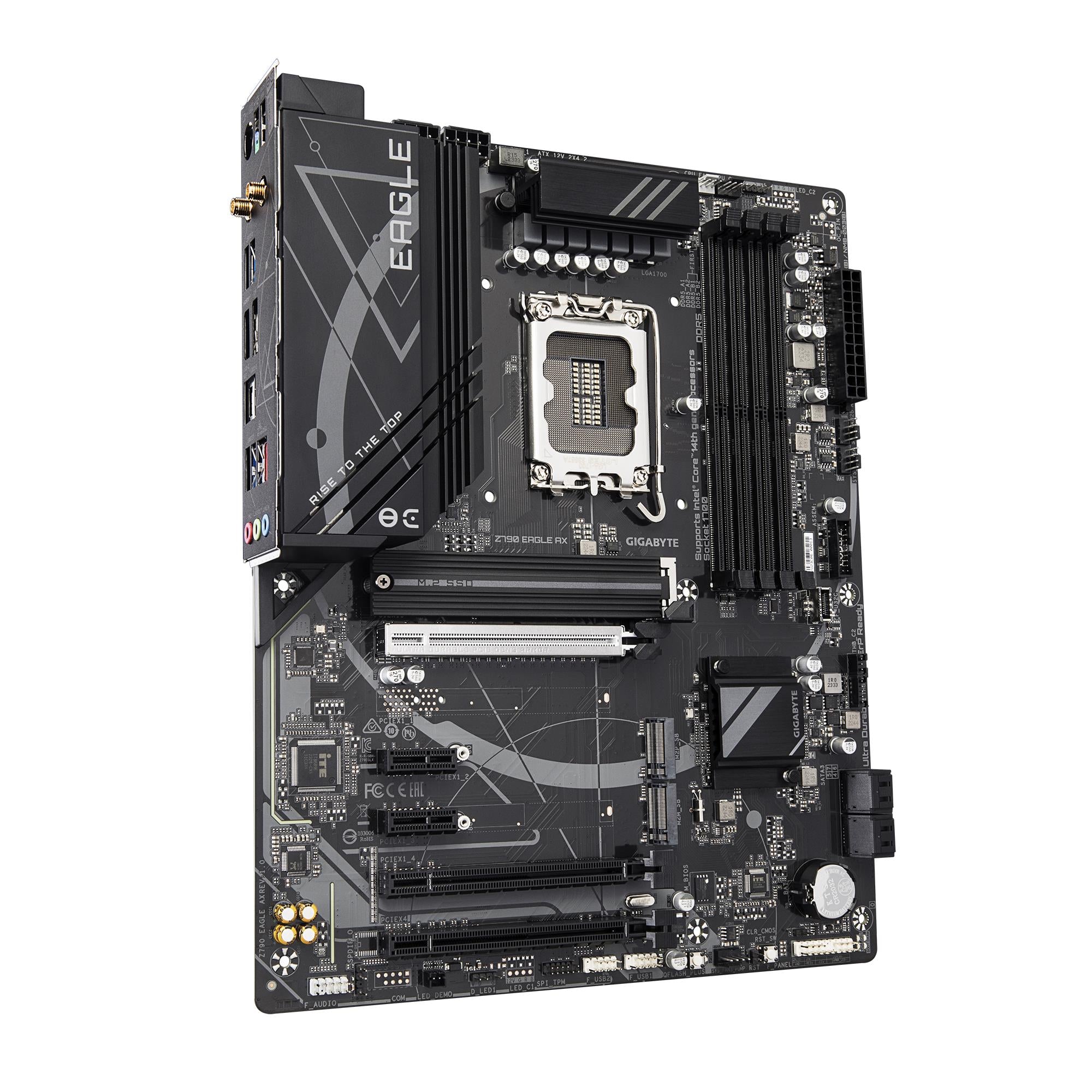

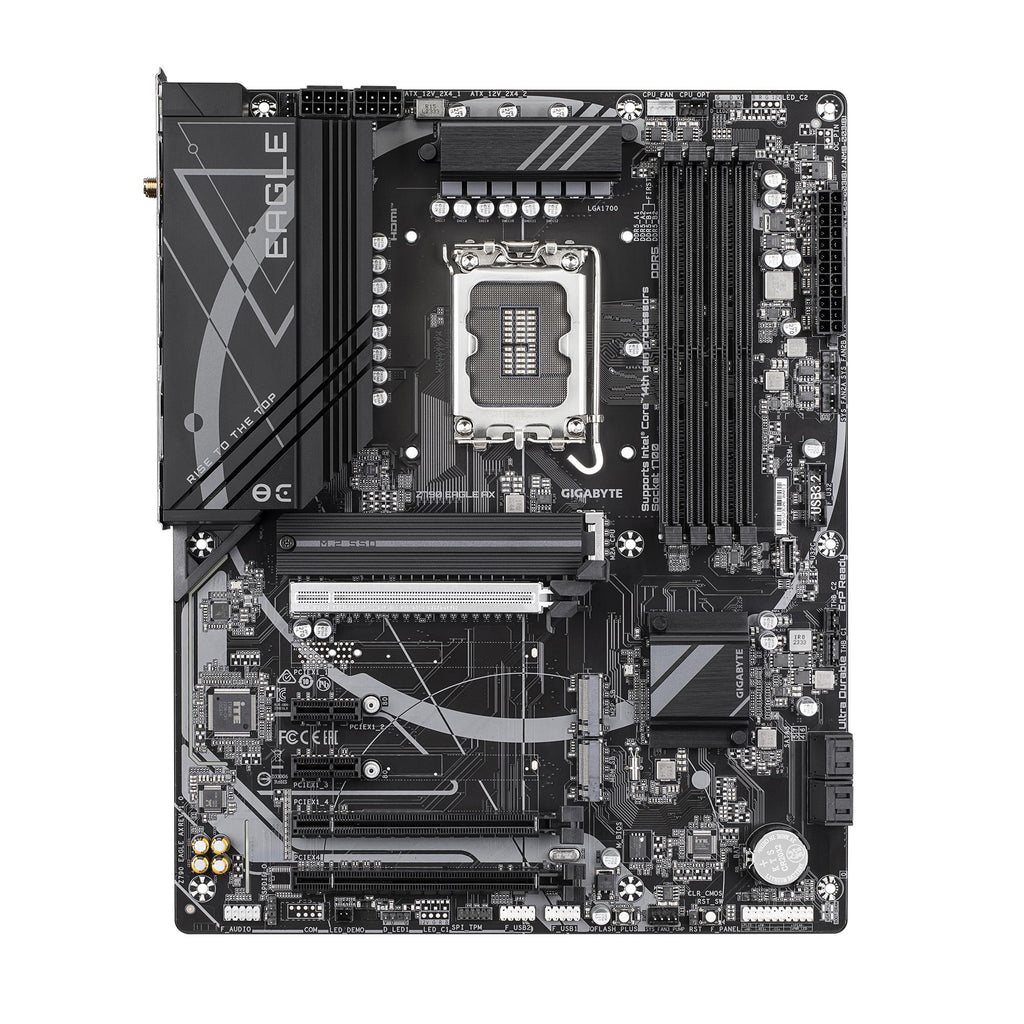

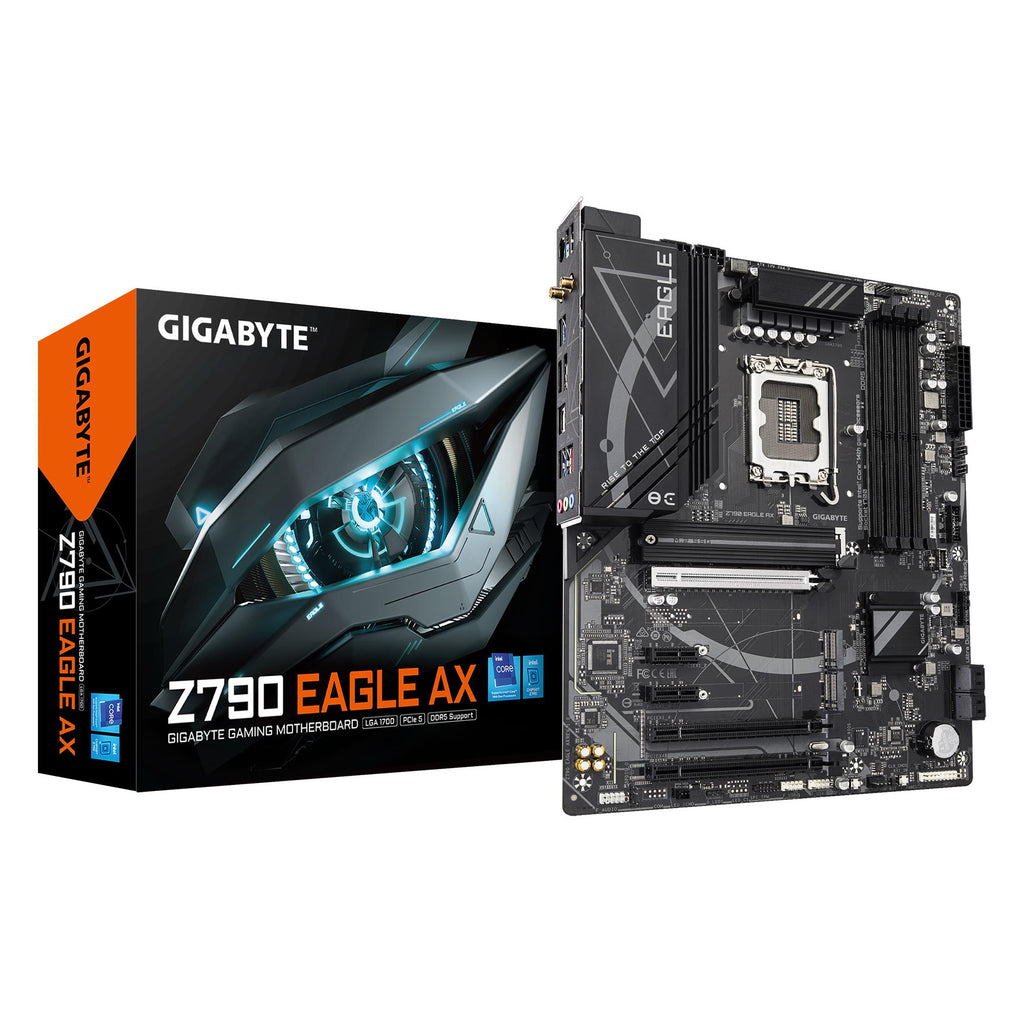

Z790 EAGLE AX
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance:Twin 12*+1+1 Phases Digital VRM Solution
- Dual Channel DDR5:4*DIMMs with XMP 3.0 Memory Module Support
- Next Generation Storage:3*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
- EZ-Latch:PCIe 5.0x16 Slot with Quick Release Design
- Fast Networks:2.5GbE LAN & Wi-Fi 6E 802.11ax

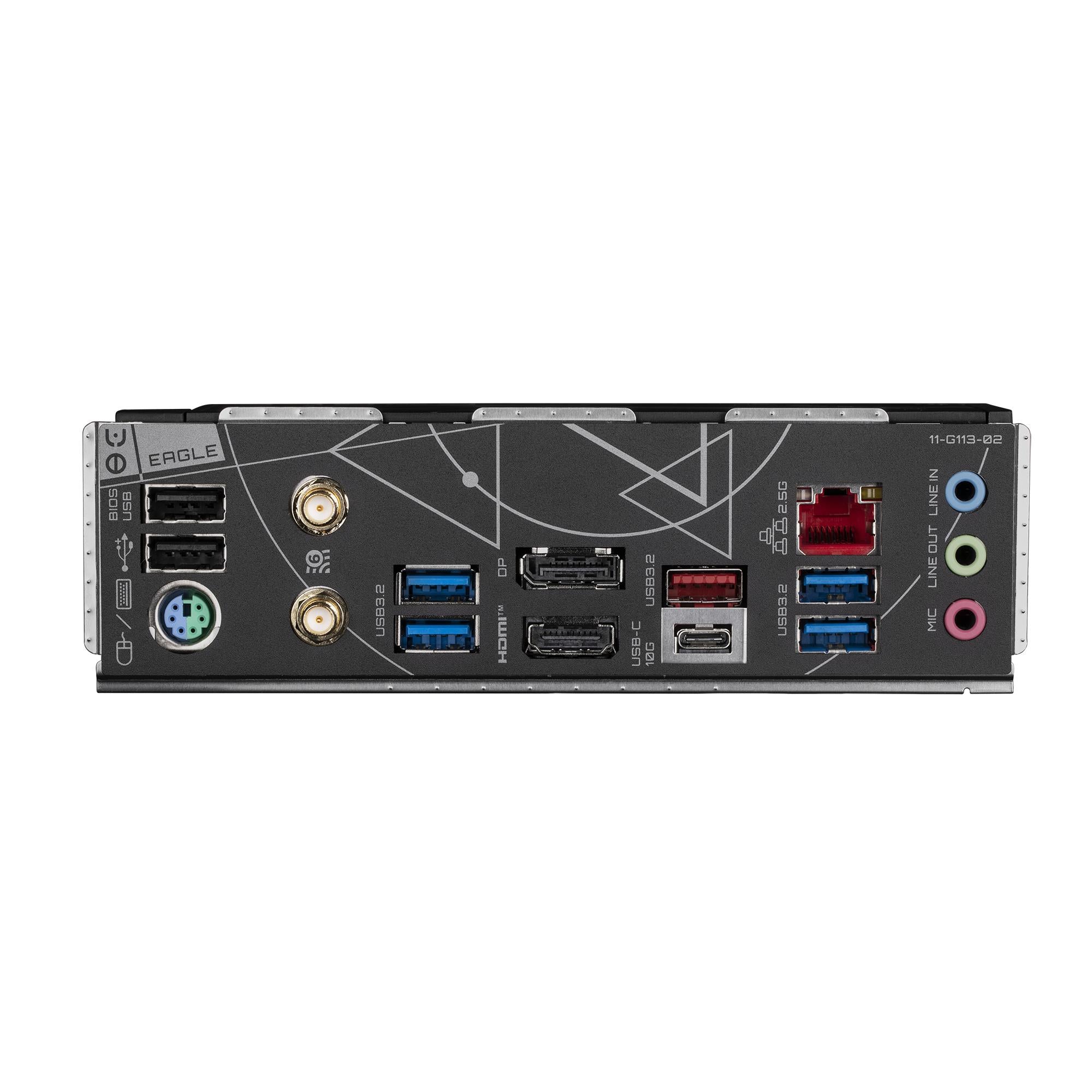

- Extended Connectivity:DP, HDMI, Rear USB-C® 10Gb/s
- Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card
- * 6+6 phases parallel power design
SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
