Description
General Information
- SKU: 1445957
- Manufacturer Product Page: MSI X870E GAMING PLUS WIFI
- Manufacturer Code: X870E GAMING PLUS WIFI
- Catalog: Mainboards for AMD CPUs
- EAN: 4711377347594
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.24 |
| Unit Box Width | 0.27 |
| M.2 | 3 |
| PCI-Express 3.0 1x | 1 |
| PCI-Express 4.0 4x | 1 |
| PCI-Express 5.0 16x | 1 |
| Audio port | 3 |
| HDMI | 1 |
| RJ45 | 1 |
| USB 2.0 | 4 |
| USB 3.2 | 4 |
| USB-C | 2 |
| Bluetooth | Yes |
| SATA | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| USB-C | Yes |
| WiFi | Yes |
| Chipset | AMD X870E |
| Socket | SAM5 |
| Form Factor | ATX |
| Memory type | DDR5 |
| Frequency speed | 4800/5600/8200 |
| Integrated video | Depending on CPU |
| Integrated audio | Realtek ALC897 |
| Integrated LAN | 5 Gigabit |
| RAID | SATA 0, 1, 10; NVMe 0, 1, 5 |
| Units per Pallet | 0 |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.008014 |
| Product Net Weight | 1.5 |
| Unit Calculated Weight | 2.18 |
Description

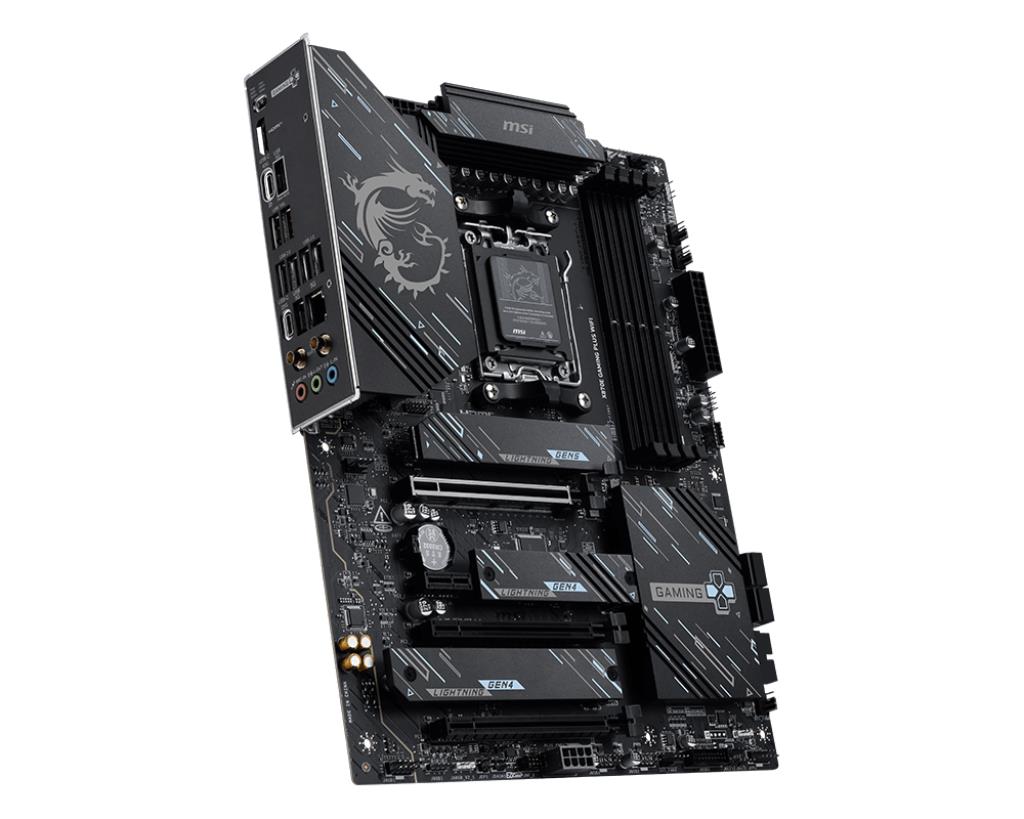

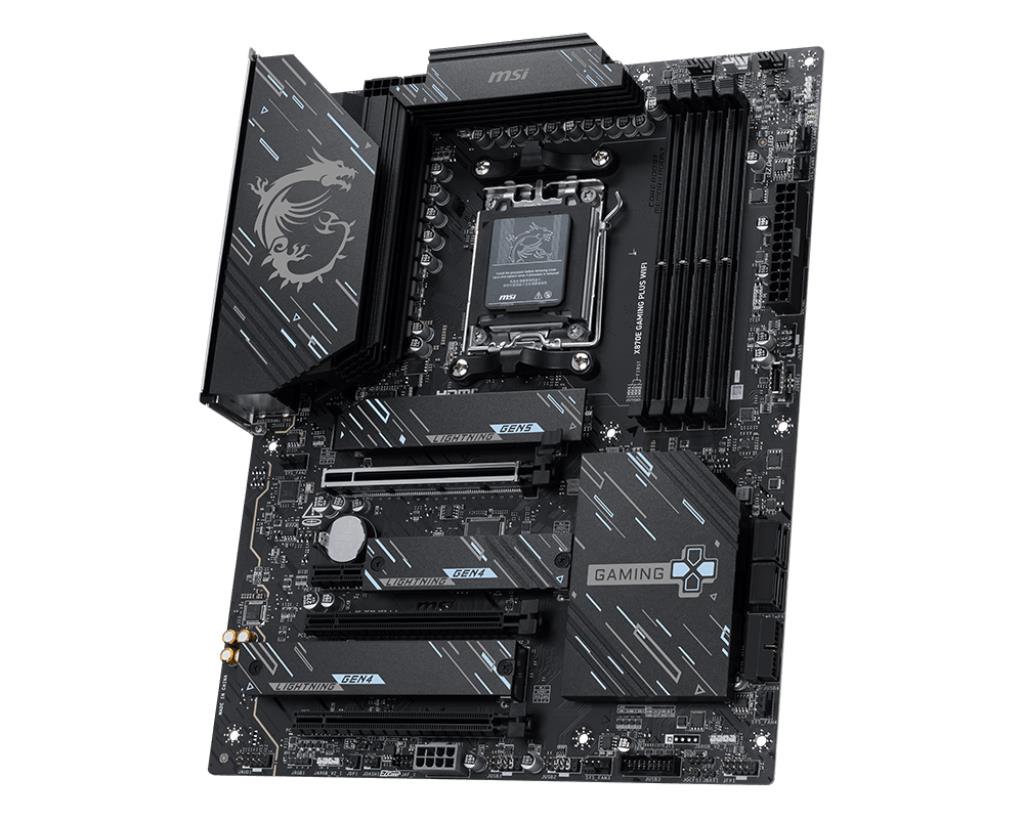

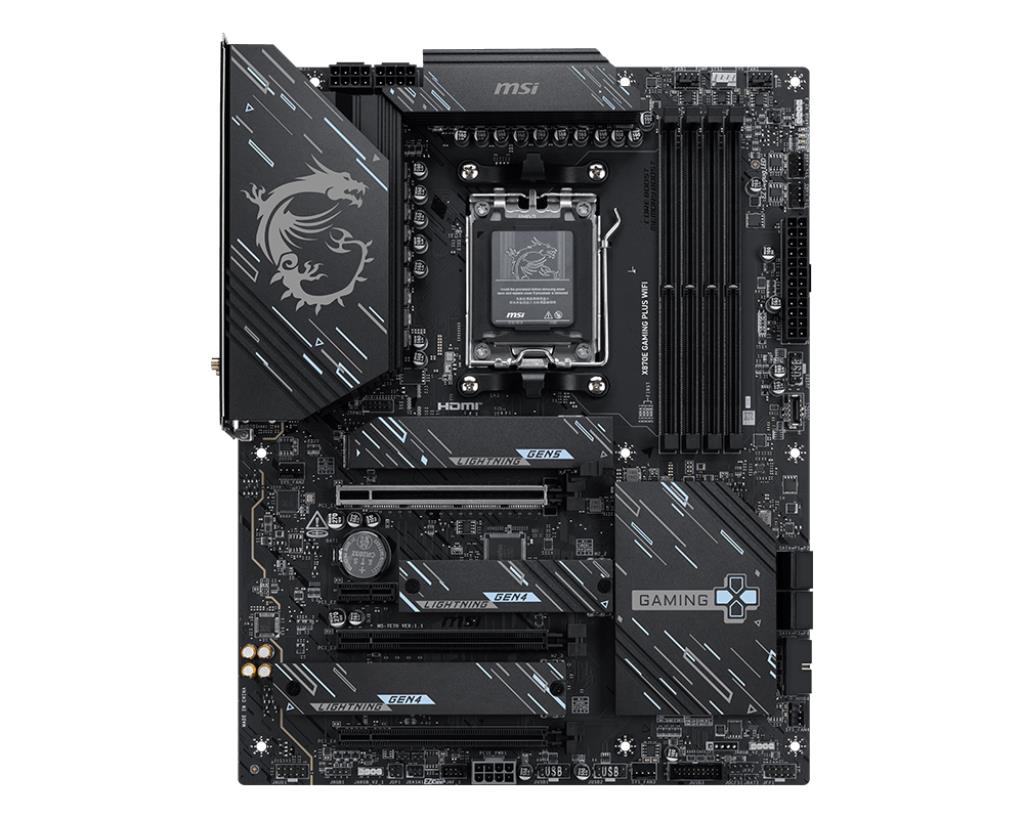

X870E GAMING PLUS WIFI
X870E GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Wi-Fi 7 and 5G LAN, high-speed USB4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2

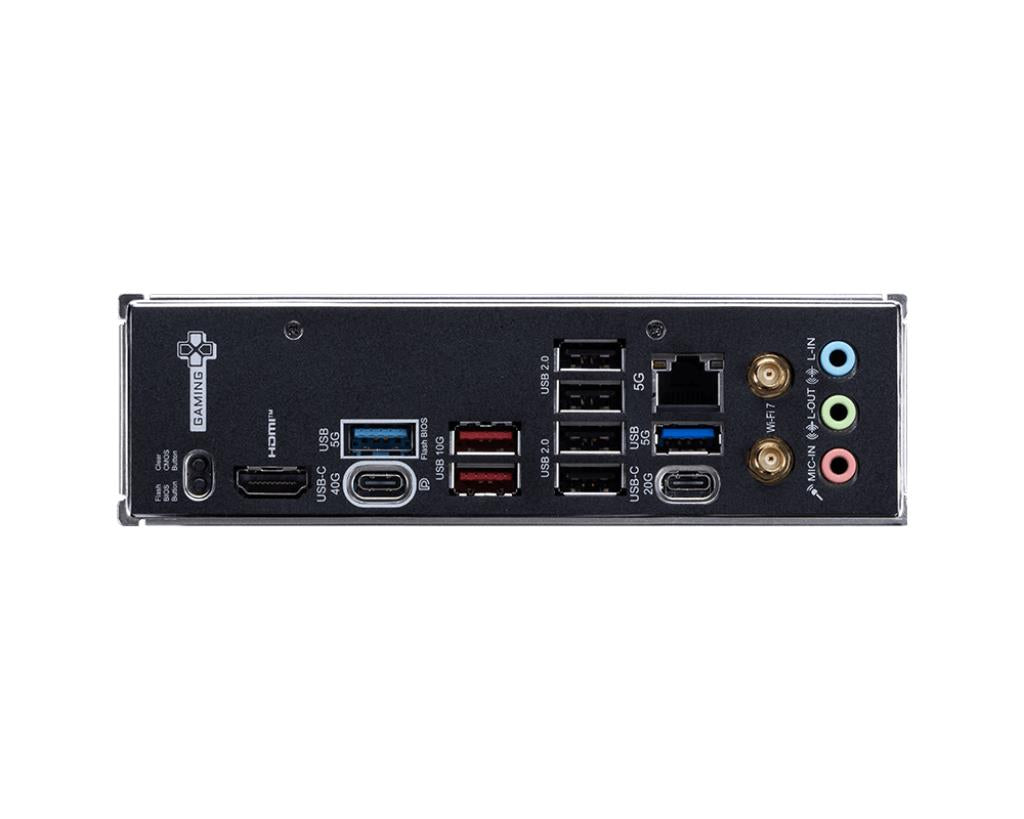

- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost : Reward your ears with studio-grade sound quality for the most immersive gaming experience
SATA 0, 1, 10; NVMe 0, 1, 5
