Description
General Information
- SKU: 1445656
- Manufacturer Product Page: GIGABYTE B650I AX 1.1
- Manufacturer Code: B650I AX 1.1
- Catalog: Mainboards for AMD CPUs
- EAN: 4719331859190
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| CnCode | 84733020 |
| Unit Box Height | 0.065 |
| Unit Box Length | 0.23 |
| Unit Box Width | 0.18 |
| M.2 | 1 |
| PCI-Express 4.0 16x | 1 |
| PCI-Express 4.0 4x | 1 |
| PCI-Express 4.0 8x | 1 |
| Audio port | 3 |
| DisplayPort | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| USB 2.0 | 3 |
| USB 3.2 | 2 |
| USB-C | 1 |
| Bluetooth | Yes |
| SATA | Yes |
| WiFi | Yes |
| Chipset | AMD B650 |
| Socket | SAM5 |
| Form Factor | Mini-ITX |
| Memory type | DDR5 |
| Frequency speed | 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/8000 |
| Memory slots | 2 |
| Integrated video | Depending on CPU |
| Integrated audio | Yes |
| Integrated LAN | 2.5 Gigabit |
| RAID | SATA 0, 1; NVMe 0, 1 |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002691 |
| Product Net Weight | 0.7 |
| Unit Calculated Weight | 0.8 |
Description

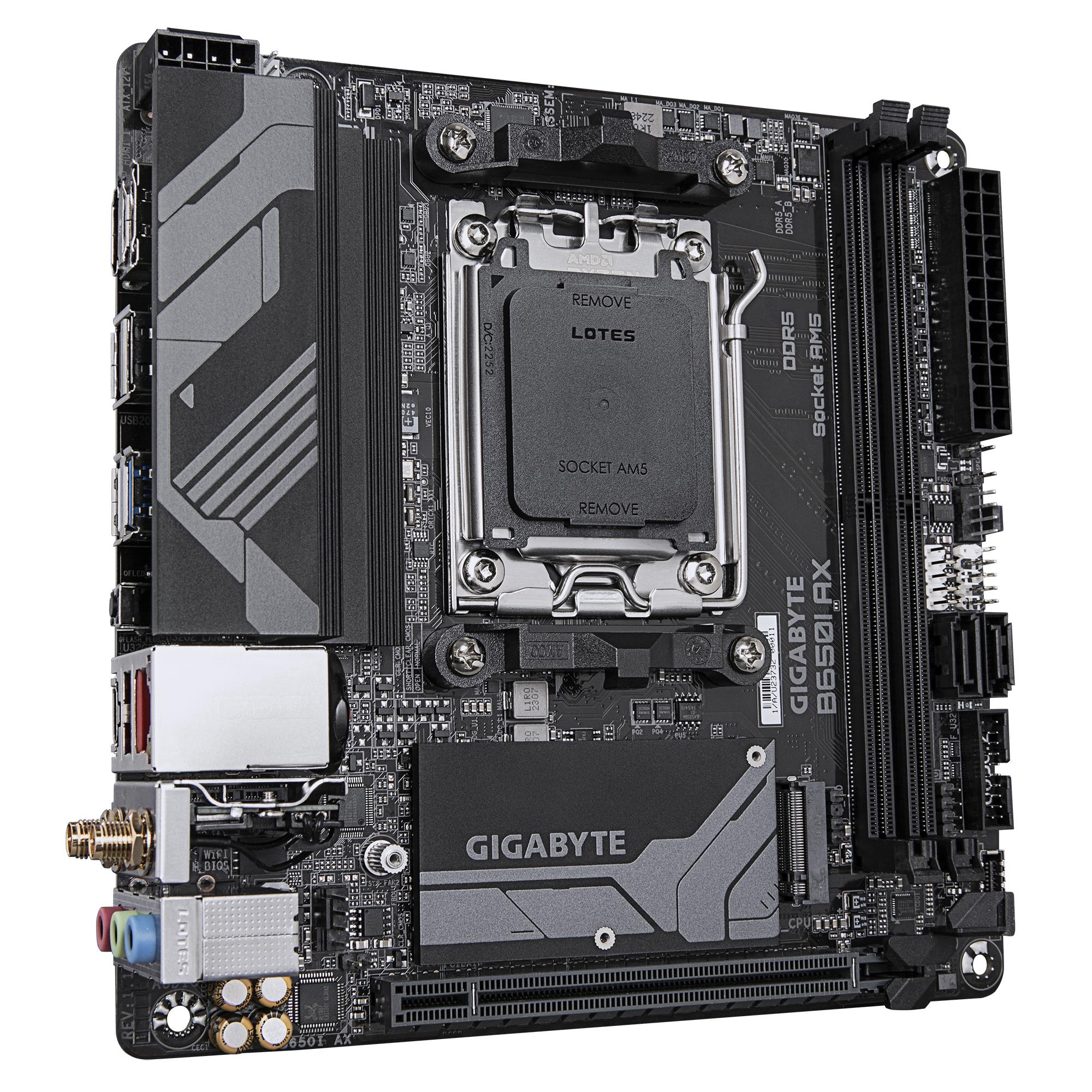

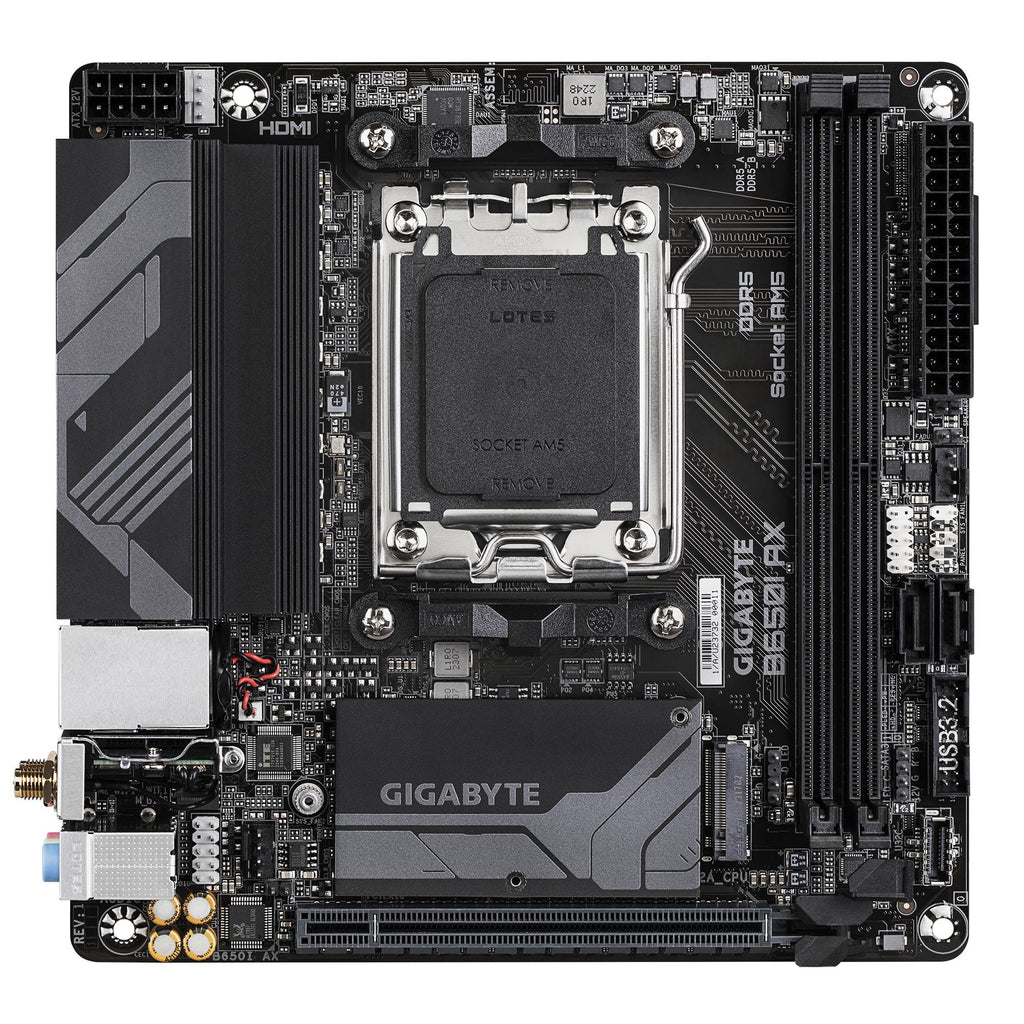

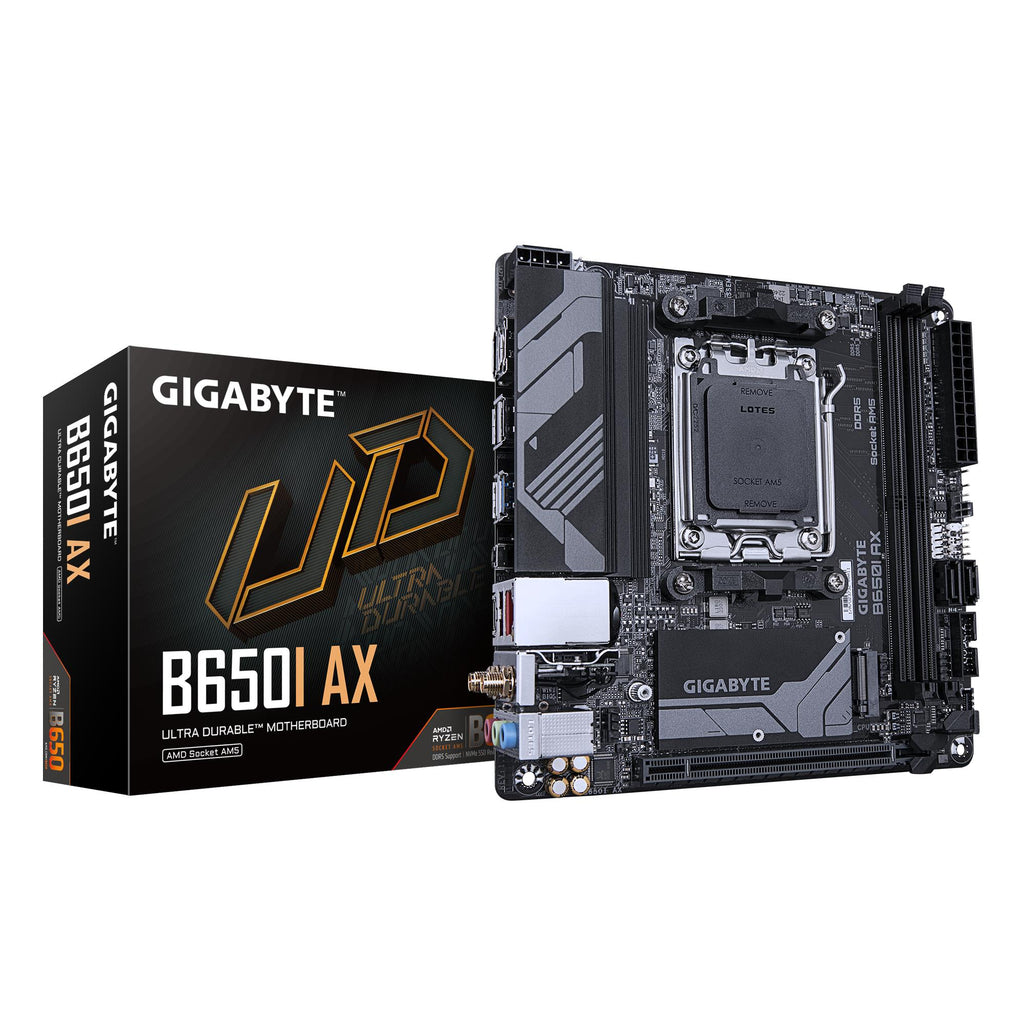

B650I AX (rev. 1.1)
- AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
- Unparalleled Performance：5+2+1 Phases Digital VRM Solution
- Dual Channel DDR5：2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：Wi-Fi 6E 802.11ax & 2.5GbE LAN

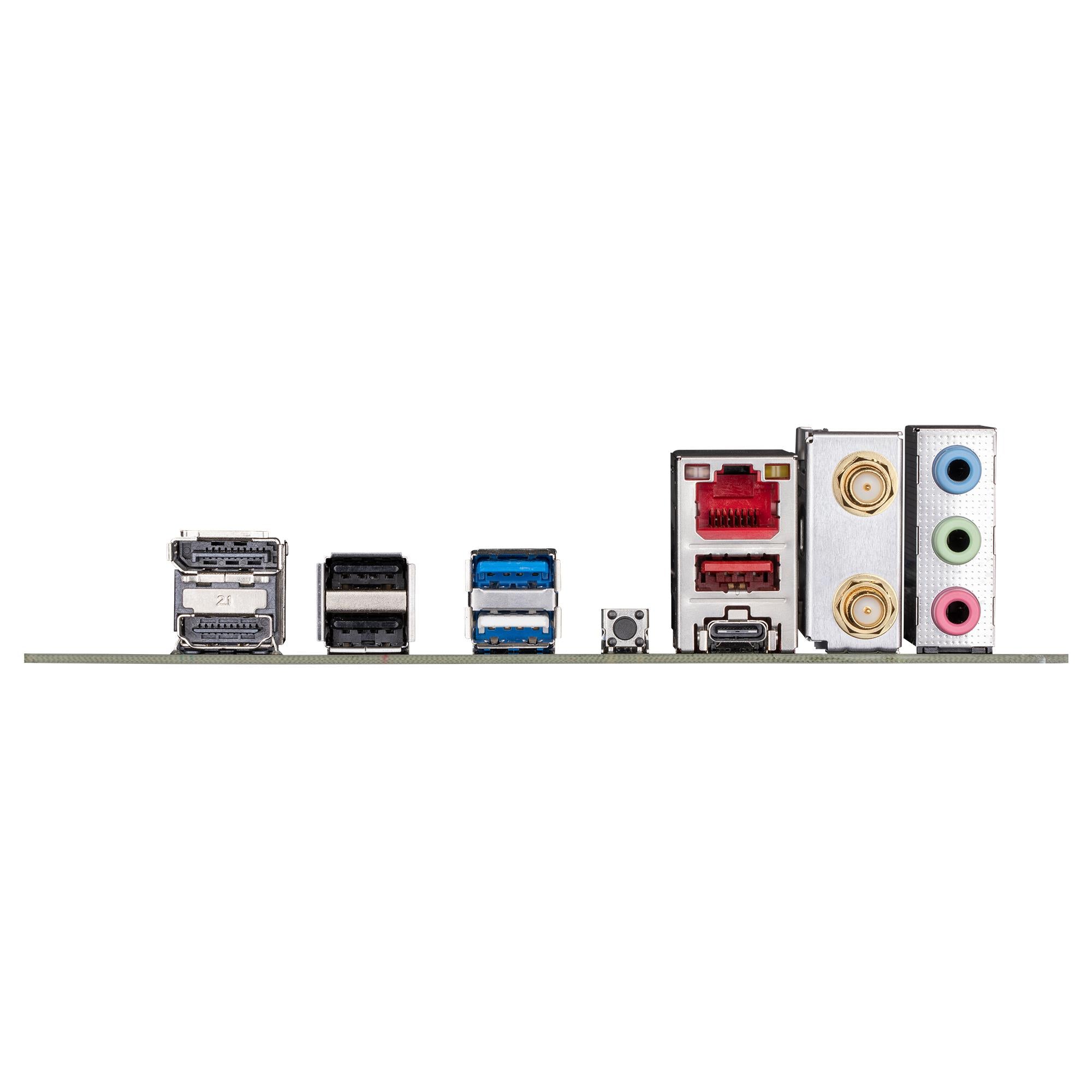

- Extended Connectivity：DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
SATA 0, 1; NVMe 0, 1
