Description
General Information
- SKU: 1443213
- Manufacturer Product Page: TECNOWARE FAL551FSP12
- Manufacturer Code: FAL551FSP12
- Catalog: Desktop Computer PSU
- EAN: 8026475183408
- Warranty: 24 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | PSU |
| Unit Box Height | 0.1 |
| Unit Box Length | 0.2 |
| Unit Box Width | 0.16 |
| AC input frequency | 47 - 63 |
| AC input voltage | 180 - 264 |
| Combined power (+12V) | 360 |
| Combined power (+3.3V) | 170 |
| Combined power (+5V) | 170 |
| Combined power (+5Vsb) | 12.5 |
| Combined power (-12V) | 9.6 |
| Efficiency | 85 |
| Input current | 5 |
| Max output current (+12V) | 30 |
| Max output current (+3.3V) | 23 |
| Max output current (+5V) | 24 |
| Max output current (+5Vsb) | 2.5 |
| Max output current (-12V) | 0.8 |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Overload/Short circuit/Surge protection |
| Total power | 550 |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
| CPU power cable length | 550 |
| CPU power connector (4+4 pin) | Yes |
| Motherboard power cable length | 500 |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| PCI Express power cable length | 500 |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| 80 PLUS certification | No |
| ATX version | 2.31 |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Fan diameter | 120 |
| Number of fans | 1 |
| On/off switch | Yes |
| Product colour | Black |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -15 - 40 |
| Compliance certificates | CE/RoHS |
| Depth | 150 |
| Height | 86 |
| Weight | 1000 |
| Width | 140 |
| Package type | Box |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0032 |
| Unit Calculated Weight | 1 |
Description

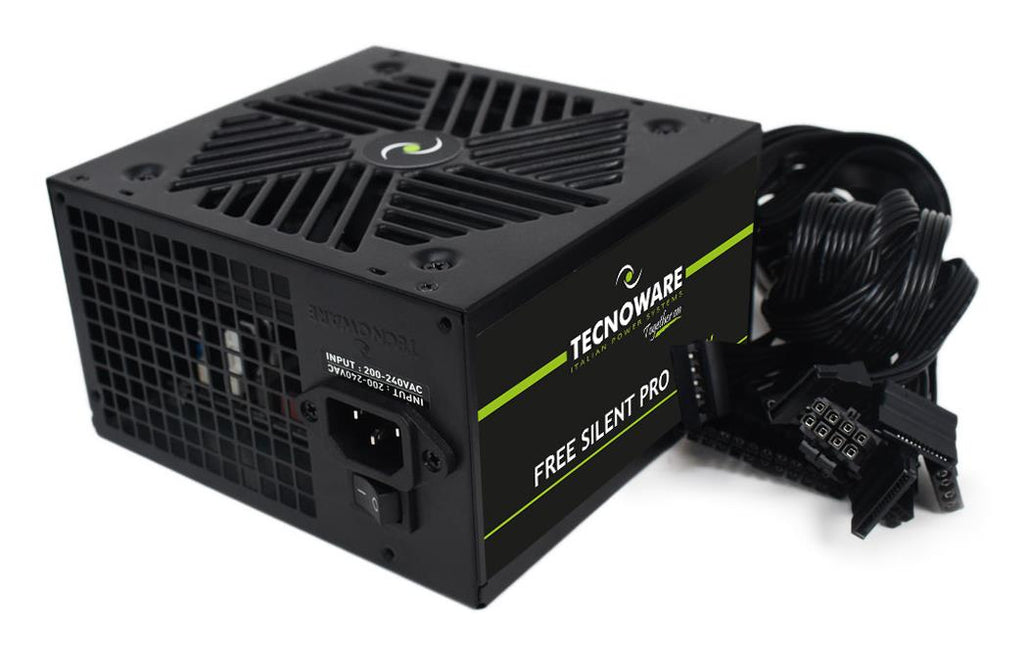

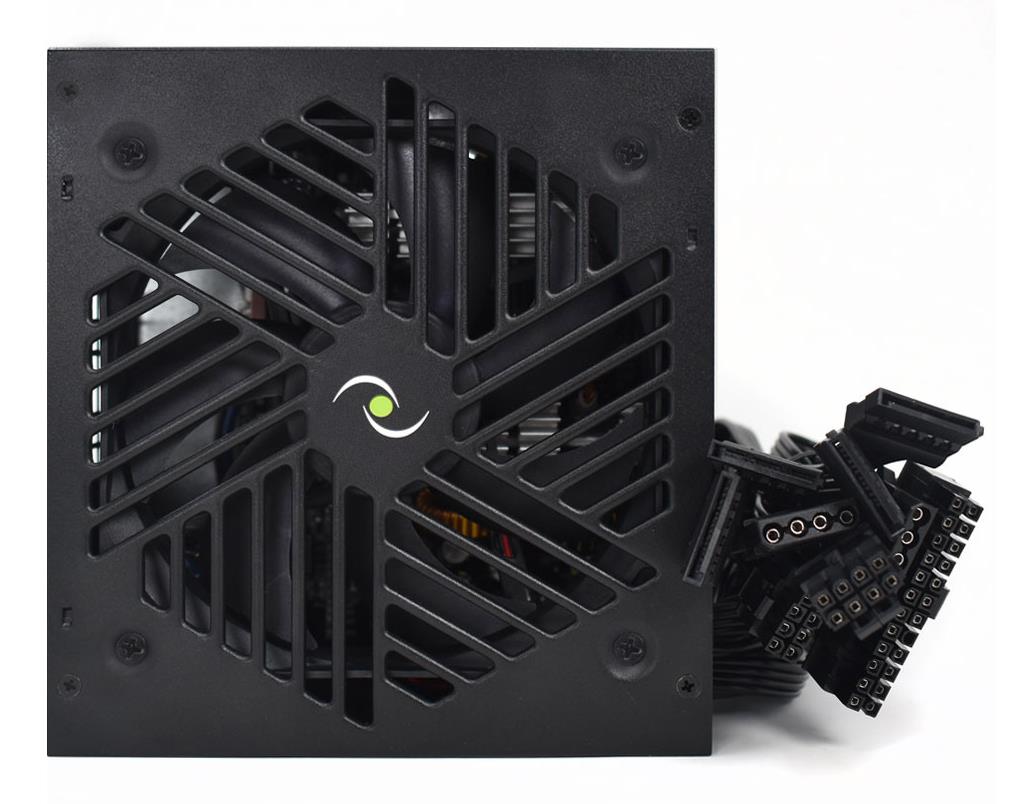

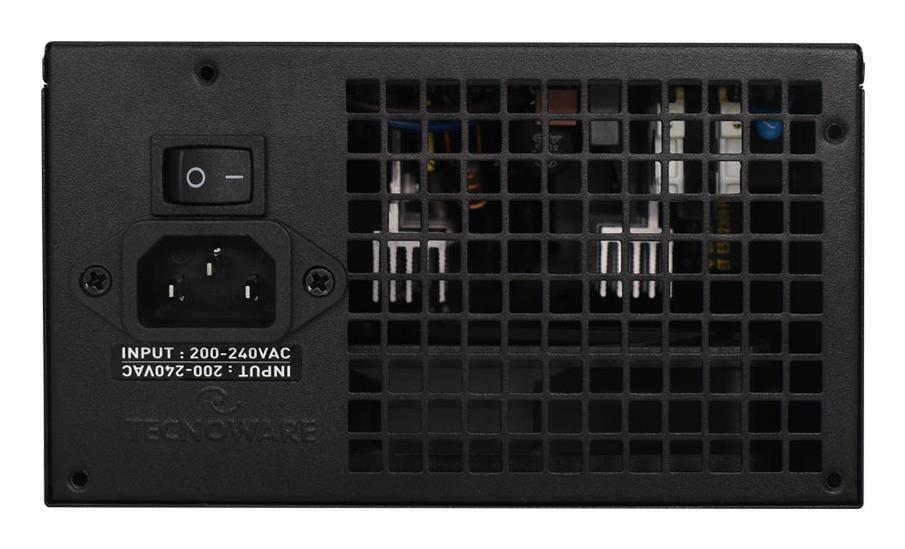

Tecnoware Free Silent PRO 550. Total power: 550 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, PCI Express power cable length: 50 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: CE, RoHS
