Description
General Information
- SKU: 1441451

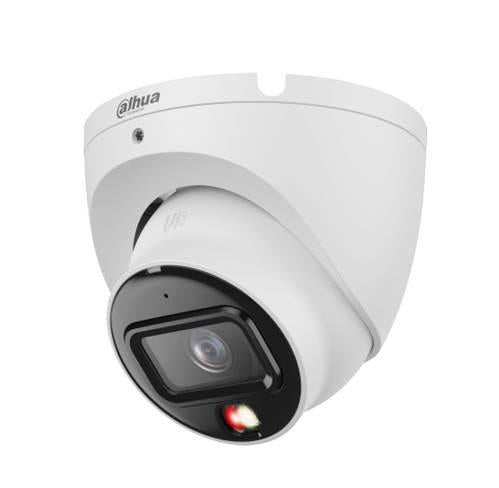

- Manufacturer Product Page: DAHUA IPC-HDW1839T-A-IL-0280B-S6
- Manufacturer Code: IPC-HDW1839T-A-IL-0280B-S6
- Catalog: Network Cameras
- EAN: 6939554931710
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | FNC |
| Unit Box Height | 0.105 |
| Unit Box Length | 0.11 |
| Unit Box Width | 0.11 |
| RJ45 | 1 |
| Camera design | Eyeball |
| Network Camera Type | HDTV/Megapixel/Outdoor |
| Resolution | 8 |
| Focal Length | 2.8mm |
| Sensor size | 1/2.7" |
| Microphone | Built-in |
| Lens Mount | M12 |
| Min. Illumination | 0.0008 |
| Effective pixels | 3840 (H) × 2160 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Power options | 12V/PoE |
| Power supply requirements | 12 VDC/PoE (802.3af) |
| Power consumption | 5.8 |
| Environment | Outdoor |
| Operating temperature range | –40 °C to +55 °C |
| Colour | White |
| Dimensions | 85.6 mm × Φ94.0 mm |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00127 |
| Product Net Weight | 0.35 |
| Unit Calculated Weight | 0.458 |
Description
> 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image. > Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 × 1520@25/30 fps. > H.265 codec, high compression rate, ultra-low bit rate. > Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m. > Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. > ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. > Built in Mic. > 12 VDC/PoE power supply, easy for installation. > IP67 protection. > Supports human detection. > Focal Length 2.8mm. Field of View 110°
material.dahuasecurity.com/uploads/cpq/prm-os-srv-res/smart/datasheetzipfiles/IPC-HDW1839T-A-IL_S6_datasheet_20240415.pdf
12 VDC/PoE (802.3af)
