Description
General Information
- SKU: 1439480
- Manufacturer Product Page: GIGABYTE B850 A ELITE WF7 1.1
- Manufacturer Code: B850 A ELITE WF7 1.1
- Catalog: Mainboards for AMD CPUs
- EAN: 4719331866105
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| Unit Box Height | 0.084 |
| Unit Box Length | 0.338 |
| Unit Box Width | 0.272 |
| M.2 | 3 |
| PCI-Express 3.0 16x | 2 |
| PCI-Express 5.0 16x | 1 |
| Audio port | 2 |
| DisplayPort | 1 |
| Optical S/PDIF | 1 |
| RJ45 | 1 |
| USB 2.0 | 4 |
| USB 3.2 | 7 |
| USB-C | 1 |
| Bluetooth | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| USB-C | Yes |
| WiFi | Yes |
| Chipset | AMD B850 |
| Socket | SAM5 |
| Form Factor | ATX |
| Memory type | DDR5 |
| Frequency speed | 4400/4800/5200/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated audio | Realtek ALC1220 |
| Integrated LAN | 2.5 Gigabit |
| RAID | SATA 0, 1, 10; NVMe 0, 1, 5, 10 |
| TPM | Header |
| Units per Shipping Box | 6 |
| Unit Calculated Volume | 0.01047 |
| Product Net Weight | 1.5 |
| Unit Calculated Weight | 2.53 |
Description

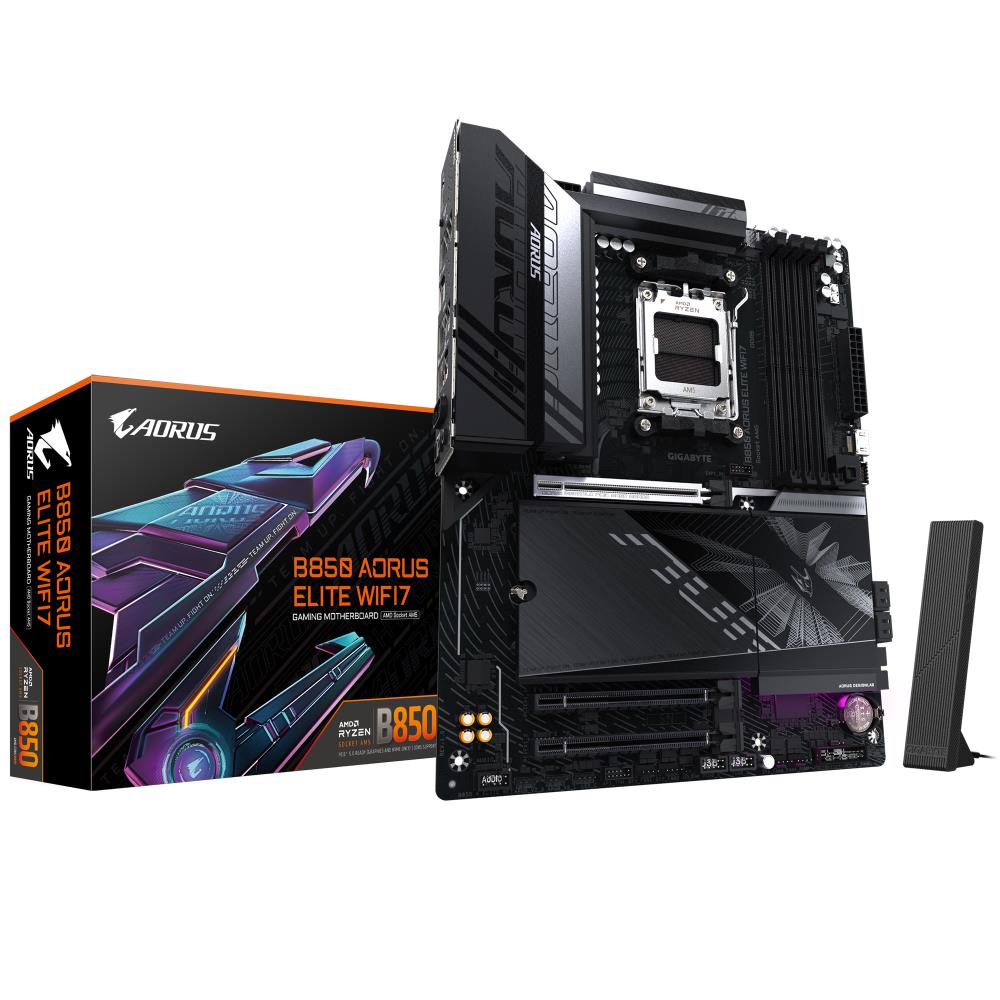

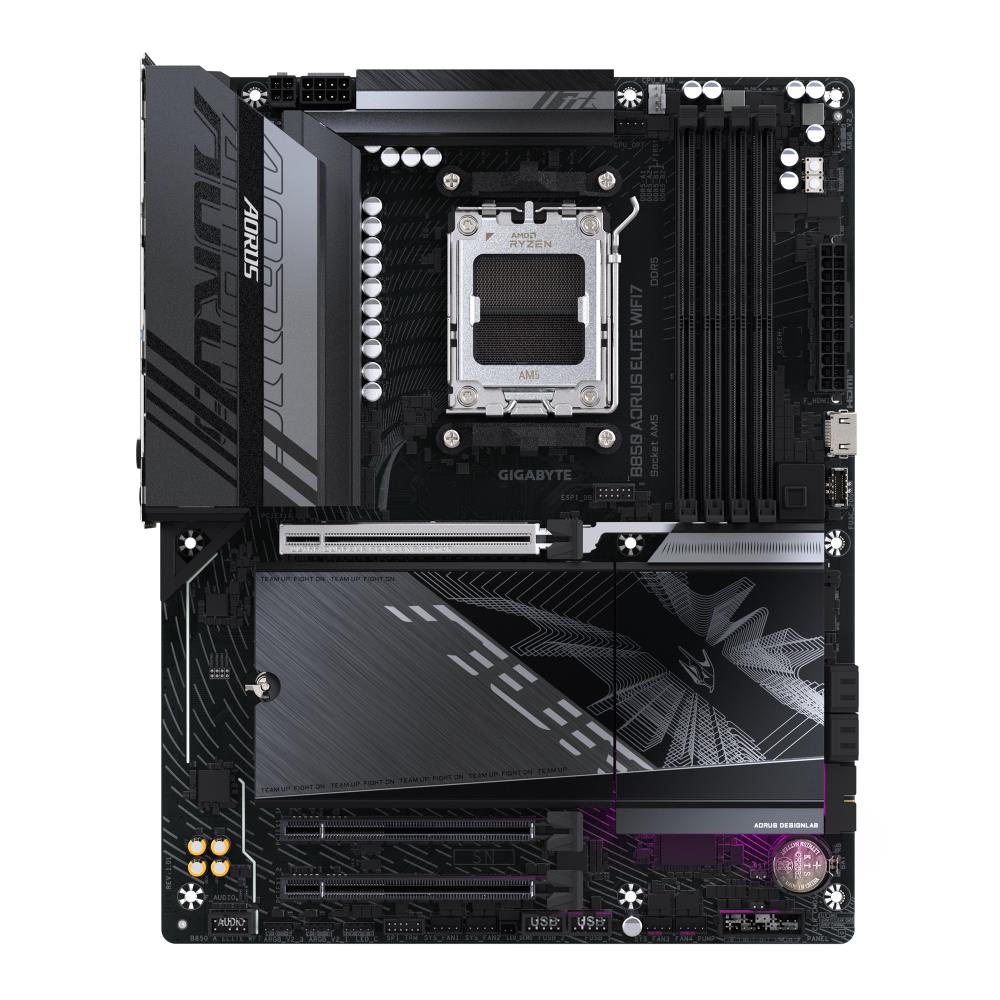

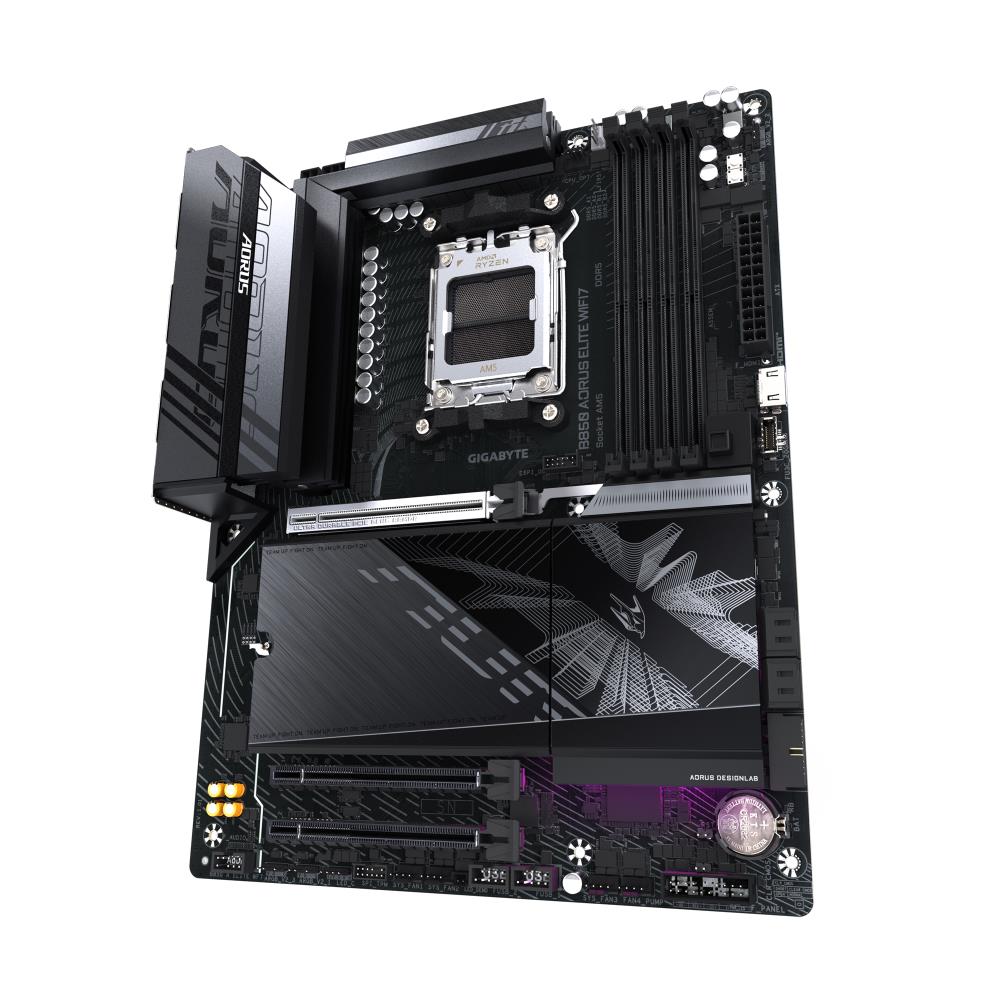

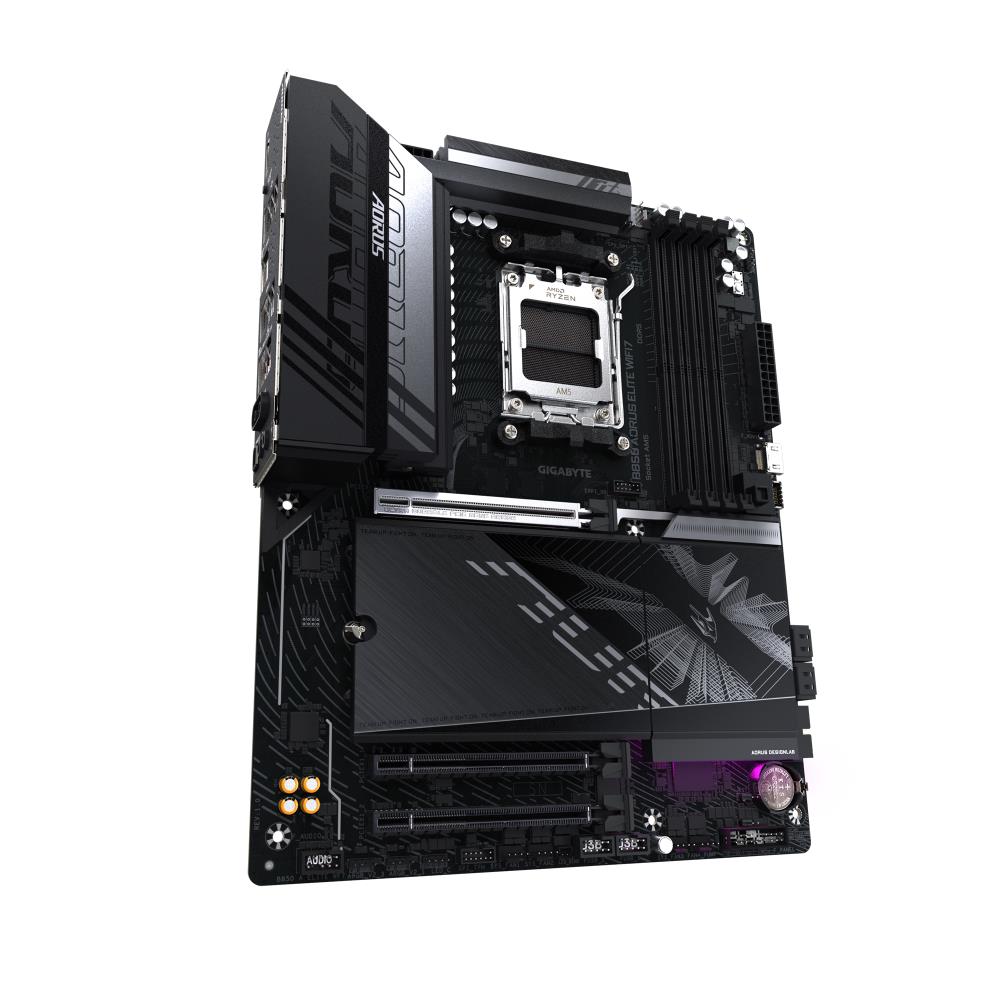

B850 AORUS ELITE WIFI7
- X3D Turbo Mode : Unleash new era gaming performance
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 14+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Sensor Panel Link : Onboard video port for hassle-free in-chassis panel setup
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 3*M.2 slots, including PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- Fast Networking : 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

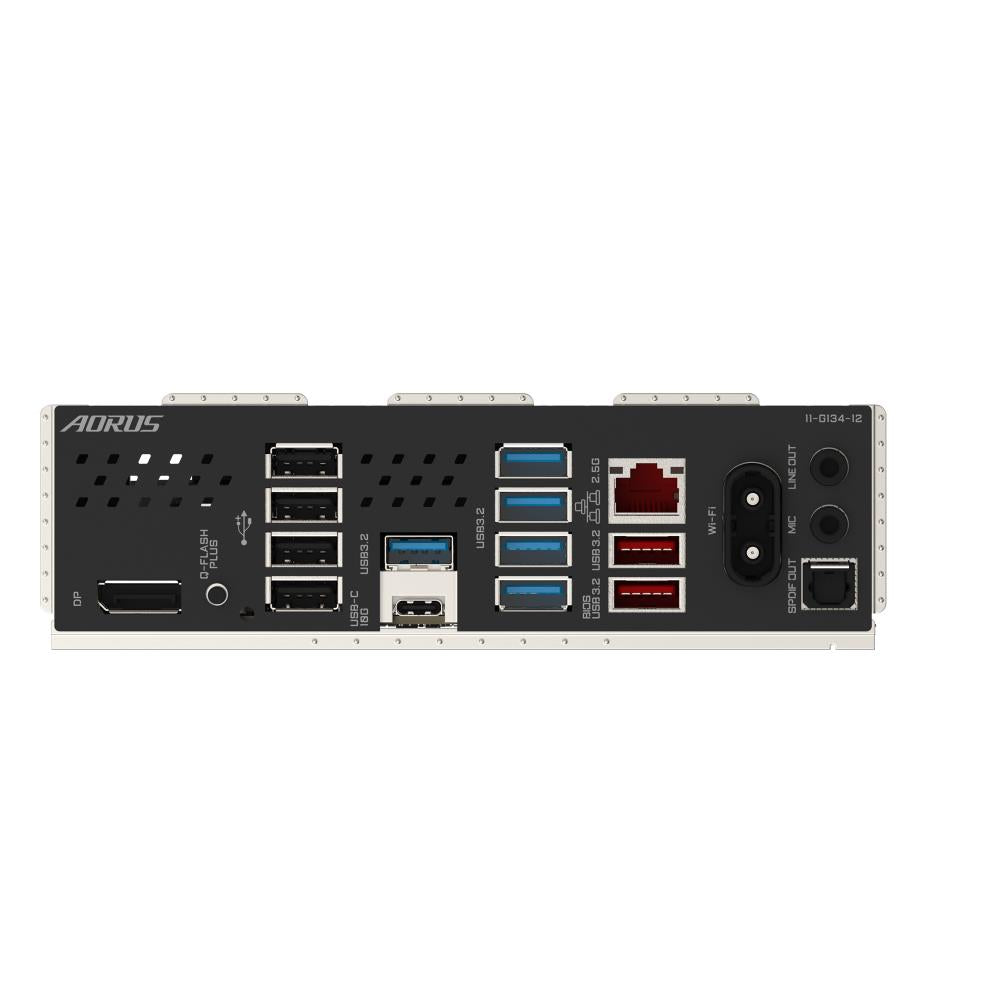

- Extended Connectivity : HDMI,Displayport
- PCIe UD Slot : PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
SATA 0, 1, 10; NVMe 0, 1, 5, 10
