Description
General Information
- SKU: 1437738
- Manufacturer Product Page: DAHUA TPC-BF2241-TB7F8-DW-S2
- Manufacturer Code: TPC-BF2241-TB7F8-DW-S2
- Catalog: Network Cameras
- EAN: 6923172532695
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | FNC |
| Unit Box Height | 0.18 |
| Unit Box Length | 0.365 |
| Unit Box Width | 0.18 |
| Alarm In | 1 |
| Alarm Out | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| MicroSD Card Slot | 1 |
| RJ45 | 1 |
| RS-485 | 1 |
| Camera design | Bullet |
| Network Camera Type | Outdoor/Thermal |
| Resolution | 4 |
| Focal Length | Thermal - 7mm, visual - 8mm |
| IR Illumination | Yes |
| Sensor size | 1/2.7" CMOS |
| Min. Illumination | 0.005 |
| Effective pixels | 256 (H) × 192 (V) |
| Electronic Shutter Speed | 1 s–1/30,000 s |
| Supports card capacities up to | 256GB |
| Power options | 12V/PoE |
| Power supply requirements | 12 VDC, 1 A ± 20%, PoE (802.3af) |
| Power consumption | 5 |
| Environment | Outdoor |
| Operating temperature range | –30 °C to +60 °C (–22 °F to +140 °F) |
| Dimensions | 279.9 mm × 103.8 mm × 95.8 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01183 |
| Product Net Weight | 1.4 |
| Unit Calculated Weight | 1.93 |
Description

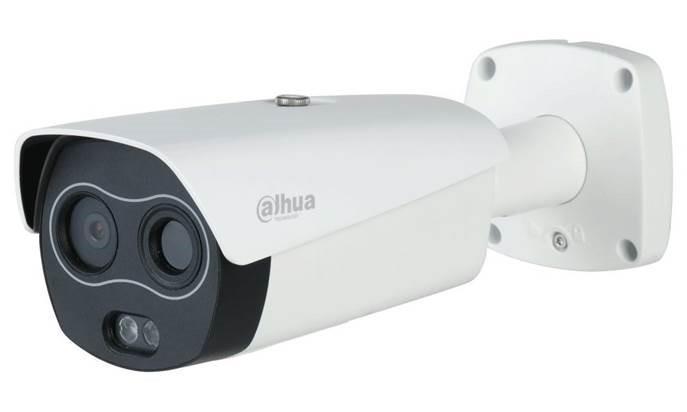

Thermal Network Hybrid Bullet Camera > Vanadium oxide uncooled focal plane detector. > 4Megapixel progressive scan CMOS. > Offers various AI functions such as intrusion, target filtering, heat detection, smoking detection, and calling detection. > Built-in white light and speaker that produce light and sound alarms to deter intruders. > Built-in IR LED with a maximum illumination distance of 35 m. > Dual image fusion (visible and thermal images). > 12 VDC ± 20%/PoE power supply. > IP67 rated. > Thermal Focal Length 7 mm, Field of View 24° > Visual Focal Length 8 mm, Field of View 33.4°
Thermal - 7mm, visual - 8mm
12 VDC, 1 A ± 20%, PoE (802.3af)
–30 °C to +60 °C (–22 °F to +140 °F)
279.9 mm × 103.8 mm × 95.8 mm
