Description
General Information
- SKU: 1436692
- Manufacturer Product Page: TP-LINK SG6654XHP
- Manufacturer Code: SG6654XHP
- Catalog: Switches
- EAN:
- Warranty: 60 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | SWI |
| Unit Box Height | 0.17 |
| Unit Box Length | 0.655 |
| Unit Box Width | 0.63 |
| ARP inspection | Yes |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45/USB Type-C |
| SFP+ module slots quantity | 6 |
| USB 2.0 ports quantity | 2 |
| 10G support | No |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 |
| Flow control support | Yes |
| IP routing | Yes |
| Networking standards | IEEE 802.1p/IEEE 802.1Q/IEEE 802.3x |
| Number of VLANs | 4000 |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | MAC address-based VLAN/Multicast VLAN/Private VLAN/Voice VLAN |
| VLAN support | Yes |
| Forwarding rate | 160.7 |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 32000 |
| Packet buffer memory | 3 |
| Static route | Yes |
| Switching capacity | 216 |
| Access Control List (ACL) | Yes |
| Authentication | Auto VLAN,MAC-based authentication,Port-based authentication |
| Authentication type | RADIUS |
| DHCP features | DHCP relay/DHCP snooping/DHCPv6 snooping |
| IGMP entries | 2048 |
| IGMP snooping | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
| Multicast support | Yes |
| Form factor | 1U |
| LED indicators | Yes |
| Number of fans | 4 |
| Product colour | Black |
| Rack mounting | Yes |
| Stackable | Yes |
| AC input frequency | 50/60 |
| AC input voltage | 100 - 240 |
| Power consumption (max) | 1767.7 |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 |
| Power over Ethernet plus (PoE+) ports quantity | 48 |
| Total Power over Ethernet (PoE) budget | 1440 |
| Heat dissipation | 6027.86 |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -5 - 40 |
| Storage relative humidity (H-H) | 5 - 90 |
| Storage temperature (T-T) | -40 - 70 |
| Depth | 420 |
| Height | 44 |
| Width | 440 |
| Cables included | AC/LAN (RJ-45) |
| Manual | Yes |
| Series | Omada |
| Units per Pallet | 0 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.07015 |
| Unit Calculated Weight | 13.8 |
Description

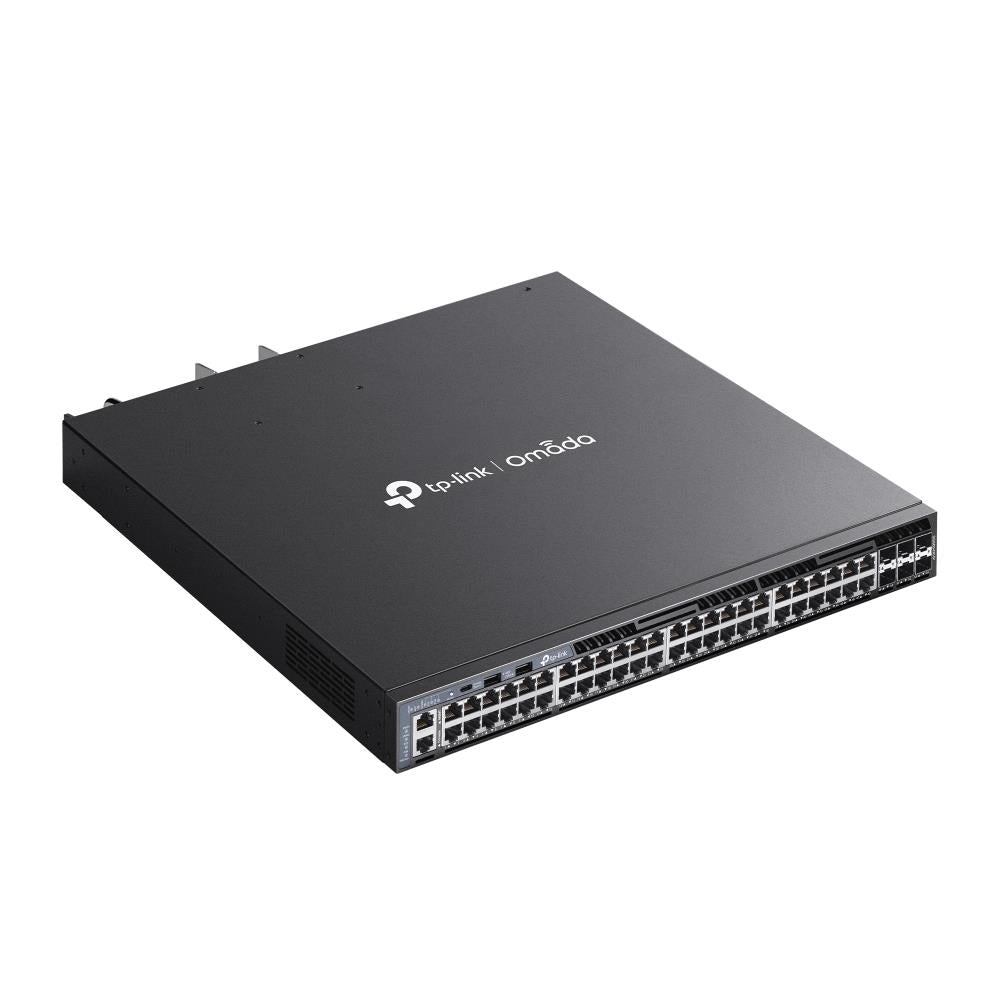

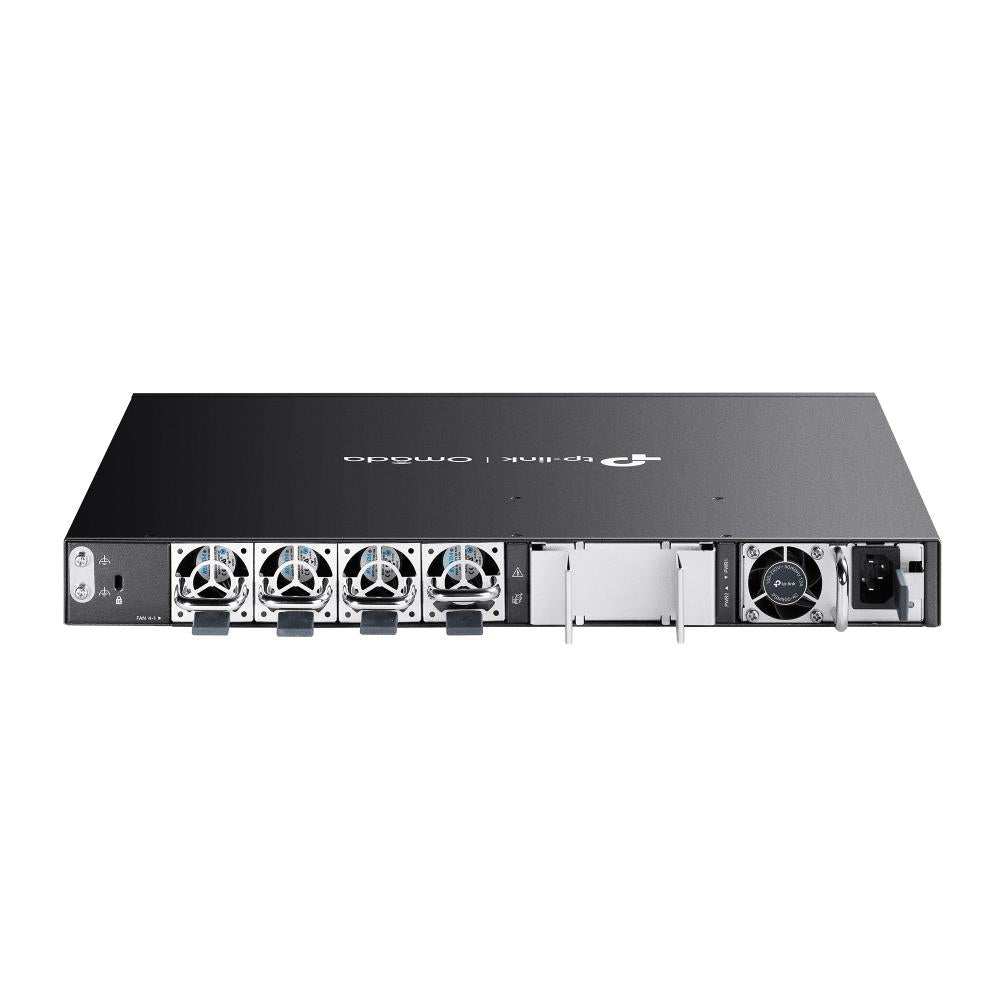

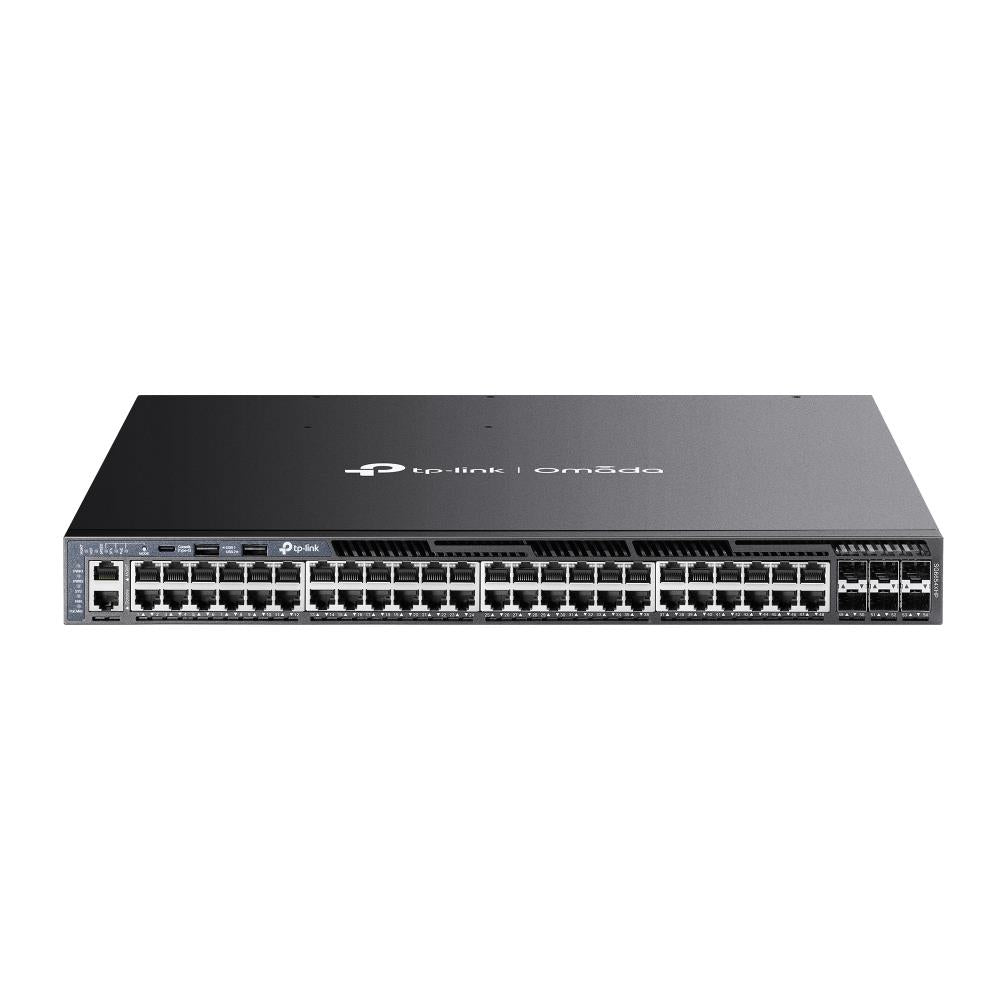

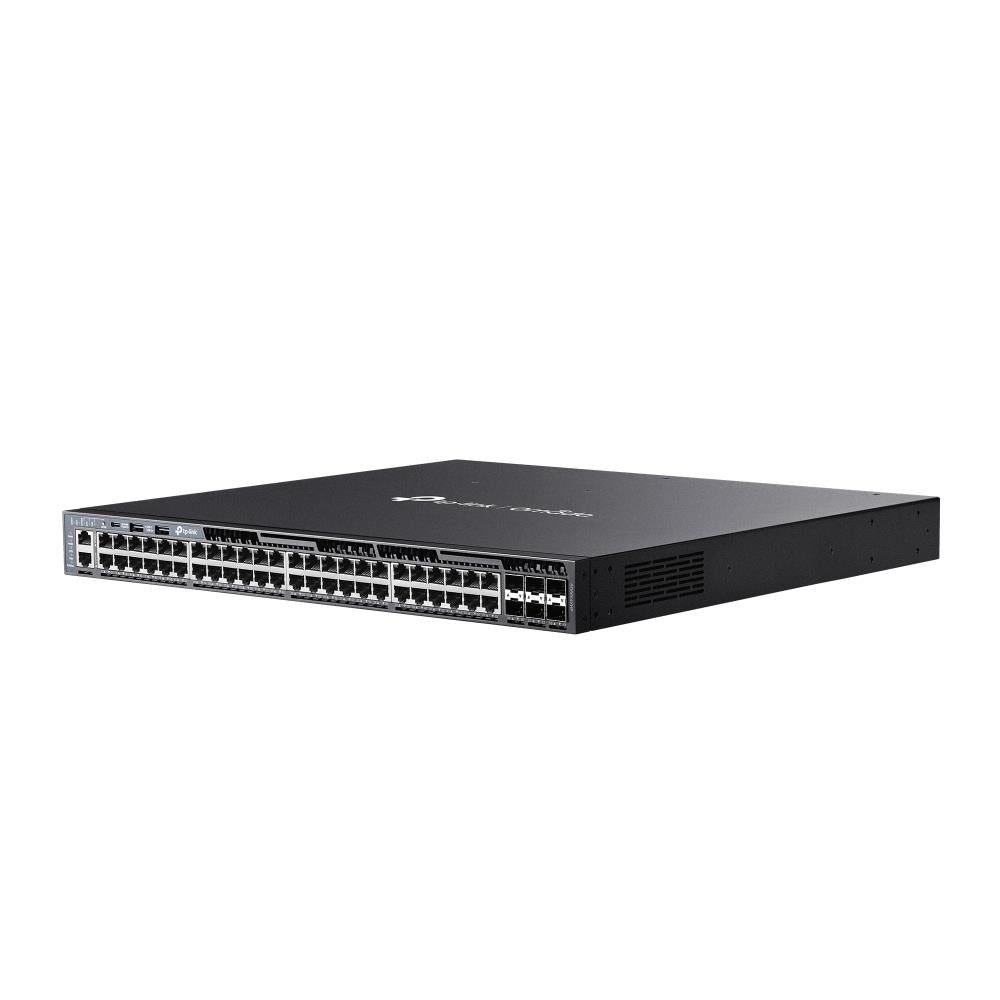

TP-Link Omada 48-Port Gigabit Stackable L3 Managed PoE+ Switch with 6 10G Slots. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 2, Console port: RJ-45/USB Type-C. MAC address table: 32000 entries, Switching capacity: 216 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
IEEE 802.1p/IEEE 802.1Q/IEEE 802.3x
MAC address-based VLAN/Multicast VLAN/Private VLAN/Voice VLAN
