Description
General Information
- SKU: 1436330
- Manufacturer Product Page: GIGABYTE H810M S2H
- Manufacturer Code: H810M S2H
- Catalog: Mainboards for Intel CPUs
- EAN: 4719331869168
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBI |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.265 |
| Unit Box Width | 0.27 |
| M.2 | 1 |
| PCI-Express 4.0 16x | 1 |
| 15pin D-sub | 1 |
| Audio port | 3 |
| DisplayPort | 1 |
| HDMI | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | 5 |
| USB 3.2 | 1 |
| SATA | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| Socket | LGA1851 |
| Form Factor | Micro-ATX |
| Memory type | DDR5 |
| Frequency speed | 5600/6400 |
| Memory slots | 2 |
| Integrated video | Depending on CPU |
| Integrated LAN | Gigabit |
| Integrated audio | Yes |
| RAID | SATA 0, 1, 5, 10 |
| Units per Pallet | 0 |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.00471 |
| Product Net Weight | 0.5 |
| Unit Calculated Weight | 0.875 |
Description

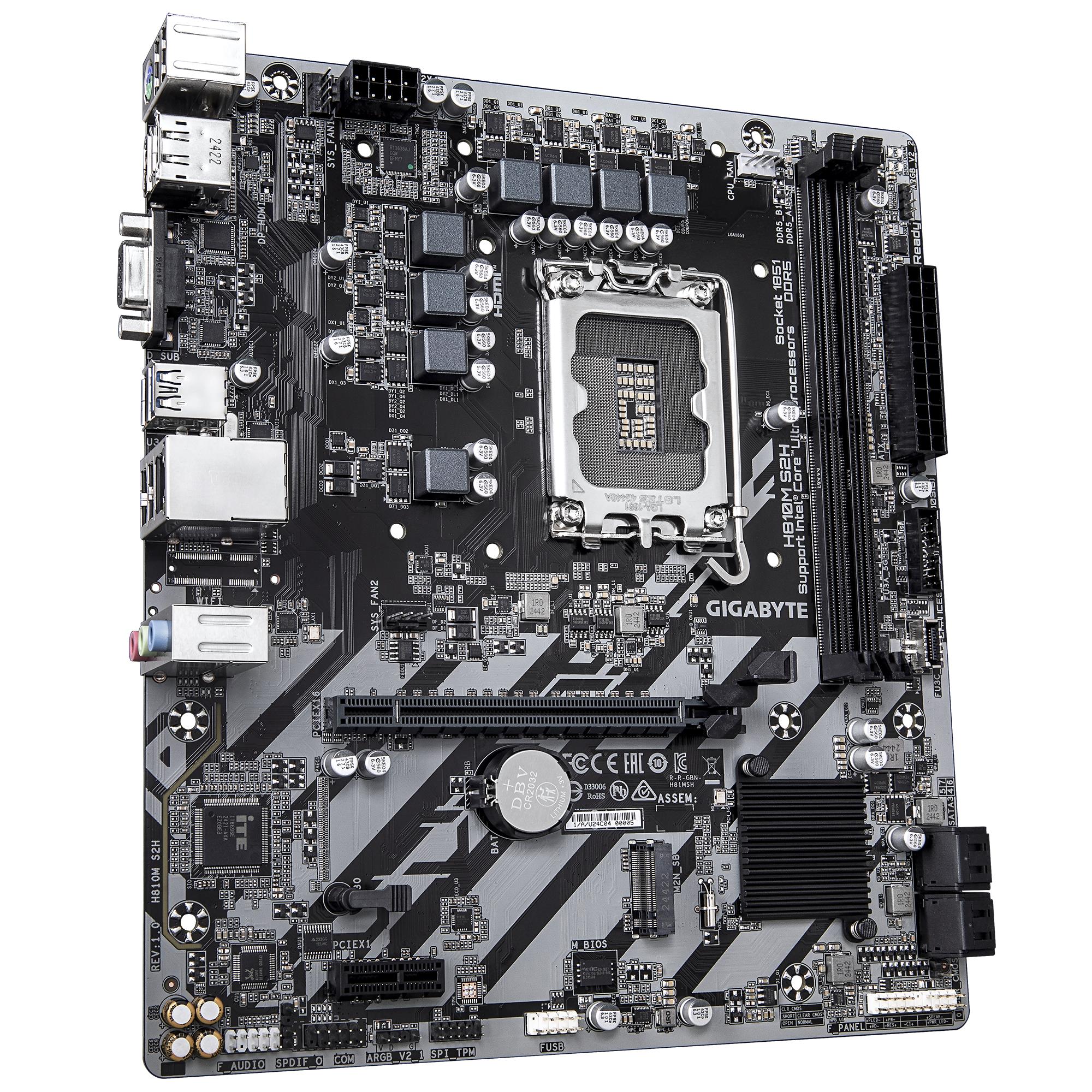

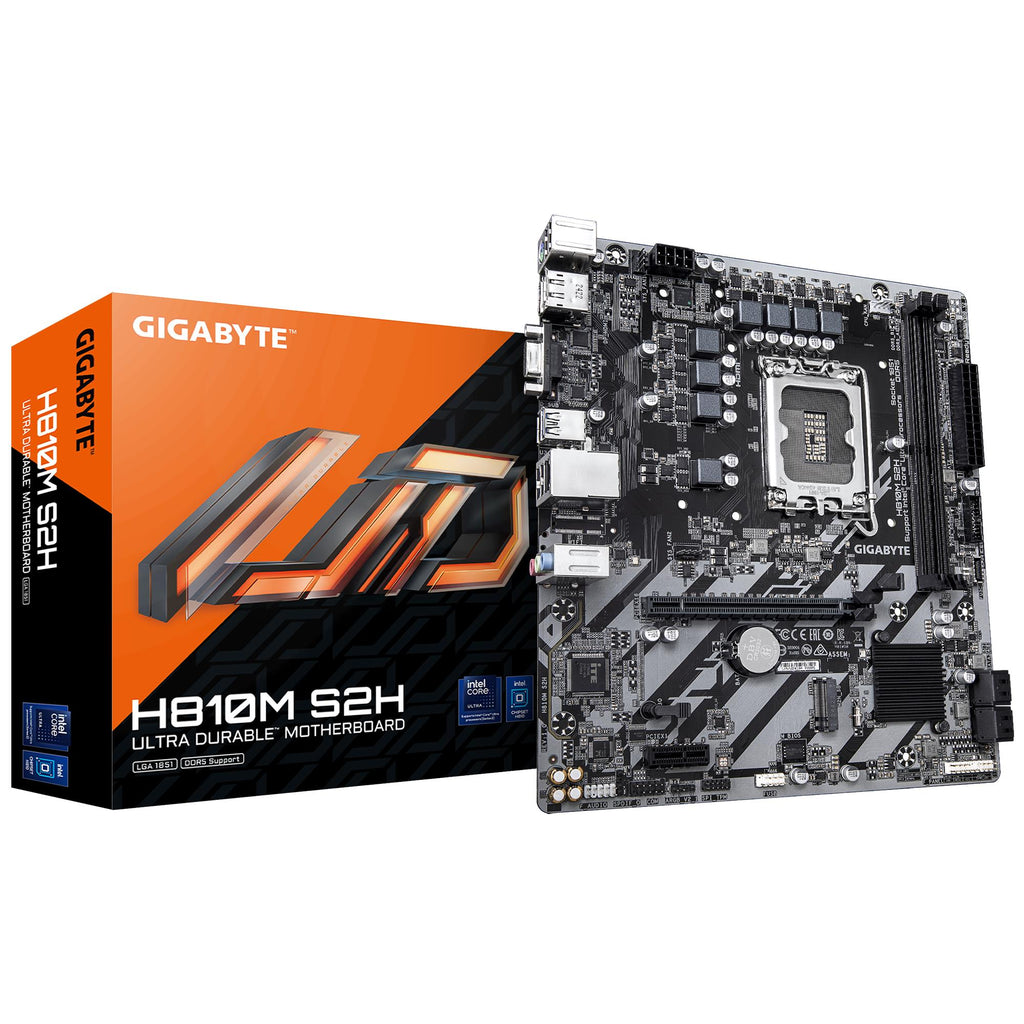

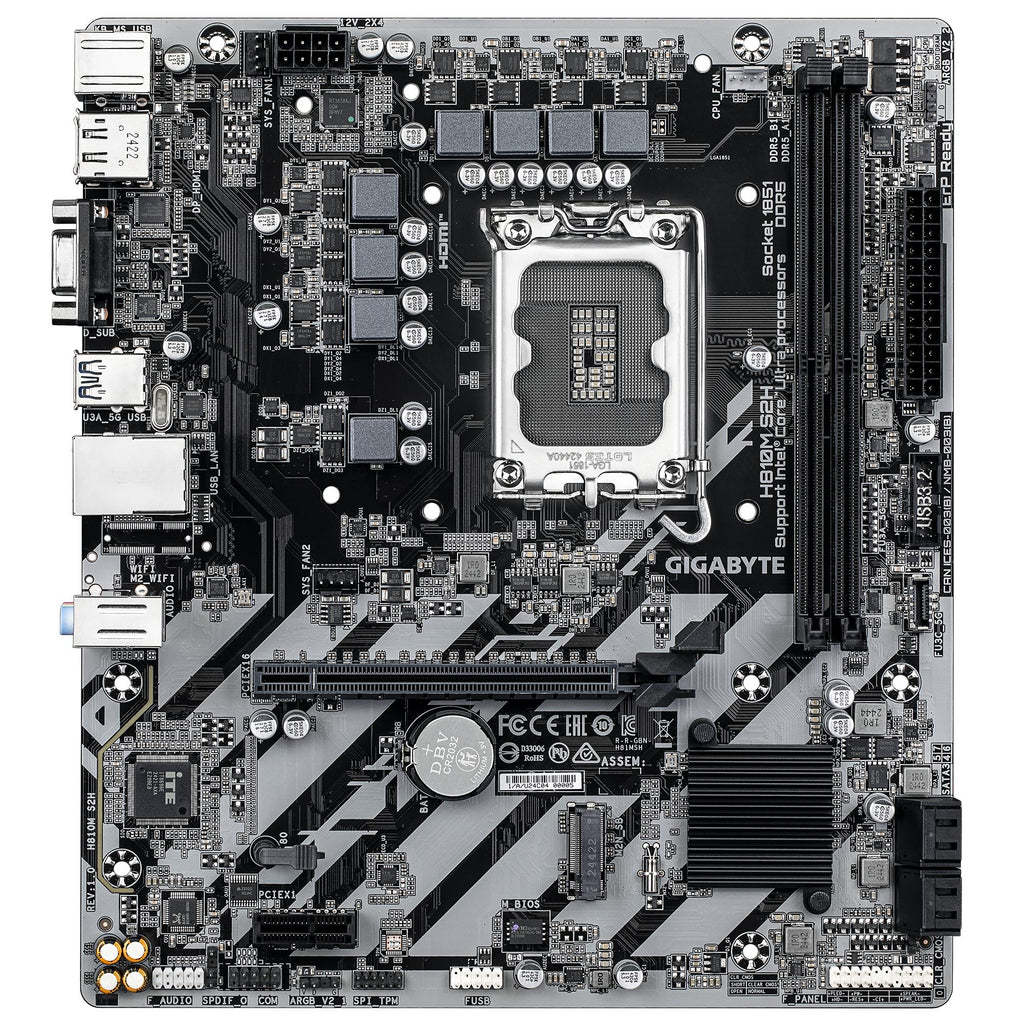

H810M S2H
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 4+1+2 phases VRM solution
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
- Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
- Fast Networking: GbE LAN

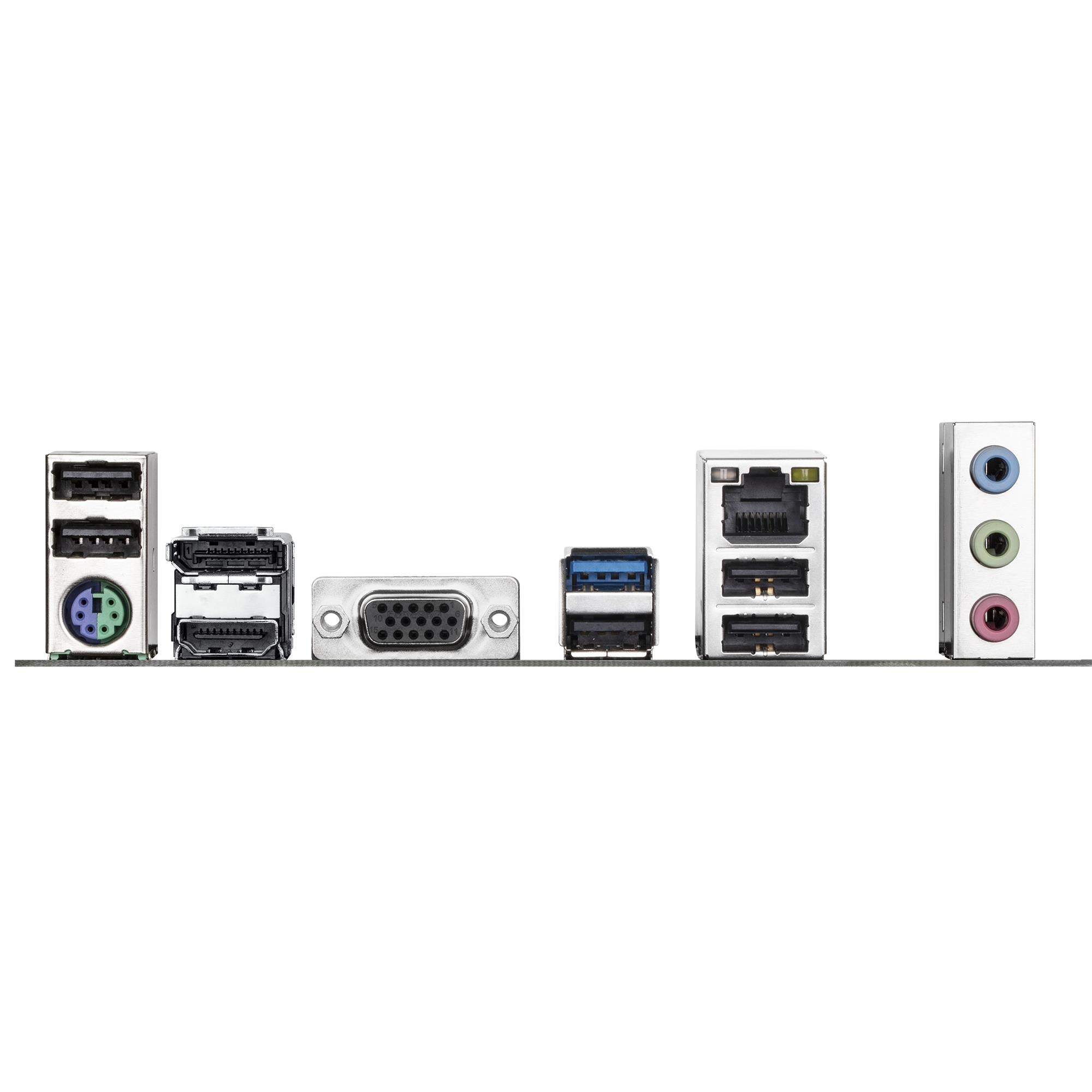

- Extended Connectivity: DisplayPort, HDMI, D-Sub
