Description
General Information
- SKU: 1433291

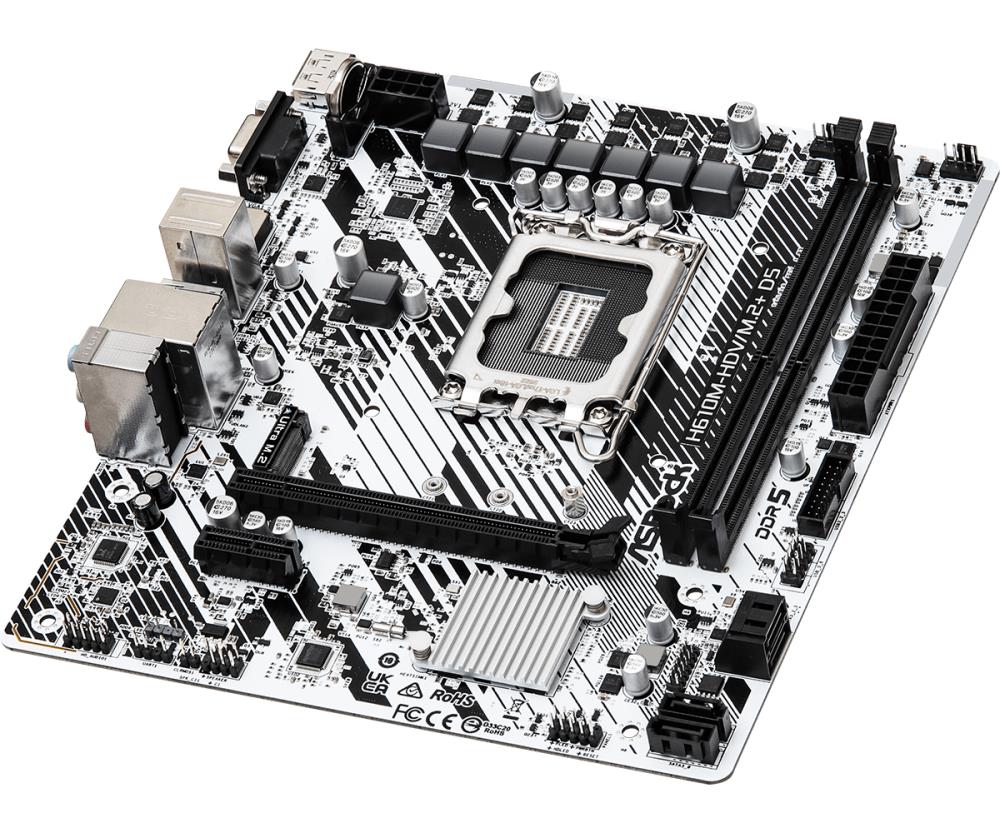

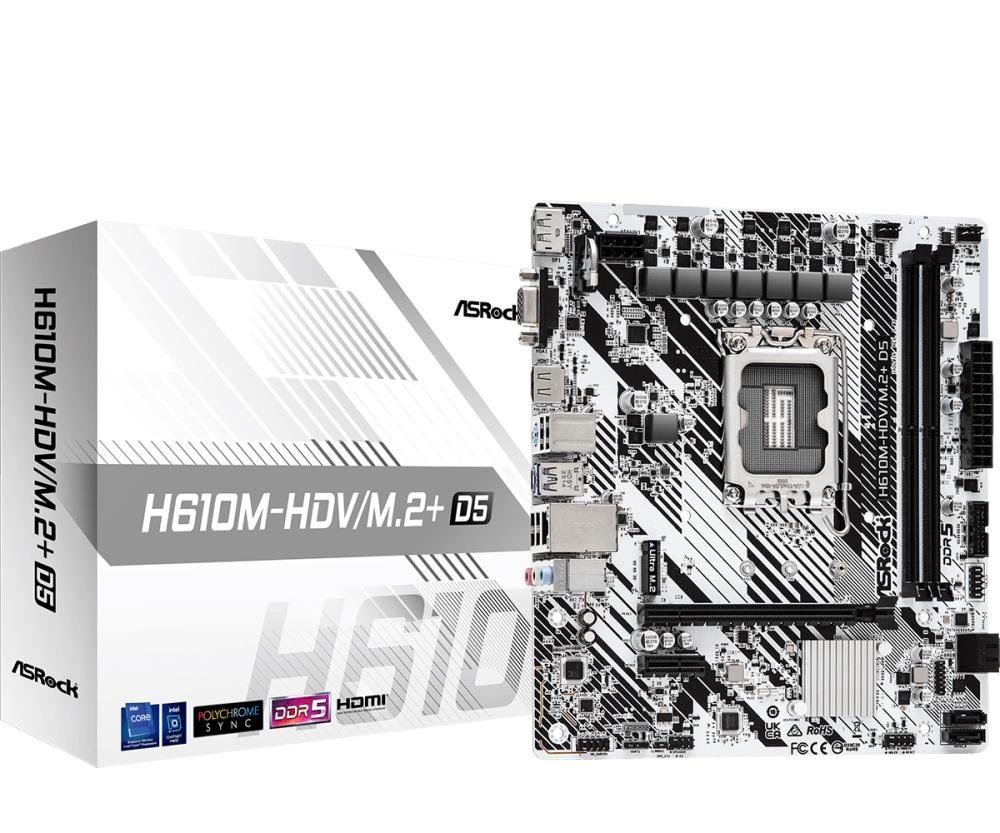

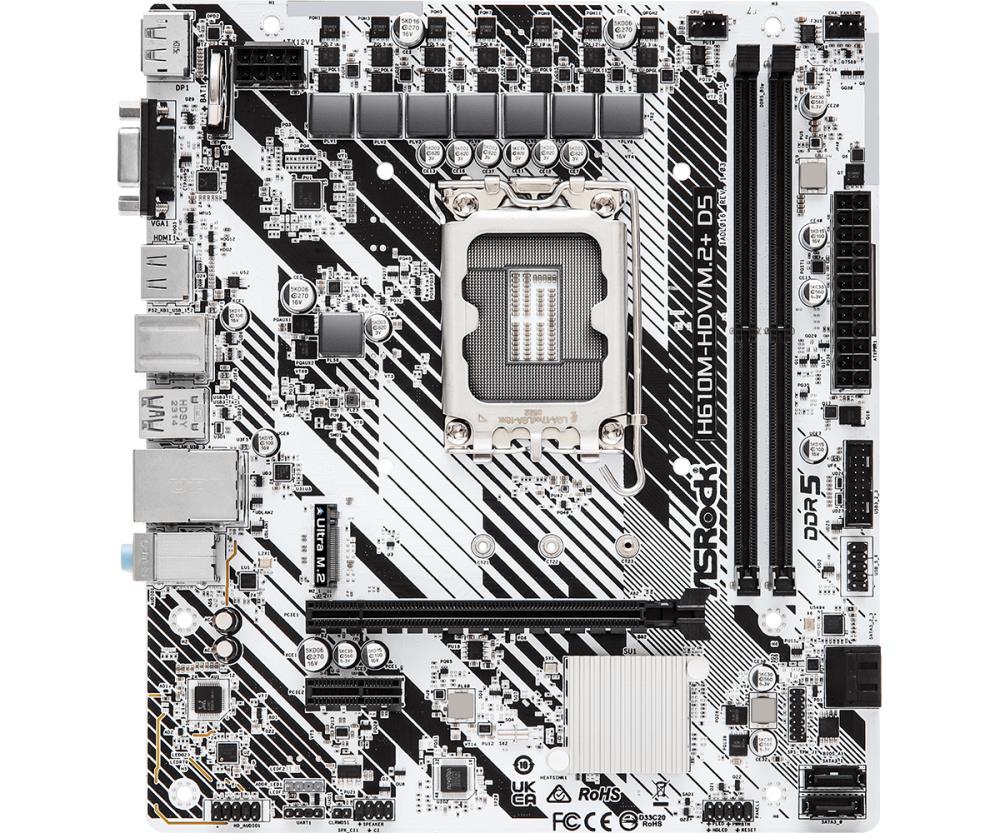

- Manufacturer Product Page: ASROCK H610M-HDV/M.2+ D5
- Manufacturer Code: H610M-HDV/M.2+ D5
- Catalog: Mainboards for Intel CPUs
- EAN: 4710483943478
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBI |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.275 |
| Unit Box Width | 0.24 |
| M.2 | 1 |
| PCI-Express 3.0 1x | 1 |
| PCI-Express 4.0 16x | 1 |
| 15pin D-sub | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| DisplayPort | 1 |
| HDMI | 1 |
| Microphone | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | 4 |
| USB 3.2 | 1 |
| USB-C | 1 |
| SATA | Yes |
| SATA 3.0 | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| Chipset | Intel H610 |
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Memory type | DDR5 |
| Frequency speed | 4800/4866/4933/5000/5066/5100/5133/5200/5300/5333/5400/5500/5600 |
| Memory slots | 2 |
| Integrated video | Depending on CPU |
| Integrated LAN | Gigabit |
| Integrated audio | Realtek ALC897 |
| TPM | Header |
| Units per Shipping Box | 20 |
| Unit Calculated Volume | 0.004268 |
| Product Net Weight | 0.6 |
| Unit Calculated Weight | 0.78 |
Description

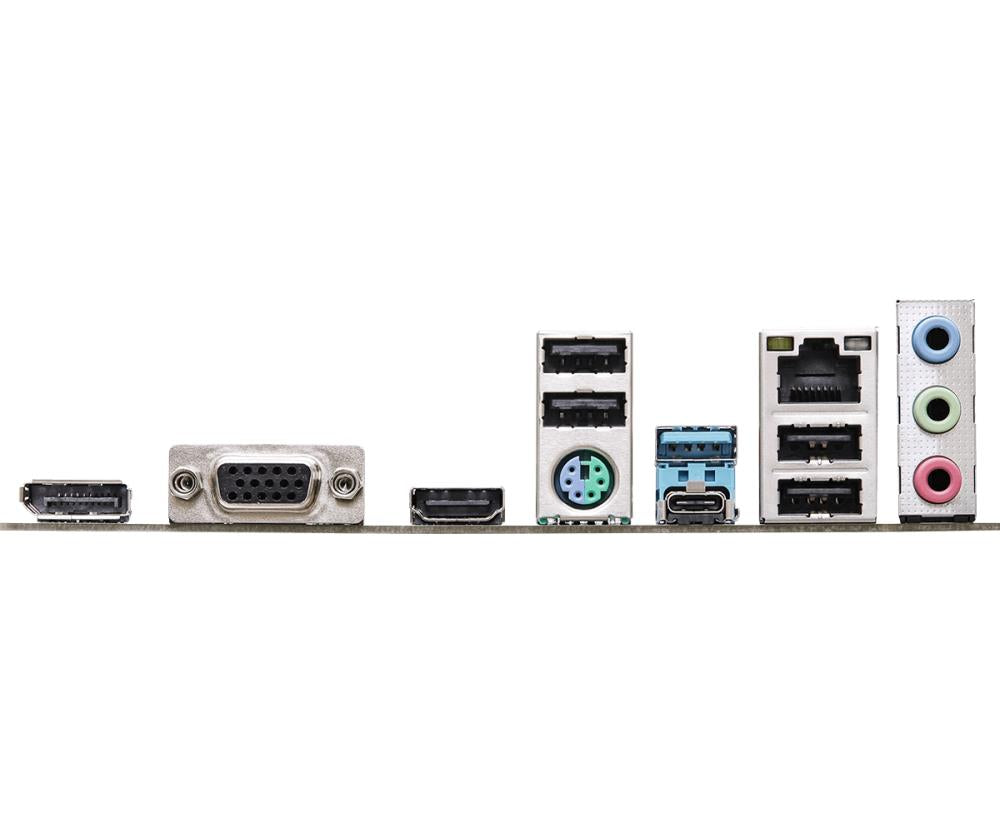

Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700) 6+1+1 Power Phase 2 x DDR5 DIMMs Supports Dual Channel, up to 5600* 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 Graphics Output Options: HDMI, DisplayPort, D-Sub Realtek ALC897 7.1 CH HD Audio Codec 4 SATA3, 1 Ultra M.2 (PCIe Gen3x4) 1 USB 3.2 Gen1 Type-C (Rear), 3 USB 3.2 Gen1 Type-A (1 Rear, 2 Front), 6 USB 2.0 (4 Rear, 2 Front) Realtek Gigabit LAN
