Description
General Information
- SKU: 1433276

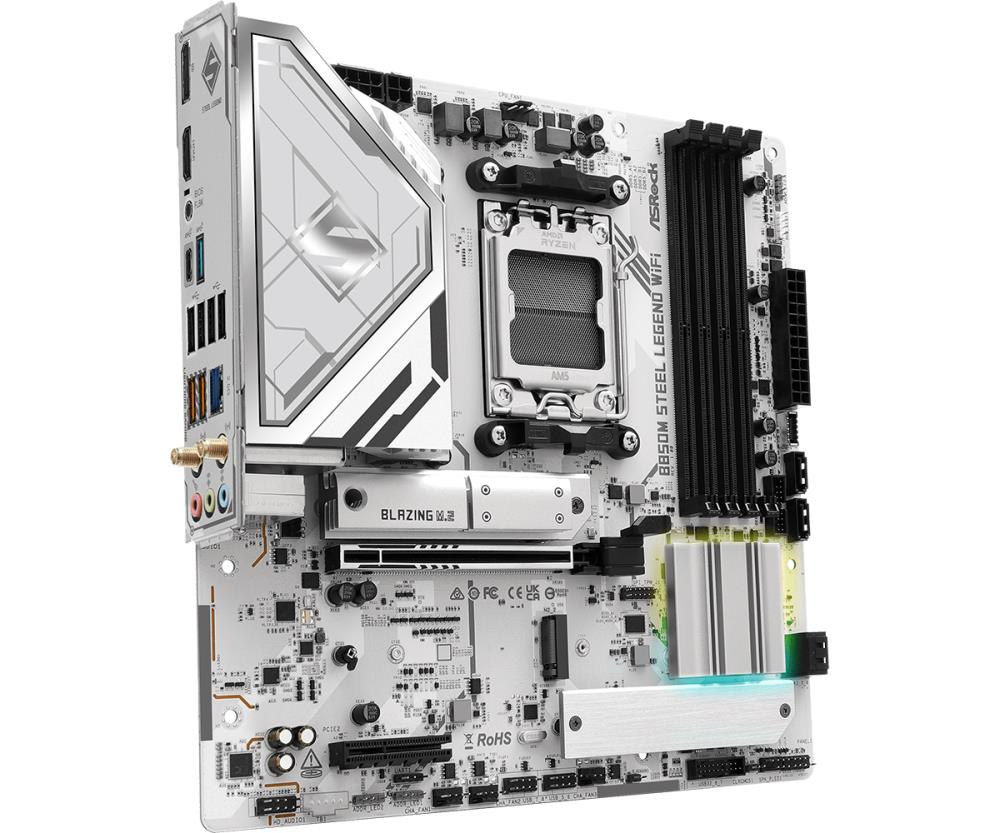

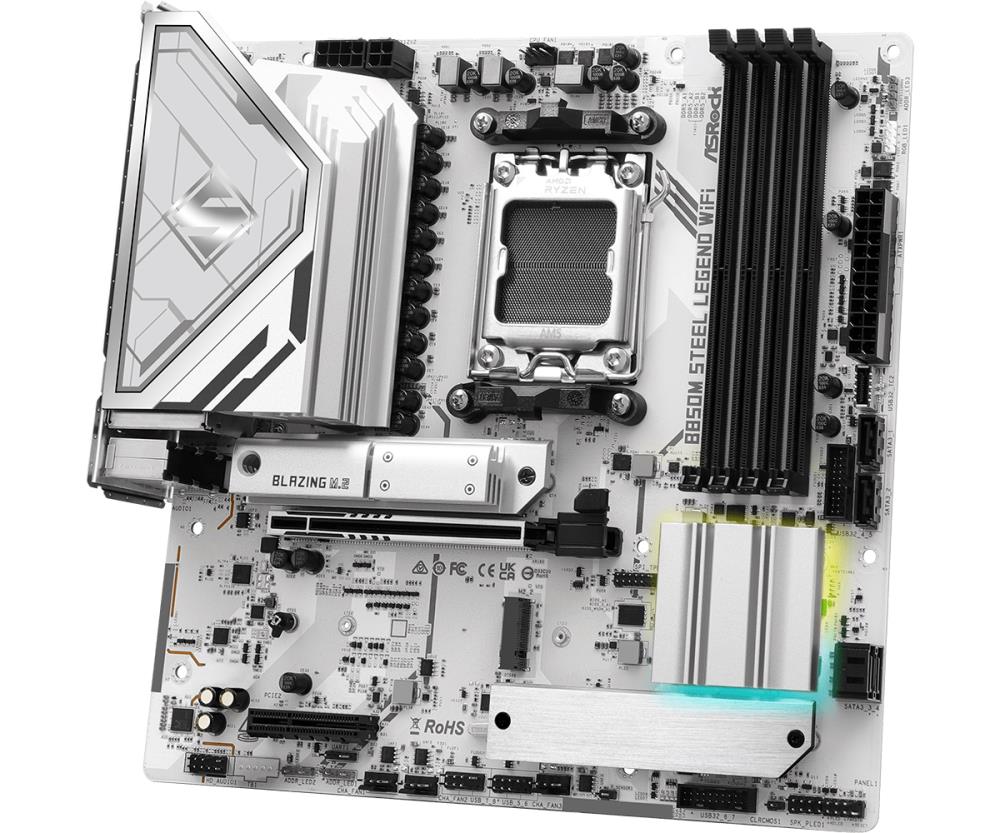

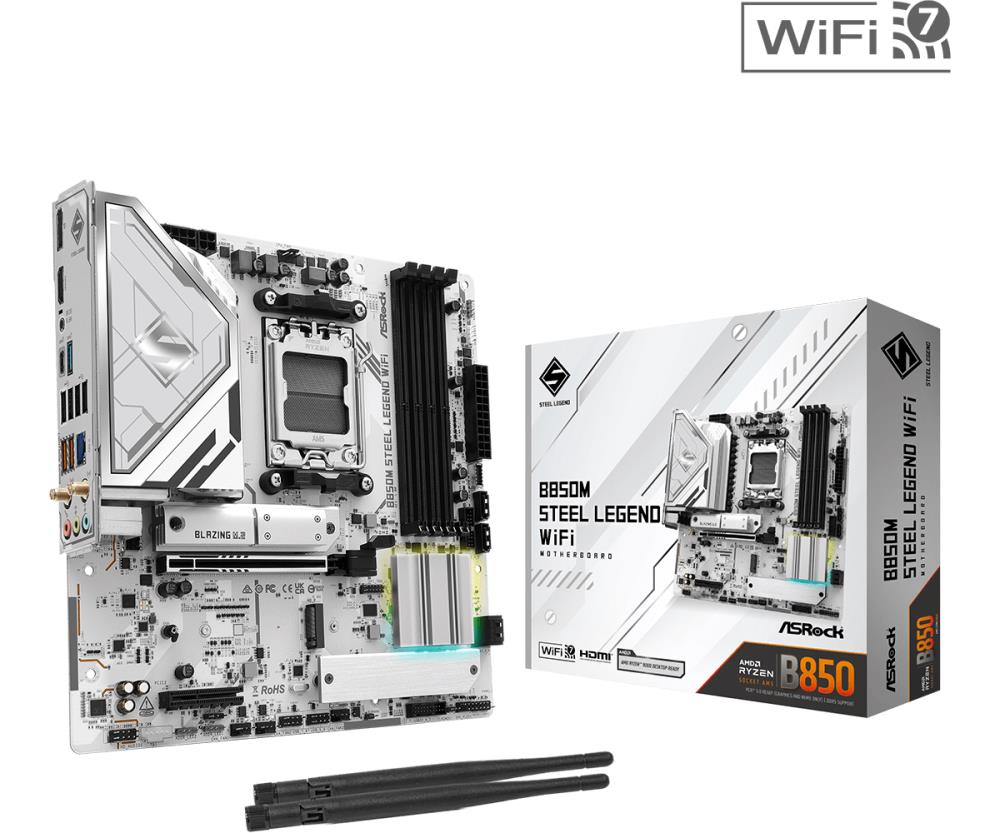

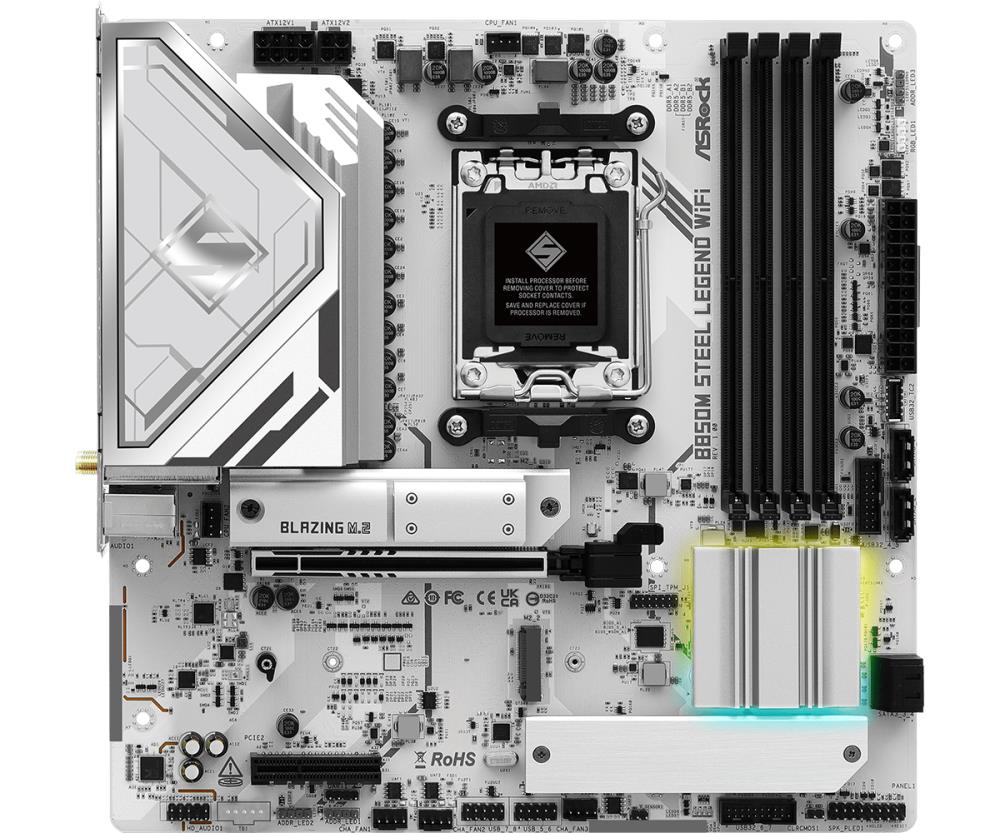

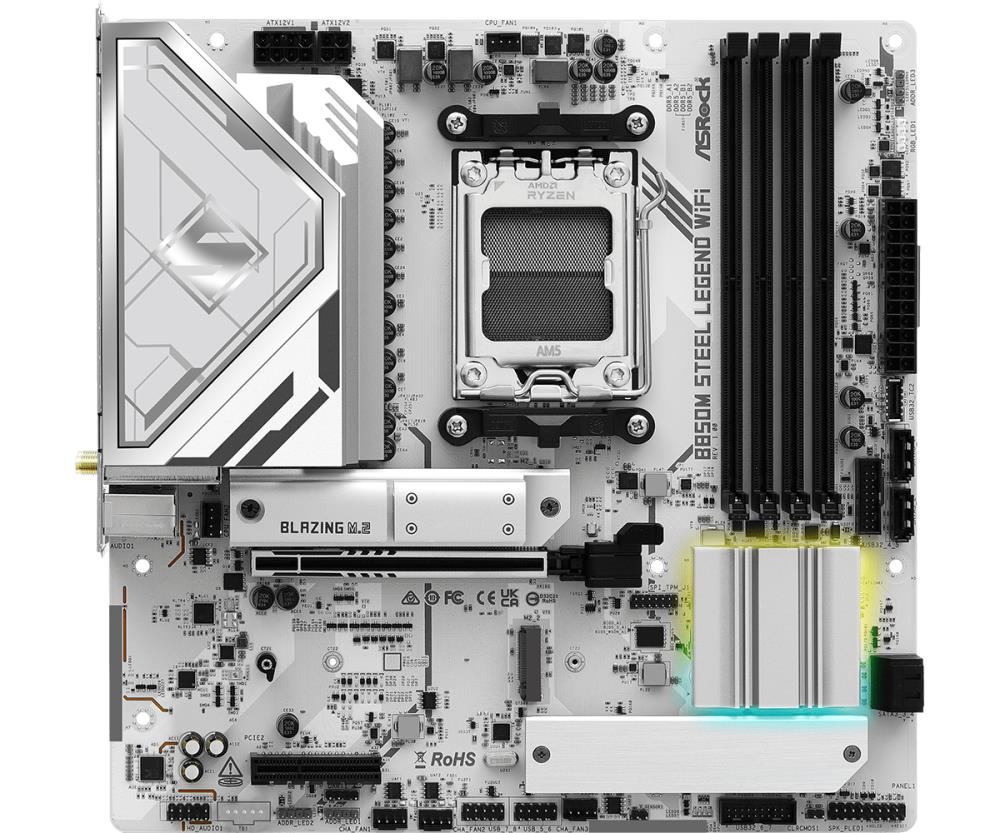

- Manufacturer Product Page: ASROCK B850M STEEL LEGEND WIFI
- Manufacturer Code: B850M STEEL LEGEND WIFI
- Catalog: Mainboards for AMD CPUs
- EAN: 4711581490499
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.3 |
| Unit Box Width | 0.265 |
| M.2 | 1 |
| PCI-Express 4.0 4x | 4 |
| PCI-Express 5.0 16x | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| DisplayPort | 1 |
| HDMI | 1 |
| Microphone | 1 |
| RJ45 | 1 |
| USB 2.0 | 4 |
| USB 3.2 | 3 |
| USB-C | 1 |
| Bluetooth | Yes |
| SATA | Yes |
| SATA 3.0 | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| USB-C | Yes |
| WiFi | Yes |
| Chipset | AMD B850 |
| Socket | SAM5 |
| Form Factor | Micro-ATX |
| Memory type | DDR5 |
| Frequency speed | 8000 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated audio | Realtek ALC1220 |
| Integrated LAN | 2.5 Gigabit |
| RAID | SATA 0, 1, 10 |
| TPM | Header |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.005406 |
| Product Net Weight | 1.4 |
| Unit Calculated Weight | 1.61 |
Description

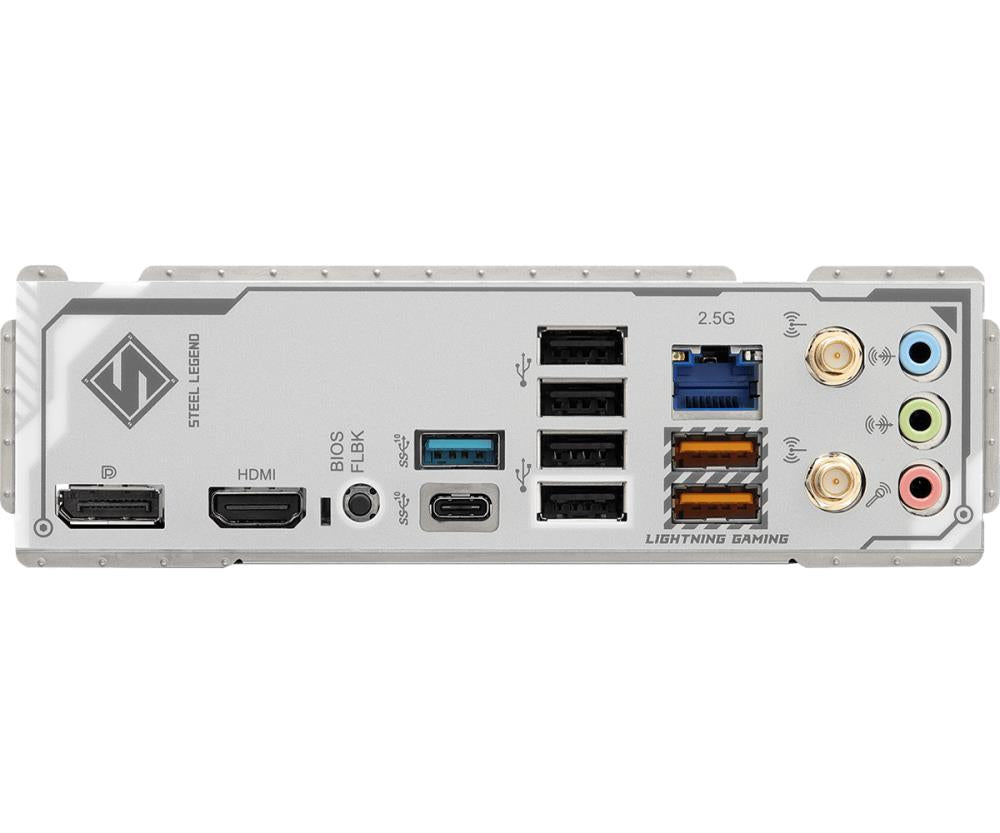

Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance. Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors 12+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC 4 x DDR5 DIMMs Supports Dual Channel, up to 8000+ (OC) 1 PCIe 5.0 x16, 1 PCIe 4.0 x4 Graphics Output Options: 1 HDMI, 1 DisplayPort Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio 1 Blazing M.2 (PCIe Gen5x4) 1 Hyper M.2 (PCIe Gen4x4) 1 M.2 (PCIe Gen4x2) 4 SATA3 2 USB 3.2 Gen2 Type-A+C (Rear) 1 USB 3.2 Gen1 Type-C (Front) 6 USB 3.2 Gen1 (2 Rear, 4 Front) 8 USB 2.0 (4 Rear, 4 Front) Realtek 2.5G LAN 802.11be WiFi 7 +Bluetooth Supports M.2 Bottom Heatsink, BIOS Flashback
