Description
General Information
- SKU: 1433076
- Manufacturer Product Page: GIGABYTE B760M D3HP 1.0
- Manufacturer Code: B760M D3HP 1.0
- Catalog: Mainboards for Intel CPUs
- EAN: 4719331864347
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBI |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.27 |
| Unit Box Width | 0.27 |
| M.2 | 2 |
| PCI-Express 3.0 1x | 2 |
| PCI-Express 4.0 16x | 1 |
| 15pin D-sub | 1 |
| Audio port | 3 |
| DisplayPort | 1 |
| HDMI | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| USB 3.2 | 5 |
| USB-C | 1 |
| SATA | Yes |
| USB 2.0 | Yes |
| USB 3.0 | Yes |
| USB-C | Yes |
| Chipset | Intel B760 Express |
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Memory type | DDR5 |
| Frequency speed | 4400/4800/5200/5600 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated LAN | Realtek (Gigabit) |
| Integrated audio | Yes |
| RAID | SATA 0, 1, 5, 10 |
| TPM | Header |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.004783 |
| Product Net Weight | 0.7 |
| Unit Calculated Weight | 0.985 |
Description

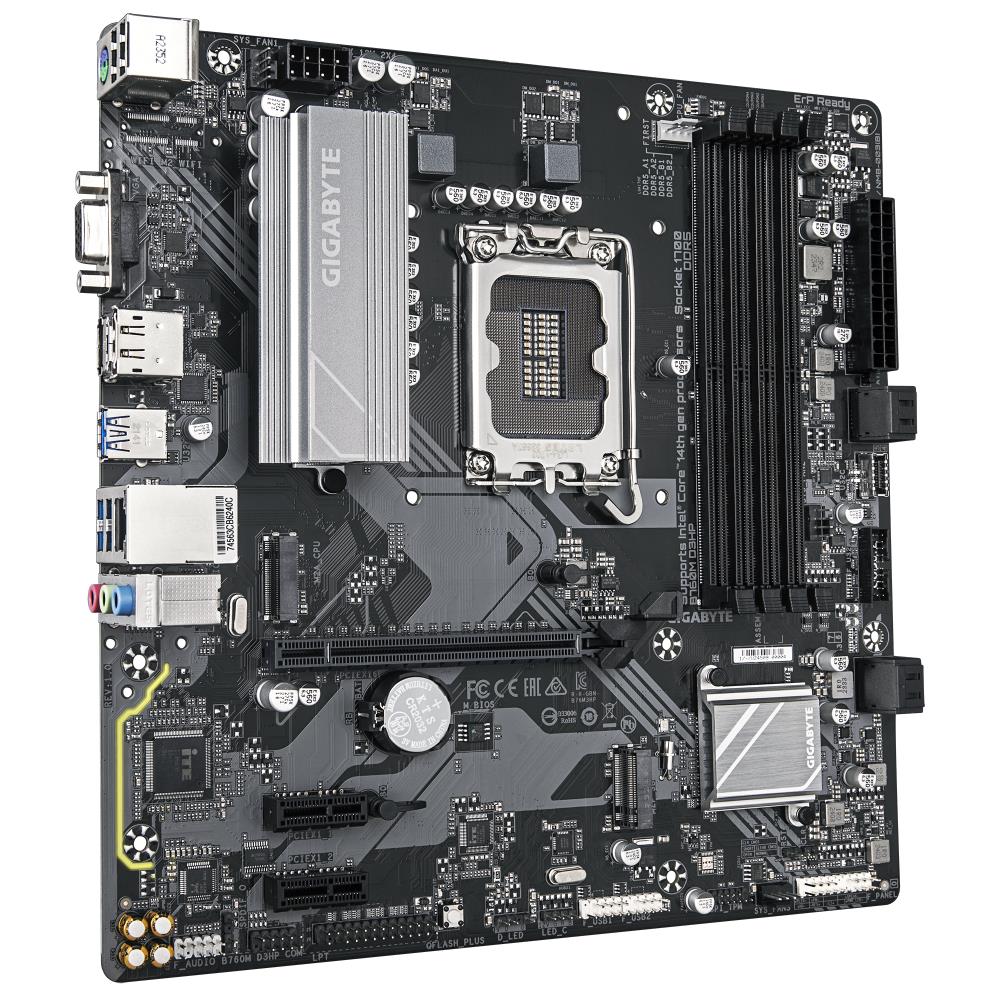

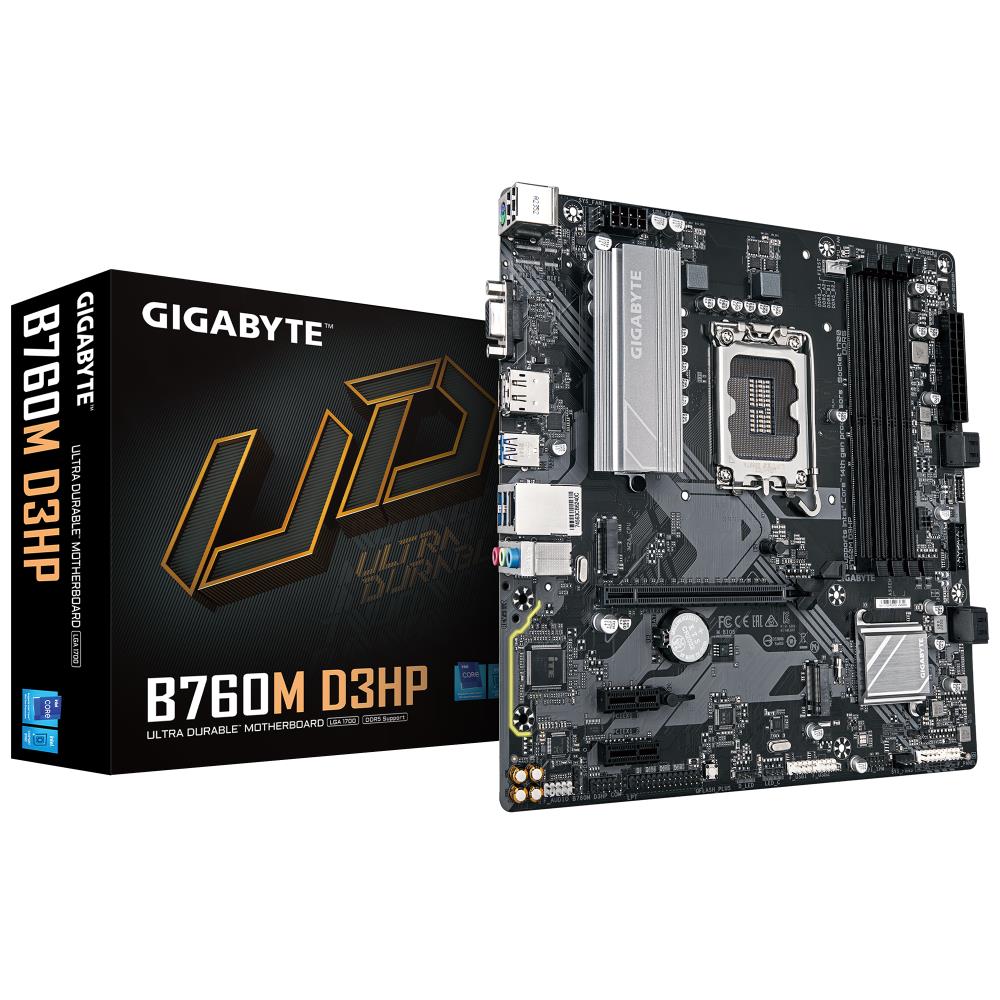

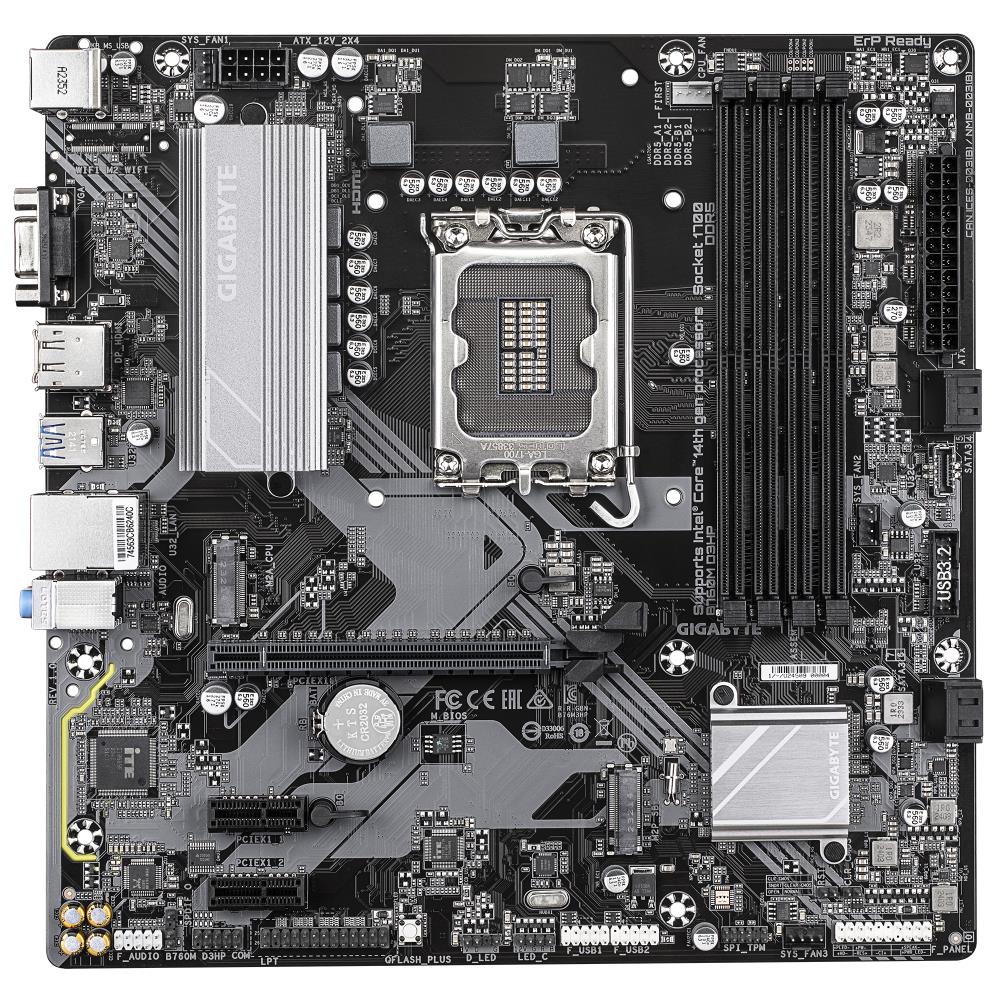

B760M D3HP
Intel® B760 Chipset
- Supports Intel® Core™ 14th/ 13th /12th processors
- Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution
- Dual Channel DDR5：4*DIMMs XMP Memory Module Support
- Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
- Fast Networks：GbE LAN
- Extended Connectivity：Front USB-C® 5Gb/s, DP, HDMI, D-Sub
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
