Description
General Information
- SKU: 1432133
- Manufacturer Product Page: SPARKLE SB580T-12GOC
- Manufacturer Code: SB580T-12GOC
- Catalog: Video Cards
- EAN: 4711342290771
- Warranty: 24 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | VGP |
| Unit Box Height | 0.075 |
| Unit Box Length | 0.385 |
| Unit Box Width | 0.195 |
| CUDA | No |
| Graphics processor | Arc B580 |
| Graphics processor family | Intel |
| Maximum displays per videocard | 4 |
| Maximum resolution | 7680 x 4320 |
| Parallel processing technology support | Not supported |
| Processor frequency | 2740 |
| Ray accelerators | 20 |
| Discrete graphics card memory | 12 |
| Graphics card memory type | GDDR6 |
| Memory bandwidth (max) | 456 |
| Memory bus | 192 |
| DisplayPort version | 2.1 |

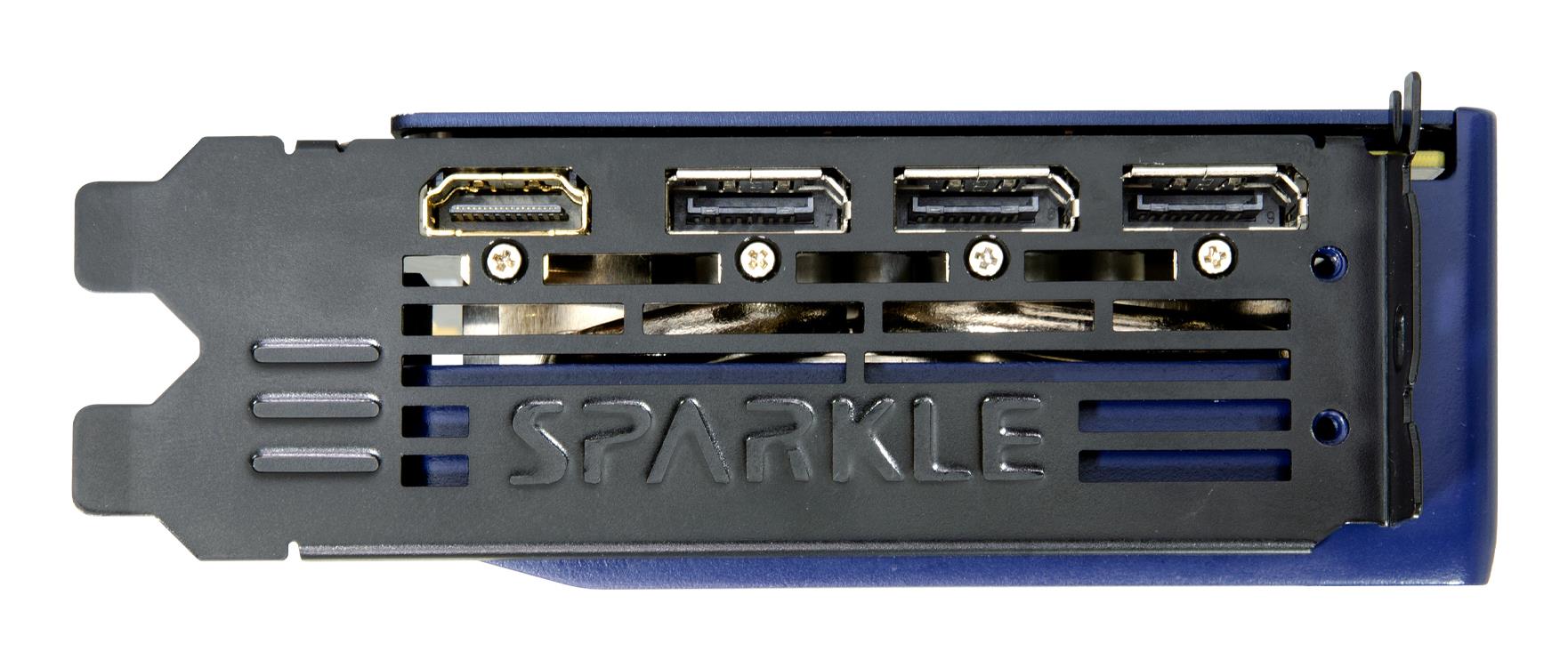

| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Interface type | PCI Express x8 4.0 |
| DirectX version | 12 Ultimate |
| Dual Link DVI | No |
| Intel® Xe Matrix Extensions (Intel® XMX) Engines | 160 |
| NPU performance up to | 233 |
| OpenCL version | 3.0 |
| OpenGL version | 4.6 |
| TV tuner integrated | No |
| Xe-cores | 20 |
| Cooling type | Active |
| Number of fans | 3 |
| Number of slots | 2.2 |
| Product colour | Blue |
| Minimum system power supply | 600 |
| Power consumption (typical) | 200 |
| Power supply location | Top |
| Supplementary power connectors | 1x 8-pin |
| Minimum RAM | 8000 |
| Minimum system requirements | PCI-Express compliant MB with one x16 PCIe slot |
| Windows operating systems supported | Windows 10/Windows 11 |
| Depth | 44 |
| Height | 117 |
| Length | 315 |
| Weight | 954 |
| Package type | Box |
| HDMI | Yes |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.006391 |
| Product Net Weight | 0.954 |
| Unit Calculated Weight | 1.71 |
Description

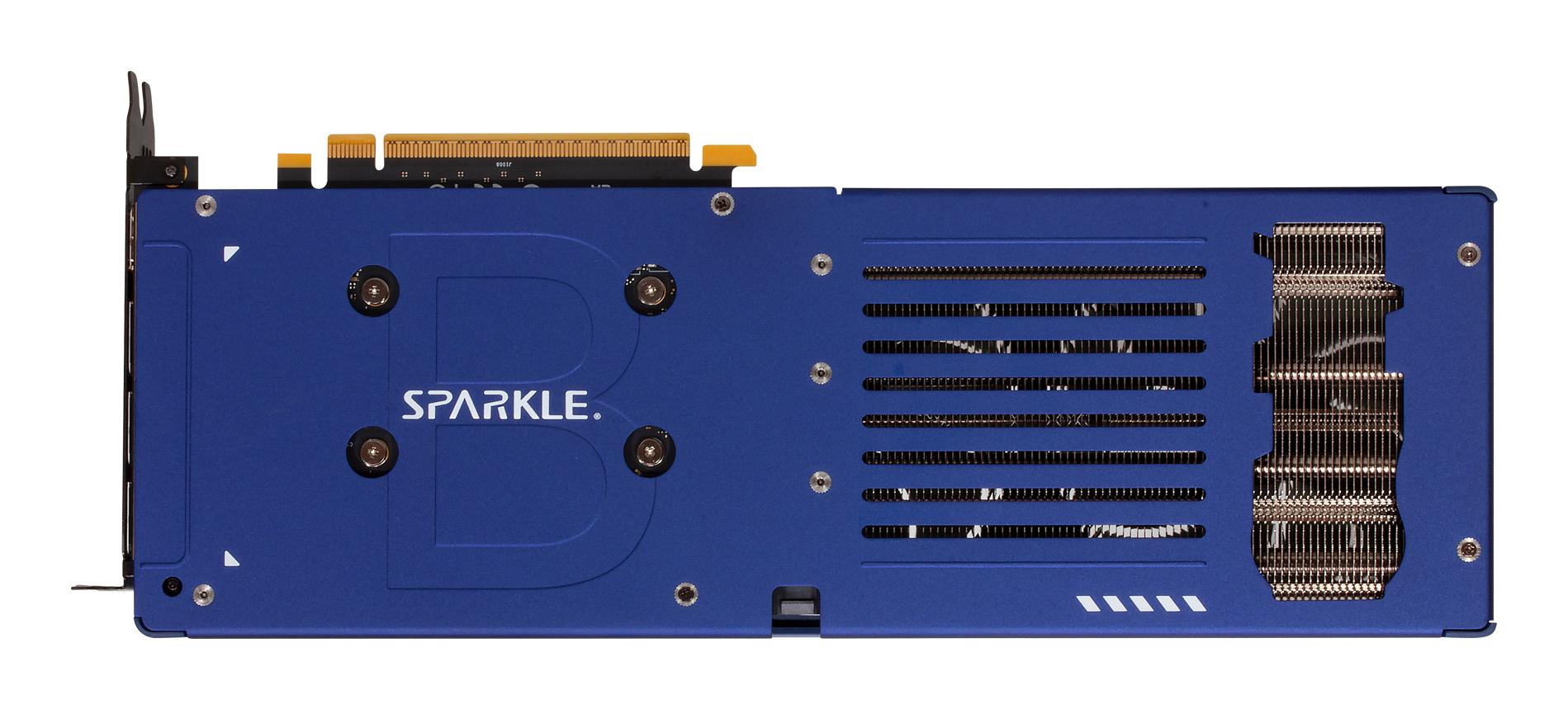

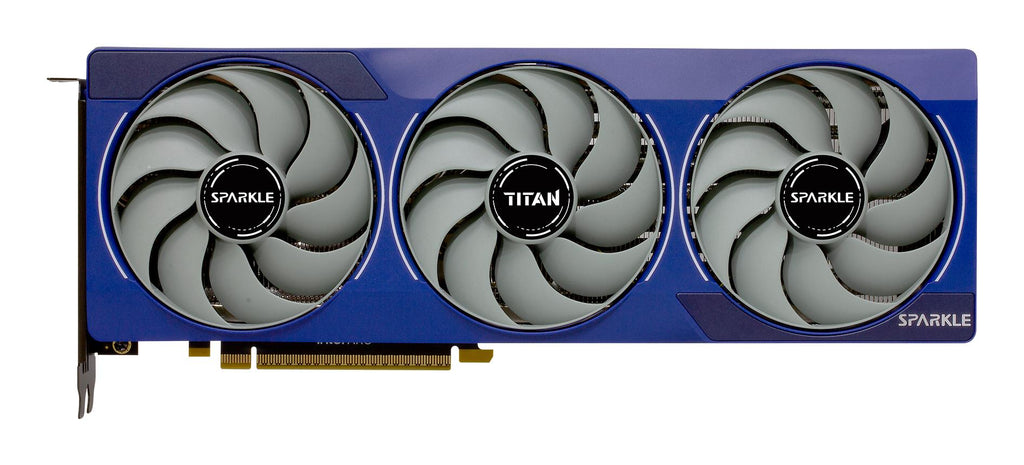

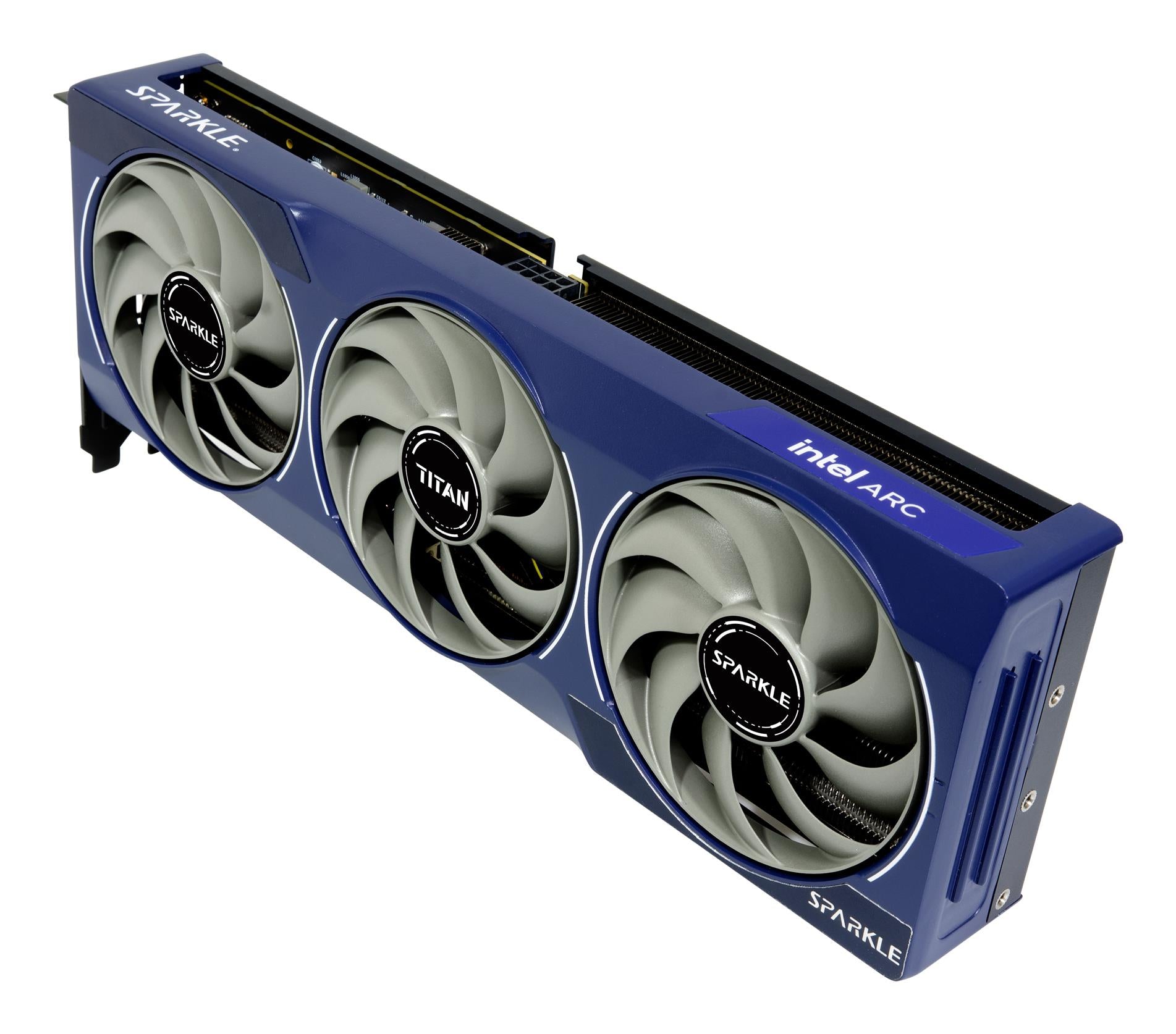

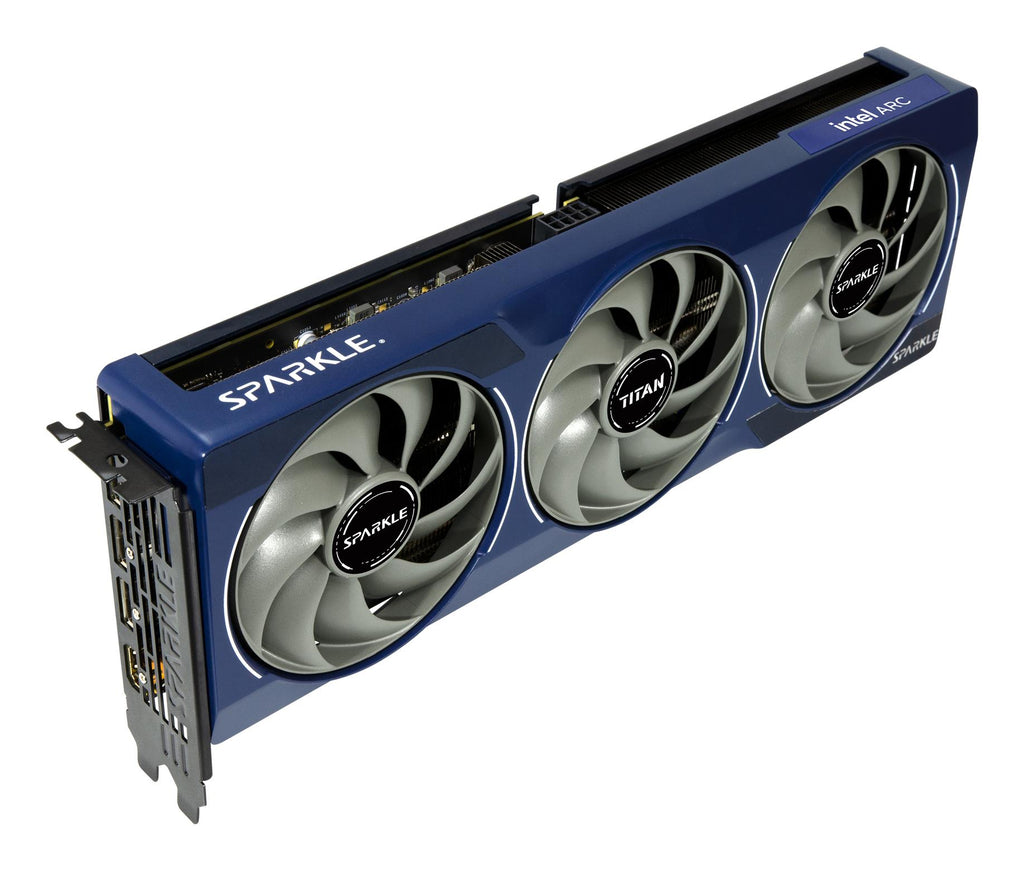

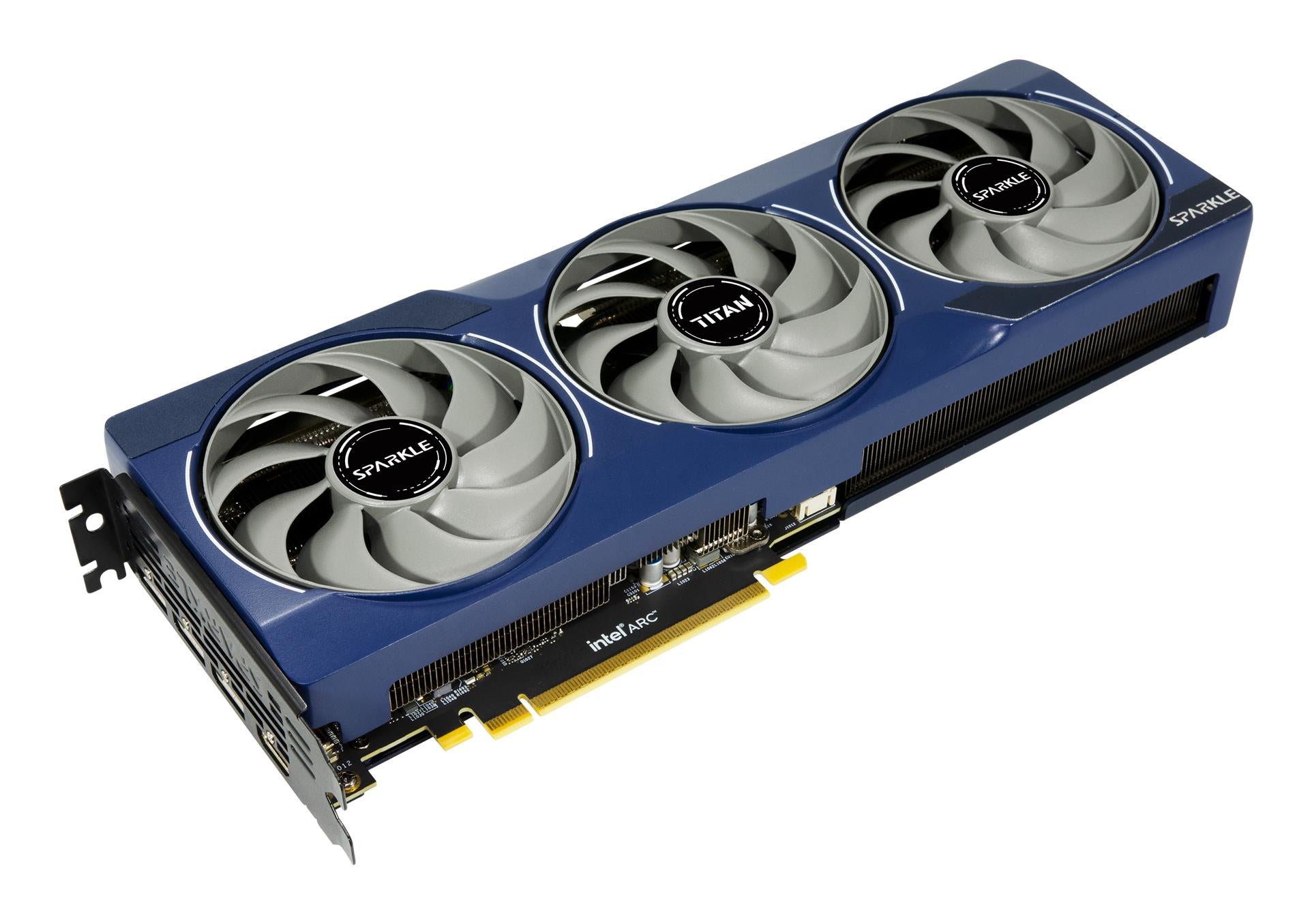

The SPARKLE Intel® Arc™ B580 TITAN OC Graphics Card, offers high-resolution gaming with Intel XeSS AI upscaling, ray tracing, and 8K media support, plus accelerated AI features for enhanced creation and editing through Intel AI Playground. New TITAN series equipped TORN 2.0 Cooling with triple customized AXL fans, 2.2-slot design and fullmetal backplate. A blue breathing light effect has added a touch of elegance to your gaming setup.
- TORN Cooling 2.0
- Tri-fan, 2.2-slot, metal backplate

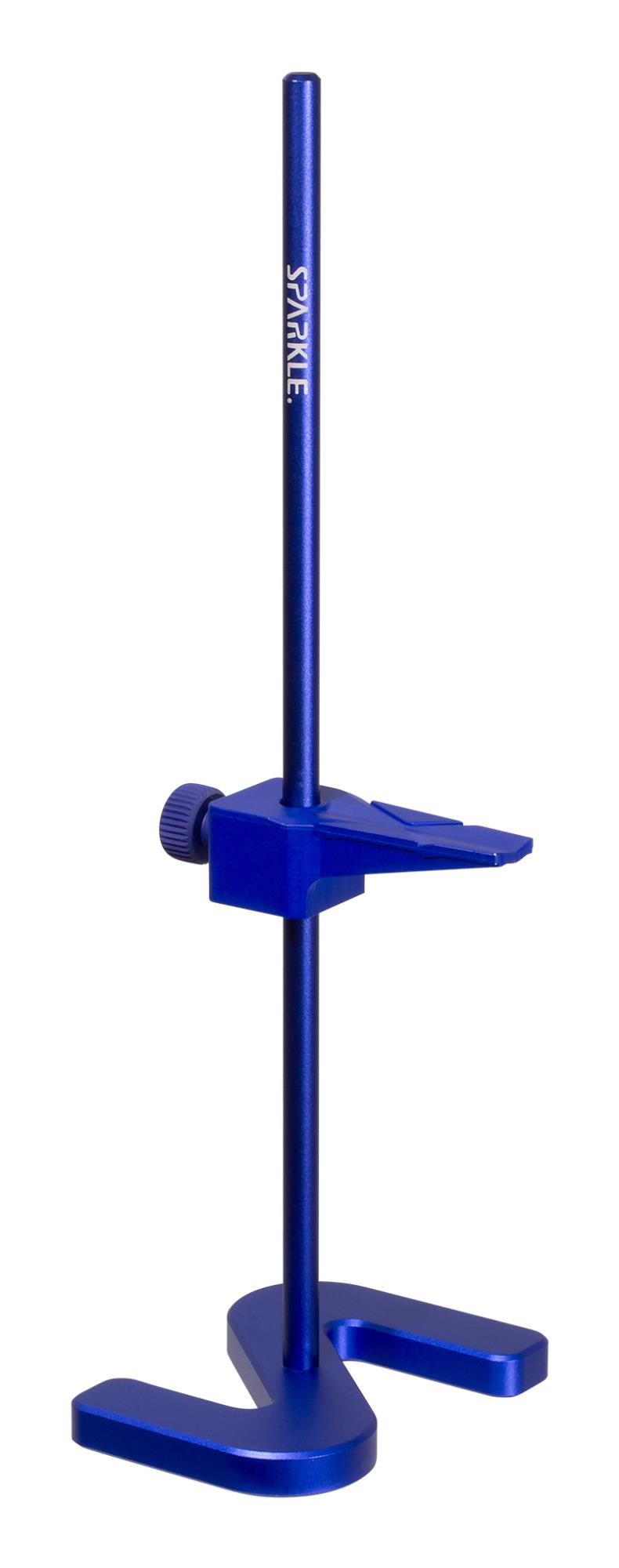

- Limited GPU Holder Included
- Metal Backplate, Pre-Installed
- Ray Tracing
- Variable Rate Shading (VSR)
- DirectX 12 Ultimate
- Vulkan 1.3
- OpenGL 4.6
- OpenCL 3.0
- Adaptive Sync
Sparkle Technology Intel Arc B580 TITAN OC. Graphics processor family: Intel, Graphics processor: Arc B580, Processor frequency: 2740 MHz. Discrete graphics card memory: 12 GB, Graphics card memory type: GDDR6, Memory bus: 192 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate, OpenGL version: 4.6. Interface type: PCI Express x8 4.0. Cooling type: Active, Number of fans: 3 fan(s)
10th Gen Intel Core / AMD Ryzen 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory
PCI-Express compliant MB with one x16 PCIe slot

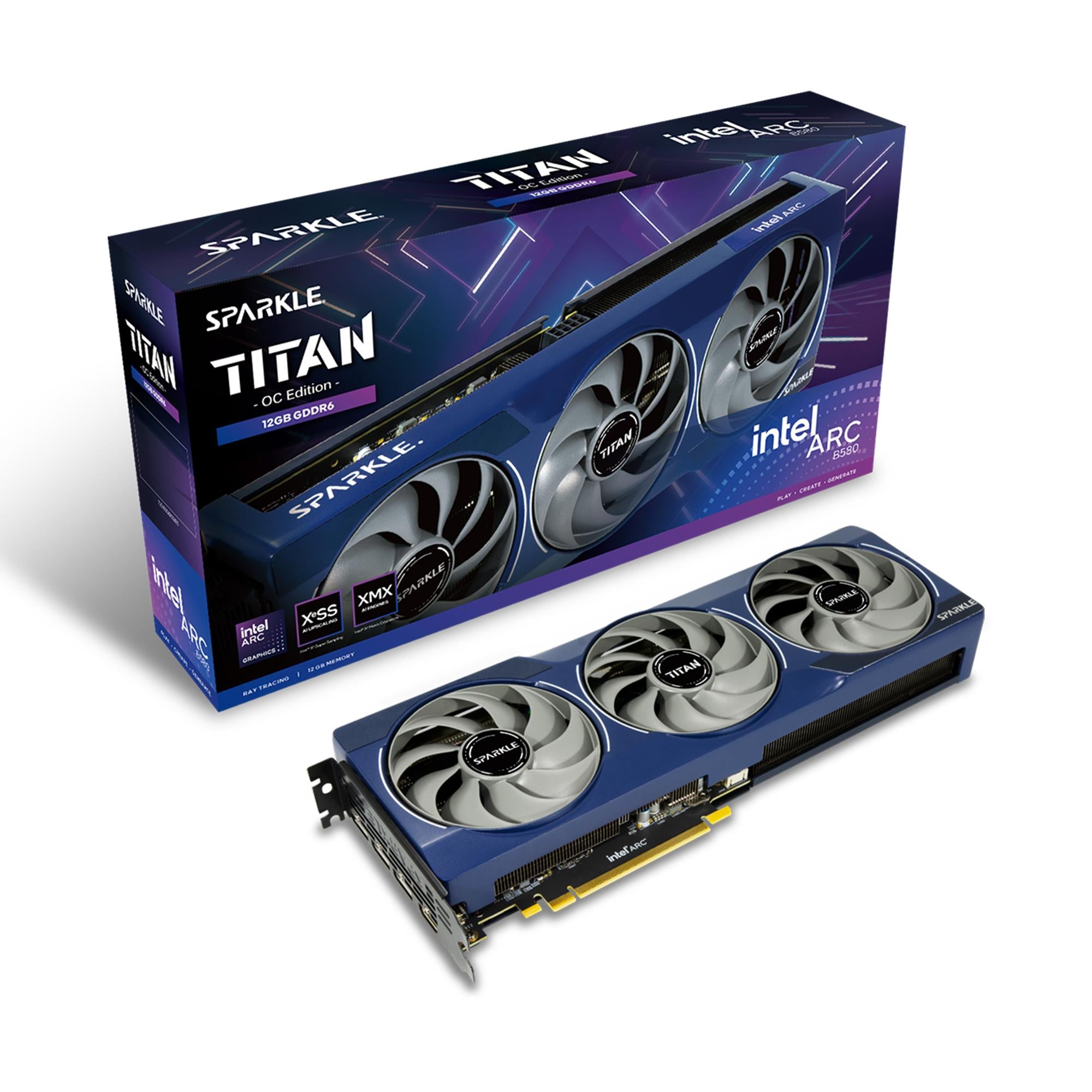

SPARKLE Intel Arc B580 TITAN OC
