Description
General Information
- SKU: 1431768
- Manufacturer Product Page: MSI B860M GAMING PLUS WIFI
- Manufacturer Code: B860M GAMING PLUS WIFI
- Catalog: Mainboards for Intel CPUs
- EAN: 4711377286558
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBI |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.28 |
| Unit Box Width | 0.28 |
| M.2 | 3 |
| PCI-Express 4.0 1x | 2 |
| PCI-Express 4.0 4x | 1 |
| PCI-Express 5.0 16x | 1 |
| Audio port | 3 |
| DisplayPort | 1 |
| HDMI | 1 |
| USB 2.0 | 2 |
| USB 3.2 | 4 |
| USB-C | 1 |
| USB-C w/Thunderbolt | 1 |
| Bluetooth | Yes |
| SATA | Yes |
| Thunderbolt | Yes |
| WiFi | Yes |
| Chipset | Intel B860 Express |
| Socket | LGA1851 |
| Form Factor | Micro-ATX |
| Memory type | DDR5 |
| Frequency speed | 4800/6400/8800 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated LAN | 5 Gigabit |
| Integrated audio | Realtek ALC897 |
| RAID | SATA 0, 1, 5, 10 |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.006597 |
| Product Net Weight | 1 |
| Unit Calculated Weight | 1.56 |
Description

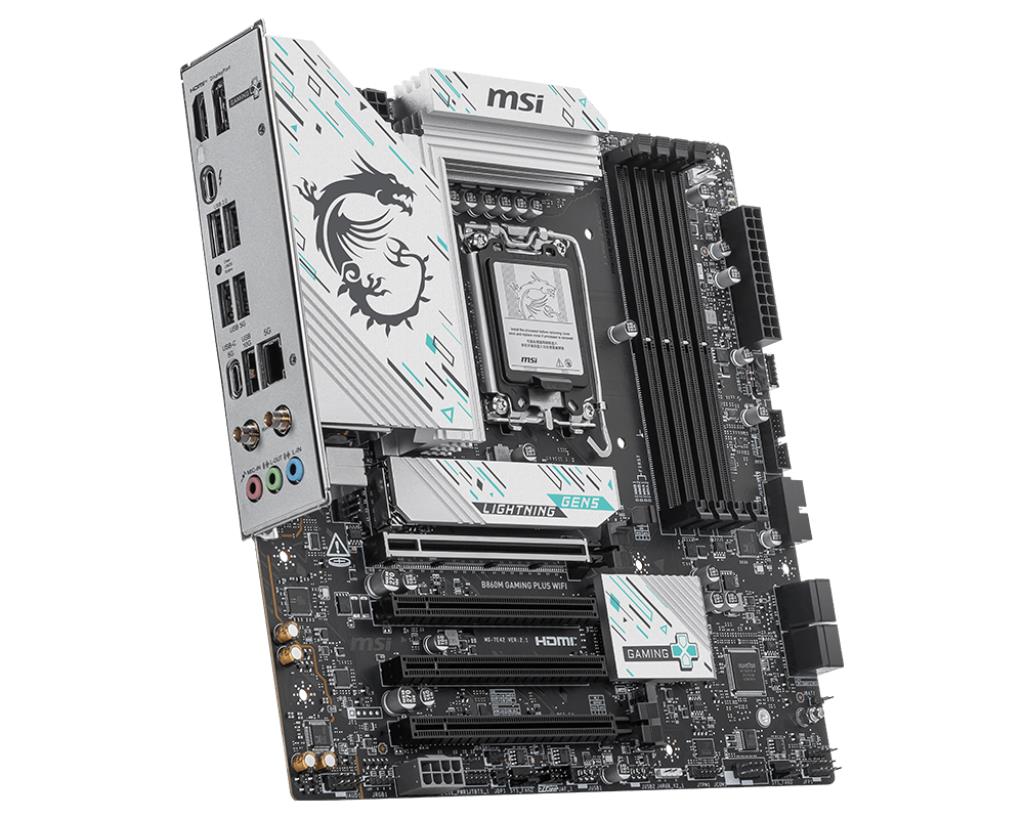

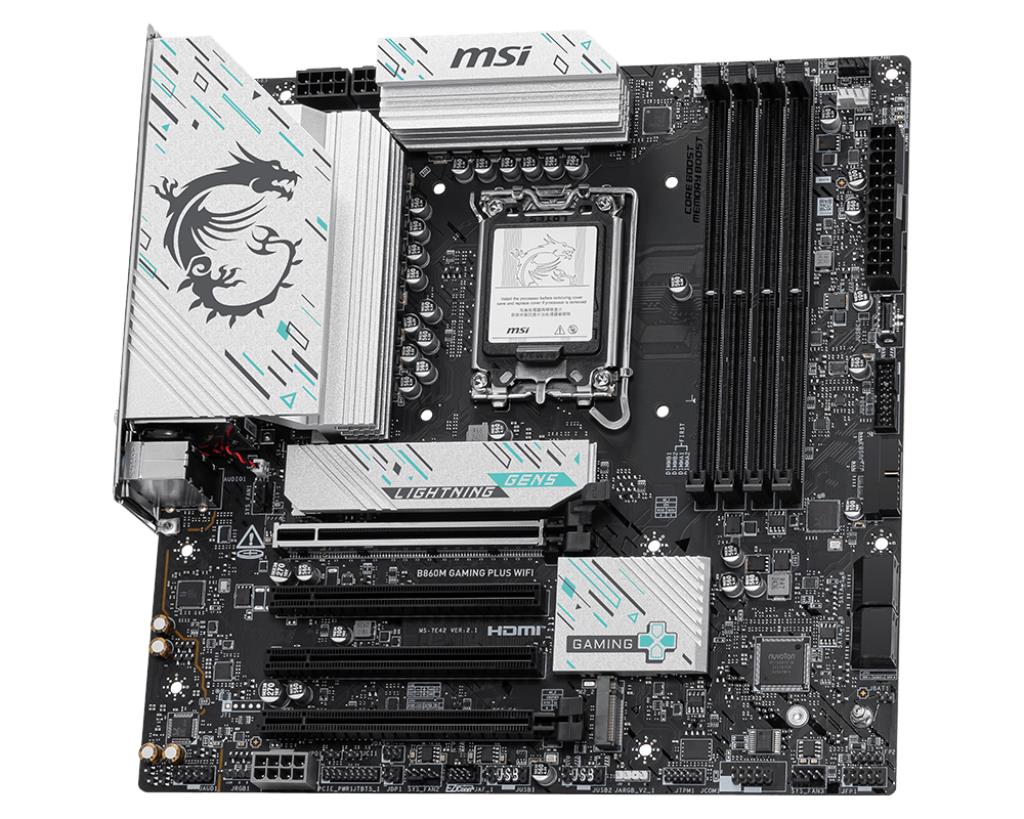

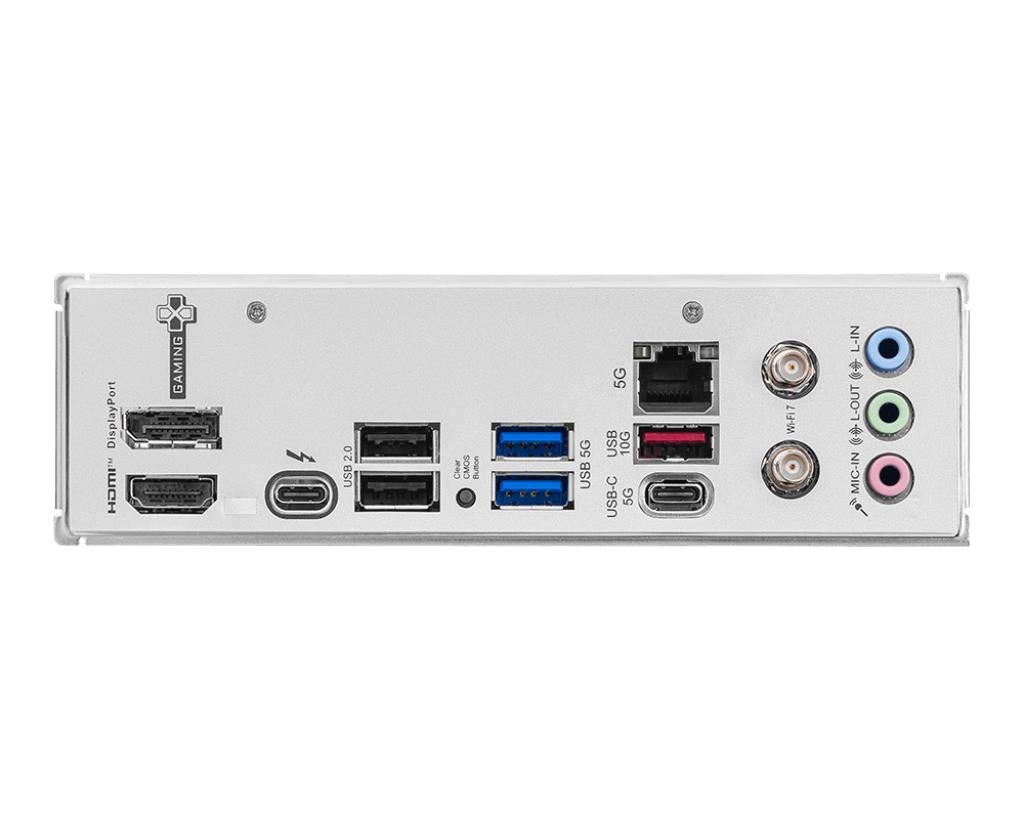

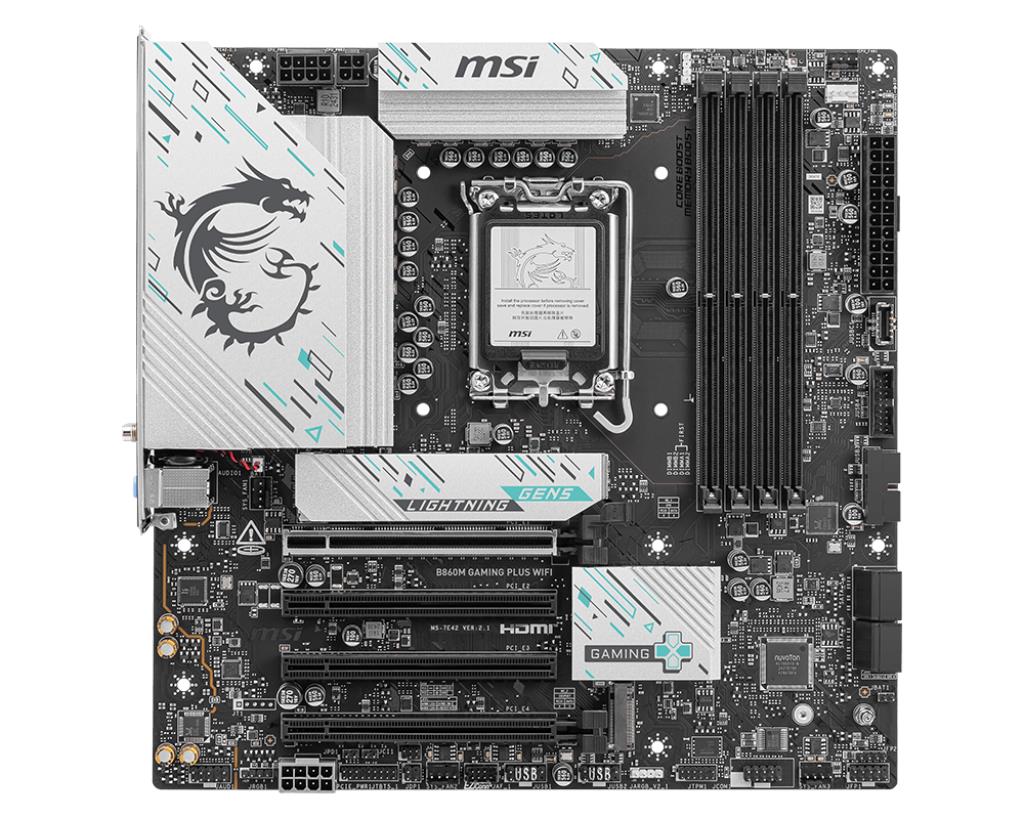

B860M GAMING PLUS WIFI
The B860M GAMING PLUS WIFI is crafted to offer extensive connectivity, versatile tools, and a premium Wi-Fi solution for gamers seeking a comprehensive experience. Featuring Thunderbolt 4 port, full-speed Wi-Fi 7, 5G LAN, PCIe 5.0 solution, Supplemental PCIe Power and exclusive EZ DIY features, it is ready for 24/7 non-stop gaming optimized for Intel Core Ultra processors.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
- Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Ultra Performance: 12+1+1+1 Duet Rail Power System with P-PAK, 8+4-pin CPU power connectors, Core Boost, Memory Boost, and 6-layer server-grade level PCB
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
