Description
General Information
- SKU: 1430754
- Manufacturer Product Page: GIGABYTE B850M DS3H
- Manufacturer Code: B850M DS3H
- Catalog: Mainboards for AMD CPUs
- EAN: 4719331866518
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| Unit Box Height | 0.27 |
| Unit Box Length | 0.271 |
| Unit Box Width | 0.069 |
| M.2 | 2 |
| PCI-Express 3.0 4x | 1 |
| PCI-Express 5.0 16x | 1 |
| Audio port | 3 |
| DisplayPort | 2 |
| HDMI | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | 4 |
| USB 3.2 | 1 |
| USB 3.2 type B | 2 |
| USB-C | 1 |
| SATA | Yes |
| USB-C | Yes |
| Chipset | AMD B850 |
| Socket | SAM5 |
| Form Factor | Micro-ATX |
| Memory type | DDR5 |
| Frequency speed | 4400/4800/5200/5600/6000/6200/6400/6666/6800/7000/7200/7600/7800/8000/8200 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated audio | Yes |
| Integrated LAN | 2.5 Gigabit |
| RAID | SATA 0, 1, 10; NVMe 0, 1, 5, 10 |
| TPM | Header |
| Units per Shipping Box | 8 |
| Unit Calculated Volume | 0.00733 |
| Product Net Weight | 0.7 |
| Unit Calculated Weight | 1.34 |
Description

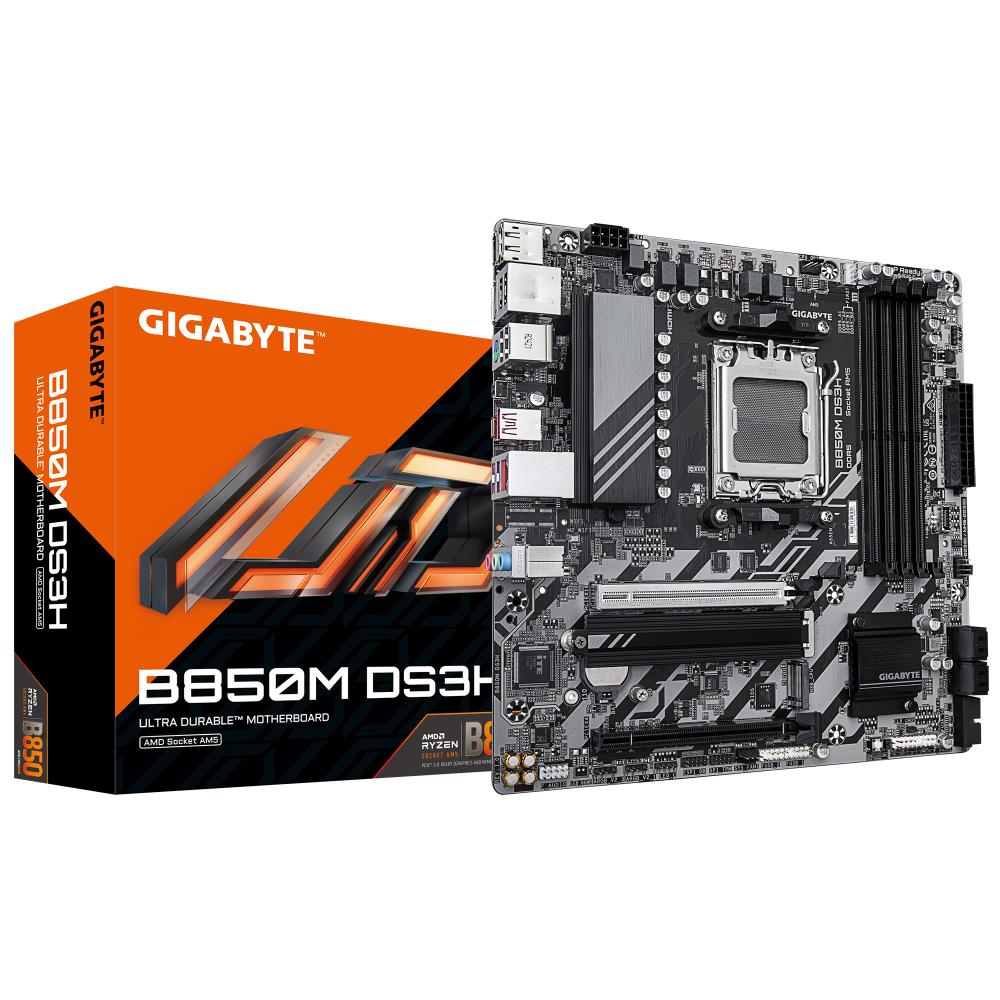

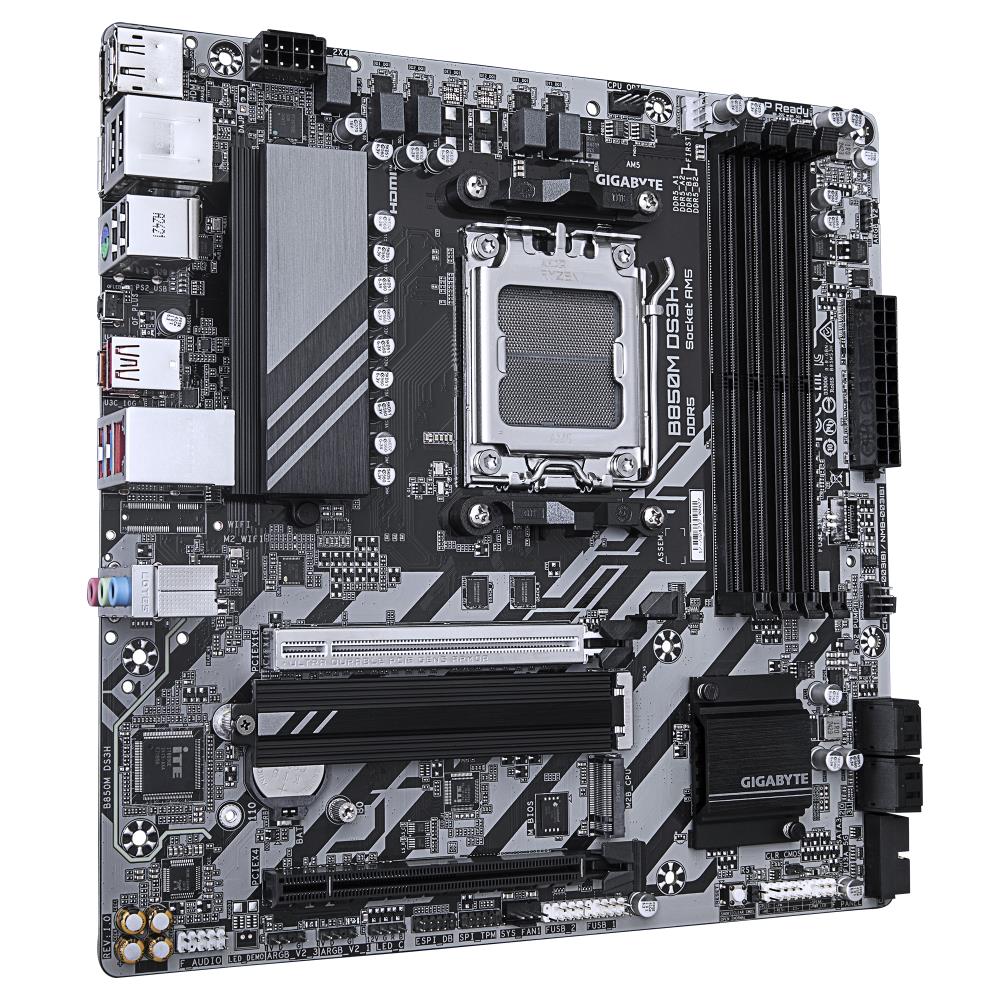

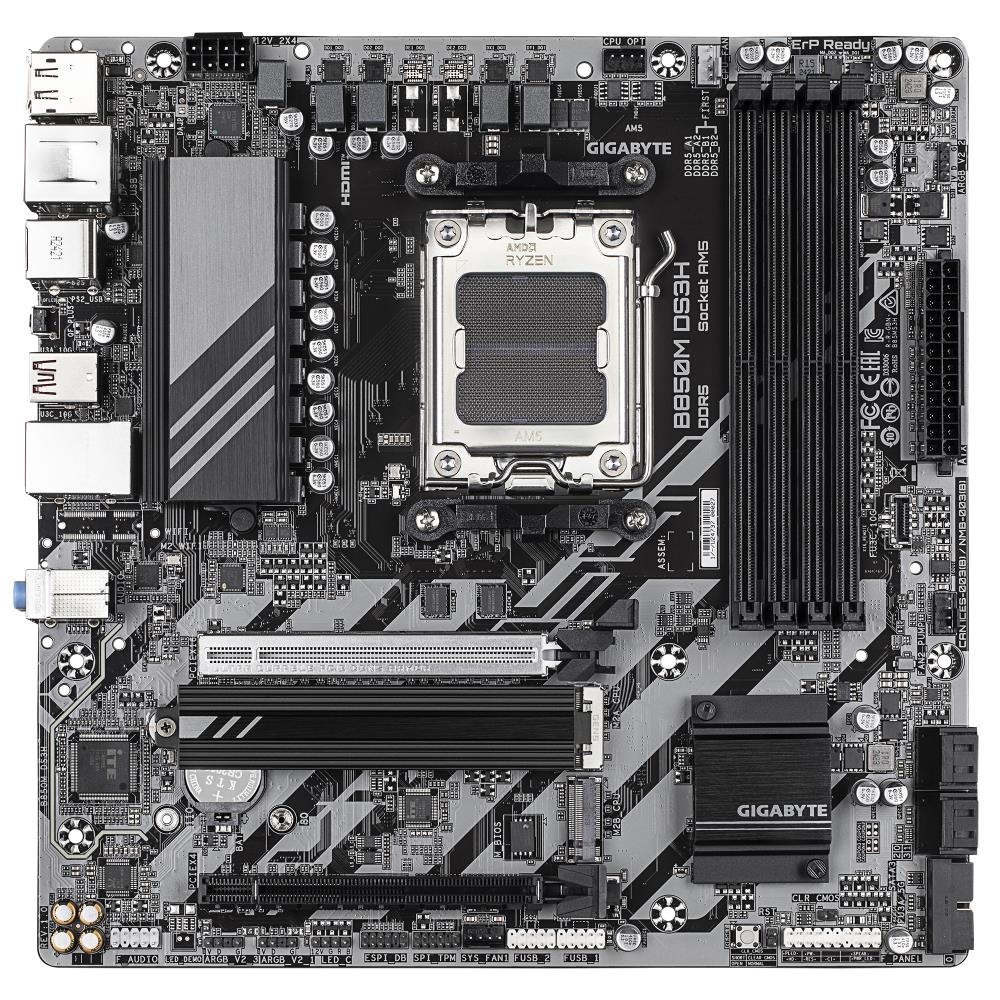

B850M DS3H
- X3D Turbo Mode : Unleash new era gaming performance
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 8+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- M.2 EZ-Latch Plus : screwless installation for M.2 SSDs
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 slot
- M.2 Thermal Guard : To Ensure M.2 SSD Performance
- Fast Networking : 2.5GbE LAN
- Extended Connectivity : 2*DP, HDMI
SATA 0, 1, 10; NVMe 0, 1, 5, 10
