Description
General Information
- SKU: 1430745
- Manufacturer Product Page: GIGABYTE X870E A ELITE WIFI7 1.1
- Manufacturer Code: X870E A ELITE WIFI7 1.1
- Catalog: Mainboards for AMD CPUs
- EAN: 4719331864613
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| Unit Box Height | 0.27 |
| Unit Box Length | 0.34 |
| Unit Box Width | 0.08 |
| M.2 | 4 |
| PCI-Express 3.0 4x | 1 |
| PCI-Express 4.0 4x | 1 |
| PCI-Express 5.0 16x | 1 |
| Audio port | 2 |
| HDMI | 1 |
| Optical S/PDIF | 1 |
| RJ45 | 1 |
| USB 2.0 | 4 |
| USB 3.2 | 6 |
| USB-C | 2 |
| Bluetooth | Yes |
| SATA | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| USB-C | Yes |
| WiFi | Yes |
| Chipset | AMD X870E |
| Socket | SAM5 |
| Form Factor | ATX |
| Memory type | DDR5 |
| Frequency speed | 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated audio | Realtek ALC1220 |
| Integrated LAN | 2.5 Gigabit |
| RAID | SATA 0, 1, 10 |
| TPM | Header |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.01018 |
| Product Net Weight | 2.2 |
| Unit Calculated Weight | 2.54 |
Description

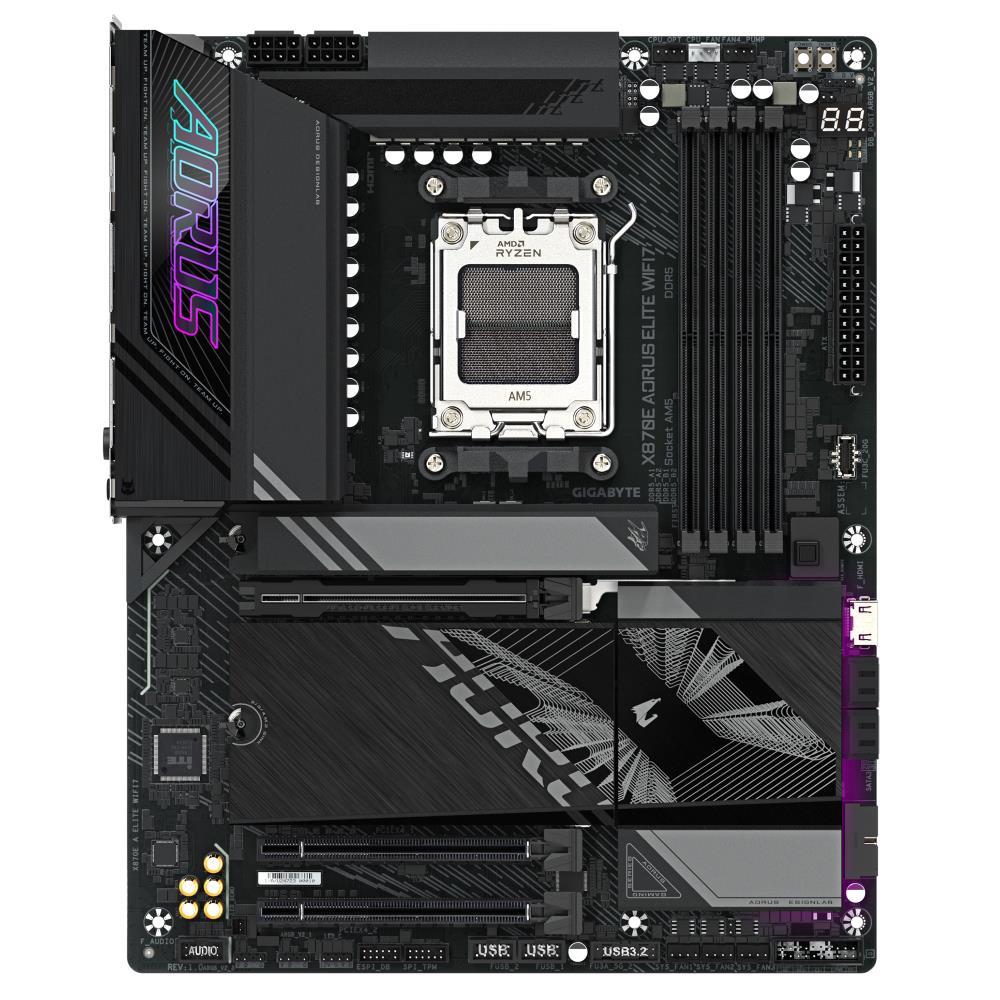

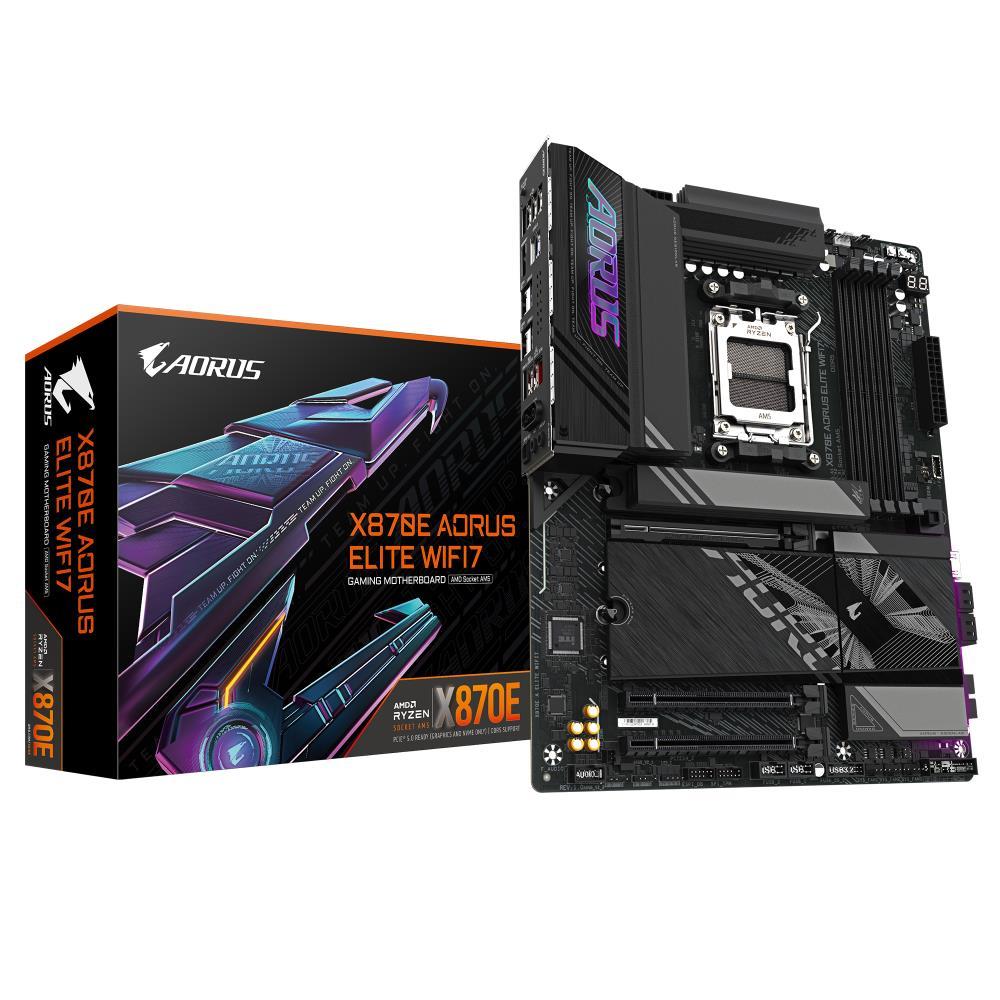

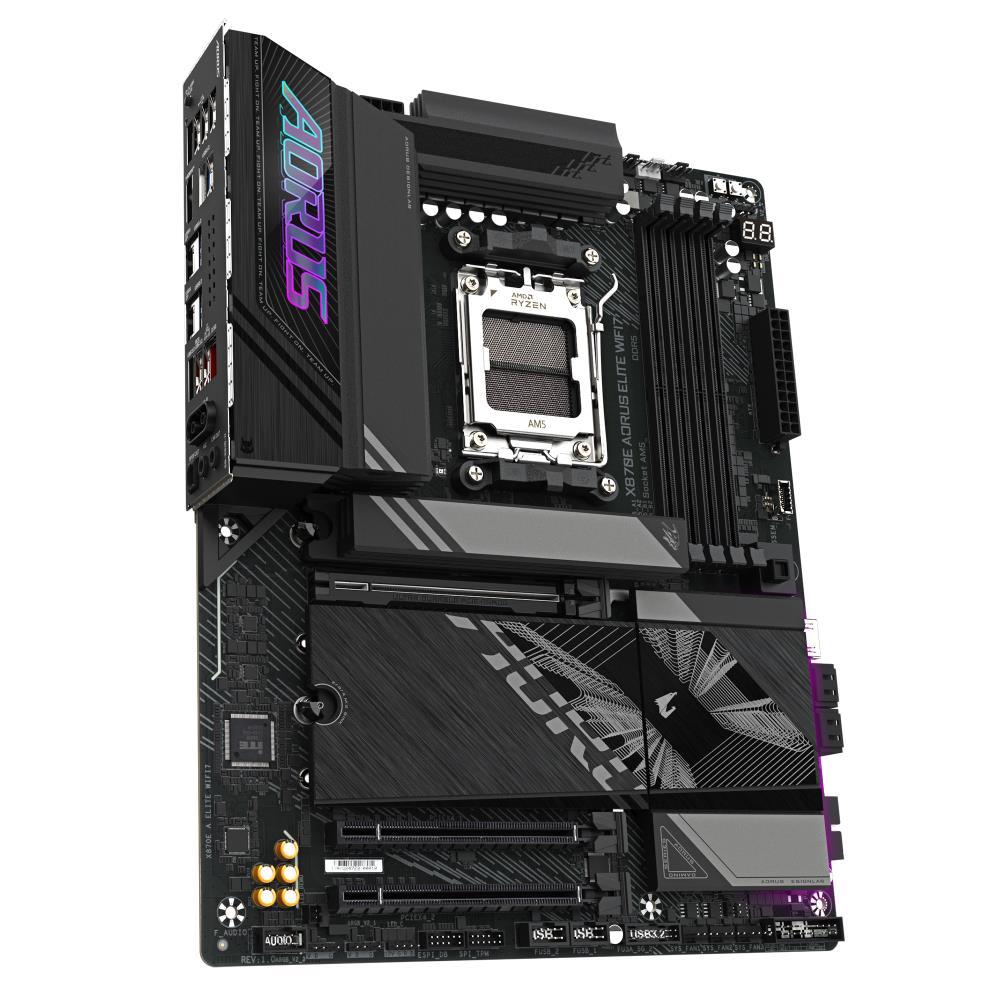

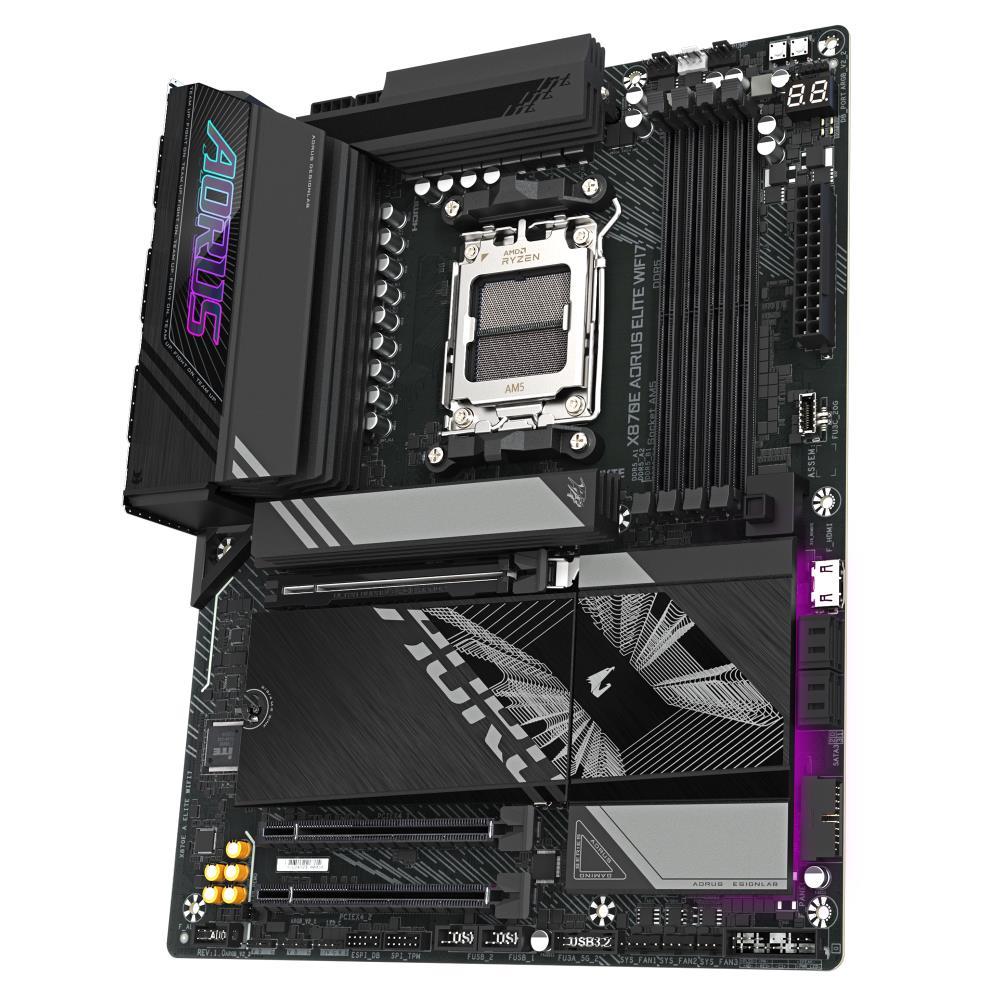

GIGABYTE X870E AORUS ELITE WIFI7 AMD Socket AM5 Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors Digital twin 16+2+2 phases VRM solution Dual Channel DDR5 4*DIMMs with AMD EXPO Memory Module Support WIFI EZ-Plug Quick and easy design for Wi-Fi antenna installation EZ-Latch Plus PCIe and M.2 slots with Quick Release & Screwless Design EZ-Latch Click M.2 heatsinks with screwless design Sensor Panel Link Onboard video port for hassle-free in-chassis panel setup Friendly UI Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW Ultra-Fast Storage 4*M.2 slots, including 3* PCIe 5.0 x4 Efficient Thermal VRM Thermal Armor Advanced & M.2 Thermal Guard L Fast Networking 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna Extended Connectivity Dual USB4 Type-C with DP-Alt, HDMI Reliable Audio Realtek ALC1220 HD Audio & Audiophile Grade Capacitors Ultra Durable PCIe Armor The metal back plate of PCIe x16 slot for enhanced durability PCIe UD Slot X PCIe 5.0 x16 slot with 10X strength for graphics card
