Description
General Information
- SKU: 1430664
- Manufacturer Product Page: DAHUA IPC-HFW3849T1ZASPV27135S5
- Manufacturer Code: IPC-HFW3849T1ZASPV27135S5
- Catalog: Network Cameras
- EAN: 6923172502766
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | FNC |
| Unit Box Height | 0.14 |
| Unit Box Length | 0.34 |
| Unit Box Width | 0.15 |
| Form factor | Bullet |
| Housing material | Metal/Plastic |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Alarm input/output | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Adjustment shutter speed | Auto/Manual |
| Angle of rotation | 360 |
| Camera pan control | Yes |
| Camera shutter speed | 1/3 - 1/100,000 |
| Camera shutter type | Electronic |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 130 |
| Lens viewing angle, horizontal | 108 |
| Lens viewing angle, vertical | 56 |
| Minimum illumination | 0.004 |
| Pan range | 0 - 360 |
| Tilt angle range | 0 - 90 |
| White balance | Auto/Manual/Natural/Outdoor/Street lamp |
| Number of sensors | 1 |
| Optical sensor size | 1/2.8 |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 1.5 |
| Detect distance (tele) | 257.4 |
| Detect distance (wide) | 89.9 |
| Focal length range | 2.7 |
| Identify distance (tele) | 25.7 |
| Identify distance (wide) | 19 |
| Maximum aperture number | 1.2 |
| Number of lenses | 1 |
| Observe distance (tele) | 103 |
| Observe distance (wide) | 36 |
| Recognize distance (tele) | 51.5 |
| Recognize distance (wide) | 18 |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 50 |
| Number of illumination LEDs | 2 |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 3 kbps-8192 |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 3840 x 2160 |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Total megapixels | 8 |
| Video compression formats | H.264/H.264+/H.264B/H.265/H.265+/M-JPEG |
| Video streaming | Yes |
| Audio input channels | 1.0 |
| Audio output channels | 1.0 |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3af |
| Number of users | 20 |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Internal memory | 1000 |
| Maximum memory card size | 256 |
| ROM capacity | 128 |
| Ethernet LAN (RJ-45) ports | 1 |
| Intelligent Video Surveillance (IVS) system features | Intrusion/Tripwire |
| Mirror | Yes |
| Video motion detection | Yes |
| Web browser | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 7.9 |
| Power consumption (Power over Ethernet (PoE)) | 9.8 |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 - 95 |
| Operating temperature (T-T) | -30 - 60 |
| Storage relative humidity (H-H) | 0 - 95 |
| Storage temperature (T-T) | -40 - 60 |
| Mobile operating systems supported | Android/iOS |
| Height | 84.7 |
| Length | 288.4 |
| Weight | 1050 |
| Width | 94.4 |
| Package weight | 1350 |
| Number of cameras | 1 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00714 |
| Unit Calculated Weight | 1.3 |
Description

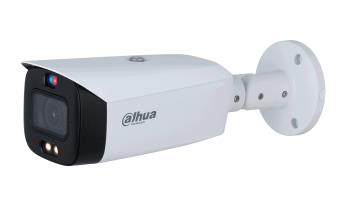

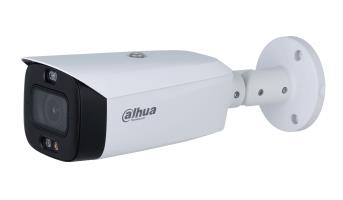

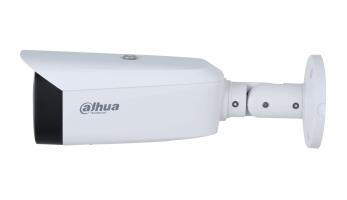

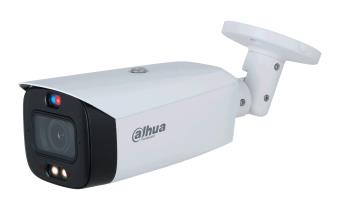

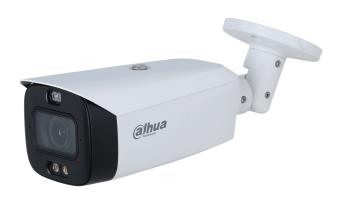

Dahua Technology WizSense IPC-HFW3849T1-ZAS-PV. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.004 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 108°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 2.7 mm, Detect distance (wide): 89.9 m, Detect distance (tele): 257.4 m
CE-LVD: EN 62368-1; CE-EMC: 2014/30/EU; FCC: 47 CFR FCC B; UL/CUL:UL62368-1; CAN/CSA C22.2; 62368-1-14
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
H.264/H.264+/H.264B/H.265/H.265+/M-JPEG
IEEE 802.1x/IEEE 802.3af
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
