Description
General Information
- SKU: 1429340
- Manufacturer Product Page: DAHUA IPC-MFW5241T2-E3-ASE
- Manufacturer Code: IPC-MFW5241T2-E3-ASE
- Catalog: Network Cameras
- EAN: 6939554941702
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | FNC |
| CnCode | 85258900 |
| Unit Box Height | 0.19 |
| Unit Box Length | 0.35 |
| Unit Box Width | 0.19 |
| Certification | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Connectivity technology | Wired |
| Day/night mode | Y |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Y |
| Form factor | Turret |
| Housing material | Metal/Plastic |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling |
| Product colour | White |
| Adjustment shutter speed | Auto/Manual |
| Angle of rotation | 360 |
| Camera pan control | Y |
| Camera shutter speed | 1/3 - 1/100000 |
| Camera shutter type | Electronic |
| Camera tilt control | Y |
| Lens viewing angle, diagonal | 136 |
| Lens viewing angle, horizontal | 111 |
| Lens viewing angle, vertical | 58.5 |
| Minimum illumination | 0 |
| Pan range | 0 - 360 |
| Tilt angle range | 0 - 78 |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Number of sensors | 1 |
| Optical sensor size | 1/2.7 |
| Progressive scan | Y |
| Sensor type | CMOS |
| Detect distance (tele) | 77.8 |
| Detect distance (wide) | 63.8 |
| Focal length range | 2.8, 3.6 |
| Identify distance | 6.4 |
| Identify distance (tele) | 7.8 |
| Identify distance (wide) | 6.4 |
| Maximum aperture number | 1 |
| Number of lenses | 1 |
| Observe distance (tele) | 31.1 |
| Observe distance (wide) | 25.5 |
| Recognize distance (tele) | 15.6 |
| Recognize distance (wide) | 12.8 |
| LED type | IR/White |
| Night vision | Y |
| Night vision distance | 30 |
| Number of illumination LEDs | 2 |
| Back Light Compensation (BLC) | Y |
| Bit rate | 32 Kbps - 8192 Kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Y |
| Maximum resolution | 2960 x 1688 |
| Noise reduction | Y |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Y |
| Region of Interest (ROI) encoding | Y |
| Smart IR | Y |
| Supported video modes | 1080p/720p |
| Total megapixels | 5 |
| Video compression formats | H.264/H.264B/H.264H/H.265/M-JPEG |
| Video streaming | Y |
| Signal-to-Noise Ratio (SNR) | 56 |
| Bluetooth | N |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Y |
| Number of users | 20 |
| Quality of Service (QoS) support | Y |
| Streaming method | Multicast |
| Wi-Fi | N |
| Built-in HDD | N |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 |
| ROM capacity | 128 |
| Ethernet LAN (RJ-45) ports | 1 |
| Active tampering alarm | Y |
| Intelligent Video Surveillance (IVS) system features | Intrusion/Tripwire |
| Mirror | Y |
| Video motion detection | Y |
| Web browser | Y |
| DC output voltage | 12 |
| Power consumption (typical) | 2.2 |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 - 95 |
| Operating temperature (T-T) | -40 - 60 |
| Storage temperature (T-T) | -40 - 60 |
| Mobile operating systems supported | Android/iOS |
| Diameter | 121.9 |
| Length | 99.1 |
| Weight | 480 |
| Package weight | 620 |
| Number of cameras | 1 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01264 |
| Unit Calculated Weight | 3.23 |
Description

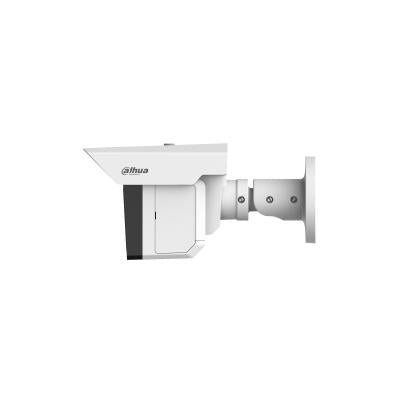

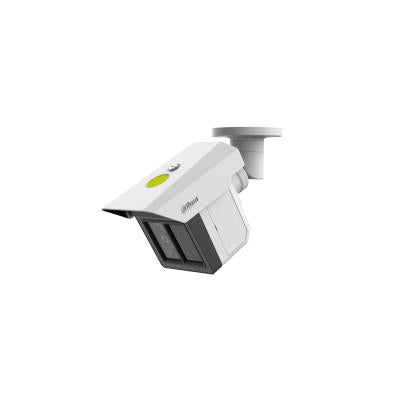

Dahua Technology WizMind DH-IPC-MFW5241T2P-E3-ASE-0360/1200/2500B. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Angle of rotation: 360°, Lens viewing angle, horizontal: 111°, Lens viewing angle, vertical: 58.5°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.8, 3.6 mm, Identify distance: 6.4 m, Detect distance (wide): 63.8 m
CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
H.264/H.264B/H.264H/H.265/M-JPEG
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; P2P; PPPoE; Bonjour; auto registration
