Description
General Information
- SKU: 1426850
- Manufacturer Product Page: GIGABYTE A520M S2H 1.3
- Manufacturer Code: A520M S2H 1.3
- Catalog: Mainboards for AMD CPUs
- EAN: 4719331809720
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| CnCode | 84733020 |
| Unit Box Height | 0.235 |
| Unit Box Length | 0.265 |
| Unit Box Width | 0.05 |
| M.2 | 1 |
| PCI-Express 3.0 16x | 1 |
| PCI-Express 3.0 1x | 2 |
| 15pin D-sub | 1 |
| AV-In | 2 |
| AV-out | 1 |
| DVI-D | 1 |
| HDMI | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| USB 3.2 | 4 |
| SATA | Yes |
| Chipset | AMD A520 |
| Socket | SAM4 |
| Form Factor | Micro-ATX |
| Memory type | DDR4 |
| Frequency speed | 2133/2400/2666/2933/3200/3333/3600/4000/4400/4600/4866/5000/5100 |
| Memory slots | 2 |
| Integrated video | Depending on CPU |
| Integrated audio | Realtek ALC887 |
| Integrated LAN | Realtek (Gigabit) |
| RAID | SATA 0, 1, 10 |
| TPM | Header |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.00426 |
| Product Net Weight | 0.6 |
| Unit Calculated Weight | 0.794 |
Description

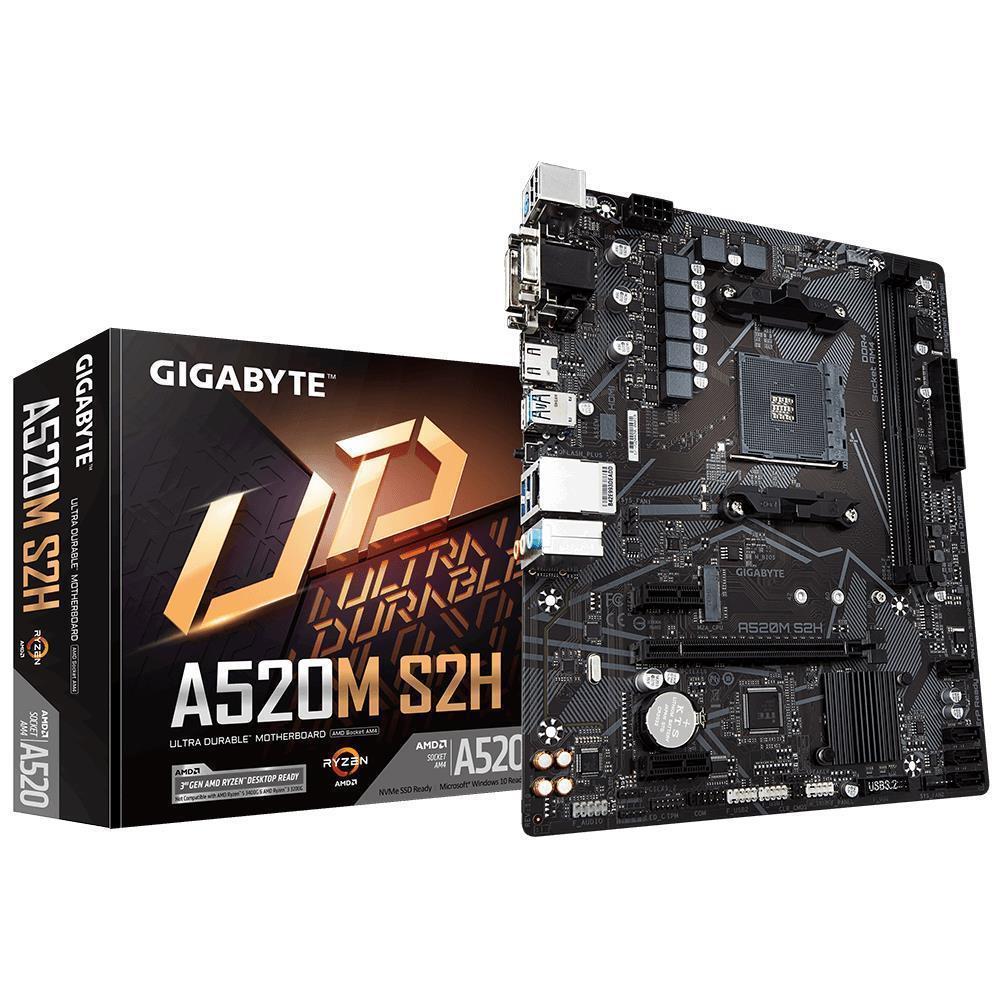

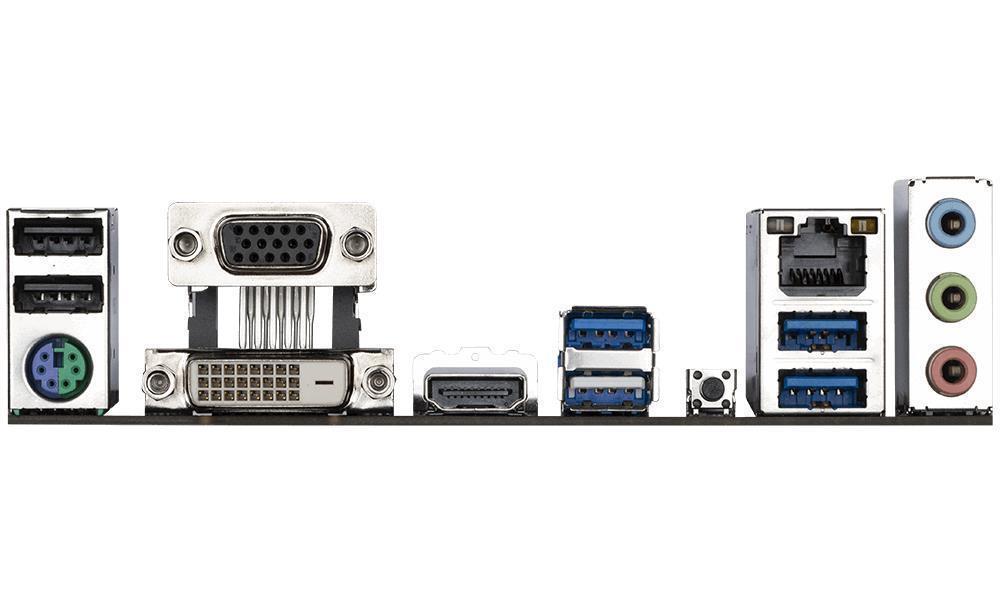

GIGABYTE A520M S2H 1.3 AMD A520 Ultra Durable Motherboard with Pure Digital VRM Solution, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Anti-Sulfur Resistors Design + Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors + Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs + 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs + Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector + GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management + HDMI, DVI-D, D-sub Ports for Multiple Display + RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips + Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP + Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card + Anti-Sulfur Resistors Design
