Description
General Information
- SKU: 1426717
- Manufacturer Product Page: UBIQUITI UDB-PRO
- Manufacturer Code: UDB-PRO
- Catalog: Bridges & Repeaters
- EAN: 810084698051
- Warranty: 12 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | BRE |
| CnCode | 85176200 |
| Unit Box Height | 0.125 |
| Unit Box Length | 0.23 |
| Unit Box Width | 0.23 |
| Maximum data transfer rate | 866.7 |
| Antenna design | Internal |
| Antenna gain level (max) | 19 |
| Antenna type | 2x2 |
| Frequency band | 5 |
| Modulation | 16-QAM/256-QAM/64-QAM/BPSK/QPSK |
| Outdoor range | 5+ km |
| Signal strength | 25 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |
| Wi-Fi band | Single-band (5 GHz) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10/100/1000 |
| Ethernet LAN interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.11a/IEEE 802.11ac/IEEE 802.11n |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Security algorithms | WPA2-AES |
| International Protection (IP) code | IPX6 |
| LED indicators | LAN/Power/Signal strength |
| Material | Polycarbonate (PC)/Stainless steel |
| Mounting type | Pole |
| Power LED | Yes |
| Product colour | White |
| Product type | Network bridge |
| Reset button | Yes |
| DC input voltage | 42.5 - 57 |
| Power consumption (max) | 9 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 48 |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 5 - 95 |
| Operating temperature (T-T) | -40 - 60 |
| Compliance certificates | CE/Federal Communications Commission (FCC)/Industry Canada (IC) |
| Depth | 64.3 |
| Height | 189.5 |
| Weight | 515 |
| Width | 189.5 |

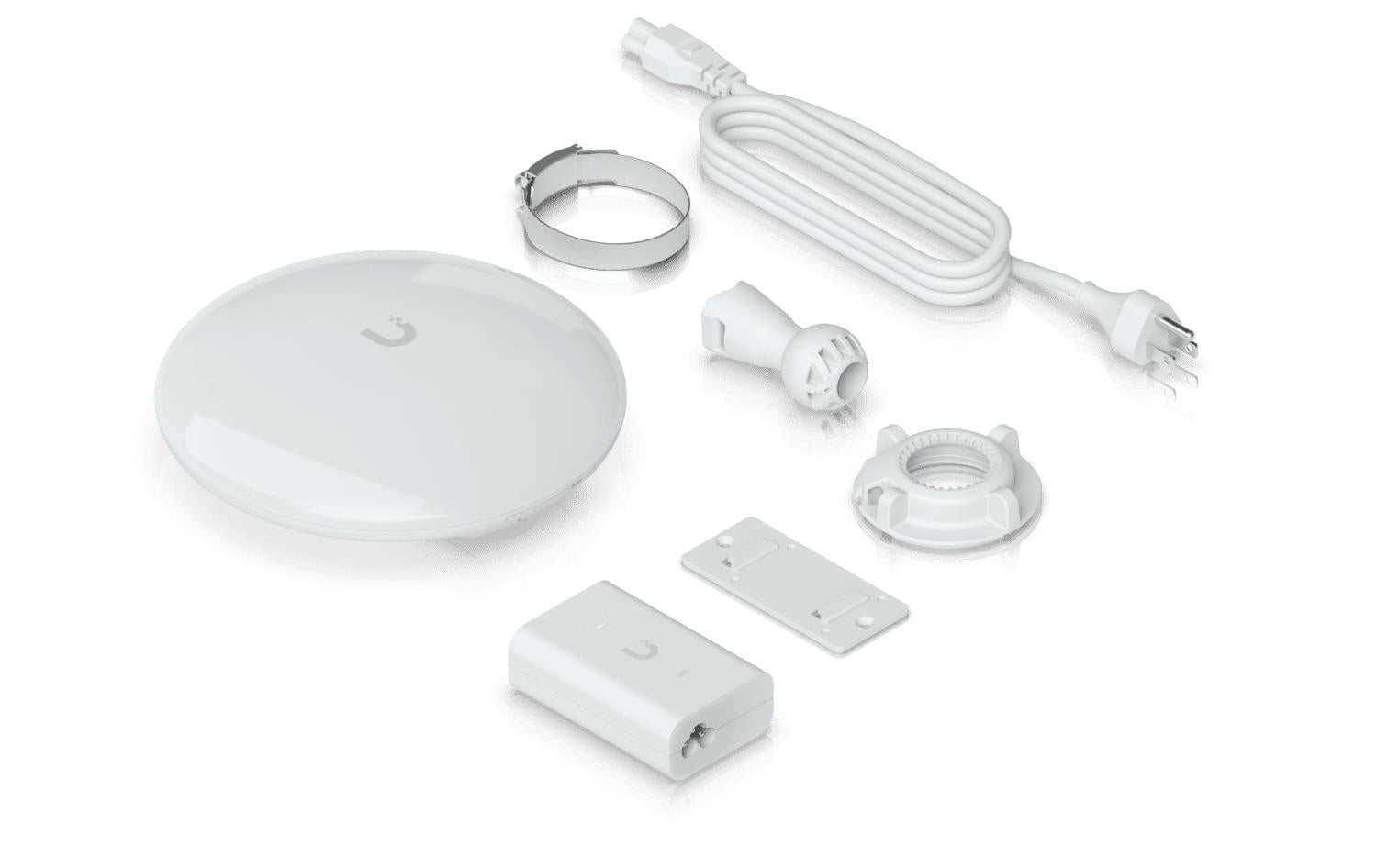

| Cables included | AC |
| Mounting bracket(s) included | Yes |
| Power supply included | Yes |
| Quantity per pack | 1 |
| Units per Shipping Box | 8 |
| Unit Calculated Volume | 0.008008 |
| Unit Calculated Weight | 1.25 |
Description

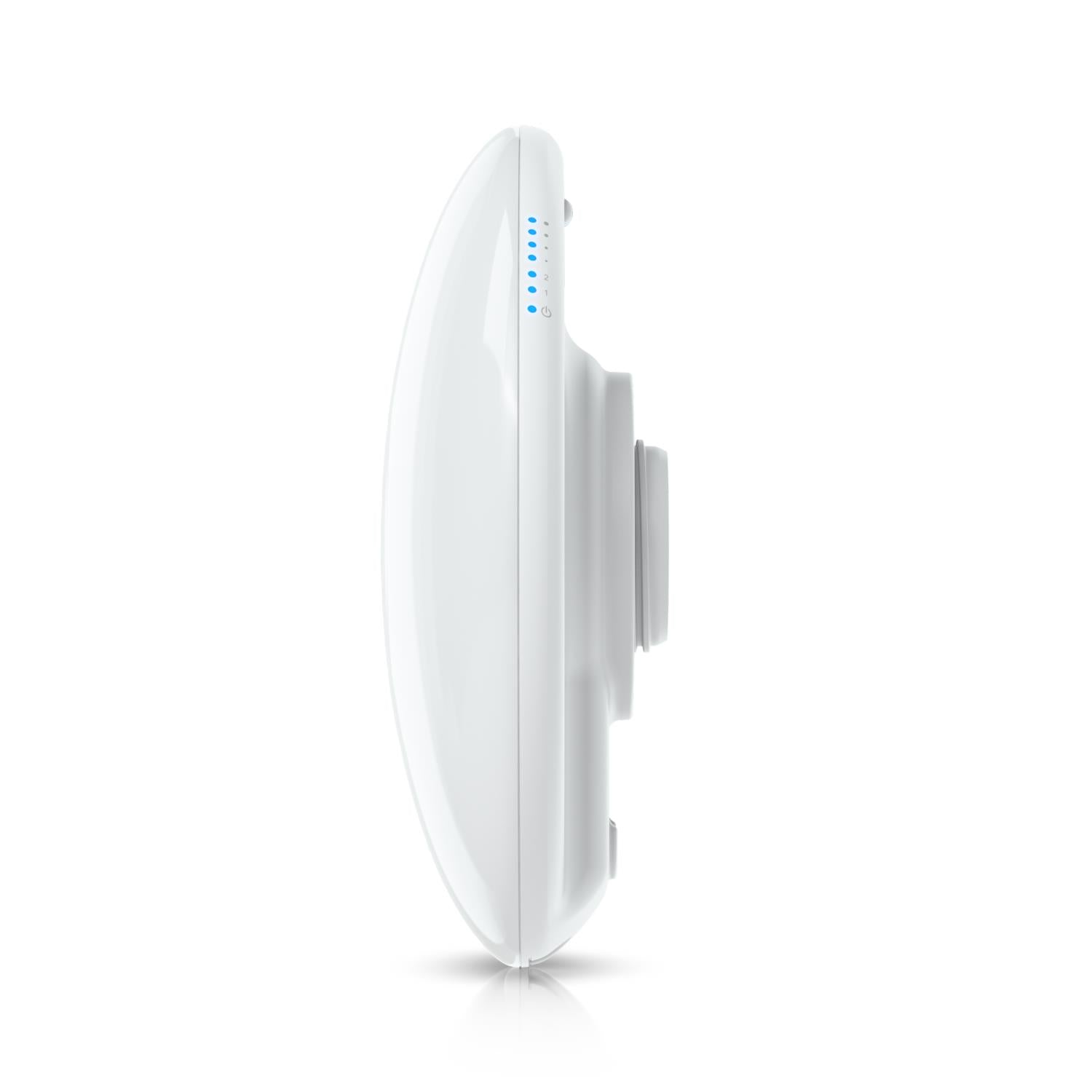

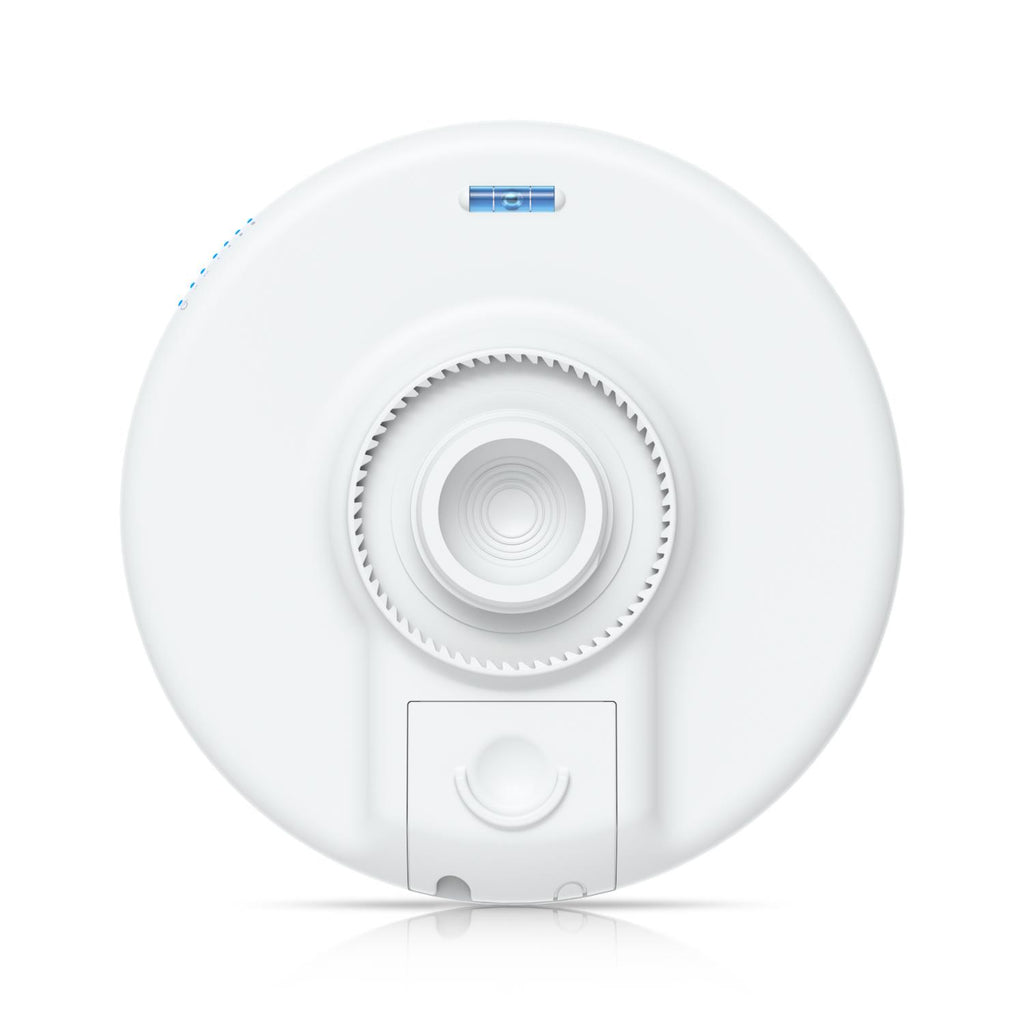

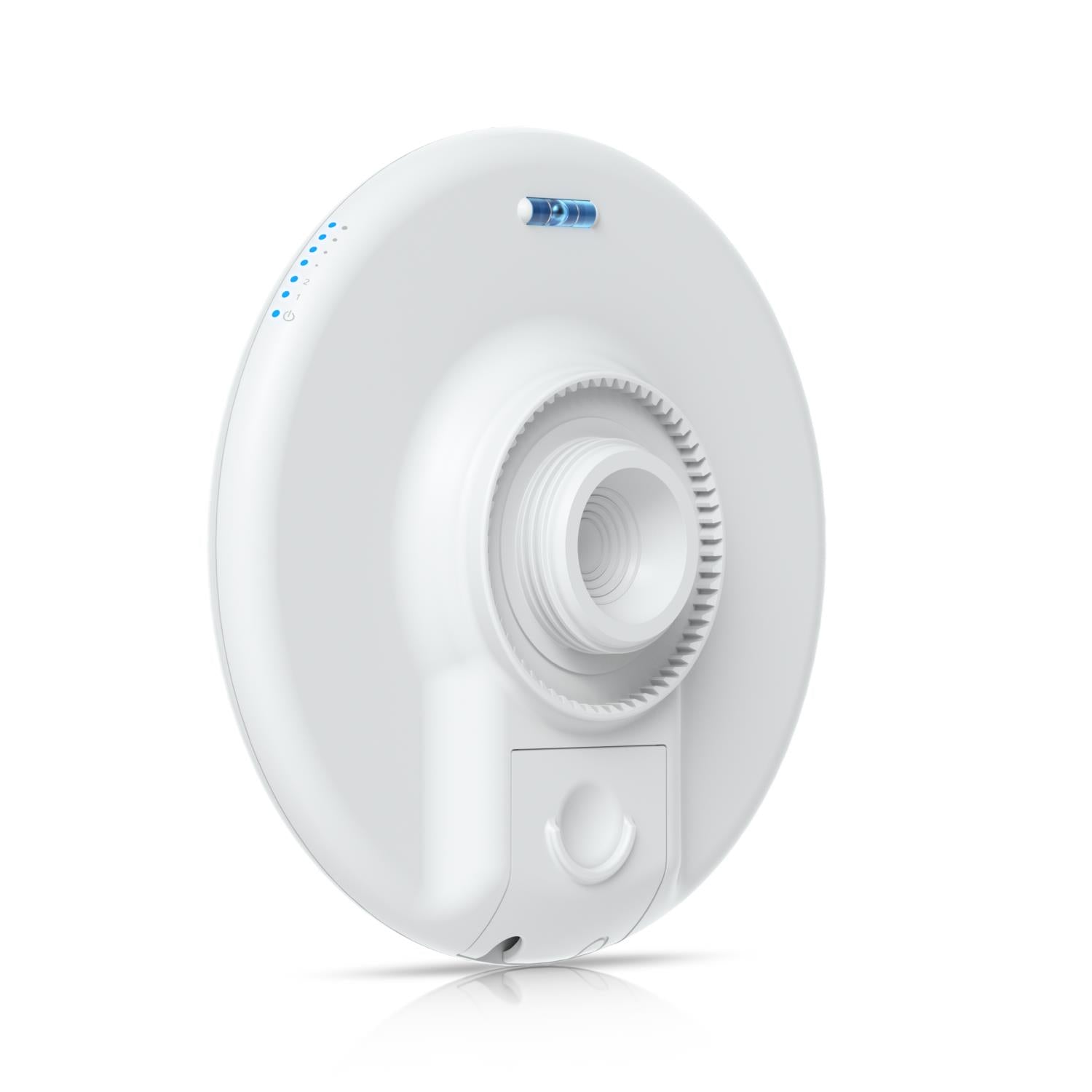

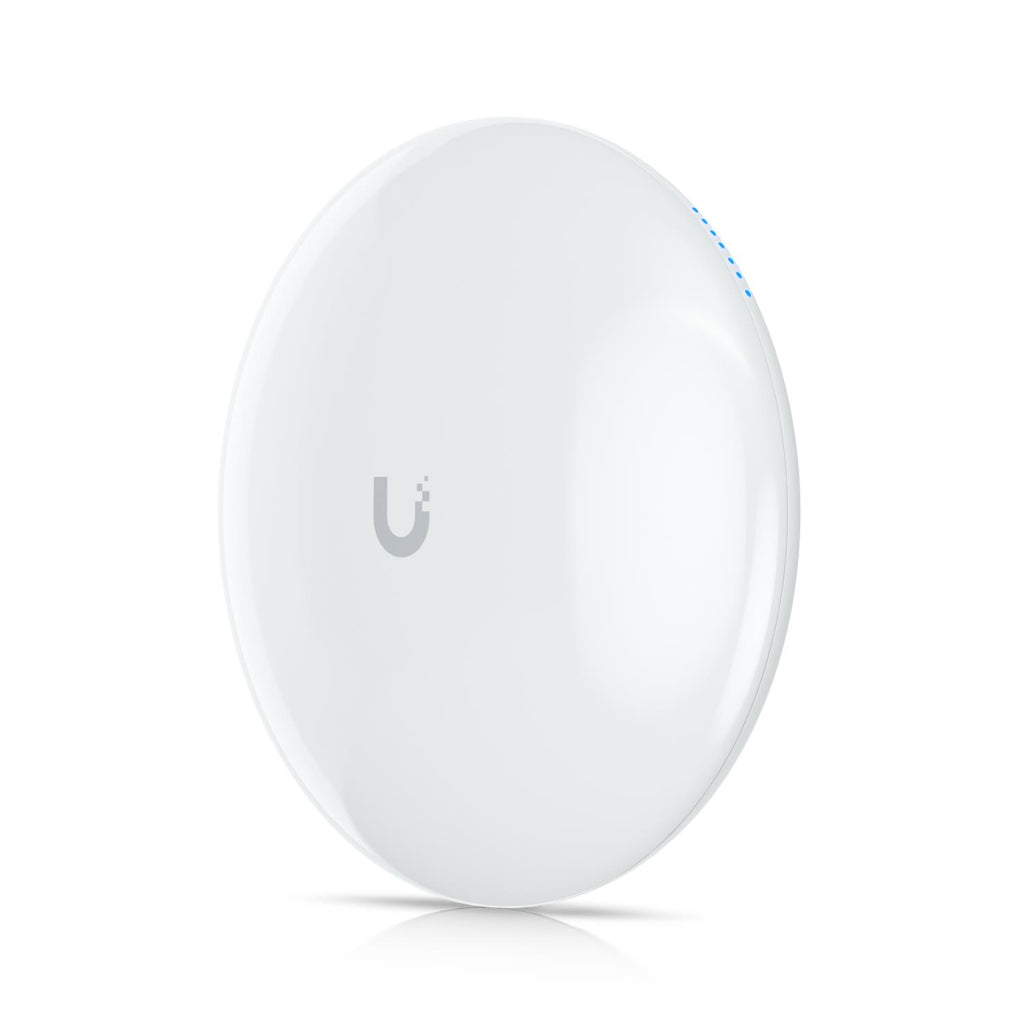

5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
- Link at 5+ km distances with a point-to-point connection to another Device Bridge Pro, or uplink seamlessly with UniFi WiFi Auto-Link

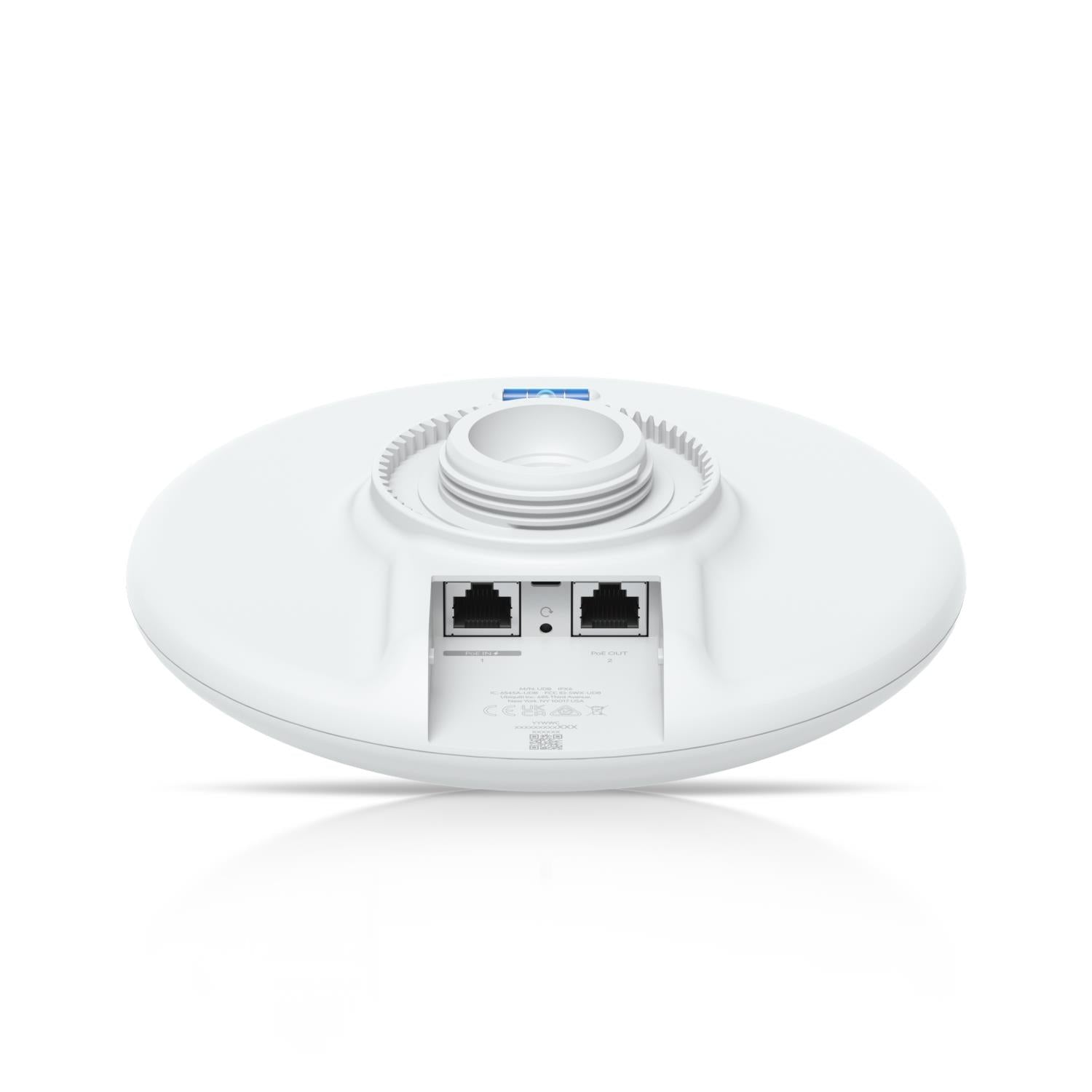

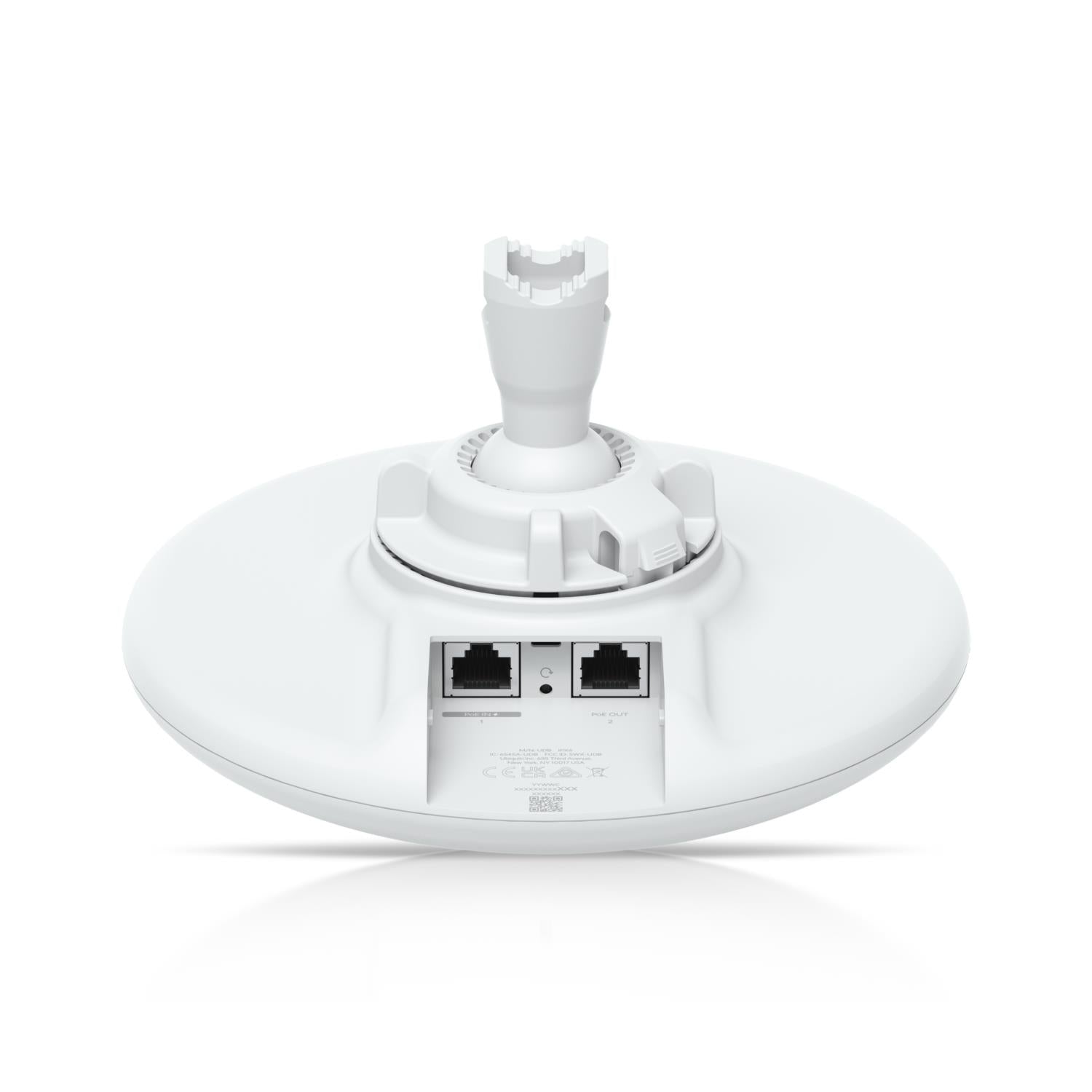

- (2) GbE ports with (1) PoE output for PoE devices
- Powered using PoE/PoE+*

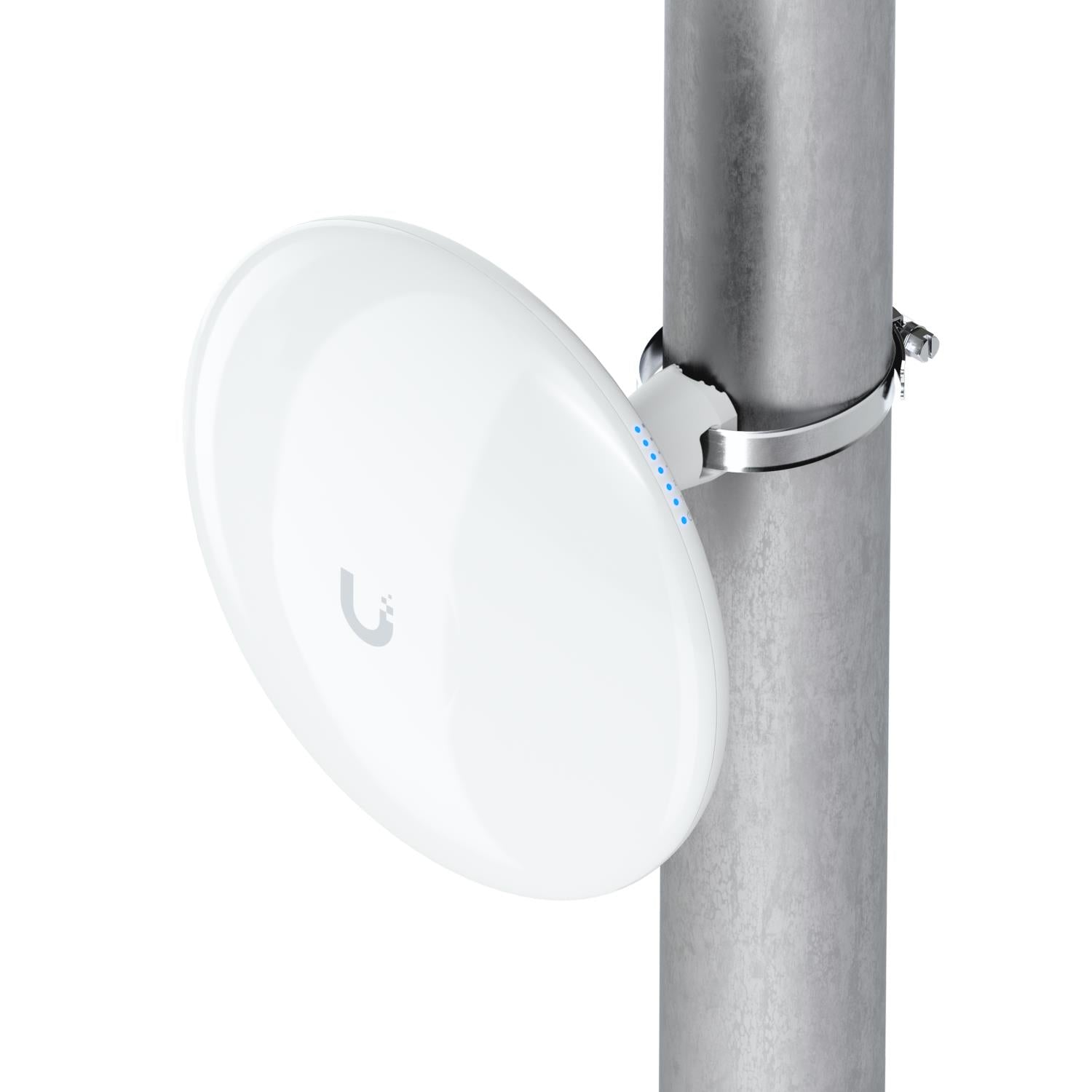

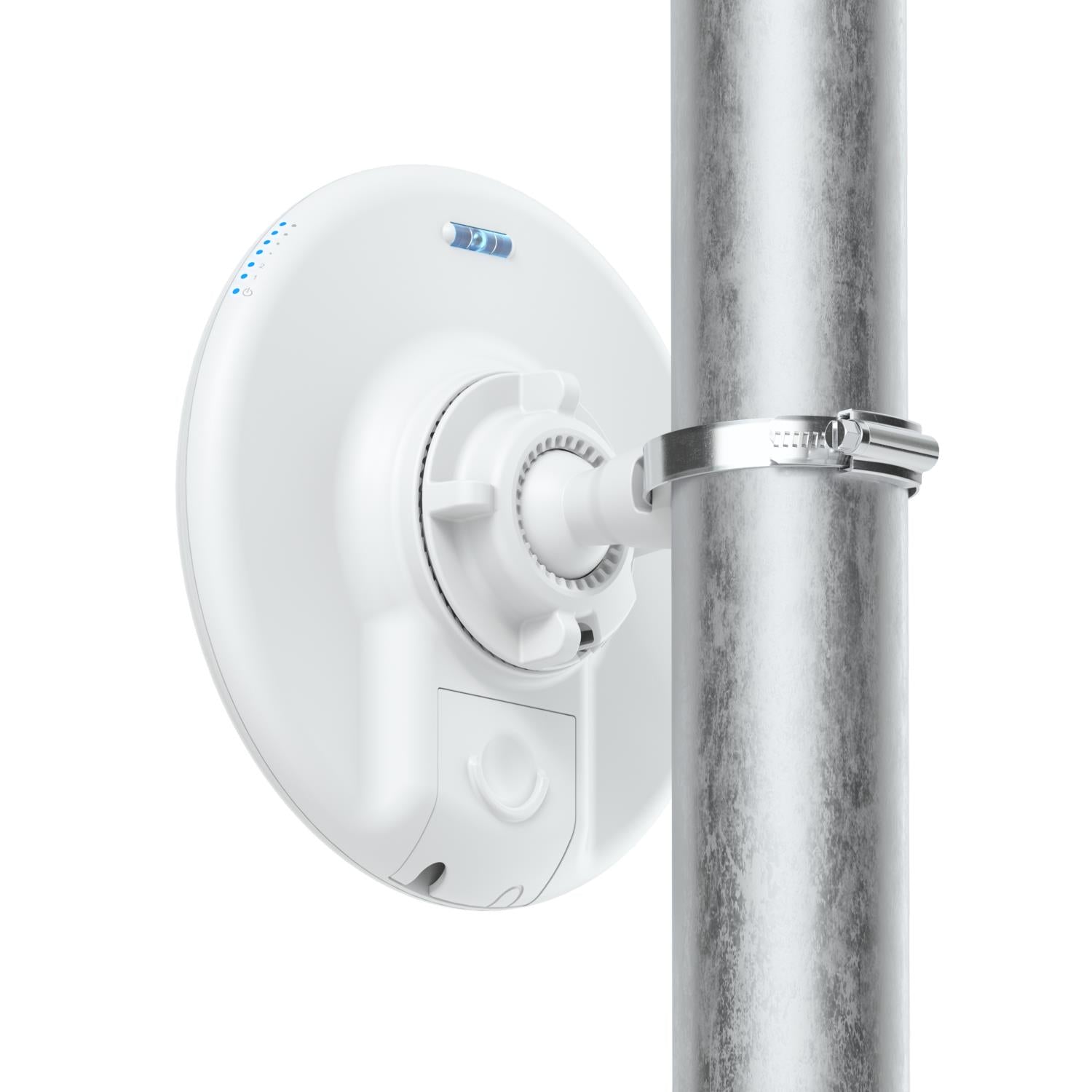

- Pole mounting
- Weatherproof (outdoor exposed)
- Sold as a single unit
Ubiquiti UDB-Pro. Maximum data transfer rate: 866.7 Mbit/s. Antenna design: Internal, Antenna type: 2x2, Antenna gain level (max): 19 dBi. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Frequency band: 5 GHz. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n. Connectivity technology: Wired & Wireless
IEEE 802.11a/IEEE 802.11ac/IEEE 802.11n
CE/Federal Communications Commission (FCC)/Industry Canada (IC)
