Description
General Information
- SKU: 1425595
- Manufacturer Product Page: ASROCK X870 PRO RS WIFI
- Manufacturer Code: X870 PRO RS WIFI
- Catalog: Mainboards for AMD CPUs
- EAN: 4710483949333
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| Unit Box Height | 0.075 |
| Unit Box Length | 0.35 |
| Unit Box Width | 0.28 |
| M.2 | 4 |
| PCI-Express 4.0 16x | 1 |
| PCI-Express 5.0 16x | 1 |
| Audio port | 2 |
| HDMI | 1 |
| Optical S/PDIF | 1 |
| RJ45 | 1 |
| USB 2.0 | 6 |
| USB 3.2 | 4 |
| USB-C | 2 |
| Bluetooth | Yes |
| SATA 3.0 | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| USB-C | Yes |
| WiFi | Yes |
| Chipset | AMD X870 |
| Socket | SAM5 |
| Form Factor | ATX |
| Memory type | DDR5 |
| Frequency speed | 8000 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated audio | Realtek ALC1220 |
| Integrated LAN | 2.5 Gigabit |
| RAID | SATA 0, 1; NVMe 0, 1, 10 |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.009052 |
| Product Net Weight | 1 |
| Unit Calculated Weight | 2.25 |
Description

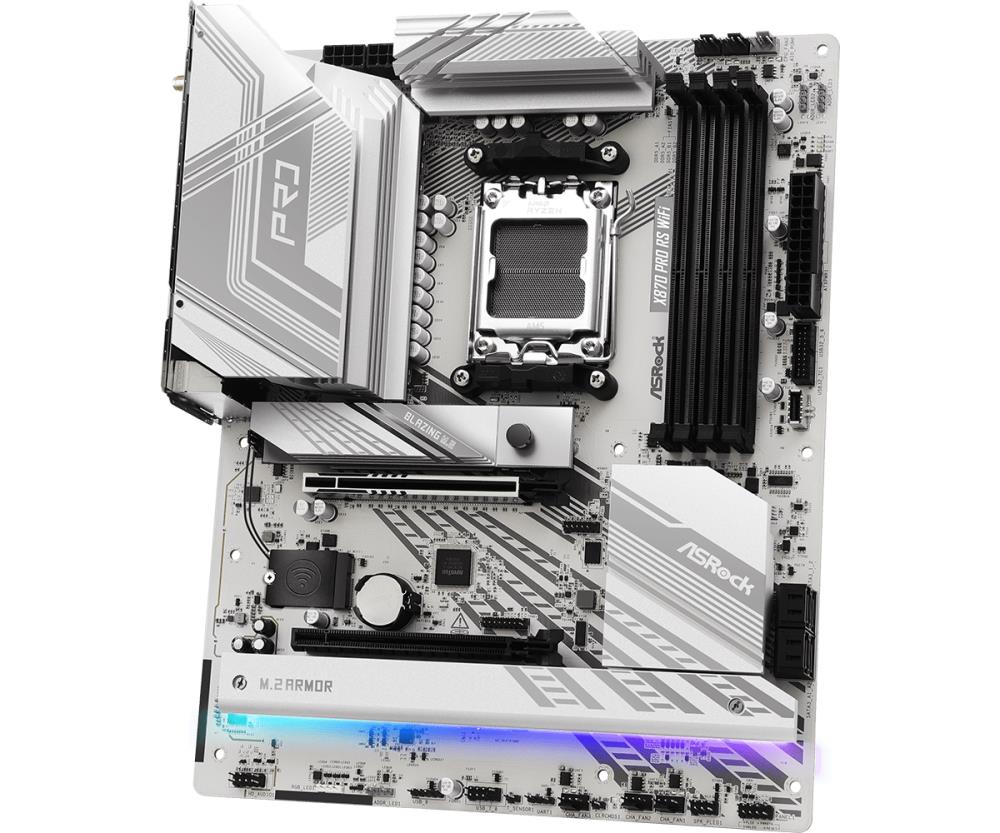

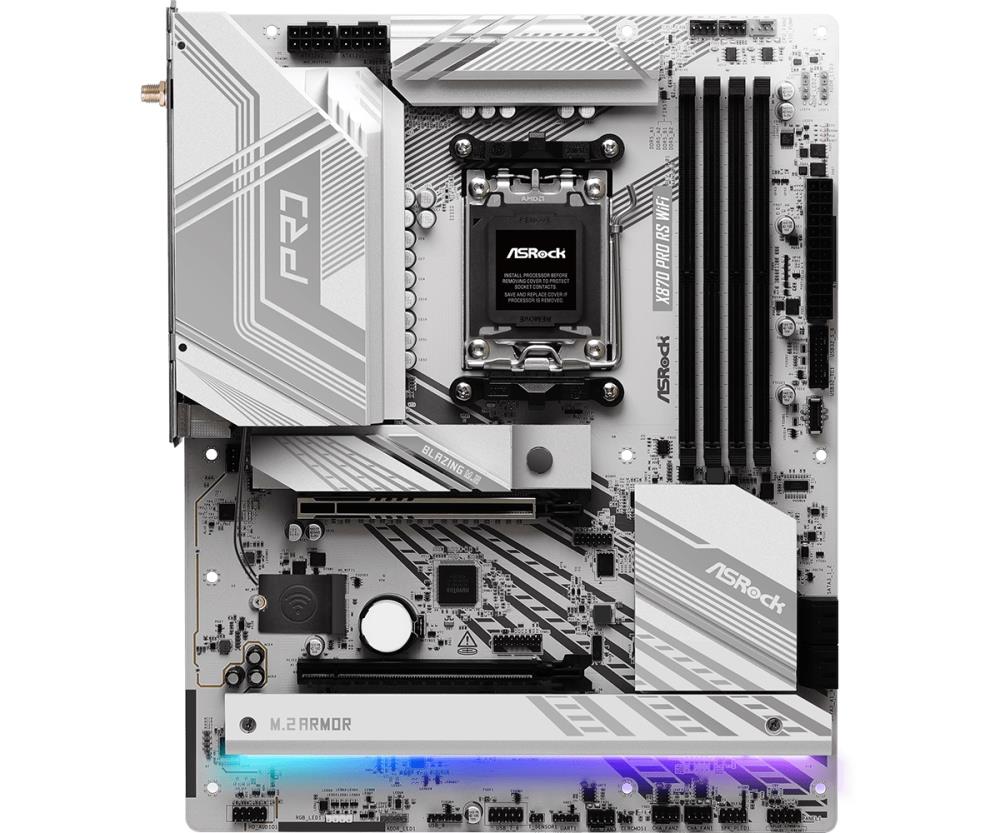

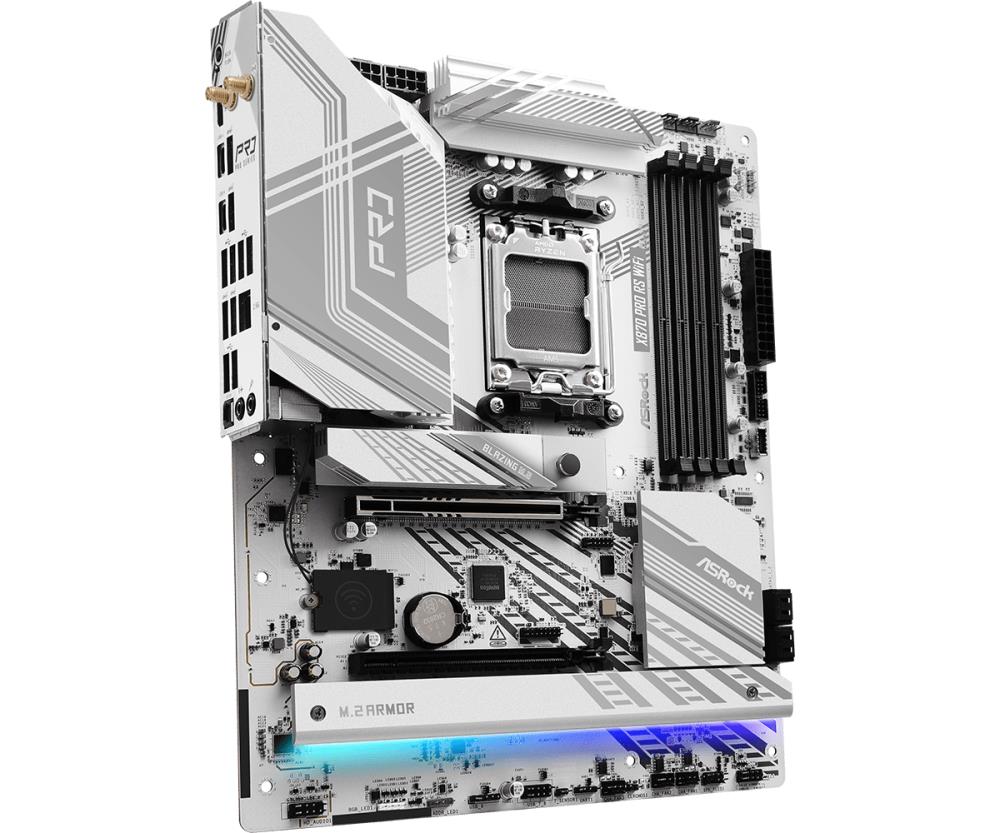

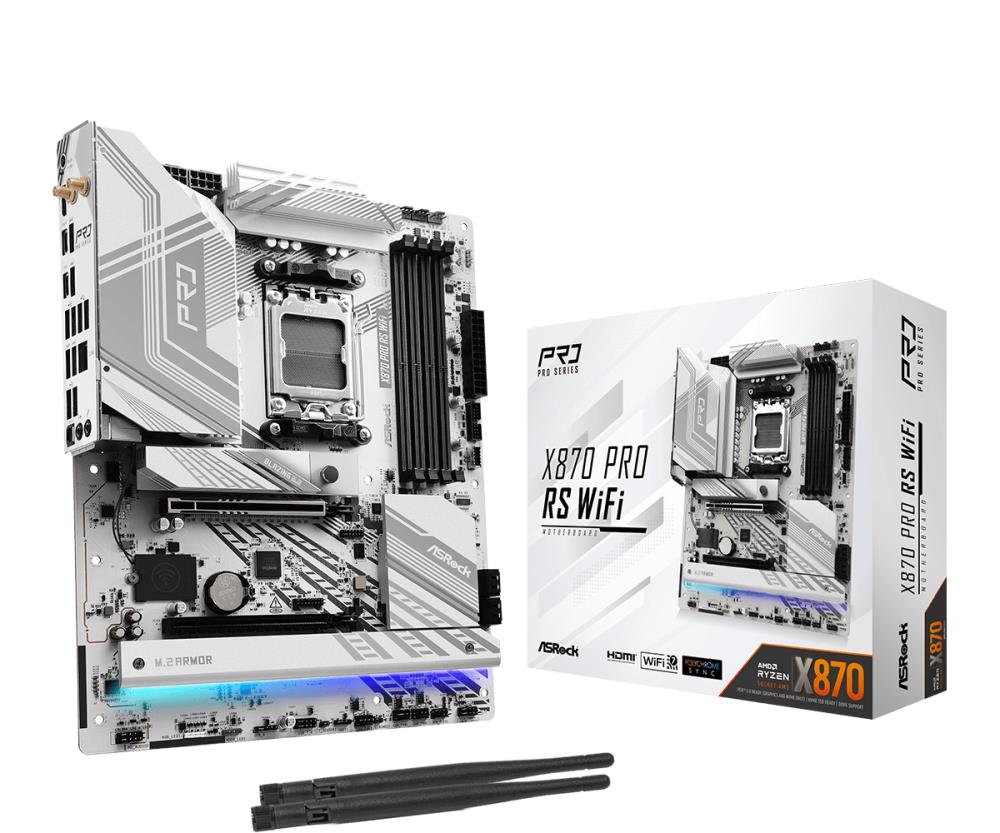

X870 Pro RS WiFi
- Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
- 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 8000+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x16

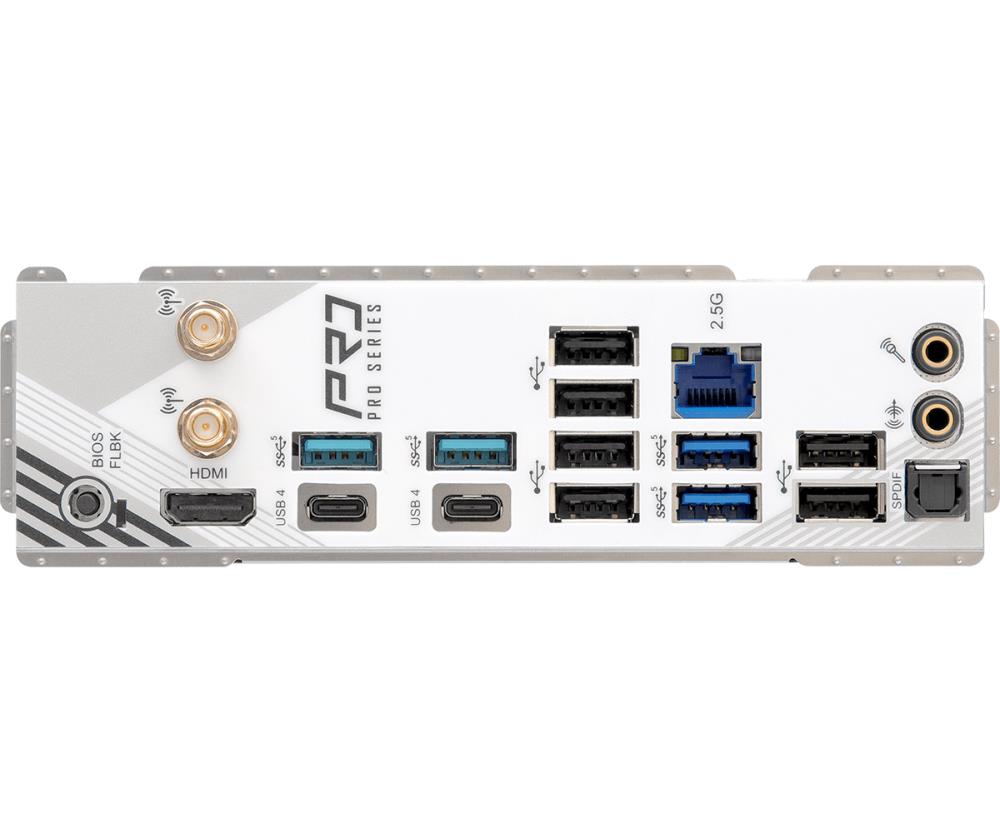

- Graphics Output Options: 2 USB4 Type-C, 1 HDMI
- Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4)
- 1 Hyper M.2 (PCIe Gen4x4)
- 1 Ultra M.2 (PCIe Gen3x4 & SATA3)
- 4 SATA3
- 2 USB4 Type-C (Rear)
- 1 USB 3.2 Gen2x2 Type-C (Front)
- 6 USB 3.2 Gen1 (4 Rear, 2 Front)
- 9 USB 2.0 (6 Rear, 3 Front)
- Realtek 2.5G LAN
- 802.11be WiFi 7 + Bluetooth
- Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink
SATA 0, 1; NVMe 0, 1, 10
