Description
General Information
- SKU: 1424202
- Manufacturer Product Page: MSI PROZ890-PWIFI
- Manufacturer Code: PROZ890-PWIFI
- Catalog: Mainboards for Intel CPUs
- EAN: 4711377257701
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBI |
| Unit Box Height | 0.073 |
| Unit Box Length | 0.342 |
| Unit Box Width | 0.27 |
| M.2 | 4 |
| PCI-Express 4.0 1x | 1 |
| PCI-Express 4.0 4x | 2 |
| PCI-Express 5.0 16x | 1 |
| Audio port | 3 |
| DisplayPort | 1 |
| HDMI | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | 4 |
| USB 3.2 | 3 |
| USB-C | 1 |
| USB-C w/Thunderbolt | 1 |
| Bluetooth | Yes |
| SATA | Yes |
| Thunderbolt | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| USB-C | Yes |
| WiFi | Yes |
| Chipset | Intel Z890 |
| Socket | LGA1851 |
| Form Factor | ATX |
| Memory type | DDR5 |
| Frequency speed | 4800/6400/7200/9200 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated LAN | 5 Gigabit |
| Integrated audio | Realtek ALC897 |
| RAID | SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10 |
| TPM | Header |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.008048 |
| Product Net Weight | 2 |
| Unit Calculated Weight | 2.06 |
Description

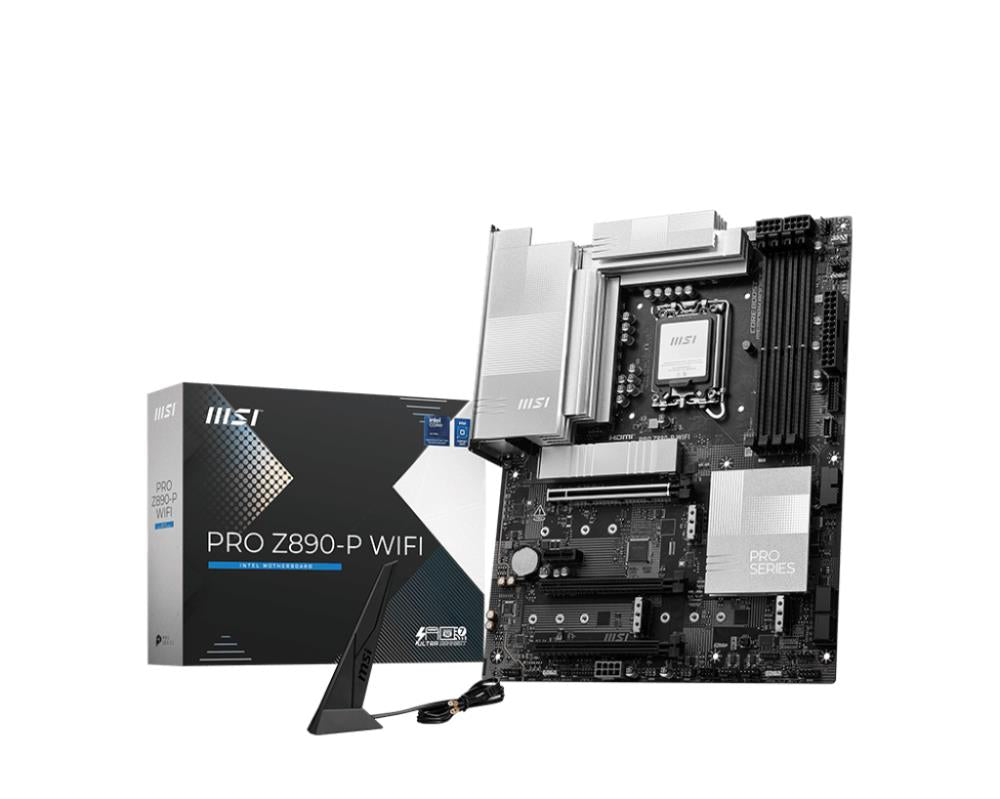

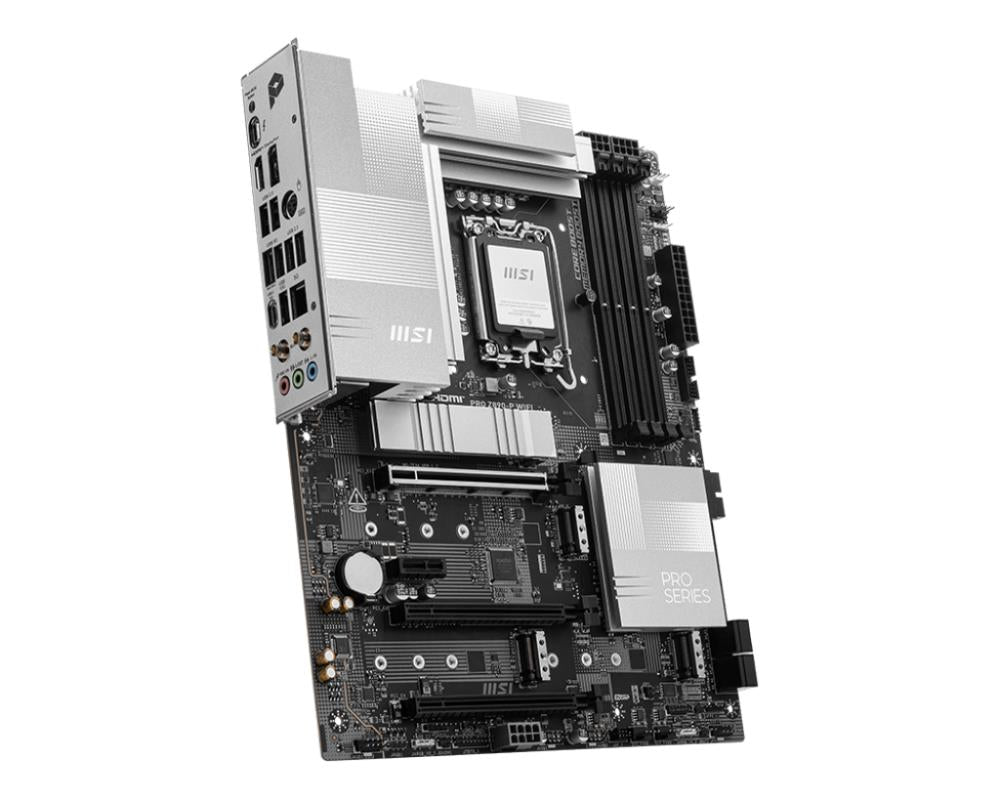

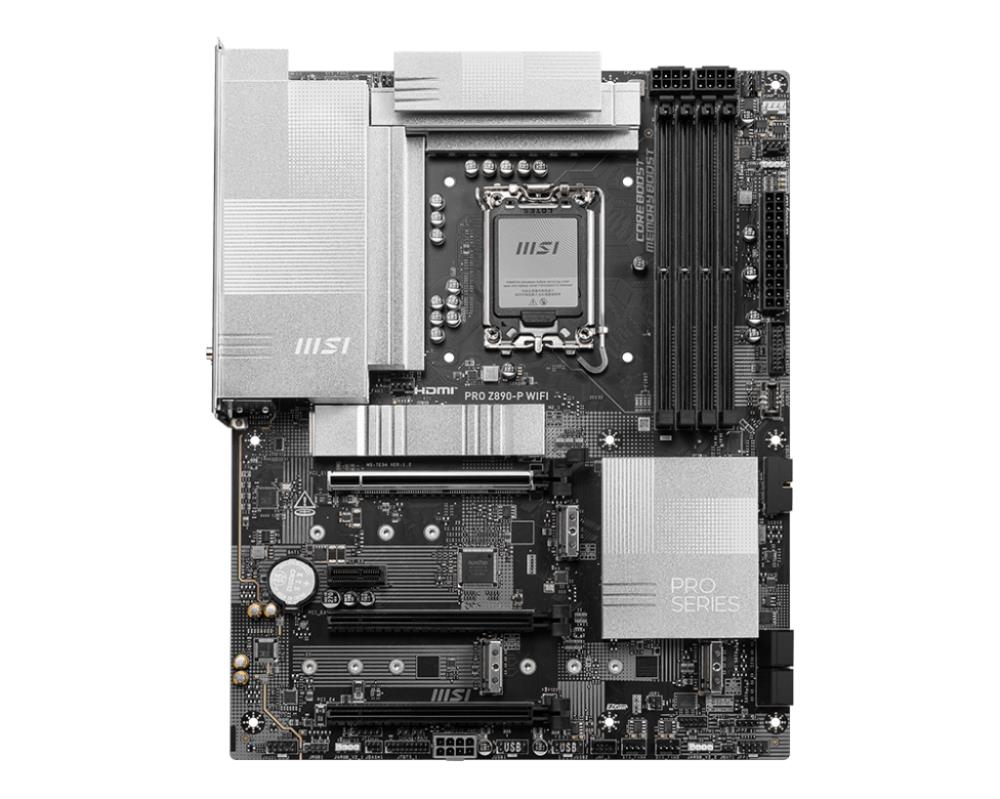

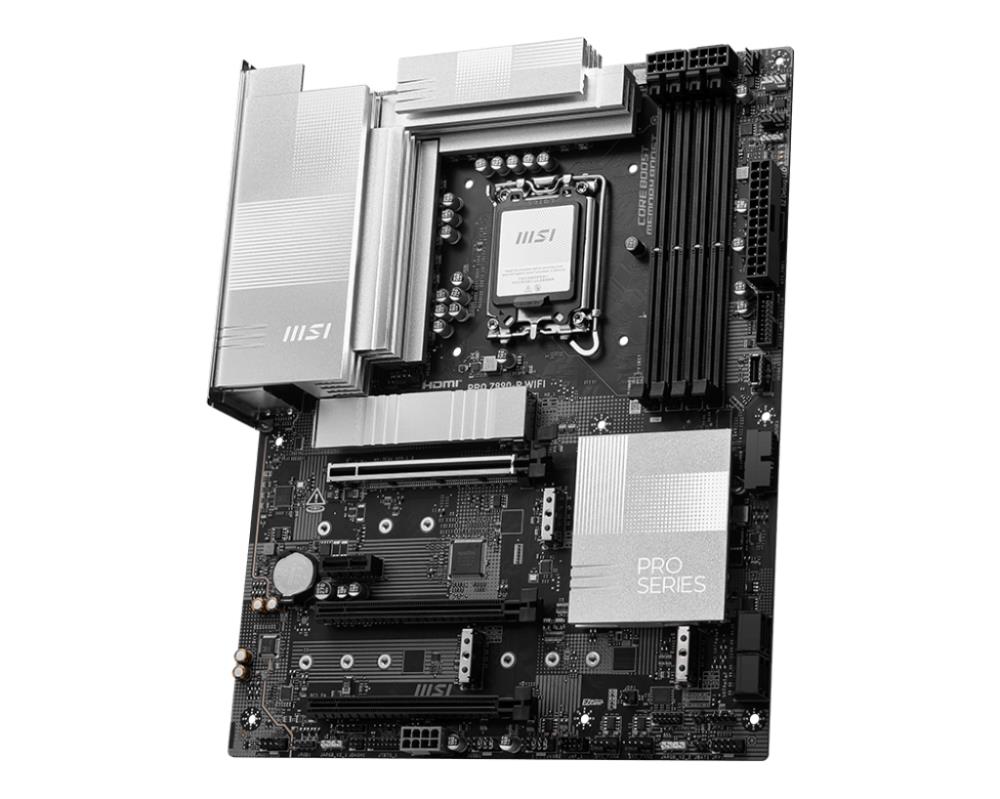

PRO Z890-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, Thunderbolt 4, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
- Ultra Performance: 14+1+1+1 Duet Rail Power System 55A DrMOS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: Thunderbolt™ 4 port, 5G LAN with Intel Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
SATA 0, 1, 5, 10; NVMe 0, 1, 5, 10
