Description
General Information
- SKU: 1423734
- Manufacturer Product Page: GIGABYTE B550MAORUSELITEAX1.3
- Manufacturer Code: B550MAORUSELITEAX1.3
- Catalog: Mainboards for AMD CPUs
- EAN: 4719331855055
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.278 |
| Unit Box Width | 0.27 |
| M.2 | 2 |
| PCI-Express 3.0 1x | 1 |
| PCI-Express 3.0 4x | 1 |
| PCI-Express 4.0 16x | 1 |
| Audio port | 3 |
| DVI-D | 1 |
| HDMI | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | 4 |
| USB 3.2 | 4 |
| Bluetooth | Yes |
| SATA | Yes |
| Serial | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| WiFi | Yes |
| Chipset | AMD B550 |
| Socket | SAM4 |
| Form Factor | Micro-ATX |
| Memory type | DDR4 |
| Frequency speed | 2133/2400/2667/2933/3200/3400/3466/3600/3733/3866/4000/4133/4266/4400/4600/4733 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated audio | Yes |
| Integrated LAN | Gigabit |
| RAID | SATA 0, 1, 10 |
| TPM | Header |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.0063 |
| Product Net Weight | 0.9 |
| Unit Calculated Weight | 1.3 |
Description

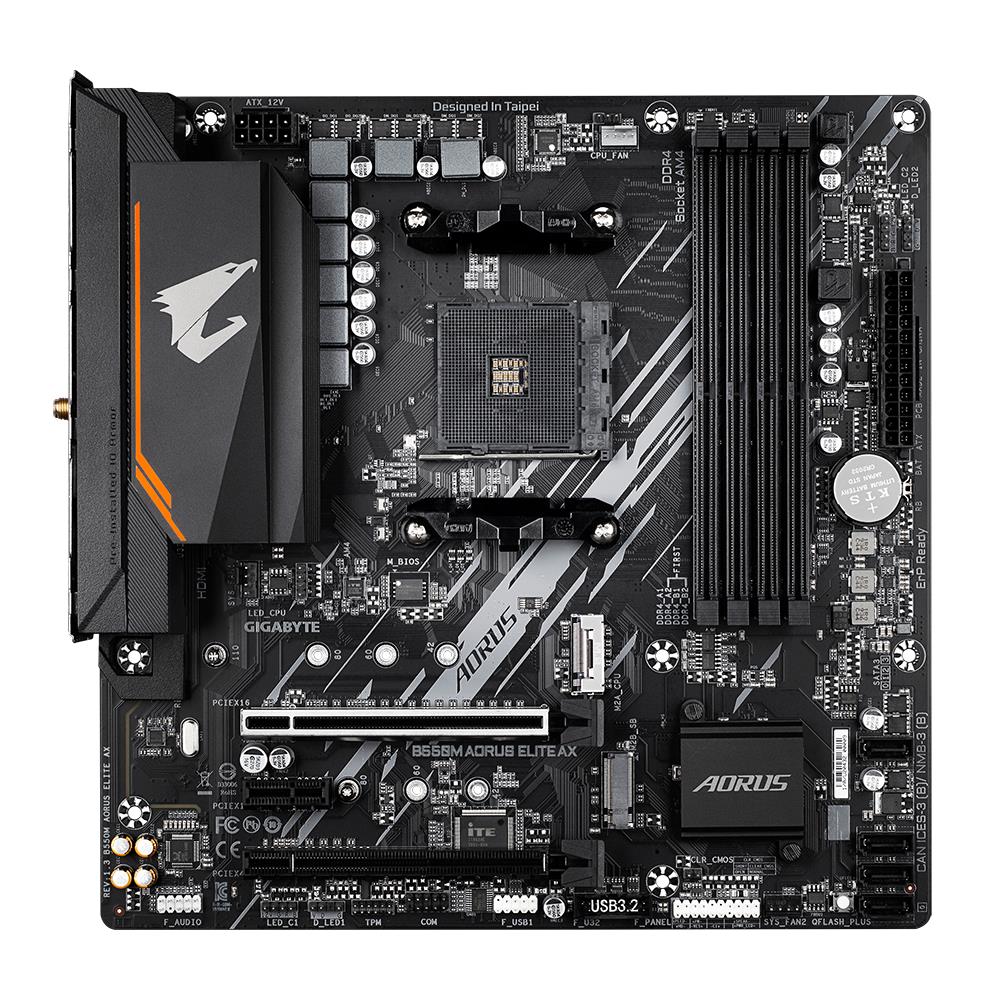

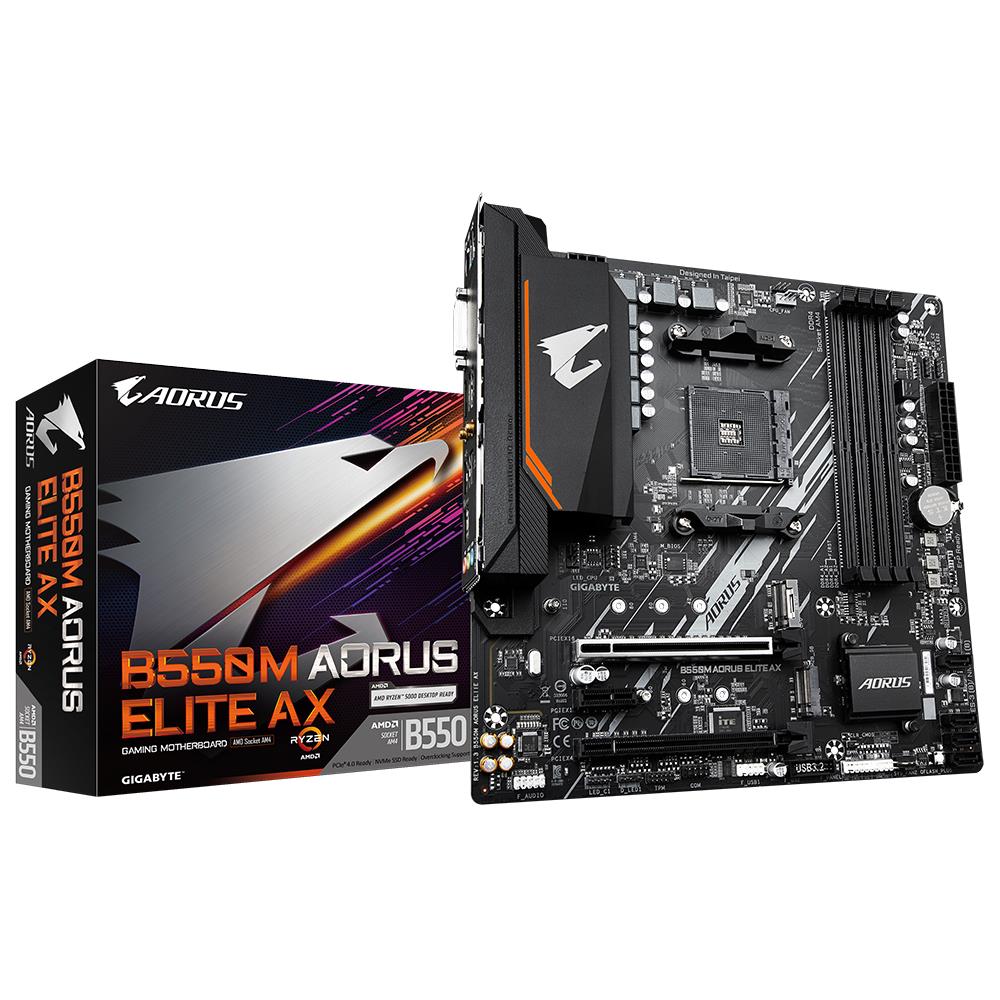

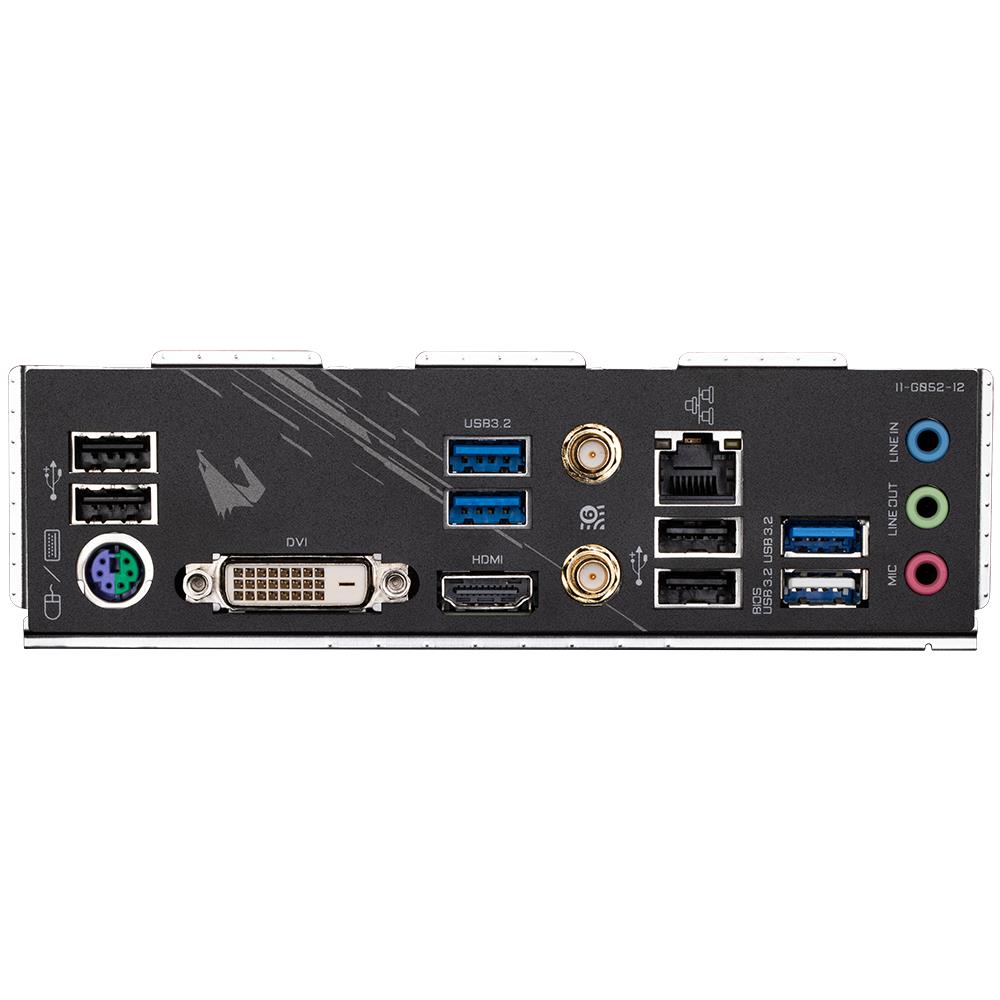

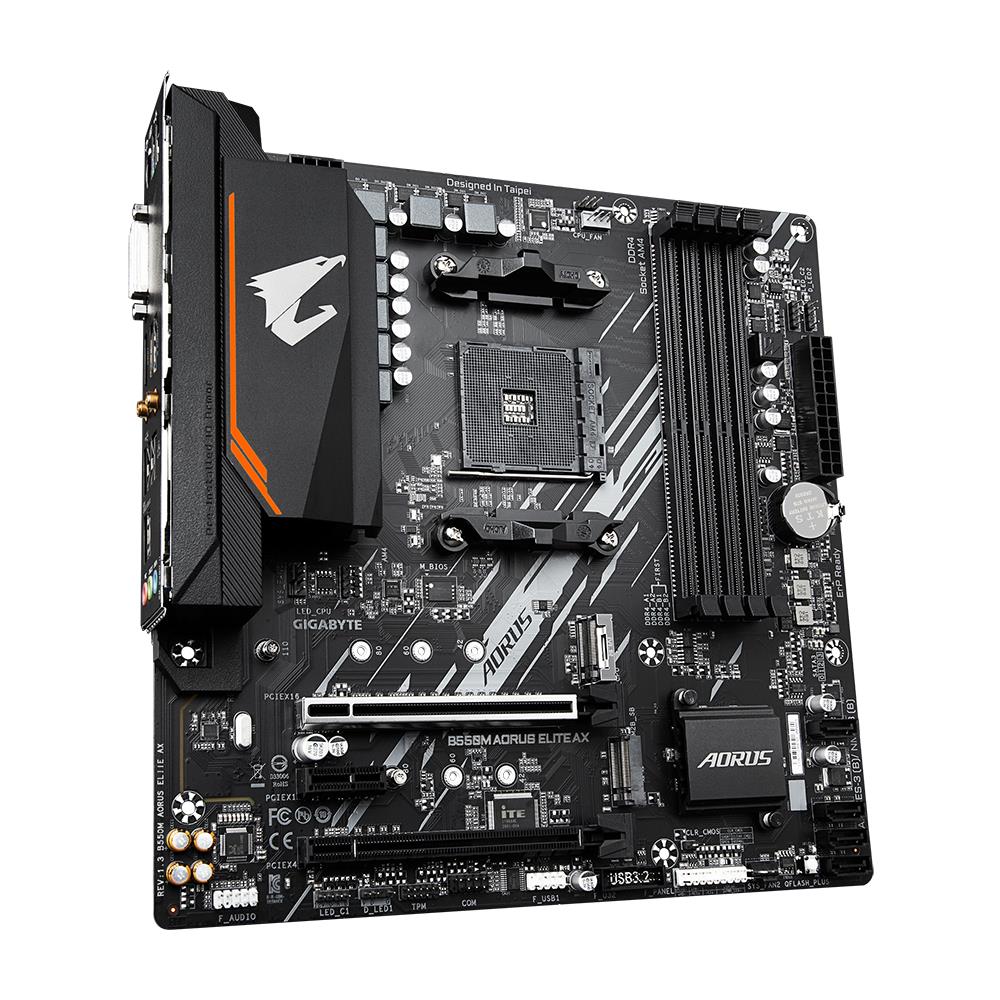

GIGABYTE B550M AORUS ELITE AX 1.3 + Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series/ Ryzen 3000 and Ryzen 3000 G-Series Processors + Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs + 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs + Ultra Durable PCIe 4.0 Ready x16 Slot + Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors + Onboard Wi-Fi 6E 802.11ax & BT 5.3 + High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality + Realtek GbE LAN with Bandwidth Management + Rear HDMI & DVI Support + RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips + Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP + Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card + Anti-Sulfur Resistors Design
gigabyte.com/Motherboard/B550M-AORUS-ELITE-AX-rev-13#kf
B550M AORUS ELITE AX 1.3
