Description
General Information
- SKU: 1422168
- Manufacturer Product Page: DAHUA HFW1509TLM-A-LED-0280B-S2
- Manufacturer Code: HFW1509TLM-A-LED-0280B-S2
- Catalog: HDCVI Cameras
- EAN: 6923172510389
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | HSC |
| Unit Box Height | 0.11 |
| Unit Box Length | 0.24 |
| Unit Box Width | 0.115 |
| Camera design | Bullet |
| Network Camera Type | HDTV/Megapixel |
| Video interface | HDCVI |
| Resolution | 5 |
| Net camera resolution | 5 - 7MP |
| Sensor size | 5MP CMOS |
| Focal Length | 2.8 mm |
| Focal length | 2.8 - 3.5mm |
| Lens Mount | M12 |
| Min. Illumination | 0.001 |
| IR Illumination | Yes |
| Effective pixels | 2880 (H) × 1620 (V) |
| Electronic Shutter Speed | PAL:1/3 s–1/100,000 s ; NTSC:1/4 s–1/100,000 s |
| Microphone | Built-in |
| Power options | 12V |
| Power supply requirements | 12 V ±30% DC |
| Power consumption | 6.4 |
| Environment | Outdoor |
| Colour | White |
| Dimensions | 198.4 × 80.2 × 76.2 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003036 |
| Product Net Weight | 0.33 |
| Unit Calculated Weight | 0.52 |
Description

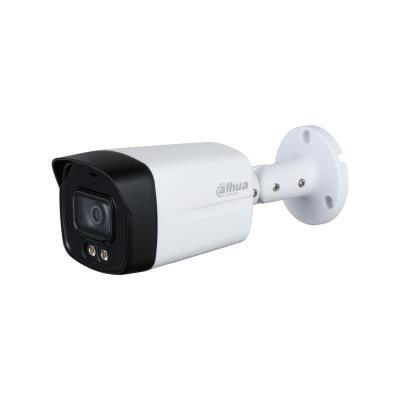

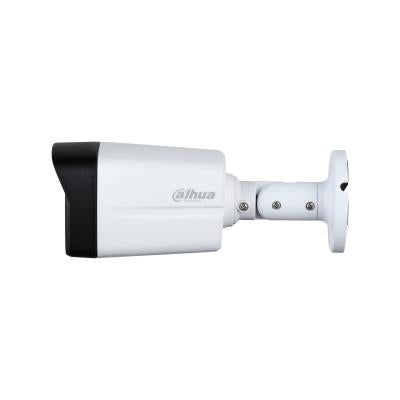

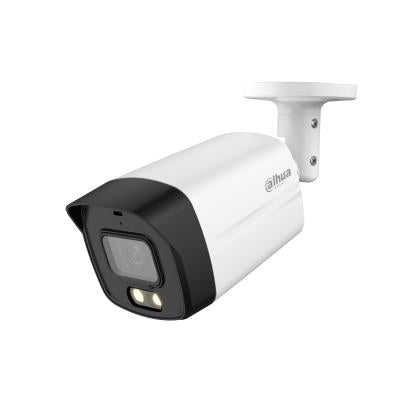

HAC-HFW1509TLM(-A)-LED 5MP Full-color HDCVI Bullet Camera > Max 25 fps@5MP (16:9 video output) > 120 dB true WDR, 3D NR > 24/7 color imaging > 40 m illumination distance > CVI/CVBS/AHD/TVI switchable > Built-in mic (-A) > 3.6 mm fixed lens (2.8 mm optional) > IP67, 12 V DC
PAL:1/3 s–1/100,000 s ; NTSC:1/4 s–1/100,000 s
198.4 × 80.2 × 76.2 mm
