Description
General Information
- SKU: 1420963
- Manufacturer Product Page: ASROCK B650STEELLEGENDWIFI
- Manufacturer Code: B650STEELLEGENDWIFI
- Catalog: Mainboards for AMD CPUs
- EAN: 4710483944598
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| Unit Box Height | 0.32 |
| Unit Box Length | 0.38 |
| Unit Box Width | 0.095 |
| M.2 | 1 |
| PCI-Express 3.0 16x | 1 |
| PCI-Express 4.0 1x | 1 |
| PCI-Express 5.0 16x | 1 |
| Audio port | 2 |
| DisplayPort | 1 |
| HDMI | 1 |
| RJ45 | 1 |
| USB 2.0 | 8 |
| USB 3.2 | 3 |
| USB-C | 2 |
| Chipset | AMD B650 |
| Socket | SAM5 |
| Form Factor | ATX |
| Memory type | DDR5 |
| Frequency speed | 7200 |
| Memory slots | 4 |
| Integrated audio | Realtek ALC4082 |
| Integrated LAN | 2.5 Gigabit |
| RAID | SATA 0, 1; NVMe 0, 1, 10 |
| TPM | Header |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01155 |
| Product Net Weight | 2 |
| Unit Calculated Weight | 2.3 |
Description

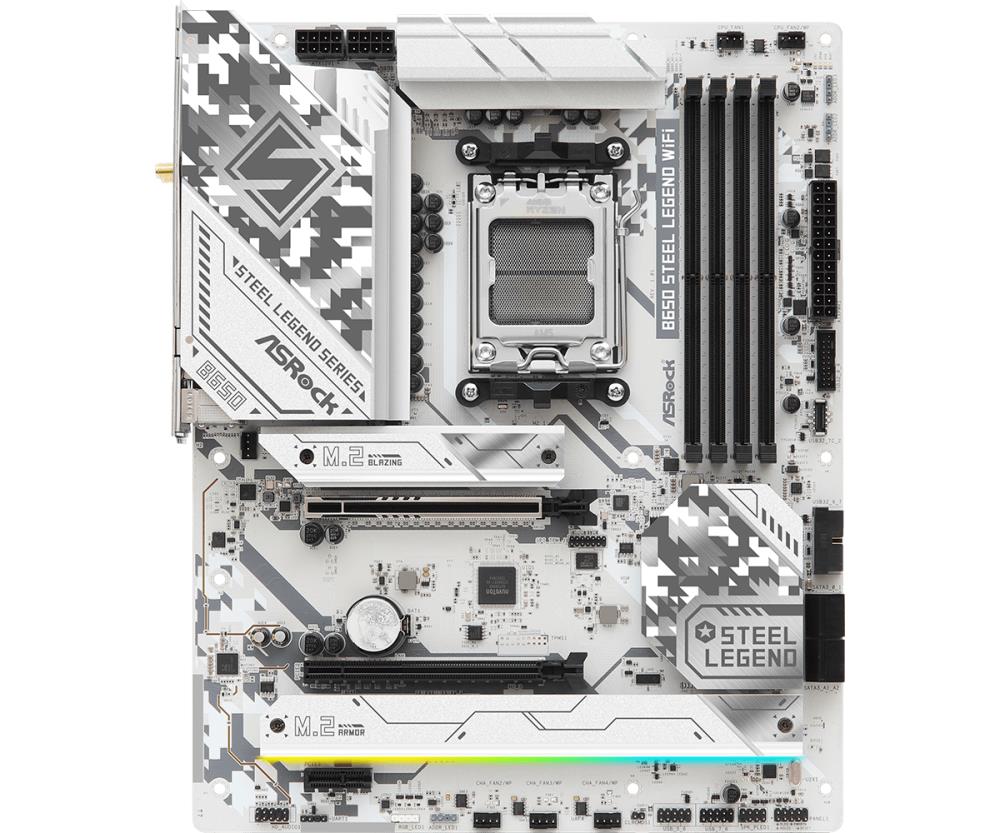

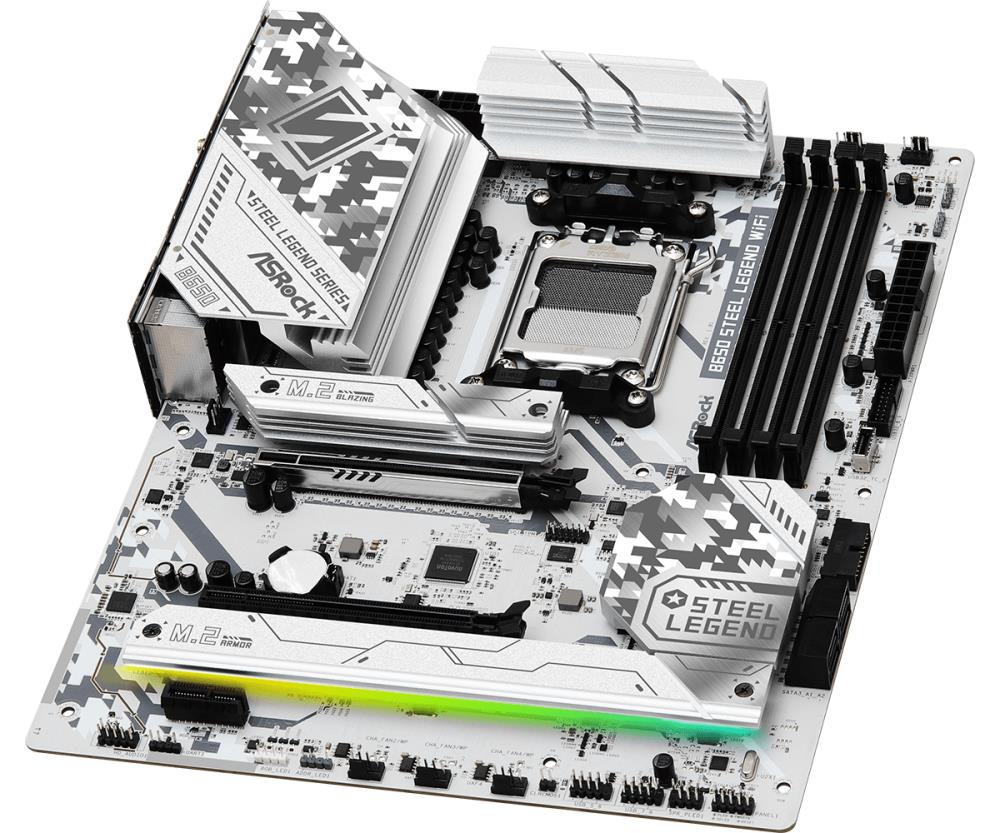

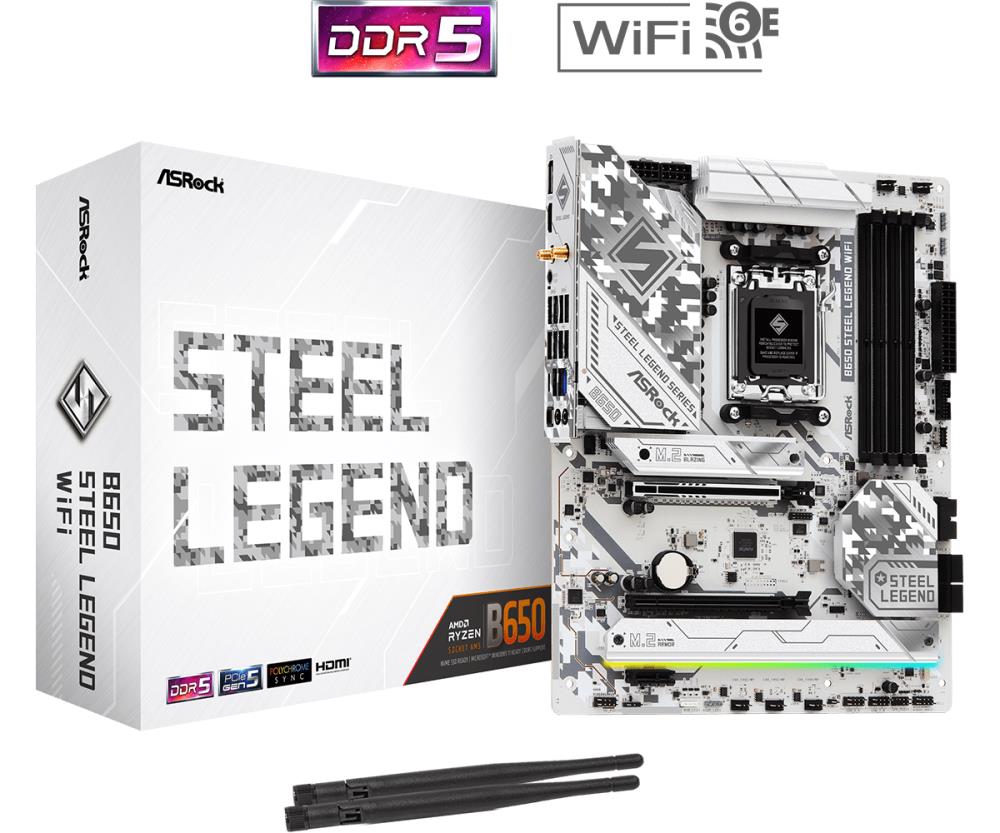

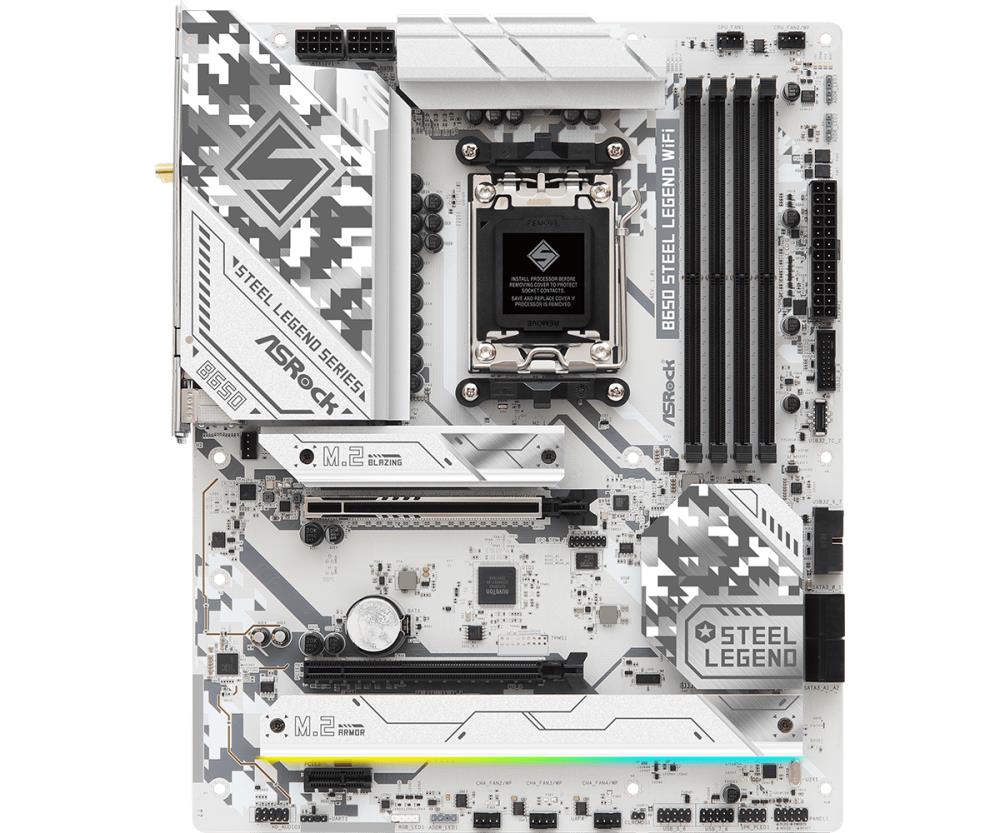

B650 Steel Legend WiFi
- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
- 14+2+1 Power Phase, 80A Dr.MOS for Vcore
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 7200+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1

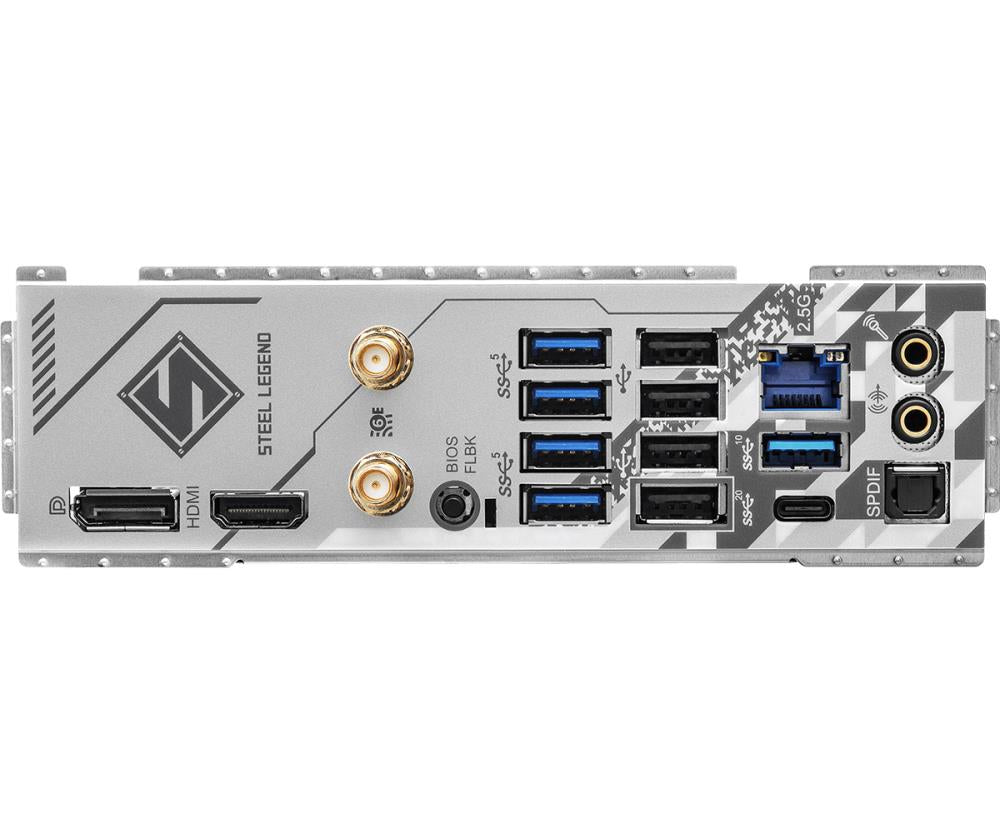

- Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4)
- 1 USB 3.2 Gen2x2 Type-C (Rear)
- 1 USB 3.2 Gen1 Type-C (Front)
- 1 USB 3.2 Gen2 Type-A (Rear)
- 8 USB 3.2 Gen1 Type-A (4 Rear, 4 Front)
- 8 USB 2.0 (4 Rear, 4 Front)
- Dragon 2.5G LAN
- 802.11axe WiFi 6E + Bluetooth
- Supports ASRock Auto Driver Installer, BIOS Flashback
SATA 0, 1; NVMe 0, 1, 10
