Description
General Information
- SKU: 1409820
- Manufacturer Product Page: ASROCK B760MSTEELLEGENDWIFI
- Manufacturer Code: B760MSTEELLEGENDWIFI
- Catalog: Mainboards for Intel CPUs
- EAN: 4710483941795
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBI |
| Unit Box Height | 0.287 |
| Unit Box Length | 0.573 |
| Unit Box Width | 0.032 |
| M.2 | 4 |
| PCI-Express 4.0 1x | 1 |
| PCI-Express 5.0 16x | 1 |
| Audio port | 3 |
| DisplayPort | 1 |
| HDMI | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| USB 3.2 | 5 |
| USB-C | 1 |
| Bluetooth | Yes |
| SATA 3.0 | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| WiFi | Yes |
| Chipset | Intel B760 Express |
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Memory type | DDR5 |
| Frequency speed | 7200 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated LAN | 2.5 Gigabit |
| Integrated audio | Realtek ALC897 |
| RAID | SATA 0, 1, 5, 10 |
| TPM | Header |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.005262 |
| Product Net Weight | 1 |
| Unit Calculated Weight | 1.51 |
Description

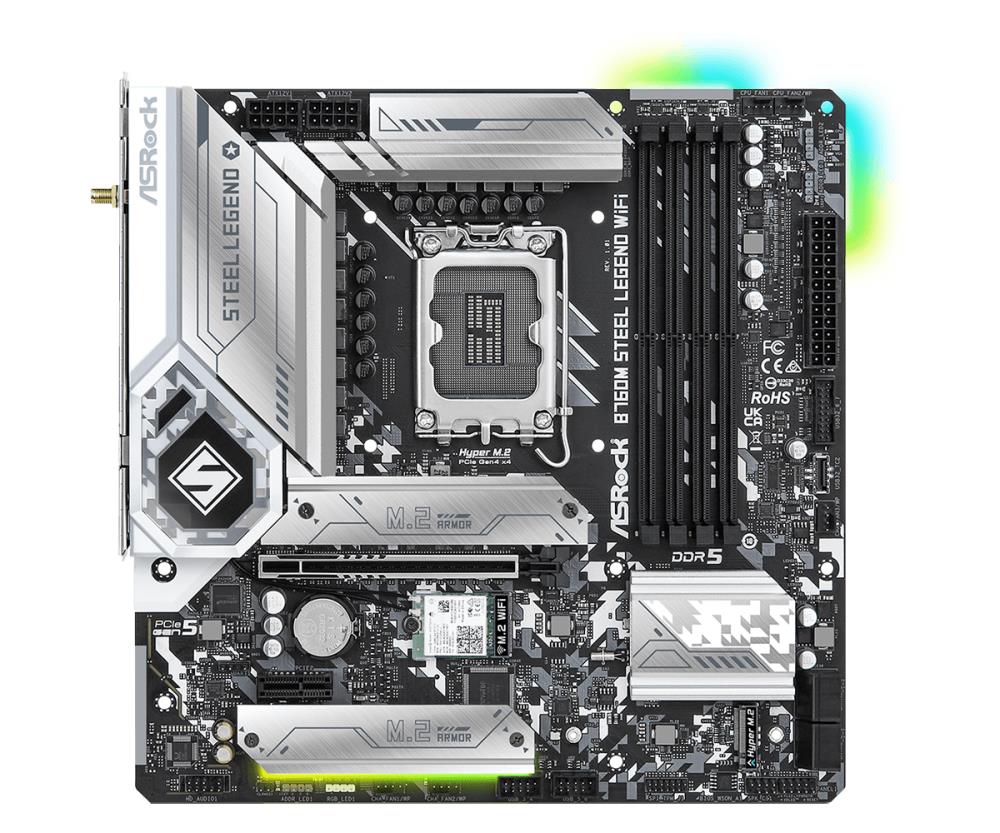

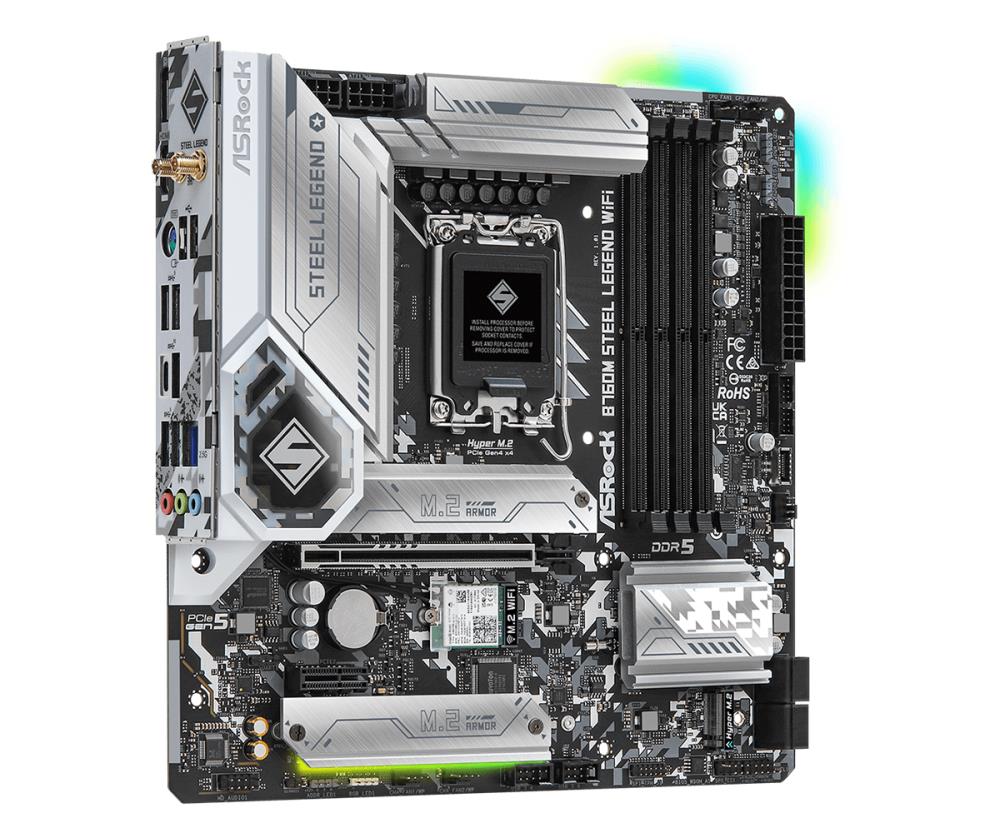

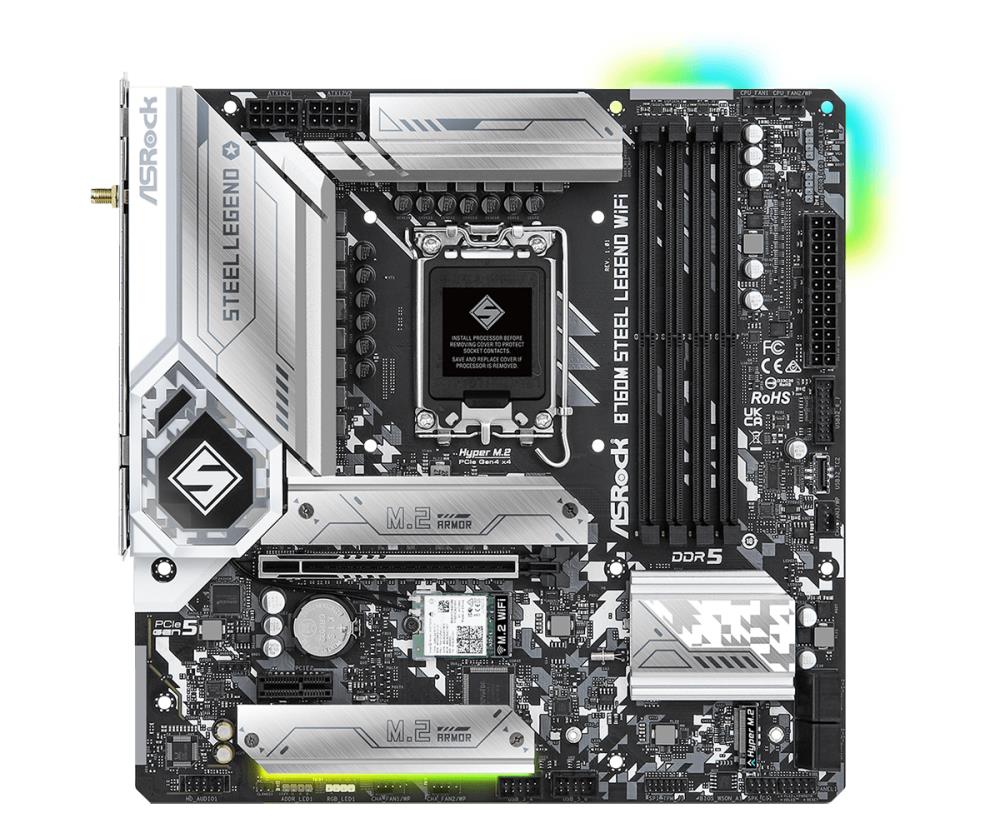

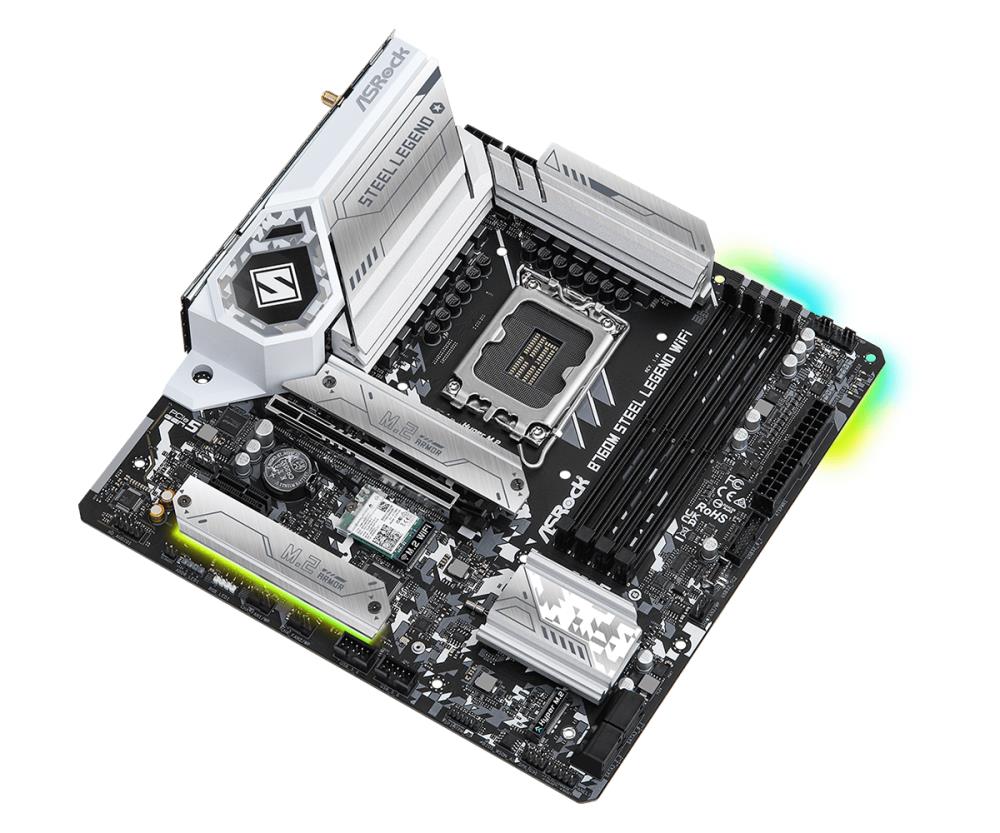

B760M Steel Legend WiFi
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 12+1+1 Power Phase, Dr.MOS for VCore+GT
- Supports DDR5 7200MHz (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x1
- Graphics Output Options: HDMI, DisplayPort, eDP
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 3 Hyper M.2 (PCIe Gen4x4)
- 2 USB 3.2 Gen2 Type-C (1 Rear, 1 Front),
- 1 USB 3.2 Gen2 Type-A (Rear),
- 6 USB 3.2 Gen1 (4 Rear, 2 Front),
- 6 USB 2.0 (2 Rear, 4 Front)
- Dragon 2.5G LAN, 802.11ax (WiFi 6E) + Bluetooth 5.3
- Supports ASRock Auto Driver Installer
