Description
General Information
- SKU: 1409372
- Manufacturer Product Page: MSI B760MGAMINGPLUSWIFI
- Manufacturer Code: B760MGAMINGPLUSWIFI
- Catalog: Mainboards for Intel CPUs
- EAN: 4711377154017
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBI |
| CnCode | 84733020 |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.3 |
| Unit Box Width | 0.0275 |
| M.2 | 2 |
| PCI-Express 3.0 1x | 1 |
| PCI-Express 4.0 16x | 1 |
| PCI-Express 4.0 4x | 1 |
| Audio port | 3 |
| DisplayPort | 2 |
| HDMI | 2 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| USB 3.2 | 4 |
| Bluetooth | Yes |
| SATA | Yes |
| Serial | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| WiFi | Yes |
| Chipset | Intel B760 Express |
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Memory type | DDR5 |
| Frequency speed | 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated LAN | 2.5 Gigabit |
| Integrated audio | Realtek ALC897 |
| RAID | SATA 0, 1, 5, 10 |
| TPM | Header |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.005495 |
| Product Net Weight | 1.1 |
| Unit Calculated Weight | 1.34 |
Description

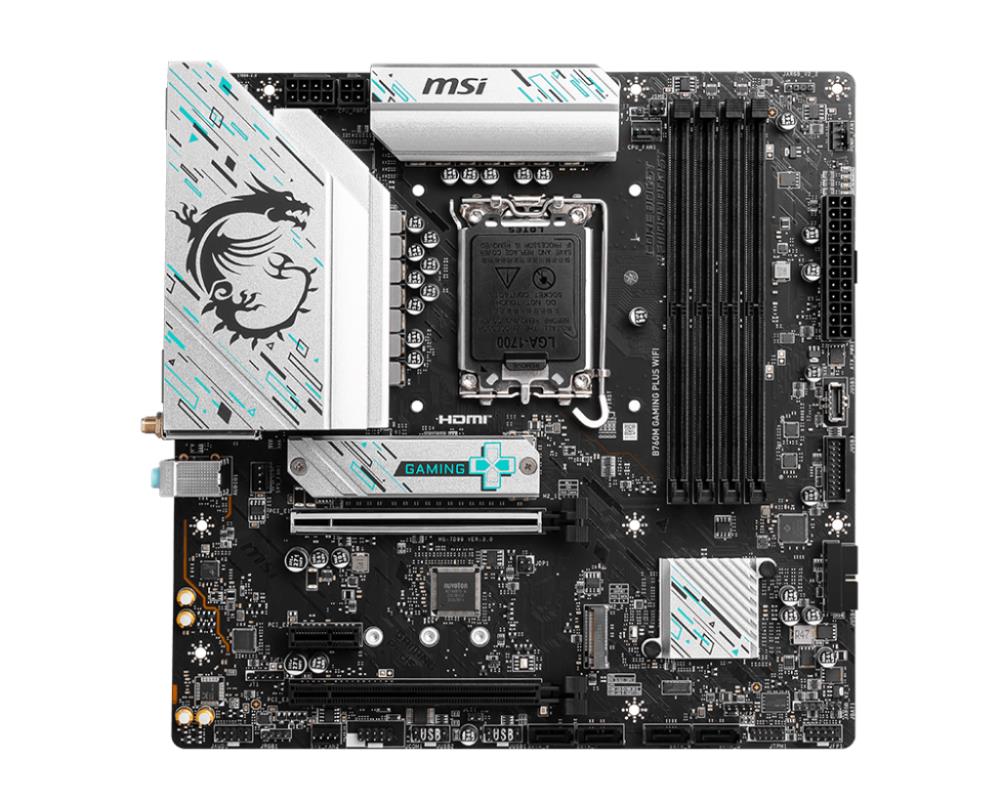

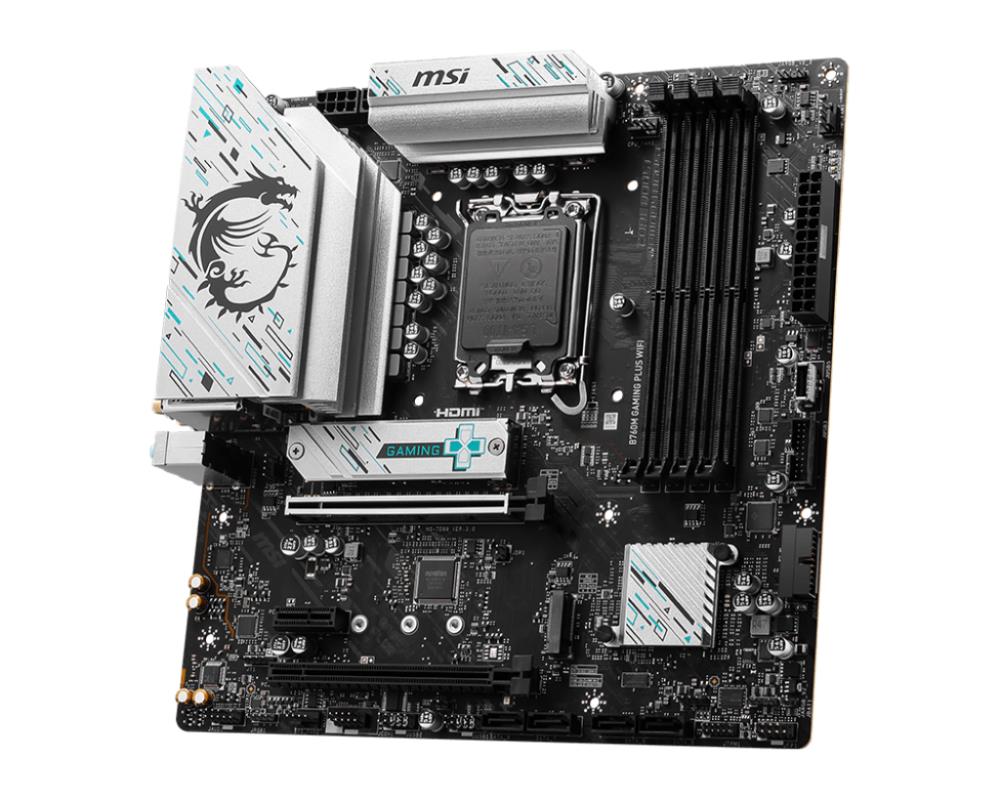

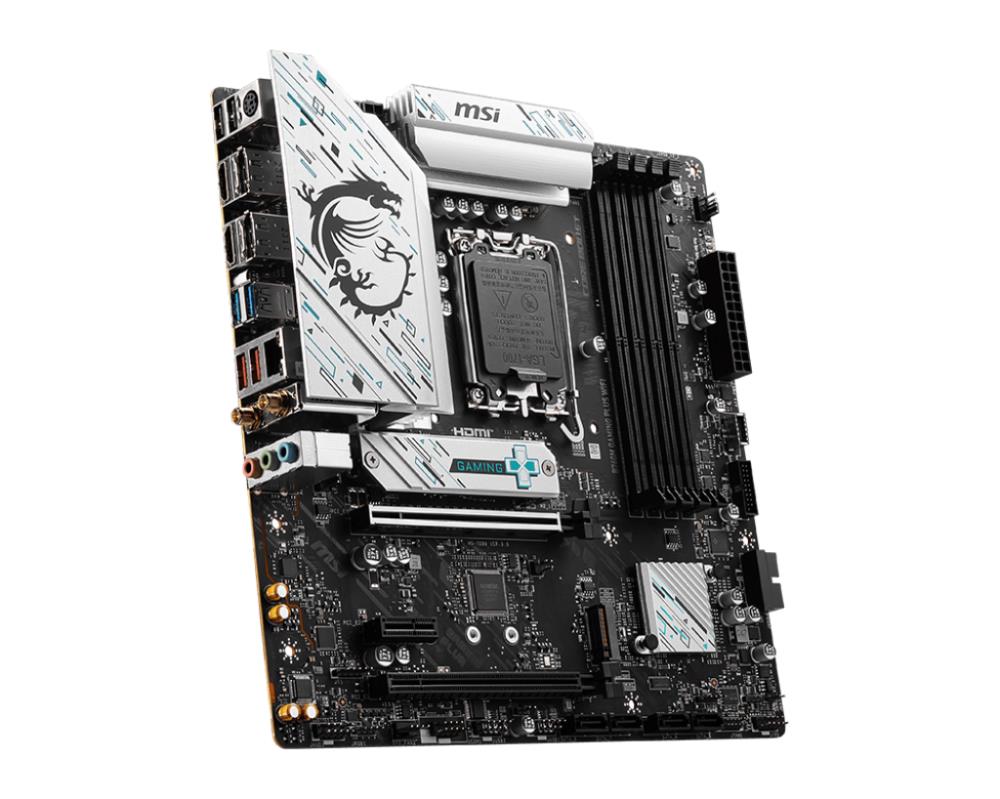

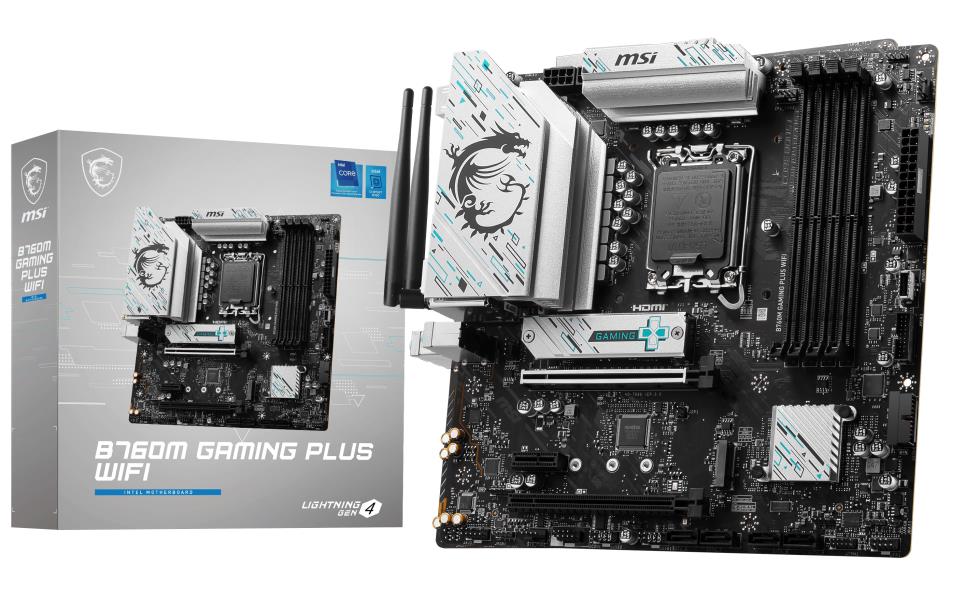

B760M GAMING PLUS WIFI
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
