Description
General Information
- SKU: 1405950
- Manufacturer Product Page: ASROCK B760M-HDV/M.2
- Manufacturer Code: B760M-HDV/M.2
- Catalog: Mainboards for Intel CPUs
- EAN: 4710483943485
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBI |
| Unit Box Height | 0.06 |
| Unit Box Length | 0.277 |
| Unit Box Width | 0.24 |
| M.2 | 1 |
| PCI-Express 3.0 1x | 2 |
| PCI-Express 4.0 16x | 1 |
| 15pin D-sub | 1 |
| AV-In | 1 |
| AV-out | 1 |
| DisplayPort | 1 |
| HDMI | 1 |
| Microphone | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| USB 3.2 | 3 |
| USB-C | 1 |
| SATA 3.0 | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| Chipset | Intel B760 Express |
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Memory type | DDR5 |
| Frequency speed | 7200 |
| Memory slots | 2 |
| Integrated video | Depending on CPU |
| Integrated LAN | 2.5 Gigabit |
| Integrated audio | Realtek ALC897 |
| RAID | SATA 0, 1, 5, 10 |
| TPM | Yes |
| Included Accessories | 1 x User Manual; 1 x I/O Shield; 2 x SATA Data Cables; 3 x Screws for M.2 Sockets |
| Units per Shipping Box | 20 |
| Unit Calculated Volume | 0.004511 |
| Product Net Weight | 0.5 |
| Unit Calculated Weight | 0.927 |
Description

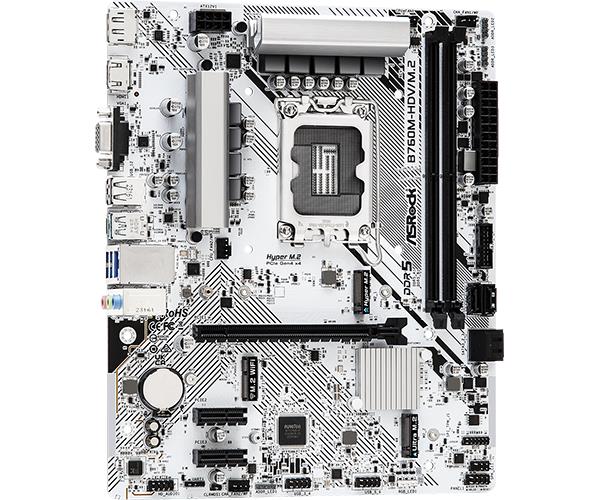

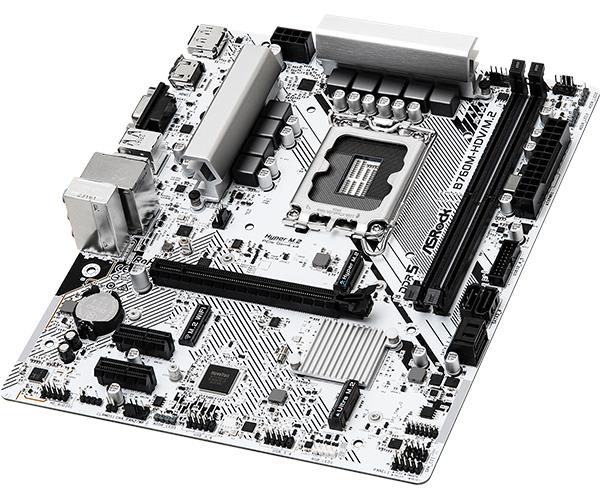

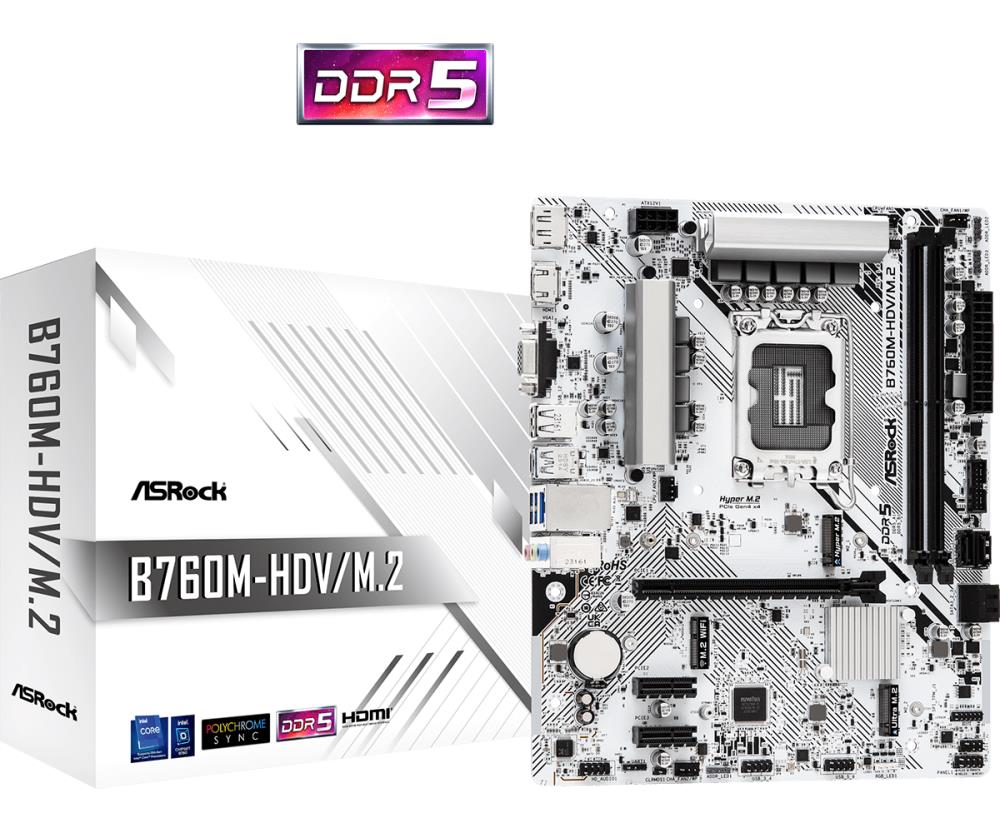

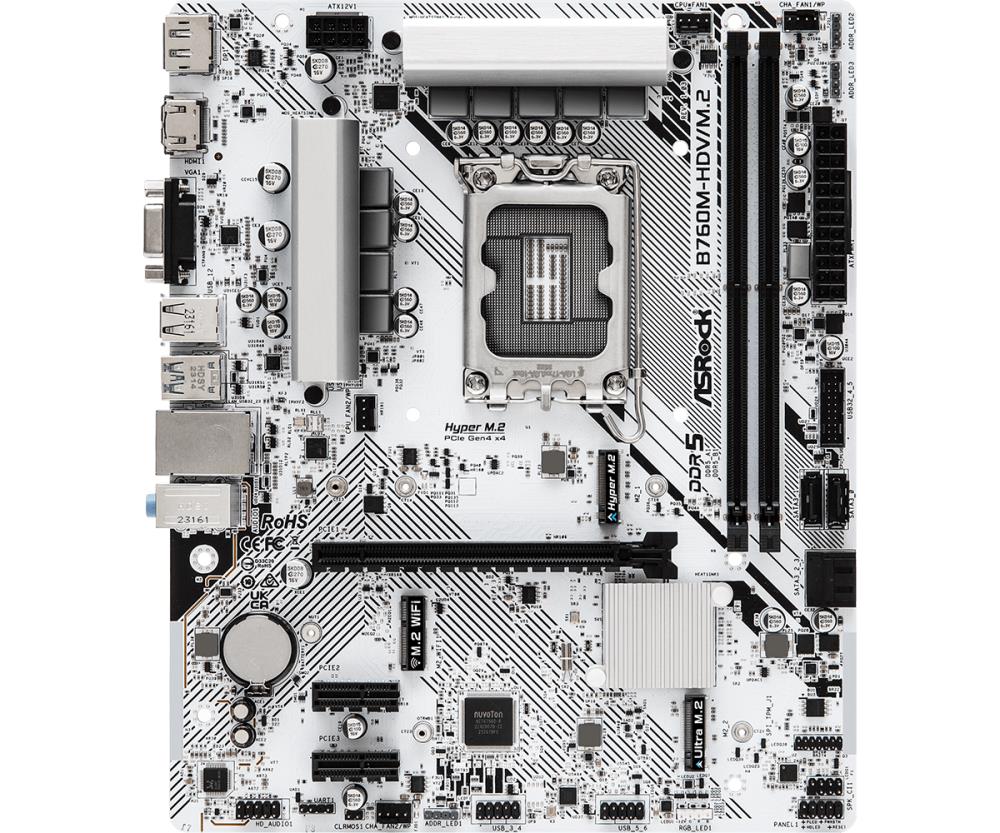

B760M-HDV/M.2
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 7+1+1 Power Phase
- Supports DDR5 7200MHz (OC)
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi

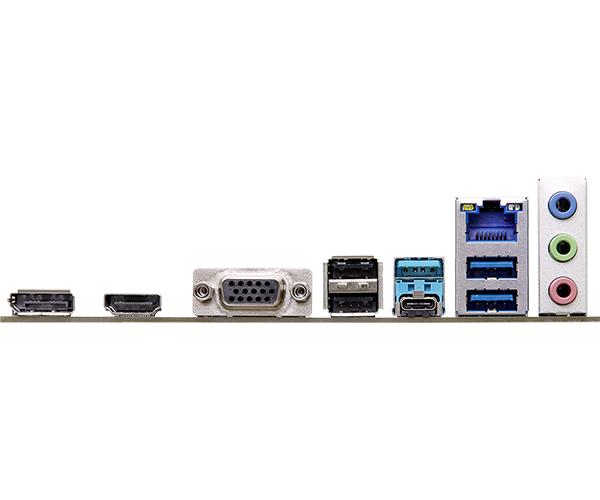

- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4),
- 1 Ultra M.2 (PCIe Gen3 x4)
- 1 USB 3.2 Gen1 Type-C (Rear),
- 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front),
- 6 USB 2.0 (2 Rear, 4 Front)
- Dragon 2.5G LAN
- Supports ASRock Auto Driver Installer
