Description
General Information
- SKU: 1398602
- Manufacturer Product Page: XILENCE XN176
- Manufacturer Code: XN176
- Catalog: Desktop Computer PSU
- EAN: 4044953503498
- Warranty: 24 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | PSU |
| Unit Box Height | 0.098 |
| Unit Box Length | 0.33 |
| Unit Box Width | 0.188 |

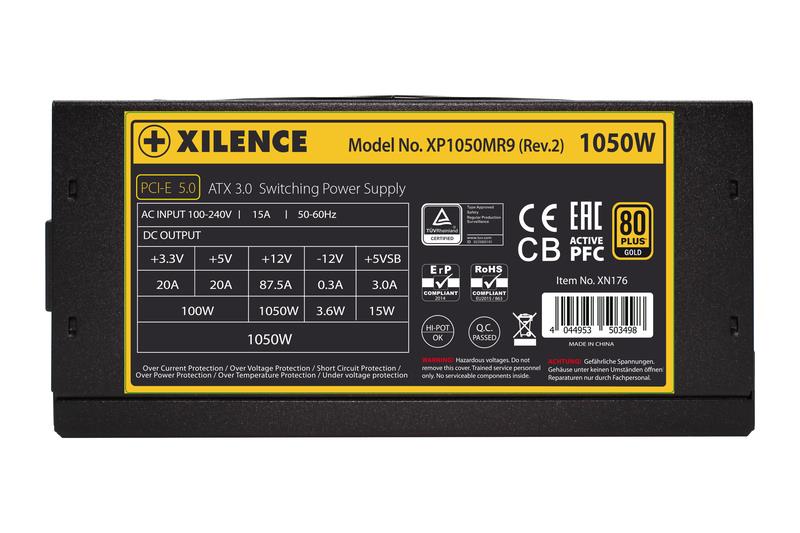

| AC input frequency | 50/60 |
| AC input voltage | 100 - 240 |
| Efficiency | 89 |
| Input current | 15 |
| Max output current (+12V) | 87.5 |
| Max output current (+3.3V) | 20 |
| Max output current (+5V) | 20 |
| Max output current (+5Vsb) | 3 |
| Max output current (-12V) | 0.3 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current/Over power/Over voltage/Short circuit/Under voltage |
| Total power | 1050 |

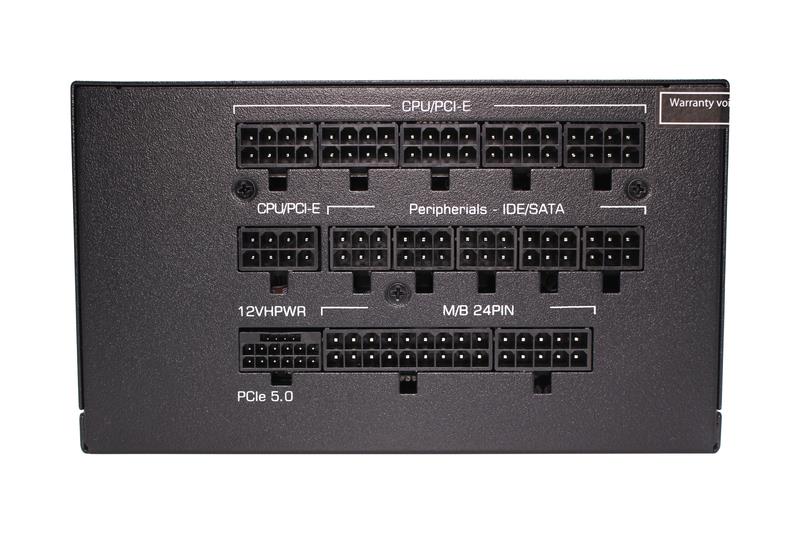

| Cabling type | Fully-Modular |
| CPU power connector (4+4 pin) | Y |
| Motherboard power cable length | 650 |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (8-pin) | 1 |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.0 |

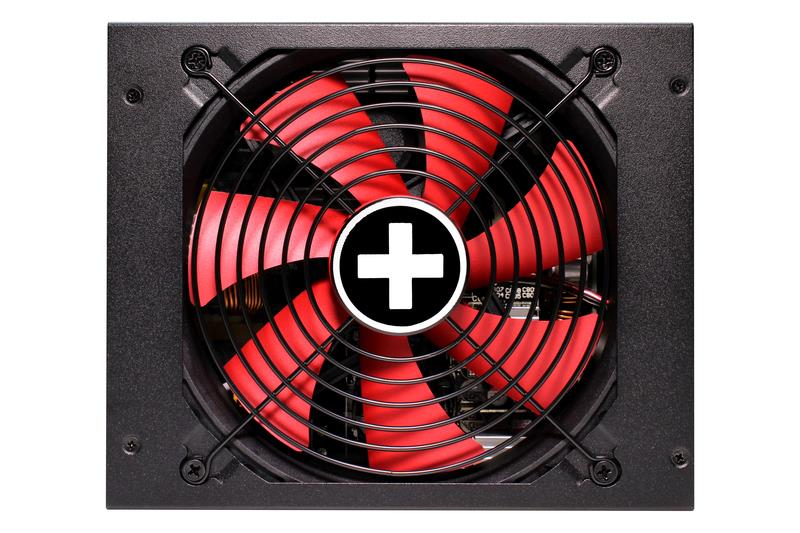

| Bearing technology | FDB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Compliance certificates | RoHS/WEEE |
| Depth | 180 |
| Height | 86 |
| Width | 150 |
| Package type | Box |
| Sustainability certificates | ErP |
| Sustainability compliance | Y |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00608 |
| Unit Calculated Weight | 3.34 |
Description
The fully modular power supplies of the X+ series are capable of absorbing high load peaks above the normal rated power in the shortest possible time and comply with Intel's Design Guide 3.0. Thus, the power supplies are ideally suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications. An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series. Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions. The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet. In addition, they convince with an extremely long durability and their excellent cooling performance. All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems.
Xilence XP1050MR9.2. Total power: 1050 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Compliance certificates: RoHS, WEEE. Width: 150 mm, Depth: 180 mm, Height: 86 mm
Over current/Over power/Over voltage/Short circuit/Under voltage
