Description
General Information
- SKU: 1398248
- Manufacturer Product Page: TP-LINK TL-SG3428X-M2
- Manufacturer Code: TL-SG3428X-M2
- Catalog: Switches
- EAN: 4897098689745
- Warranty: 60 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | SWI |
| Unit Box Height | 0.255 |
| Unit Box Length | 0.53 |
| Unit Box Width | 0.085 |
| ARP inspection | Yes |
| Cloud-managed | Yes |
| Configuring Location Settings (CLI) | Yes |
| MIB support | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| System event log | Yes |
| Web-based management | Yes |
| 2.5G Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
| SFP+ module slots quantity | 4 |
| 10G support | Yes |
| Active link detection | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Head-of-line (HOL) blocking | Yes |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Link aggregation | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3bz/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| Rate limiting | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN |
| VLAN support | Yes |
| Forwarding rate | 148.8 |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 32000 |
| Number of static routes | 48 |
| Packet buffer memory | 16 |
| Static route | Yes |
| Store-and-forward | Yes |
| Switching capacity | 200 |
| Access Control List (ACL) | Yes |
| Authentication | Auto VLAN,Guest VLAN,MAC-based authentication,Port-based authentication |
| Authentication type | AAA,RADIUS,TACACS+ |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping |
| IGMP snooping | Yes |
| IP-MAC-Port binding | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Multicast support | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert |
| IPv4 FIB entries | 100 |
| IPv6 FIB entries | 100 |
| Management protocols | SNMP v1/v2c/v3, SNTP |
| Form factor | 1U |
| LED indicators | Yes |
| Number of fans | 1 |
| Product colour | Black |
| Rack mounting | Yes |
| AC input frequency | 50/60 |
| AC input voltage | 100 - 240 |
| Power consumption (max) | 45.1 |
| Power source | AC |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Heat dissipation | 154.38 |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 0 - 40 |
| Storage relative humidity (H-H) | 5 - 90 |
| Storage temperature (T-T) | -40 - 70 |
| Depth | 180 |
| Height | 44 |
| Width | 440 |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
| Certification | CE, FCC, RoHS |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Series | Omada |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01149 |
| Unit Calculated Weight | 3.06 |
Description
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
- 24× 2.5 Gbps RJ45 ports
- 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity
- 200 Gbps switching capacity
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design

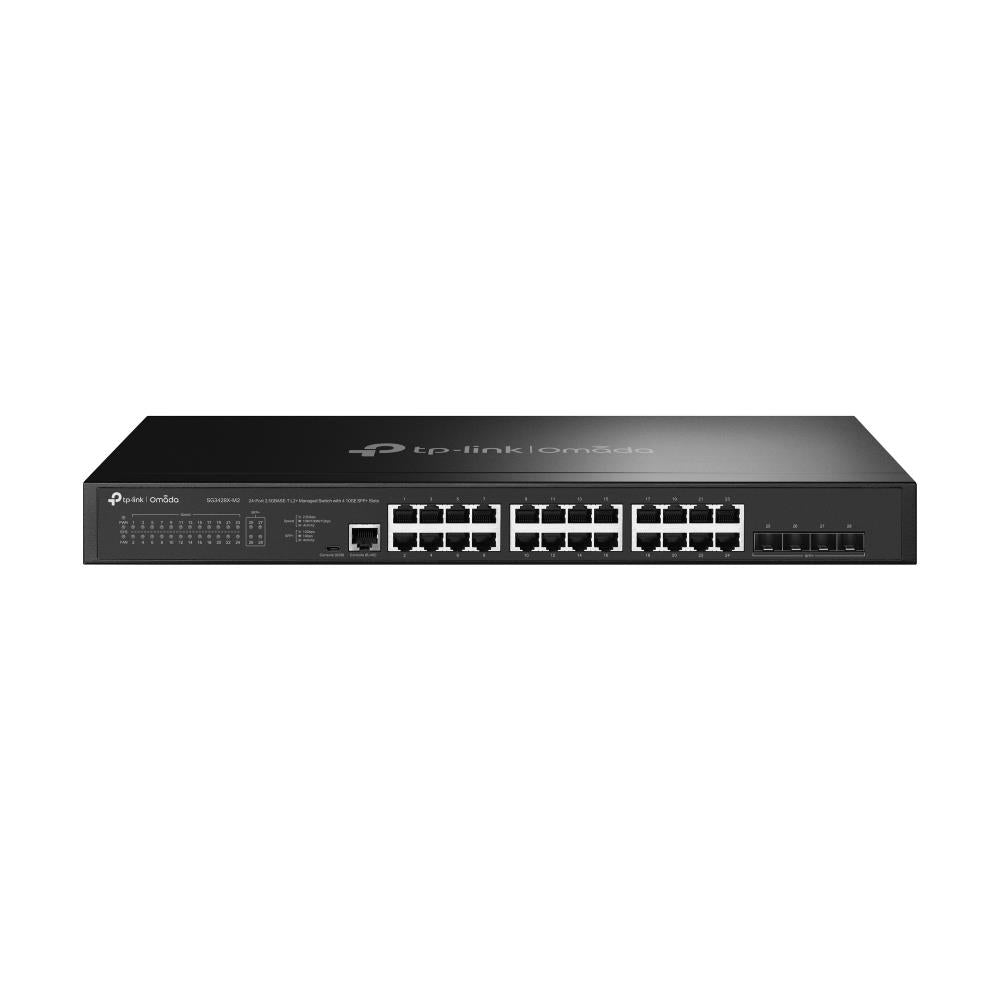

TP-Link Omada 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 200 Gbit/s. Networking standards: IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z. Power connector: AC-in jack. Rack mounting, Form factor: 1U
2.5G Ethernet (100/1000/2500)
IEEE 802.1x/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3bz/IEEE 802.3i/IEEE 802.3u/IEEE 802.3z
DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping
IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 Telnet/IPv6 tracert
