Description
General Information
- SKU: 1391718
- Manufacturer Product Page: MSI PROB760M-PDDR4
- Manufacturer Code: PROB760M-PDDR4
- Catalog: Mainboards for Intel CPUs
- EAN: 4711377030991
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBI |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.3 |
| Unit Box Width | 0.275 |
| M.2 | 2 |
| PCI-Express 16x | 1 |
| PCI-Express 1x | 2 |

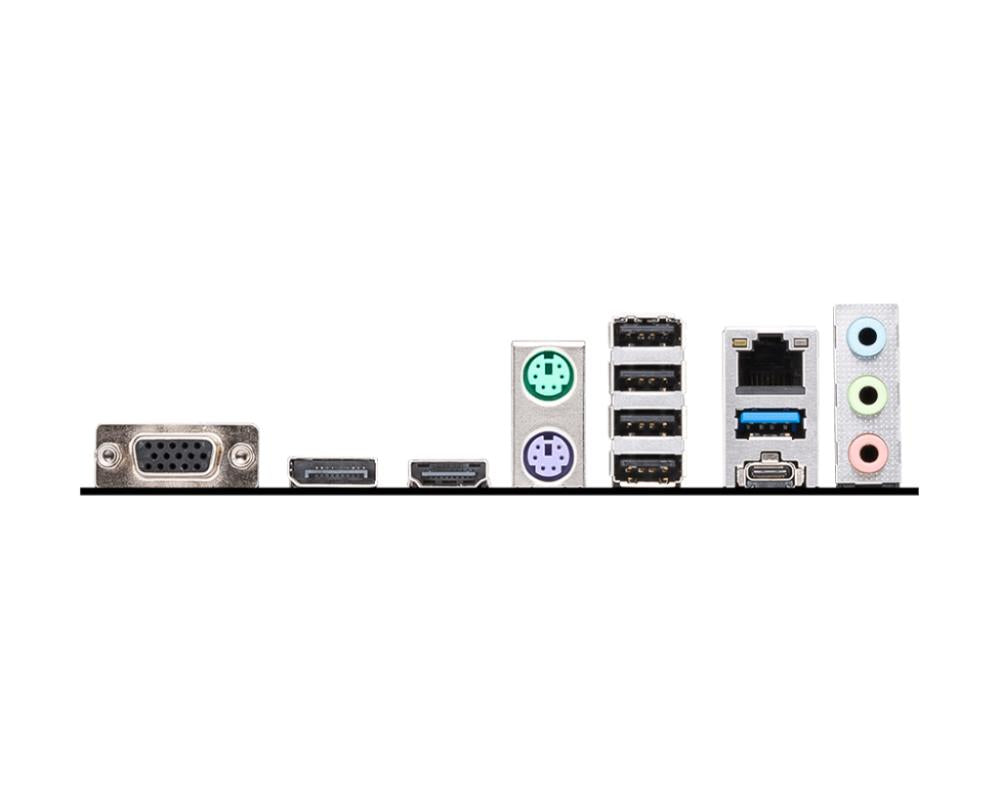

| 15pin D-sub | 1 |
| Audio port | 3 |
| DisplayPort | 1 |
| HDMI | 1 |
| PS/2 | 2 |
| RJ45 | 1 |
| USB 2.0 | 4 |
| USB 3.2 | 1 |
| USB-C | 1 |
| SATA | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| Chipset | Intel B760 Express |
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| Memory type | DDR4 |
| Frequency speed | 2133/2400/2666/2933/3200/3333/3400/3466/3600/3733/3800/4000/4200/4266/4400/4600/4800 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated LAN | Realtek RTL8111H (Gigabit) |
| Integrated audio | Realtek ALC897 |
| RAID | SATA 0, 1, 5, 10 |
| TPM | Header |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.004537 |
| Product Net Weight | 0.72 |
| Unit Calculated Weight | 0.87 |
Description
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 4800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
