Description
General Information
- SKU: 1388841
- Manufacturer Product Page: DAHUA DH-PFS3220-16GT-240-V2
- Manufacturer Code: DH-PFS3220-16GT-240-V2
- Catalog: Switches
- EAN: 6923172541185
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | SWI |
| Unit Box Height | 0.415 |
| Unit Box Length | 0.525 |
| Unit Box Width | 0.115 |
| Desktop/pedestal | Yes |
| SFP | 2 |
| IEEE 802.3 | Yes |
| IEEE 802.3ab | Yes |
| IEEE 802.3u | Yes |
| IEEE 802.3x | Yes |
| IEEE 802.3z | Yes |
| Switch type | L2 |
| Primary port count | 20 |
| PoE ports | 16 |
| PoE power budget | 240 |
| Switching capacity | 52 |
| Forwarding rate | 29.76 |
| Dimensions | 440 × 300 × 44mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.02506 |
| Product Net Weight | 4 |
| Unit Calculated Weight | 4.4 |
Description

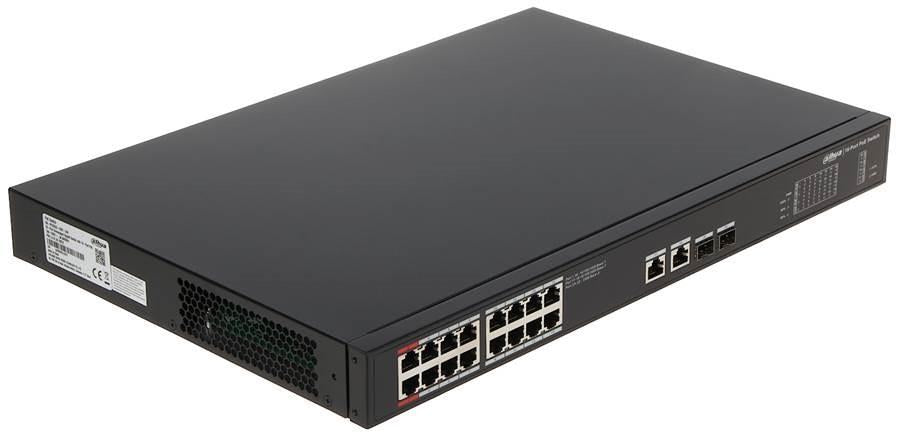

Intelligent PoE Red Port Supports BT 90W All-giga Ports Smooth Transmission Wide Working Temperature: –10 to 55°C (14°F to 131°F) Plug and Play Port 1–16: 16 × RJ45 10/100/1000 M (PoE) Port 17–18: 2 × RJ45 10/100/1000 M (uplink) Port 19–20: 2 × SFP 1000 M (uplink) Standards Compliance: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z PoE Standard: IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt PoE Budget: Port 1–2≤90W, Port 3–16≤30W, total≤240W
