Description
General Information
- SKU: 1388834

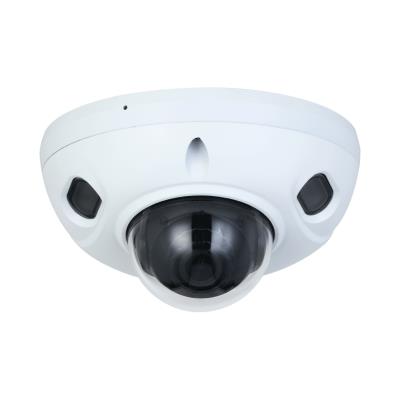

- Manufacturer Product Page: DAHUA IPC-HDBW3541F-AS-0280B-S2
- Manufacturer Code: IPC-HDBW3541F-AS-0280B-S2
- Catalog: Network Cameras
- EAN: 6923172542816
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | FNC |
| Unit Box Height | 0.12 |
| Unit Box Length | 0.14 |
| Unit Box Width | 0.14 |
| Alarm In | 1 |
| Alarm Out | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| RJ45 | 1 |
| Camera design | Dome |
| Network Camera Type | Fixed Dome/HDTV/Megapixel/Outdoor |
| Resolution | 5 |
| Focal Length | 2.8 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.7” |
| Min. Illumination | 0.005 |
| Effective pixels | 2960 (H) × 1668 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Supports card capacities up to | 256GB |
| Power supply requirements | 12 VDC/PoE (802.3af) |
| Power consumption | 5.9 |
| Environment | Outdoor |
| Operating temperature range | -40°C~+60°C |
| Colour | White |
| Dimensions | 64.8 mm × Φ111.0 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002352 |
| Product Net Weight | 0.423 |
| Unit Calculated Weight | 0.57 |
Description
1/2.7”5Megapixel progressive CMOS, 2960 × 1668 @20FPS Minimum illumination: 0.005 lux @ F1.4 (Color, 30 IRE) True Day/Night (ICR), BLC / HLC / True WDR 120dB /3D DNR 2.8 mm fixed lens (111°) Up to 30 meters Smart IR Illumination H.265; H.264; H.264H; H.264B; MJPEG encoding, ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec Built-in MIC, G.711a; G.711Mu; PCM; G.726; G.723 encoding Micro SD card up to 256GB supported 1/1 audio IO, / Alarm I/O Metal case, IP67, IK10, -40°C~+60°C, PoE / 12VDC power, 5.9W max Smart capabilities: Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human) Free IP monitoring software available
12 VDC/PoE (802.3af)
