Description
General Information
- SKU: 1371356
- Manufacturer Product Page: DAHUA HAC-HDW1231TLMQ-A-0280B
- Manufacturer Code: HAC-HDW1231TLMQ-A-0280B
- Catalog: HDCVI Cameras
- EAN: 6923172506658
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | HSC |
| Unit Box Height | 0.12 |
| Unit Box Length | 0.13 |
| Unit Box Width | 0.11 |

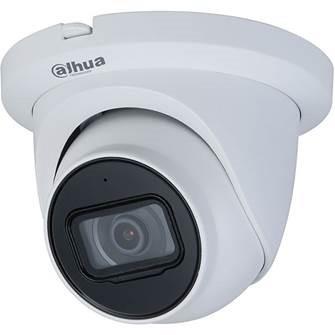

| Camera design | Eyeball |
| Network Camera Type | Fixed Dome/HDTV/Megapixel/Outdoor |
| Video interface | HDCVI |
| Resolution | 2 |
| Net camera resolution | 2 - 4MP |
| Sensor size | 1/2.8" CMOS |
| Focal Length | 2.8mm |
| Focal length | 2.8 - 3.5mm |
| Lens Mount | M12 |
| Min. Illumination | 0.002 |
| Effective pixels | 1920(H)×1080(V) |
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
| Microphone | Built-in |
| Power options | 12V |
| Power supply requirements | 12 VDC |
| Power consumption | 3.1 |
| Environment | Outdoor |
| Dimensions | Φ109.9 mm × 88.1 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001716 |
| Product Net Weight | 0.28 |
| Unit Calculated Weight | 0.439 |
Description
1/2.8" CMOS, 1920 × 1080 @ 30FPS Sensitivity: 0.002 Lux/F1.6, 30 IRE, 0 Lux IR on Fixed lens 2.8mm (107°) True Day / Night with ICR Filter, Visible white LED up to 30 m BLC / HLC / True WDR 130 dB, 3D DNR Built-in microphone Video output choices of CVI/TVI/AHD/CVBS by one BNC port Eyeball design, metal core, IP67, outdoor/indoor use, -40°C~+60°C Power 12 VDC, 3.1 W max .
PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s
