Description
General Information
- SKU: 1365416
- Manufacturer Product Page: SUPERMICRO PWS-860P-1R2
- Manufacturer Code: PWS-860P-1R2
- Catalog: Server PSU
- EAN:
- Warranty: 12 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | SPU |
| Unit Box Height | 0.12 |
| Unit Box Length | 0.4 |
| Unit Box Width | 0.13 |
| Case Type | 1U rack |
| PSU | Redundant-Power-Capable |
| PSU Output Power | 860 |
| Efficiency | 80 PLUS PLATINIUM |
| Dimensions | 54.5 x 322 x 40.25mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00624 |
| Product Net Weight | 1.12 |
| Unit Calculated Weight | 1.12 |
Description

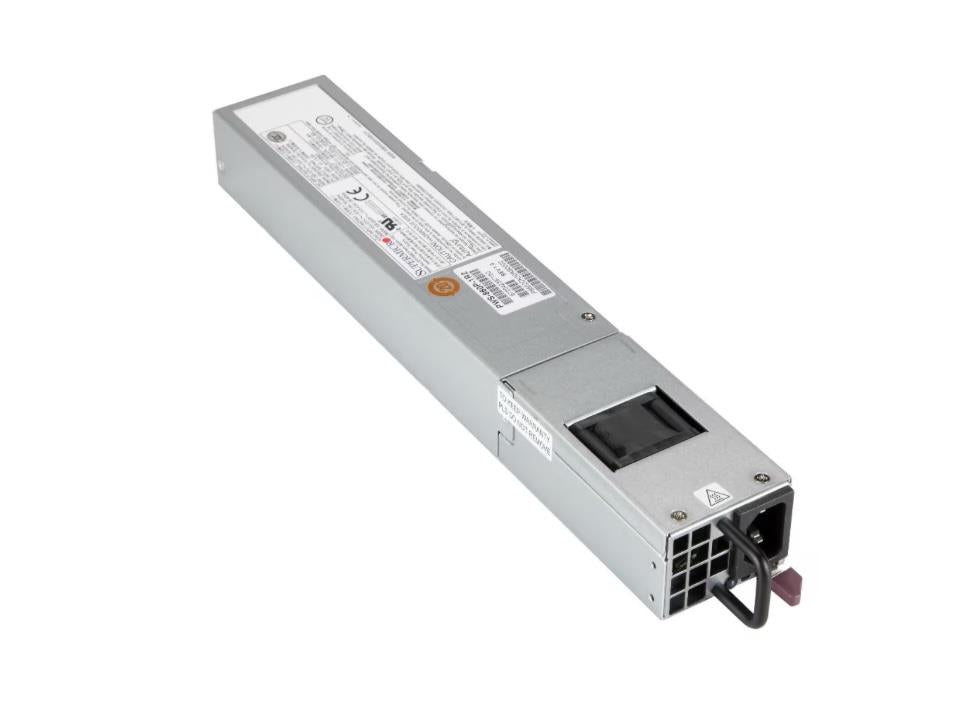

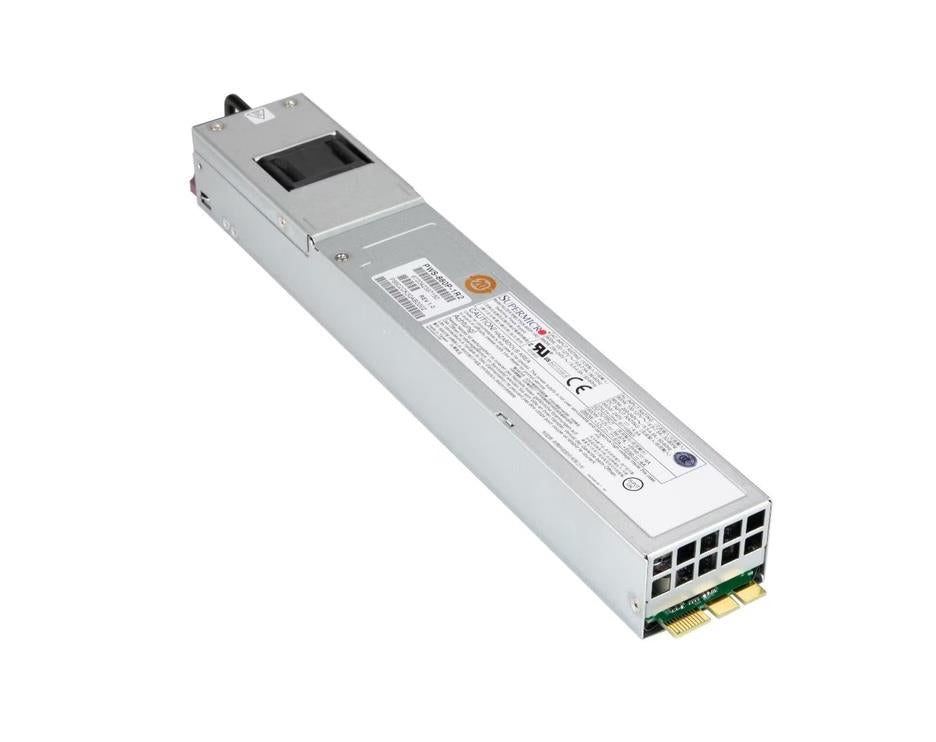

The Supermicro PWS-860P-1R2 is an 80 Plus Platinum level redundant power supply capable of continuously supplying 800W/860W output power at 94% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages. Features a card edge output to interface with a 2x25 card edge connector. This power supply is designed to not only provide you reliable power to your Supermicro server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 250,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU. This power supply is redundant to safe-guard your system from power failure and allows for hot-swap replacement to eliminate system downtime. All materials contained comply with RoHS requirements and is certified by Supermicro.
54.5 x 322 x 40.25mm
