Description
General Information
- SKU: 1363202
- Manufacturer Product Page: DAHUA HFW1509TLM-A-LED-0360B-S2
- Manufacturer Code: HFW1509TLM-A-LED-0360B-S2
- Catalog: HDCVI Cameras
- EAN: 6923172507600
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | HSC |
| Unit Box Height | 0.115 |
| Unit Box Length | 0.24 |
| Unit Box Width | 0.12 |
| Camera design | Bullet |
| Network Camera Type | Fixed/HDTV/Megapixel/Outdoor |
| Resolution | 5 |
| Net camera resolution | 5 - 7MP |
| Focal Length | 3.6 mm |
| Focal length | 3.6 - 4mm |
| Min. Illumination | 0.001 |
| IR Illumination | Yes |
| Electronic Shutter Speed | PAL:1/3 s–1/100,000 s NTSC:1/4 s–1/100,000 |
| Microphone | Built-in |
| Power options | 12V |
| Power supply requirements | 12VDC |
| Power consumption | 6.4 |
| Environment | Outdoor |
| Dimensions | 198.4 mm × 80.2 mm × 76.2 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003312 |
| Product Net Weight | 0.33 |
| Unit Calculated Weight | 0.52 |
Description

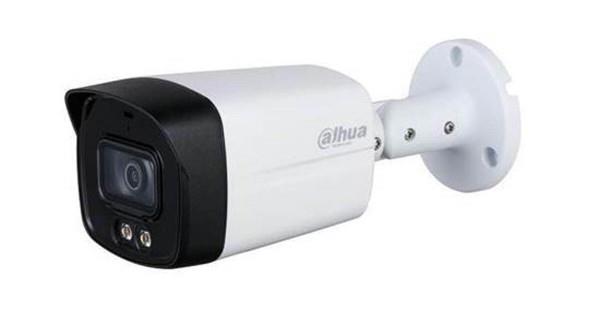

Lite Series is suitable for users who requires high quality monitoring products at a reasonable price. It is cost effective and offers high performance, which makes it an ideal choice for residential and small-medium business applications. This series offers an option of a wide range of technologies such as Full-color and Starlight, providing various solutions for different scenarios. 5Megapixel progressive scan CMOS, 2880 × 1620 @25FPS Minimum illumination: 0.001 Lux/F1.0, 0 Lux warm light on Video output choices of CVI/TVI/AHD/CVBS by one BNC port BLC/HLC/True WDR 120 dB/HLC-Pro 3.6 mm fixed lens (88° HFOV) Up to 40 meters white LED Illumination. 2 white LED Built-in mic, audio over coax technology Bullet design, combined shell, IP67, -40°C~+60°C Power 12VDC ±30%, 6.4W max
PAL:1/3 s–1/100,000 s NTSC:1/4 s–1/100,000
198.4 mm × 80.2 mm × 76.2 mm
