Description
General Information
- SKU: 1305223
- Manufacturer Product Page: ASROCK B550MPRO4
- Manufacturer Code: B550MPRO4
- Catalog: Mainboards for AMD CPUs
- EAN: 4710483931598
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| Unit Box Height | 0.26 |
| Unit Box Length | 0.06 |
| Unit Box Width | 0.28 |
| M.2 | 1 |
| PCI-Express 3.0 16x | 1 |
| PCI-Express 3.0 1x | 1 |
| PCI-Express 4.0 16x | 1 |

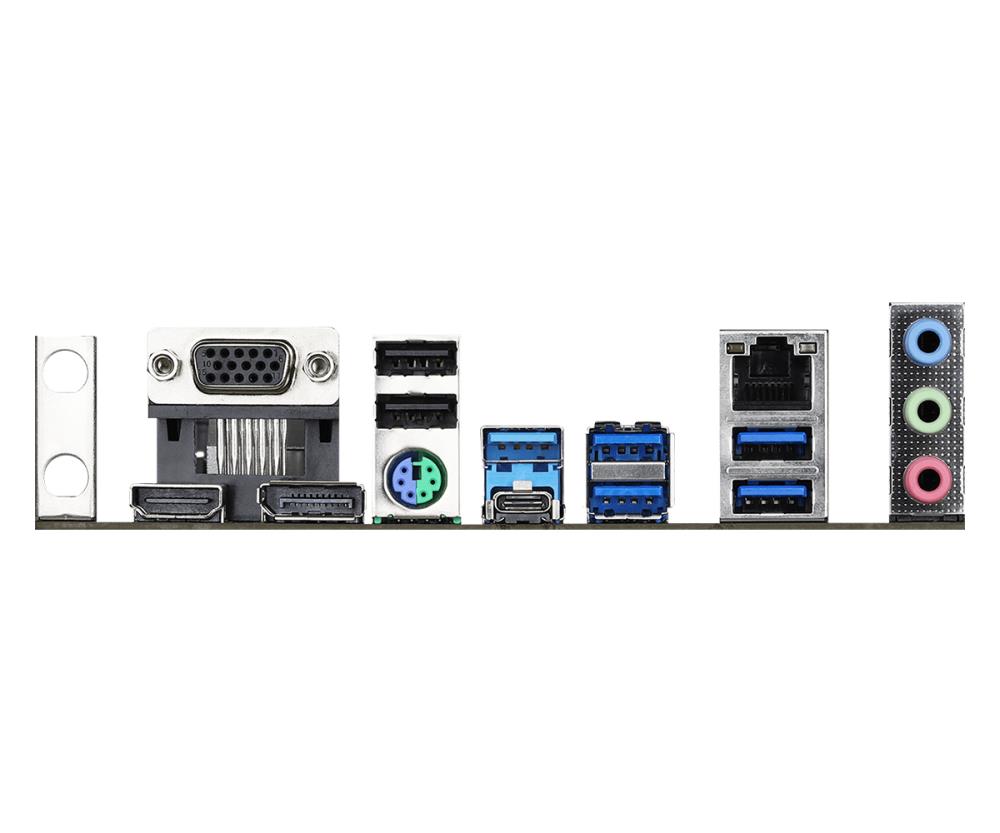

| 15pin D-sub | 1 |
| Audio port | 3 |
| DisplayPort | 1 |
| HDMI | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| USB 3.2 | 5 |
| USB-C | 1 |
| SATA 3.0 | Yes |
| Serial | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| Chipset | AMD B550 |
| Socket | SAM4 |
| Form Factor | Micro-ATX |
| Memory type | DDR4 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated audio | Realtek ALC1200 |
| Integrated LAN | Gigabit |
| RAID | SATA 0, 1, 10 |
| Units per Shipping Box | 20 |
| Unit Calculated Volume | 0.005011 |
| Product Net Weight | 1.1 |
| Unit Calculated Weight | 1.39 |

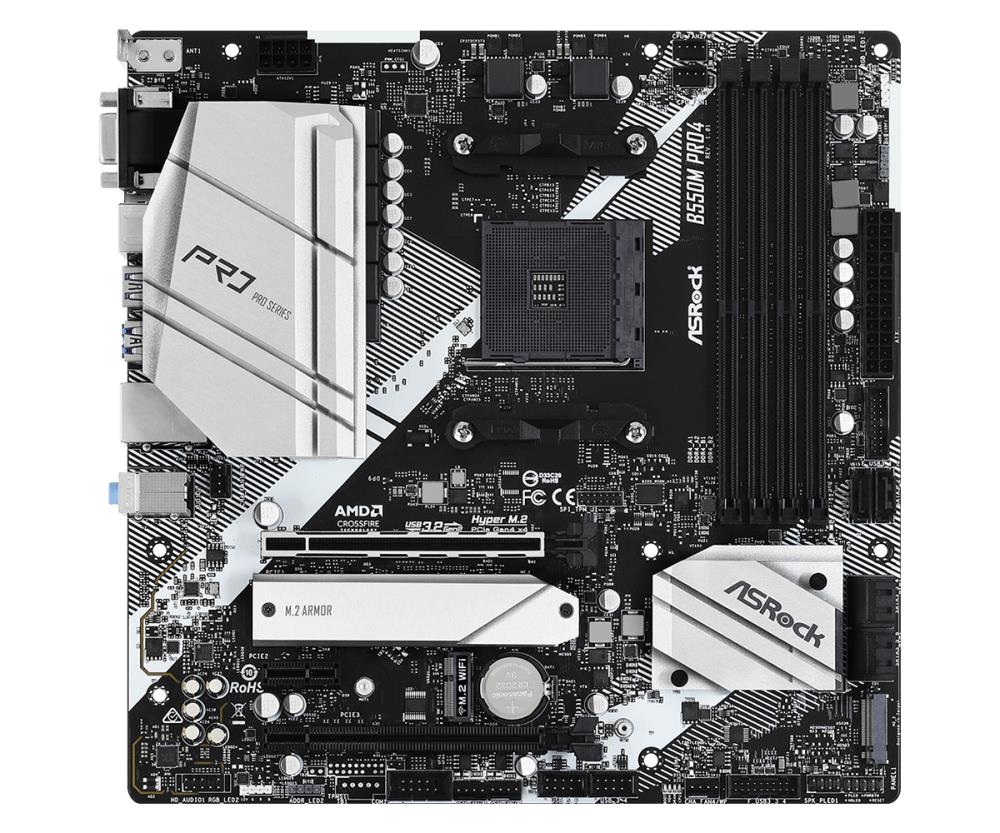

Description
- Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
- 8 Power Phase Design, Digi Power
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- AMD CrossFireX™
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
- 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
- Realtek Gigabit LAN
- Quick Installation Guide, Support CD, I/O Shield; - 2 x SATA Data Cables; - 2 x Screws for M.2 Sockets
