Description
General Information
- SKU: 1304994
- Manufacturer Product Page: TECNOWARE FGCERAPL1602SCH
- Manufacturer Code: FGCERAPL1602SCH
- Catalog: UPS for Computers &Peripherals
- EAN: 8026475175816
- Warranty: 24/12L months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | UPW |
| Unit Box Height | 0.22 |
| Unit Box Length | 0.34 |
| Unit Box Width | 0.18 |
| Automatic Voltage Regulation (AVR) | Yes |
| Input frequency | 50/60 |
| Input operation voltage (max) | 276 |
| Input operation voltage (min) | 172.5 |
| Noise level | 40 |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Output frequency | 50/60 |
| Output operation voltage (max) | 230 |
| Output operation voltage (min) | 230 |
| Output power | 1120 |
| Output power capacity | 1.6 |
| Output voltage regulation | 5 |
| Power factor | 0.7 |
| Response time | 2 |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| AC outlet types | Type F |
| AC outlets quantity | 2 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| USB port type | USB Type-B |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 10 |
| Form factor | Compact |
| International Protection (IP) code | IP20 |
| LED indicators | Yes |
| Product colour | Black |
| Operating altitude | 0 - 300 |
| Operating relative humidity (H-H) | 0 - 95 |
| Operating temperature (T-T) | 0 - 55 |
| Certification | CE |
| Depth | 279 |
| Height | 142 |
| Weight | 5000 |
| Width | 101 |
| Package depth | 340 |
| Package height | 220 |
| Package width | 180 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.01346 |
| Unit Calculated Weight | 5.35 |
Description

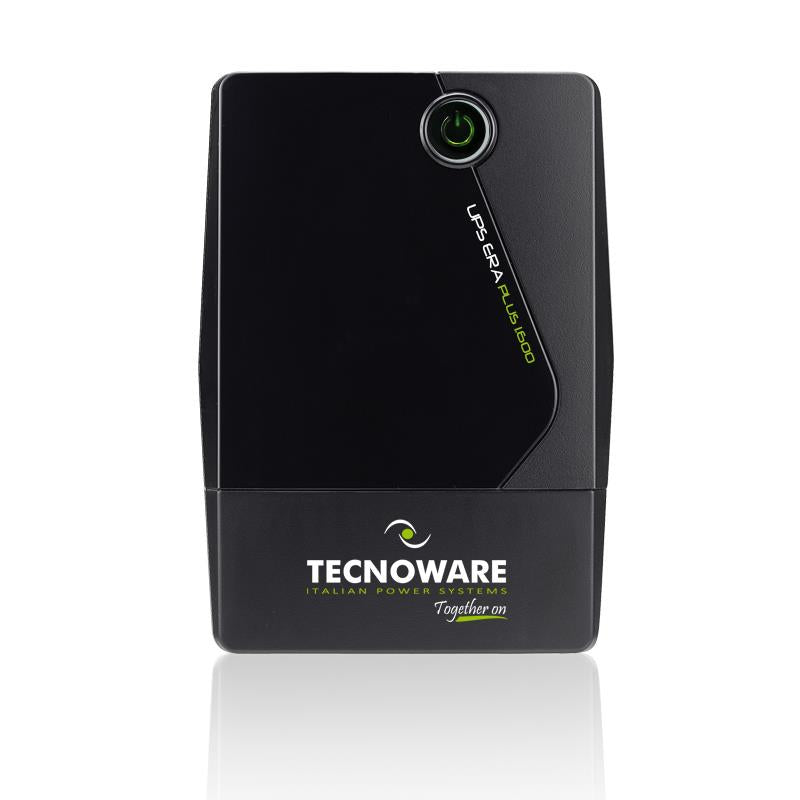

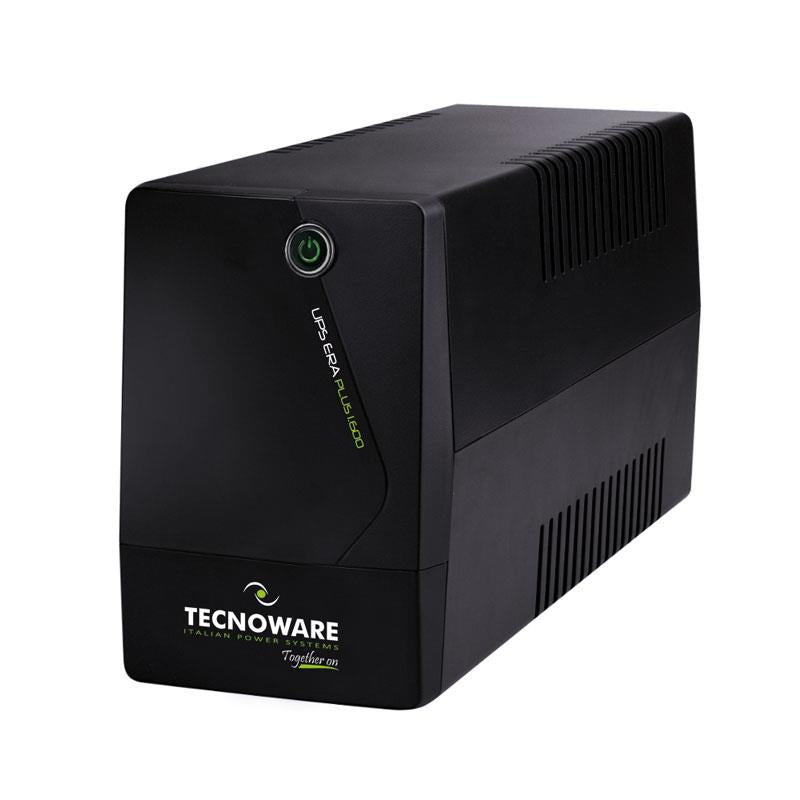

UPS ERA PLUS 1600VA, 12V 11Ah battery, It has 1 fixed SCHUKO input cable and 2 SCHUKO outputs protected against blackout, overvoltages and undervoltages. Line Interactive Plus technology. Dimensions 10x14x28 cm, weight 5.5 kg. Equipped with On-Off button with integrated multifunction LED with audible alarm for signaling the operating status and USB interface for controlling UPS continuity and programming on / off via the free tecnomanager win / mac software. Designed to protect PC Office, DVR for video surveillance, ADSL-Fiber Modem / router, Cash Register. Totally silent.
- Complete protection against blackout and power surges (overvoltages and undervoltages)
- Recommended for Personal Computers, DVR / NVR and video surveillance systems, ADSL / fiber modem, switch / router, cash registers
- Not suitable with power supplies with Active PFC circuit (Server, PC game, video game console, workstation, Mac computer), lamps and electric motors
- AVR Automatic Voltage Regulator electronic circuit

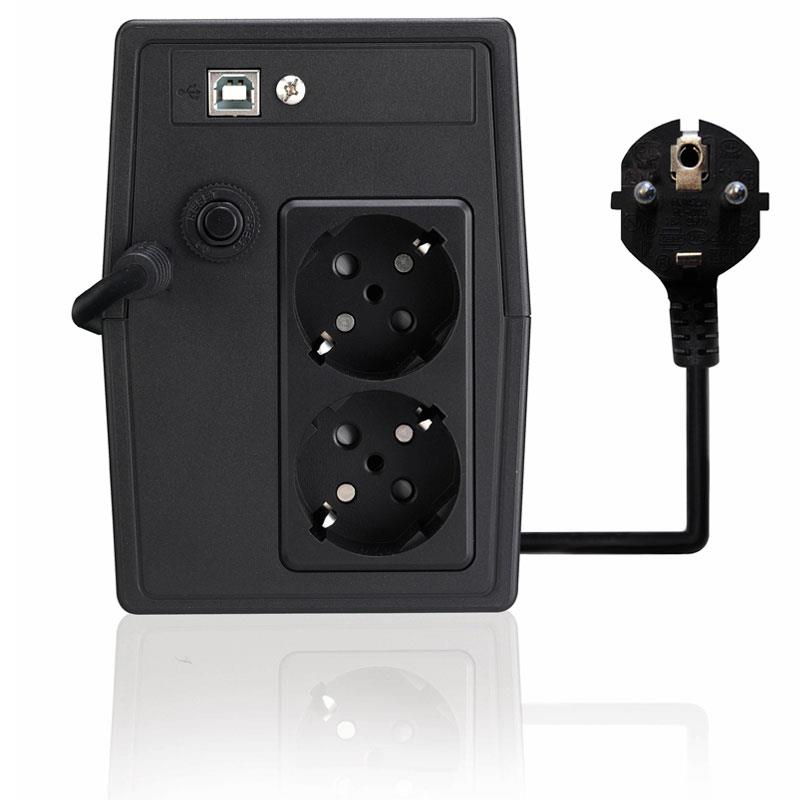

- n 2 Italy / Schuko output sockets and n 1 schuko input cable
- outputs socket protected against blackout
- outputs socket protected against overvoltages
- multifunction LED and on-off button
- USB port for UPS control / monitoring and ignition programming / shutdown via Tecnomanager software
- UPS management software TecnoManager compatible with Windows, Mac OS X, Linux etc
Tecnoware Era Plus 1600. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 1120 W. AC outlet types: Type F, AC outlets quantity: 2 AC outlet(s), USB port type: USB Type-B. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min. Form factor: Compact, Product colour: Black, International Protection (IP) code: IP20. Certification: CE
