Description
General Information
- SKU: 1303762
- Manufacturer Product Page: ASUS PRIMEB550-PLUS
- Manufacturer Code: PRIMEB550-PLUS
- Catalog: Mainboards for AMD CPUs
- EAN: 4718017782340
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| CnCode | 84733020 |
| Unit Box Height | 0.055 |
| Unit Box Length | 0.33 |
| Unit Box Width | 0.27 |
| M.2 | 2 |
| PCI-Express 3.0 16x | 1 |
| PCI-Express 3.0 1x | 3 |
| PCI-Express 4.0 16x | 1 |
| Audio port | 5 |
| DisplayPort | 1 |
| HDMI | 1 |
| Optical S/PDIF | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| USB 3.2 | 5 |
| USB-C | 1 |
| SATA 3.0 | Yes |
| Serial | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| Chipset | AMD B550 |
| Socket | SAM4 |
| Form Factor | ATX |
| Memory type | DDR4 |
| Frequency speed | 2133/2400/2666/2800/3000/3200/3466/3600/3866/4000/4133/4266/4400/4466/4600/4800 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated audio | Yes |
| Integrated LAN | Gigabit |
| RAID | SATA 0, 1, 5, 10 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.004901 |
| Product Net Weight | 1.1 |
| Unit Calculated Weight | 1.35 |
Description

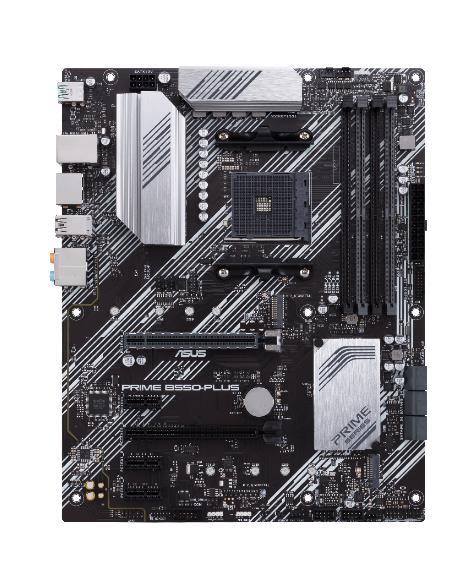

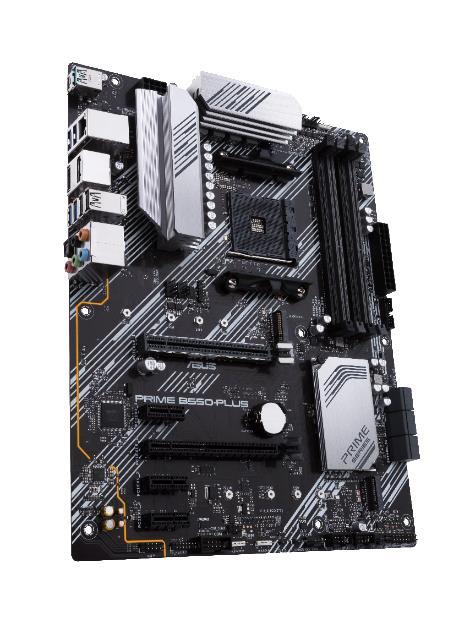

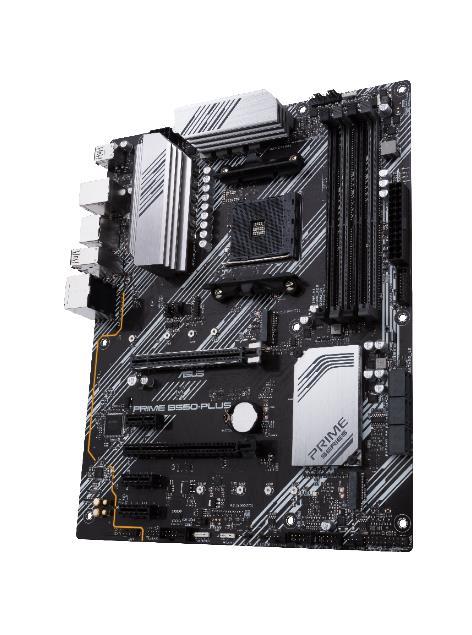

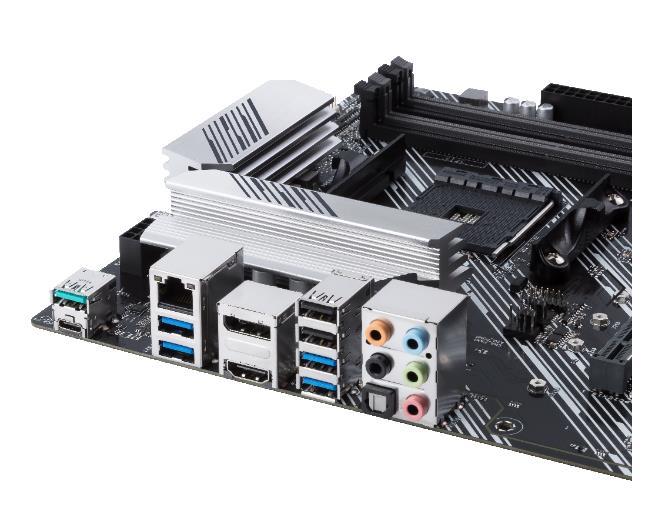

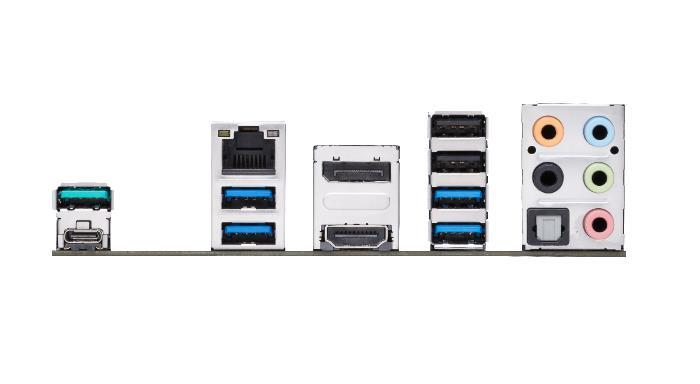

AMD B550 (Ryzen AM4) ATX motherboard with dual M.2, PCIe 4.0, 1 Gb Ethernet, DisplayPort/HDMI, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB headers support
- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors
- Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A and Type-C
- Comprehensive cooling: VRM heatsinks, PCH heatsink, and Fan Xpert 4
- Aura Sync RGB: Onboard addressable Gen 2 header for RGB LED strips, easily synced with Aura Sync-capable hardware
