Description
General Information
- SKU: 1302193
- Manufacturer Product Page: ASUS TUFGAMINGB550M-PLUS
- Manufacturer Code: TUFGAMINGB550M-PLUS
- Catalog: Mainboards for AMD CPUs
- EAN: 4718017623544
- Warranty: 36 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | MBA |
| Unit Box Height | 0.07 |
| Unit Box Length | 0.28 |
| Unit Box Width | 0.27 |
| M.2 | 2 |
| PCI-Express 3.0 16x | 1 |
| PCI-Express 3.0 1x | 1 |
| PCI-Express 4.0 16x | 1 |
| Audio port | 5 |
| DisplayPort | 1 |
| HDMI | 1 |
| Optical S/PDIF | 1 |
| PS/2 | 1 |
| RJ45 | 1 |
| USB 2.0 | 2 |
| USB 3.2 | 5 |
| USB-C | 1 |
| SATA 3.0 | Yes |
| Serial | Yes |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| Chipset | AMD B550 |
| Socket | SAM4 |
| Form Factor | Micro-ATX |
| Memory type | DDR4 |
| Frequency speed | 2133/2400/2666/2800/3000/3200/3333/3466/3600/3733/3866/4000/4133/4266/4400/4466/4600/4800 |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated audio | Yes |
| Integrated LAN | Gigabit |
| RAID | SATA 0, 1, 10 |
| Units per Shipping Box | 10 |
| Unit Calculated Volume | 0.005899 |
| Product Net Weight | 1.1 |
| Unit Calculated Weight | 1.42 |
Description

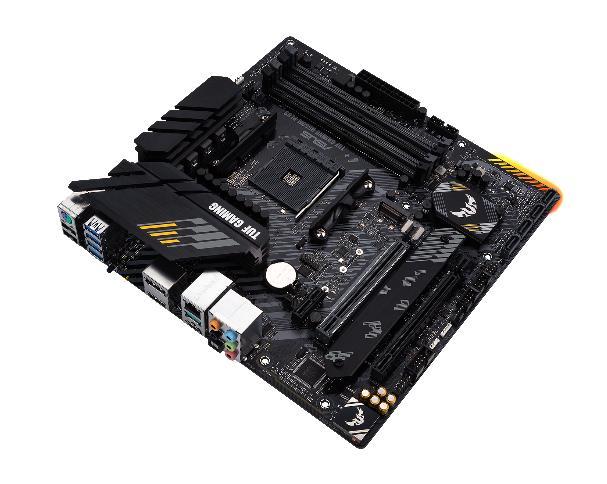

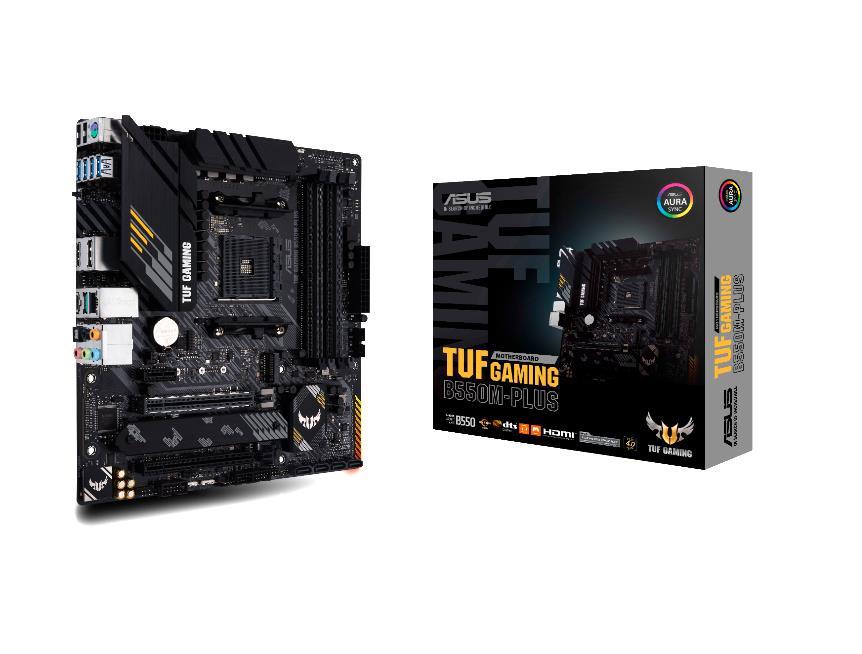

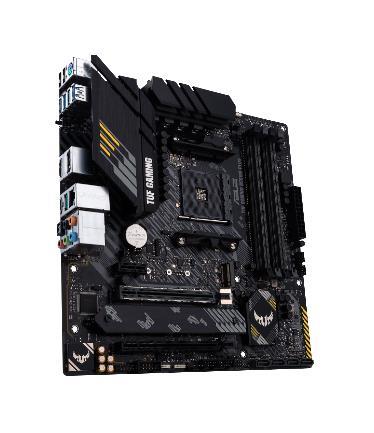

AMD B550 (Ryzen AM4) micro ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, and Aura Sync RGB lighting support
- AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ Processors
- Enhanced power solution: 8+2 DrMOS power stages, ProCool connector, military-grade TUF components, and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM heatsinks, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 2+ utility
- Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C support
- Made for online gaming: 2.5 Gb Ethernet, TUF LANGuard and TurboLAN technology
- Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in
- AI noise-canceling microphone: Provides crystal-clear in-game voice communication
