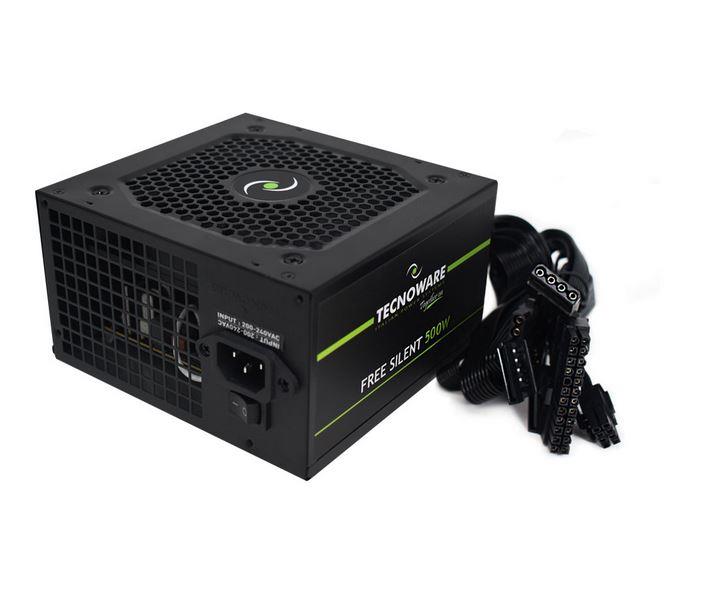

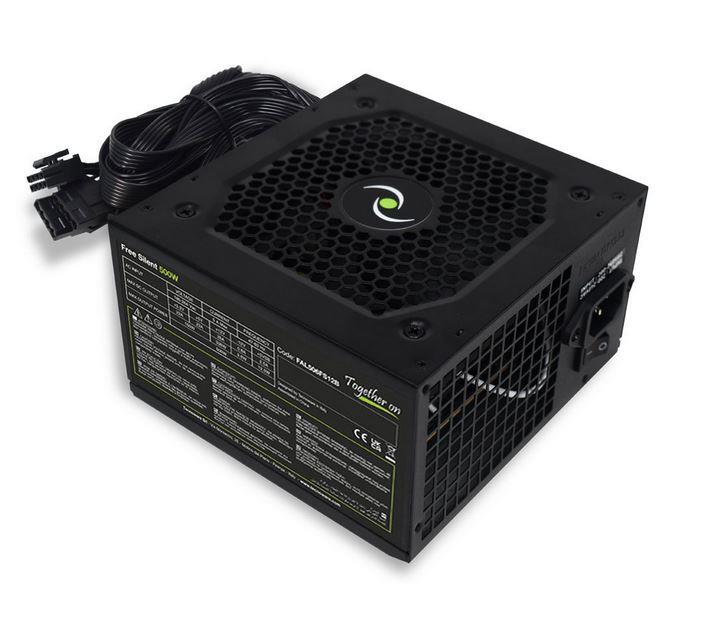

Power Supply TECNOWARE FREE SILENT 500W ATX PC 180 - 264 V 500 W FAL506FS12B
Power Supply TECNOWARE FREE SILENT 500W ATX PC 180 - 264 V 500 W FAL506FS12B
Power Supply TECNOWARE FREE SILENT 500W ATX PC 180 - 264 V 500 W FAL506FS12BPower Supply TECNOWARE FREE SILENT 500W ATX PC 180 - 264 V 500 W FAL506FS12B

Power Supply TECNOWARE FREE SILENT 500W ATX PC 180 - 264 V 500 W FAL506FS12B

TECNOWARESKU: 1290622
No reviews
Price:
€26,71
Stock:
Sold out

Restock information

On the way: 0 pcs.

Description

General Information

  • SKU: 1290622
  • Manufacturer Product Page: TECNOWARE FAL506FS12B
  • Manufacturer Code: FAL506FS12B
  • Catalog: Desktop Computer PSU
  • EAN: 8026475175601
  • Warranty: 24 months
  • Currency: EUR
  • Packaging Quantity: 1

Specifications

Category Code PSU
Unit Box Height 0.098
Unit Box Length 0.2
Unit Box Width 0.155
AC input frequency 47 - 63
AC input voltage 180 - 264
Efficiency 86
Input current 5
Max output current (+12V) 28
Max output current (+3.3V) 22
Max output current (+5V) 22
Max output current (+5Vsb) 2.5
Max output current (-12V) 0.8
Power protection features Over voltage/Overload/Short circuit
Total power 500
ATX power connector (20+4 pin) Yes
CPU power connector (4+4 pin) Yes
Floppy disk drive connector Yes
Floppy drive power connector 1
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 2
Peripheral (Molex) power connectors (4-pin) 2
ATX version 2.01
Power supply unit (PSU) form factor ATX
Purpose PC
Cooling type Active
Fan diameter 120
Fan location Top
Number of fans 1
On/off switch Yes
Product colour Black
Operating relative humidity (H-H) 0 - 95
Operating temperature (T-T) 0 - 40
Storage temperature (T-T) -15 - 40
Certification CE (2014/35/UE; EMC 2014/30/UE)
Compliance certificates RoHS
Depth 140
Height 85
Weight 1000
Width 150
Operating altitude 0 - 3000
Units per Shipping Box 1
Unit Calculated Volume 0.003038
Unit Calculated Weight 0.9

Description

  • Inner power supply for Computer
  • Input voltage 230 Vac 50Hz
  • 12 cm silent cooling fan
  • Fan speed temperature control
  • Overvoltage protection
  • Overload protection
  • Short-circuit protection
  • High MTBF ( >100.000 hours)
  • High reliability
  • High efficiency

Tecnoware Free Silent. Total power: 500 W, AC input voltage: 180 - 264 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Grey, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, Certification: CE (2014/35/UE; EMC 2014/30/UE)
