Description
General Information
- SKU: 1207532
- Manufacturer Product Page: CHIEFTEC GPS-400A8
- Manufacturer Code: GPS-400A8
- Catalog: Desktop Computer PSU
- EAN: 4710713239517
- Warranty: 24 months
- Currency: EUR
- Packaging Quantity: 1
Specifications
| Category Code | PSU |
| Unit Box Height | 0.095 |
| Unit Box Length | 0.235 |
| Unit Box Width | 0.17 |
| AC input frequency | 47 - 63 |
| AC input voltage | 230 |
| Combined power (+3.3V) | 120 |
| Combined power (+5V) | 120 |
| Combined power (+5Vsb) | 12.5 |
| Combined power (-12V) | 3.6 |
| Input current | 4 |
| Max output current (+12V1) | 18 |
| Max output current (+12V2) | 17 |
| Max output current (+3.3V) | 22 |
| Max output current (+5V) | 18 |
| Max output current (+5Vsb) | 3 |
| Max output current (-12V) | 0.3 |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage/Overload/Short circuit/Under voltage |
| Total power | 400 |
| Cabling type | Non-Modular |
| CPU P4 connector (4-pin) | 1 |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| PCI Express power connectors (6+2 pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| 80 PLUS certification | No |
| ATX version | 2.3 |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Fan diameter | 120 |
| Product colour | Black |
| Compliance certificates | RoHS |
| Depth | 140 |
| Height | 87 |
| Width | 150 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003795 |
| Unit Calculated Weight | 1.57 |
Description

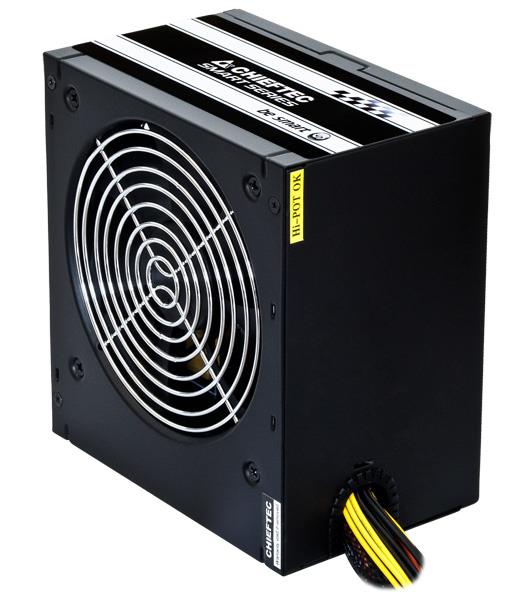

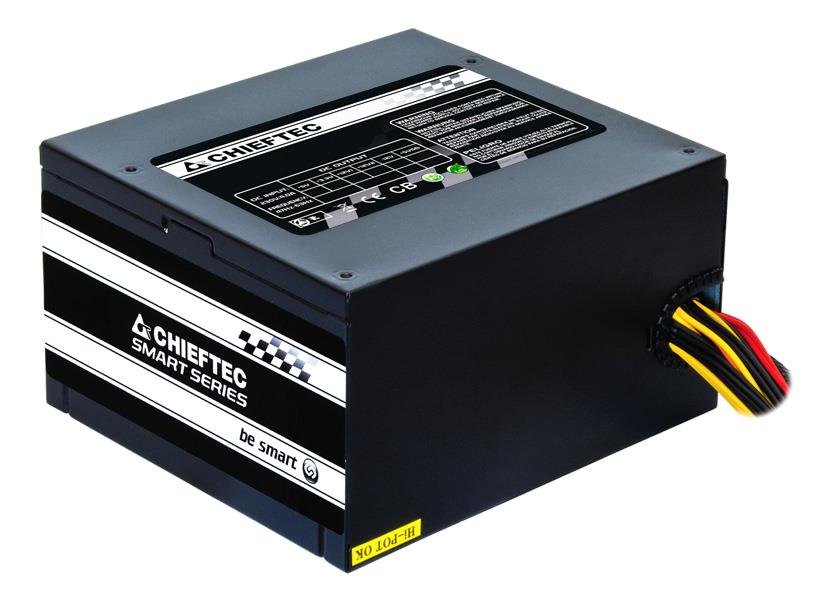

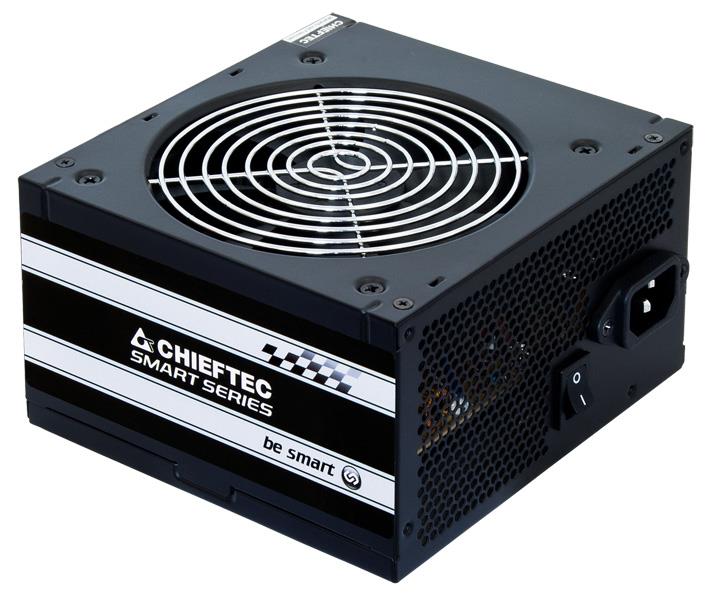

The smart series offers both quality and efficiency. The PSU itself is painted in decent black, equipped with long native cables, a power cord, and a solid carton to protect it. With an efficiency of over 80%, the SMART SERIES fulfills the requirement of green power at an attractive price.
Chieftec Smart GPS-400A8. Total power: 400 W, AC input voltage: 230 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Fan diameter: 12 cm. Compliance certificates: RoHS
