Description

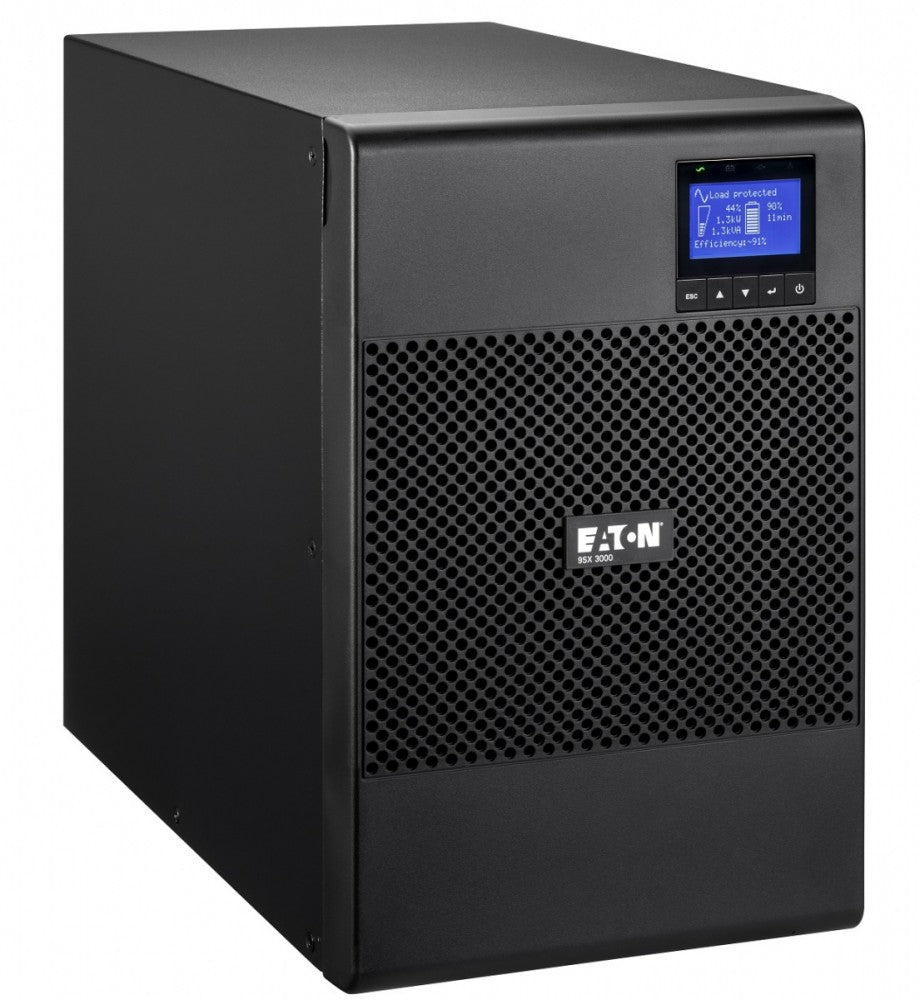

Eaton UPS 9SX 3000i Tower LCD/USB/RS232
Specifications
| Description | UPS with double conversion online 3000 VA / 2700 W, multilingual LCD display, energy meter, 8 IEC 10 A + 1 IEC 16 A sockets (2 manageable groups), slot for optional management card, USB and serial ports, potential-free contacts, connector RPO, power management software compatible with the virtual environment, batteries replaceable while the device is in operation, long failover time with four optional EBM modules. |
|---|---|
| Apparent power | 3000 VA |
| Active power | 2700 |
| UPS Architecture | on-line double conversion |
| Number of phases input | 1 (230V) |
| Voltage | 230 |
| Charging time | 30 |
| Chassis type | Tower |
| Filters / protection | Overdischarge |

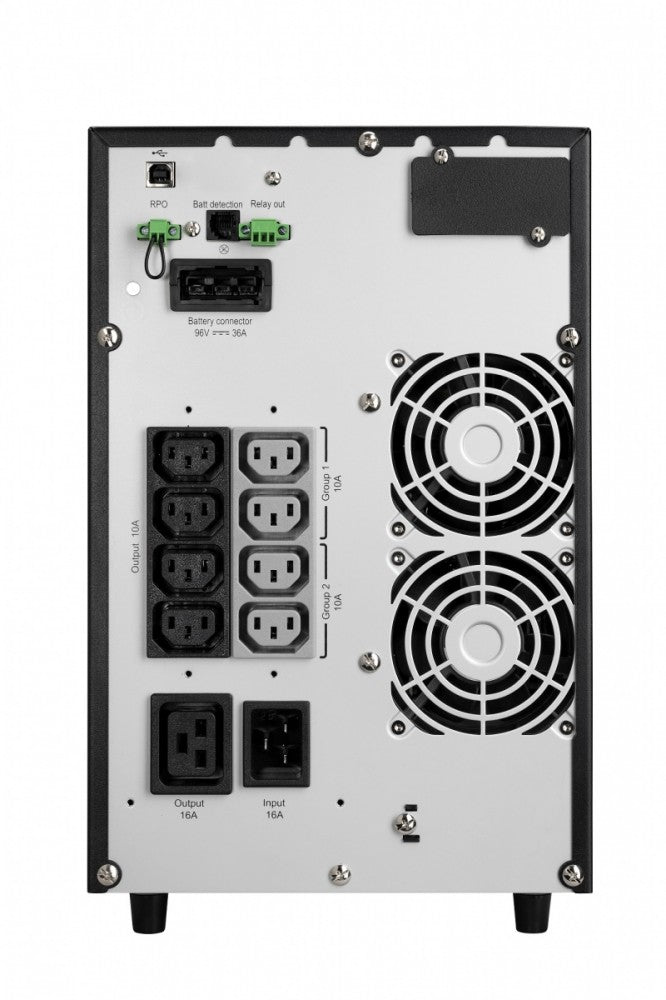

| Input power ports | IEC-C20 |
| Output power ports | 8 x IEC-C13 |
| Output power ports | 1 x IEC-C19 |
| I/O connectors | 1 x USB 2.0 |
| I/O connectors | 1 x RS-232 (COM) |
| Environment requirements | Temperature during operation: 0-40°C Noise level: 45 dB |
| Accessories included | 1 European 16 A input power cable (1.8 m), 2 IEC10A output wires (1.8 m), 1 USB cable (1.8 m), 1 serial cable (1.8 m), Short instruction manual, Safety instructions. |
| Color | Black |
| Dimensions | 346 x 214 x 412 mm |
| Weight | 33.4 |
| Other features | 1 mini-terminal block for remote power off (configurable) 1 block of mini-terminals to the output relay 1 socket for the optional communication module |
