Description

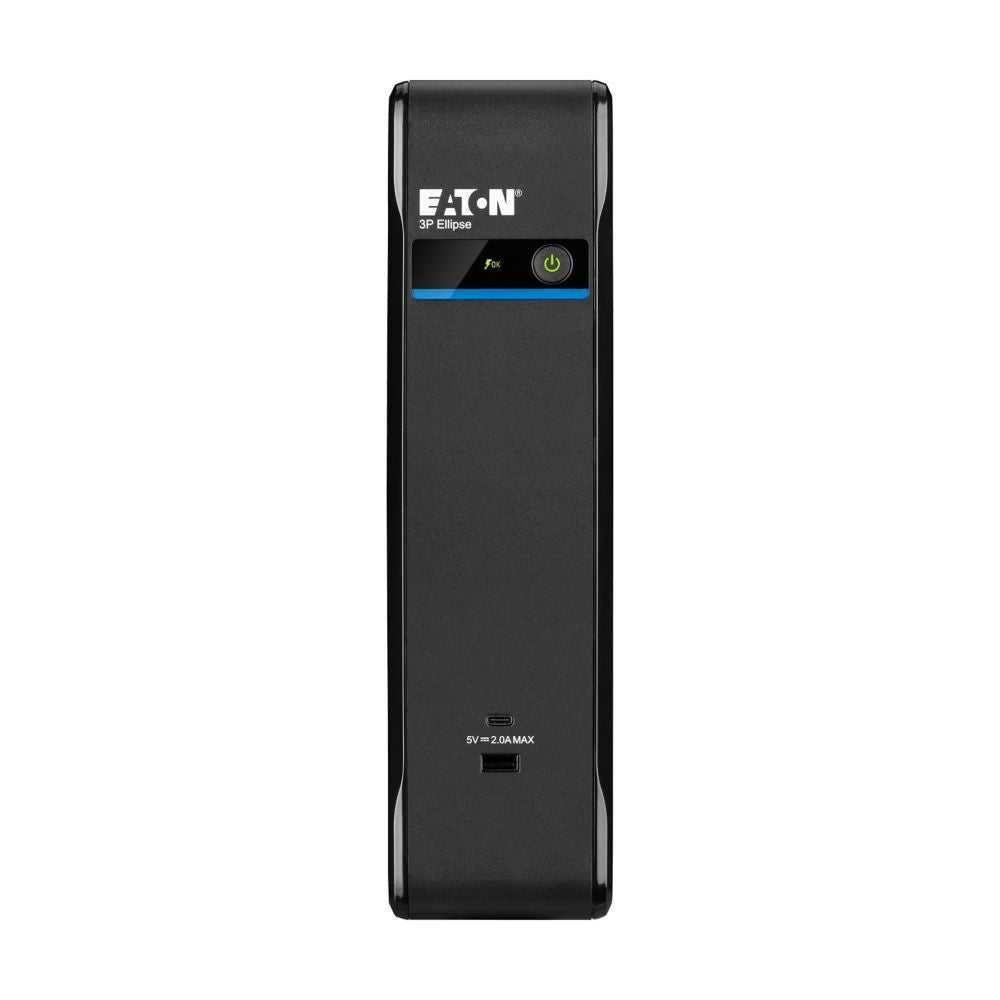

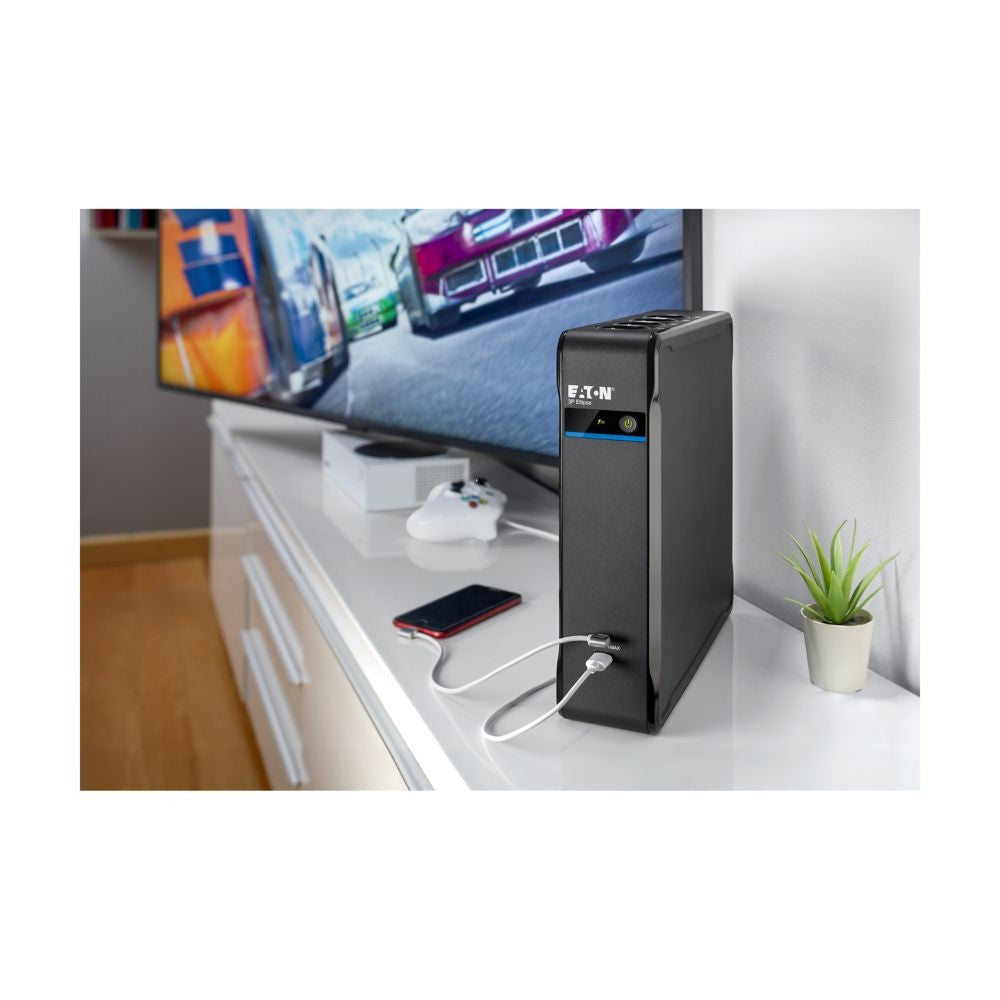

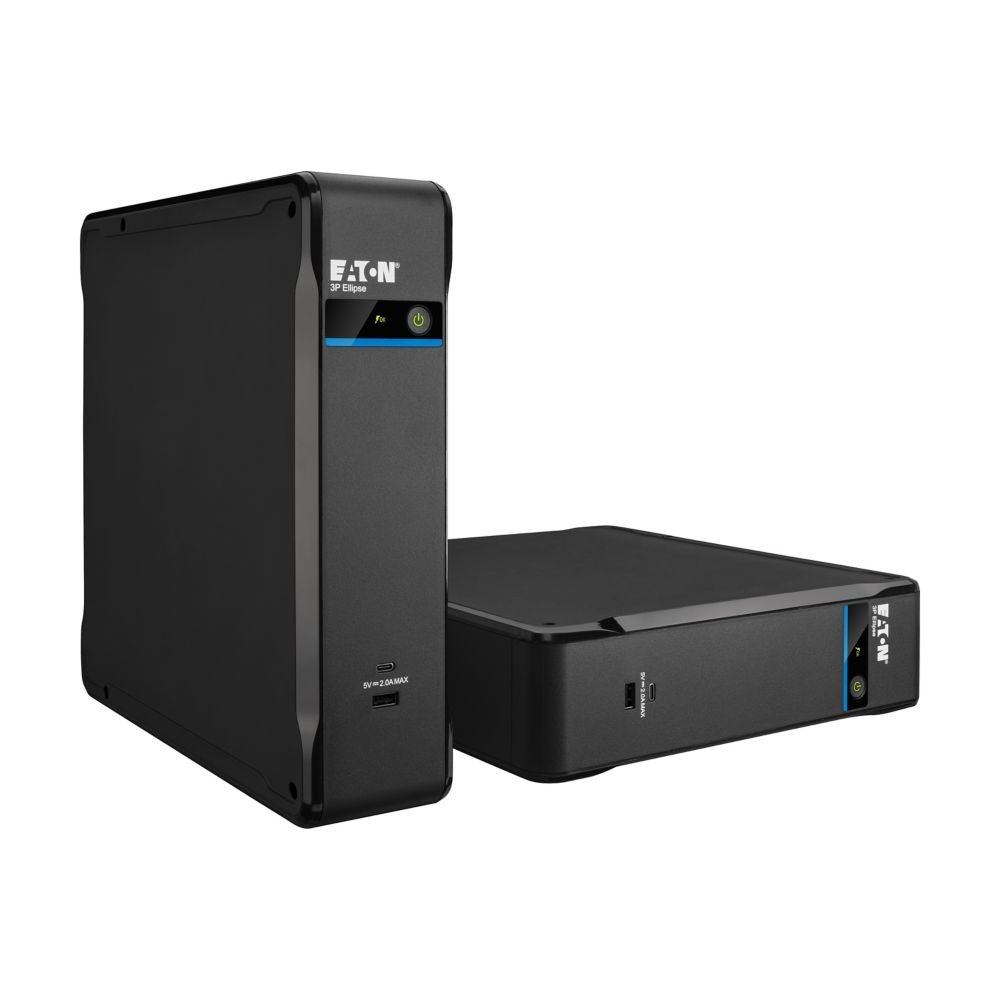

Eaton UPS 3P Ellipse 1300 USB IEC 3P1300UI
Specifications
| Description | Eaton 3P Ellipse UPS USB IEC Power: 1300 VA, 840 W Input: C14 Outlets: (4) C13, (4) C13 (surge protection only) USB charging Form factor: Tower Eaton 3P Ellipse The 3P Ellipse UPS is the latest addition to Eatons power protection portfolio. Its elegant design and near-silent operation make this compact UPS suitable for both home and small business use. With up to 12% more power compared to its predecessor (Ellipse ECO), it can support a wider range of devices-from home AV and Hi-Fi systems to advanced gaming computers. No additional adapters are needed, as devices can be connected directly to FR or Schuko outlets on the UPS, which is a major improvement over models limited to IEC sockets. Optional cloud connectivity via the CLOUD-PS card enables remote monitoring, turning the 3P into a cloud-connected UPS with real-time status and notifications accessible via mobile app or web browser. Built-in surge protection Compliant with IEC 61643-11 standard Cloud monitoring (optional) Real-time status and alerts via CLOUD-PS card Mobile device charging USB-A and USB-C ports on the front panel Automatic computer shutdown Supported via UPS Companion software Up to 12% more power Compared to previous Ellipse ECO models |
|---|---|
| Apparent power | 1300 VA |
| Active power | 840 |
| UPS Architecture | off-line (standby) |
| Number of phases input | 1 (230V) |
| No. of batteries | 2 |
| Voltage | 12 |
| Battery capacity | 7 |
| Backup time (100% load) | 1.25 |
| Chassis type | Tower |
| Filters / protection | Surge |
| Filters / protection | Overdischarge |
| Special functions | Convenient, ultra-slim design for easy installation in any office environment High-performance surge protection device compliant with IEC 61643-11 standard 8 outlets for connecting a computer and peripheral devices 2 USB charging ports Slot for a card enabling optional cloud connectivity HID-compliant USB port (cable included) for automatic integration with major operating systems (Windows/Mac OS/Linux) Easy battery replacement helps extend UPS lifespan Replaceable batteries Automatic battery test Cold start capability |
| Software | Eaton UPS Companion |
| Input power ports | IEC-C14 |

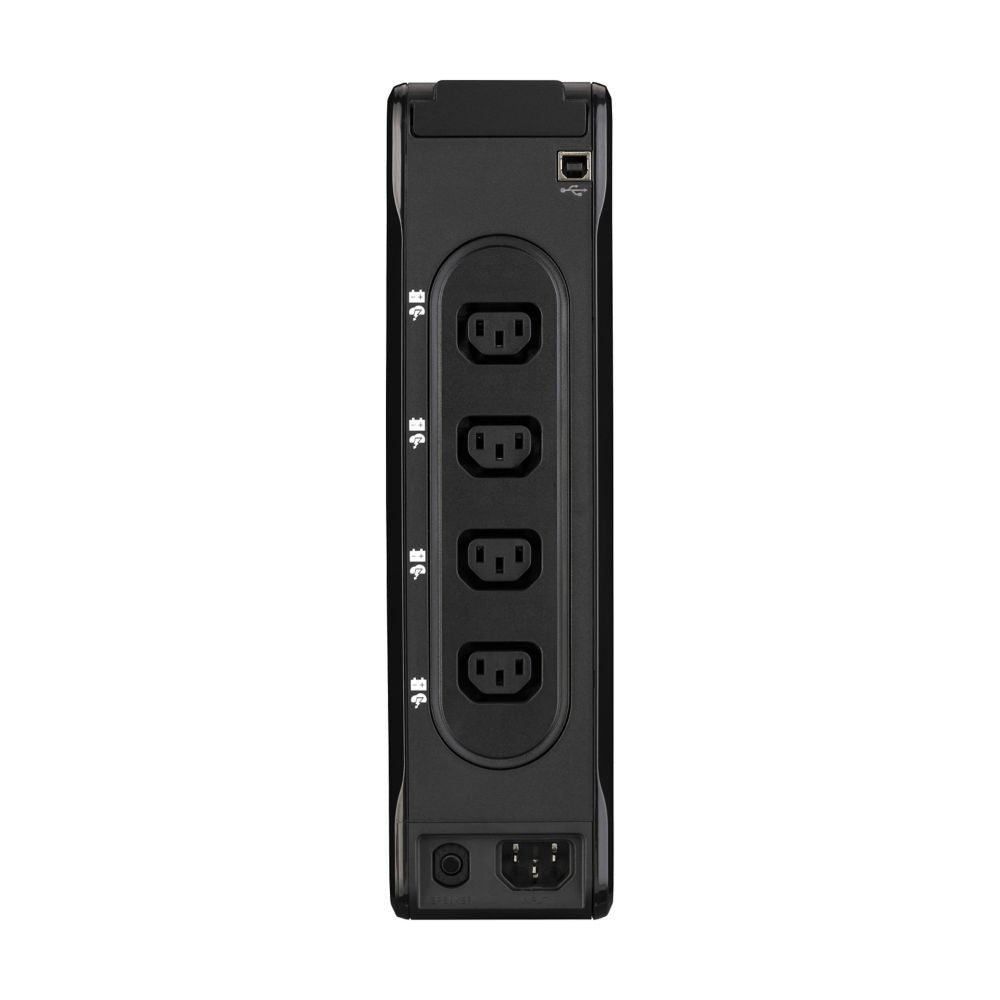

| Output power ports | 8 x IEC-C13 |
| I/O connectors | 1 x USB (Type B) |
| I/O connectors | 1 x USB 2.0 |
| I/O connectors | 1 x USB (Type C) |
| Environment requirements | Temperature range: 0°C to 40°C (32°F to 104°F) Relative humidity: 0%-95% (non-condensing) |
| Accessories included | UPS 2 × IEC-IEC cables USB cable Quick start guide Safety instructions |
| Color | Black |
| Dimensions | 312 x 305 x 81 mm |
| Weight | 7 |
| Other features | Runtime at half load: 8.5 minutes Output outlets: 4 × C13 (surge protection + battery backup) 4 × C13 (surge protection only) |
