Description

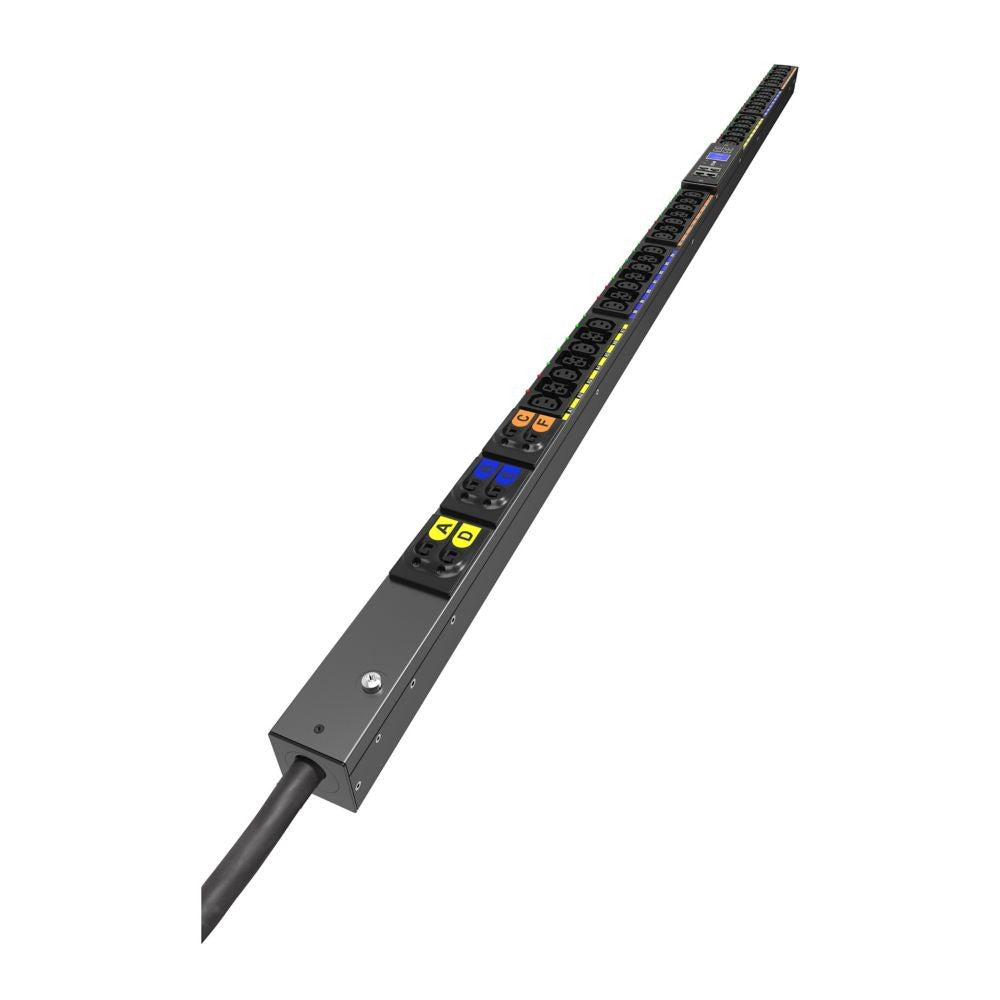

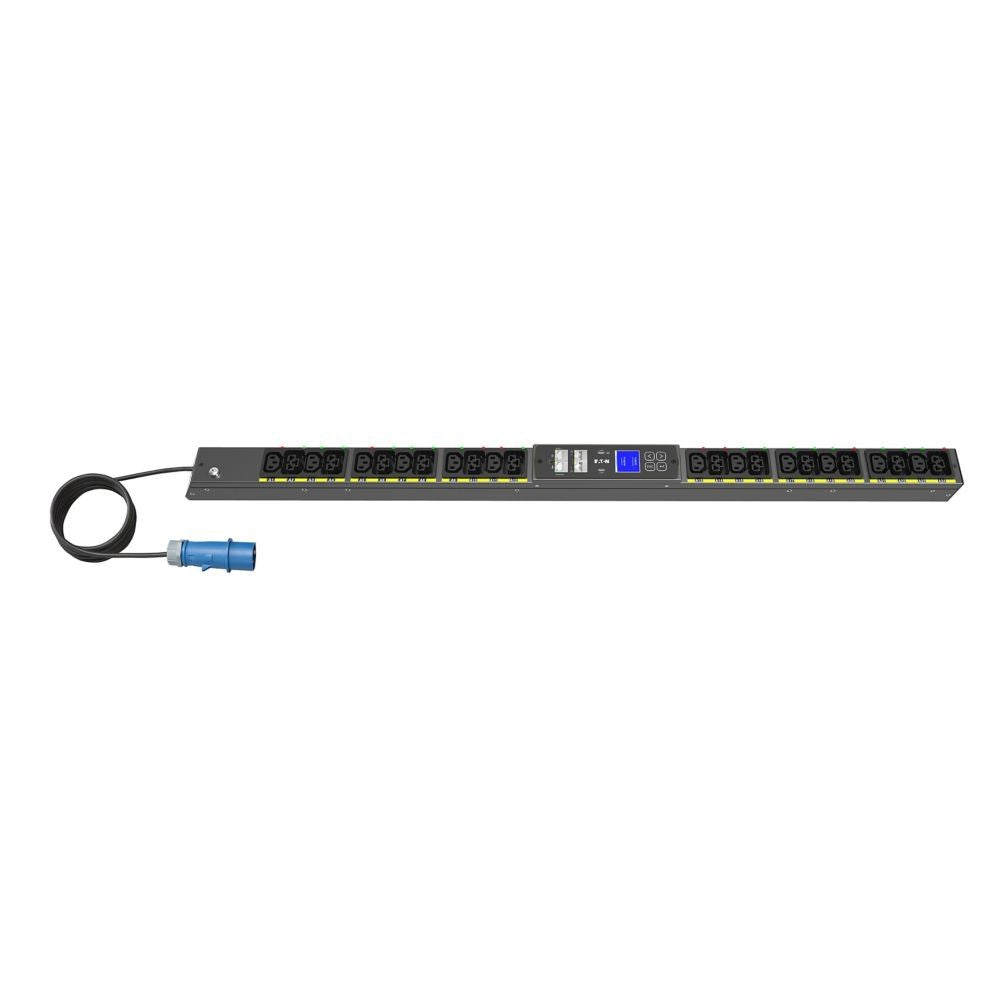

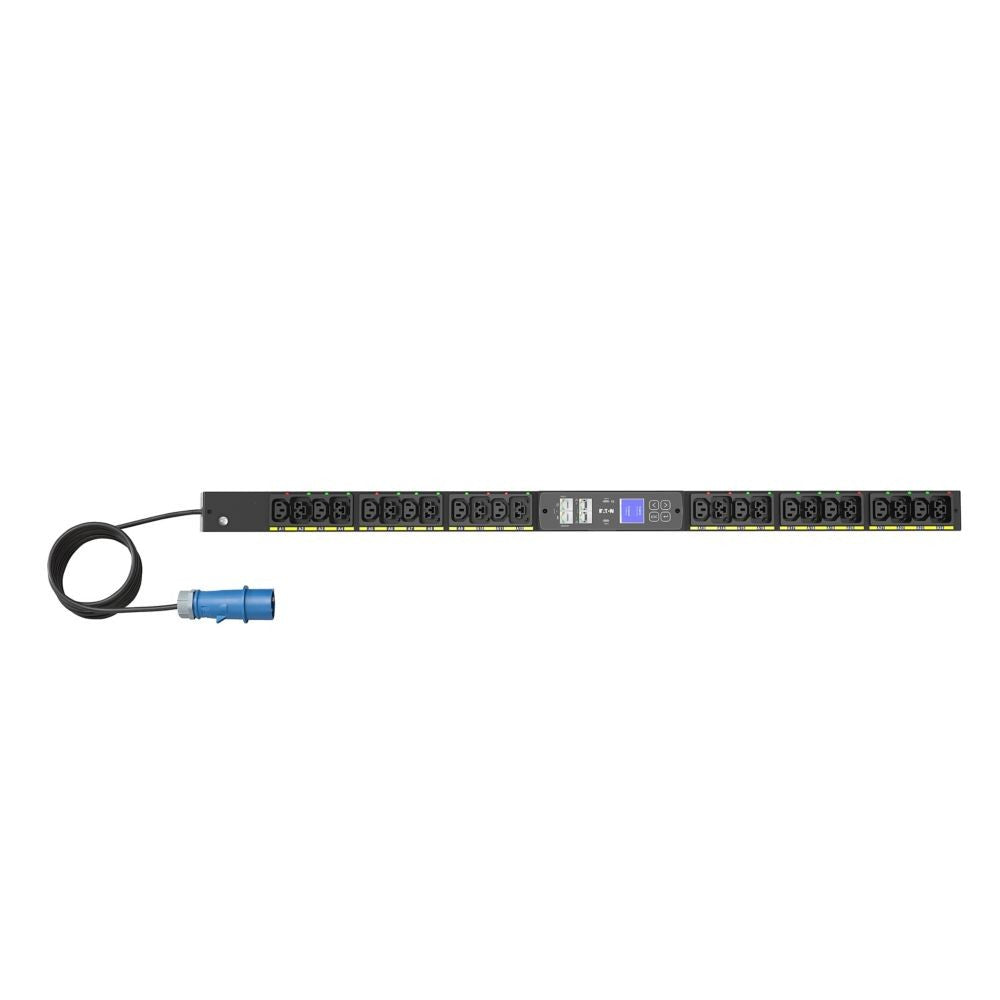

Eaton PDU G4 MA 0U 309 16A 1P 12xC13,12xC39
Specifications
| Description | Remote site management Universal C39 socket supports C14 or C20 power cable plug High-retention sockets designed to securely fit standard power cables and support P-Lock power cords Cybersecurity standards UL 2900-1 and IEC 62443-4-2 Hot-swap network control module Network cascading, connect up to 32 PDUs using a network loop Power sharing between two PDU network modules ensures continuous access to PDU data and sensors IEC billing-grade measurement accuracy of 1% Class 1 Gigabit network card with 2 Gb ports Supported protocols: RestAPI, Modbus TCP, SNMP, LDAP, HTTPS Socket-level measurement accuracy of 1% (V, W, A) Outlet control for switching on/off, rebooting, and sequential startup |
|---|---|
| Maximum power | 3.7 |
| No. of C13 sockets | 12 |
| Number of sockets type C39 | 12 |
| Cable length | 3 |
| Plug | IEC 309 (16A) |
| Switch | No |
| Mounting | Base |
| Mounting | Rack |
| Rack dimensions | 0U |
| Other I/O ports | 2 x USB |
| Other I/O ports | 2 x RJ-45 |
| Accessories included | Rack PDU Rack mounting accessories Quick start guide Safety instructions |
| Color | Black |
| Dimensions | 1000 x 53 x 52 mm |
| Weight | 3 |
